DSC PowerSeries PC1616 Tri-Path Ethernet/WiFi/Cellular Verizon LTE Hybrid Security System (Powered by Alula)
Please Note: DSC PowerSeries PC1616 Phone/VoIP-Line Hardwired Security System has been discontinued without replacement.
▼ Compatible DSC Hardwired Security Sensors ▼
▼ Compatible 433 MHz Wireless Security Sensors ▼
List Price: $146.29
Your Price: $97.52
List Price: $208.55
Your Price: $139.04
DSC PowerSeries PC1616 Kit Description:
The DSC PowerSeries PC1616 hybrid tri-path security system kit with included Alula multi-band tri-path ethernet/wifi/cellular Verizon LTE alarm communicator is a great solution for small business and home security. The DSC PC1616 control panel paired with the Alula BAT-CONNECT-V alarm communicator, allows for easy integration of a large array of compatible security devices that deliver up to 32 zones of protection.

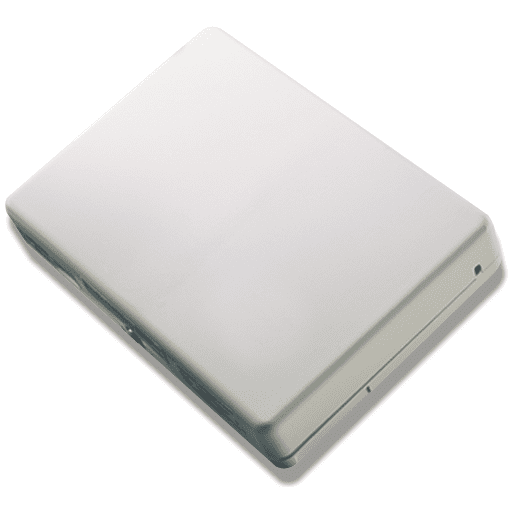

The PC1616 control panel comes out of the box with 6 hardwired on-board zones and it may be expanded to a total of 14 hardwired zones by using a PC5108 hardwired 8-zones expansion module. In addition, the PC1616 can accomodate up to 32 total wireless zones by adding an DSC wireless receiver (such as; RF5132-433 wireless receiver or RFK5501 combo keypad w/32-zone wireless receiver). With an DSC wireless receiver installed the PC1616 is compatible with the full line of DSC wireless security products. The PowerSeries PC1616 also gives the user more control, thereby enhancing the functional experience. The user can "Arm Away", "Arm Stay" or "Disarm" all partitions with just one operation. The PC1616 features up to 47 user codes, up to 8 keypads, and 2 partitions. With global arming and disarming, and scheduling auto arming and disarming, the DSC PC1616 panel is a preferred choice of installer's and DIYer's.
The new PowerSeries PC1616 control panel from DSC makes installation easy, simple and fast with label programming using the pre-loaded library. The PC1616 panel features template programming for new users and a programming interface that experts will be familiar with. With a library of over 250 commonly used names in English, French and Spanish, label programming is now a snap with the PowerSeries PC1616 v4.6 panel. DIYer's can now assign a unique 3-digit code to display a full descriptive label (e.g., code 190 displays "Window"), avoiding time and mistakes with more conventional keypad entry. For additional customization, other pertinent details can also be added, such as the zone or floor to make it easy for the owner to identify faults (e.g., "Bedroom Window"). The PowerSeries PC1616 also features an independent end-of-line (EOL) configuration that makes installation faster than ever before. Each hardwired zone can be independently matched to the devices EOL configuration, reducing the time required to get a common EOL configuration across all security devices. Likewise, wireless device enrollment can be enrolled quick and easily. With the wireless device enrollment process, DIYer's are not required to manually program serial numbers or wireless attributes. Instead, enrollment is completed by confirming the confirm Electronic Serial Numbers (ESN), zone numbers and zone type through a series of user friendly screens.
This PowerSeries PC1616 hybrid dual-path (ethernet/wifi/cellular Verizon LTE) security system kit includes; hardwired control panel (PC1616NK), control panel battery (BAT1245), power transformer (PTD1640U), hardwired LCD picture-icon keypad (PK5501ENG), wireless 32-zone alarm receiver (RF5132-433), and an Alula tri-path ethernet/wifi/cellular Verizon LTE alarm communicator (BAT-CONNECT-V). This PC1616 kit is equipped to send the alarm signals over the primary ethernet communication path, and if down, over the secondary wifi or cellular Verizon LTE communication path to the GeoArm central monitoring station using the included Alula BAT-CONNECT-V tri-path communicator.
Do-it-yourself (DIY) installations are an emerging new trend in the security industry. Being one of the pioneers in this industry, we are the perfect partner for any DIYer considering an installation of a new DSC PowerSeries security system. You can be confident that your DIY security system installation will be backed by a team of real security professionals and DSC's 1-year limited manufacturer's warranty. With 30 years of professional security installation experience, GeoArm has the technical know-how to make your DIY home security installation as easy and seamless as possible.
Intended Security Applications:
- Homes
- Townhomes
- Apartments/Condos
- Offices
- Retail Spaces
- Small Businesses
- Warehouses
- Convenience Stores
- Gas Stations
- Churches
DSC PowerSeries PC1616 Kit Documents:
• Data Sheet for DSC PowerSeries PC1616 Hardwired Control Panel
• User Manual for DSC PowerSeries PC1616 Hardwired Control Panel
• Quick Installation Guide for DSC PowerSeries PC1616 Hardwired Control Panel
• Installation Guide for DSC PowerSeries PC1616 Hardwired Control Panel
• ULC Installation Guide for DSC PowerSeries PC1616 Hardwired Control Panel
• Programming Worksheet for DSC PowerSeries PC1616 Hardwired Control Panel
DSC PowerSeries PC1616 Kit Specifications:
• 6 on-board zones
• Expandable to 16 hardwired zones
• Expandable to 32 wireless zones
• 2 PGM outputs; expandable to 14 (PC5204, PC5208)
• Connect up to 8 supervised keypads
• Supports wire free keypads with TR5164-433 transceiver
• Template programming
• 2 partitions
• 500-event buffer
• 48 user codes
• CP-01 compliant

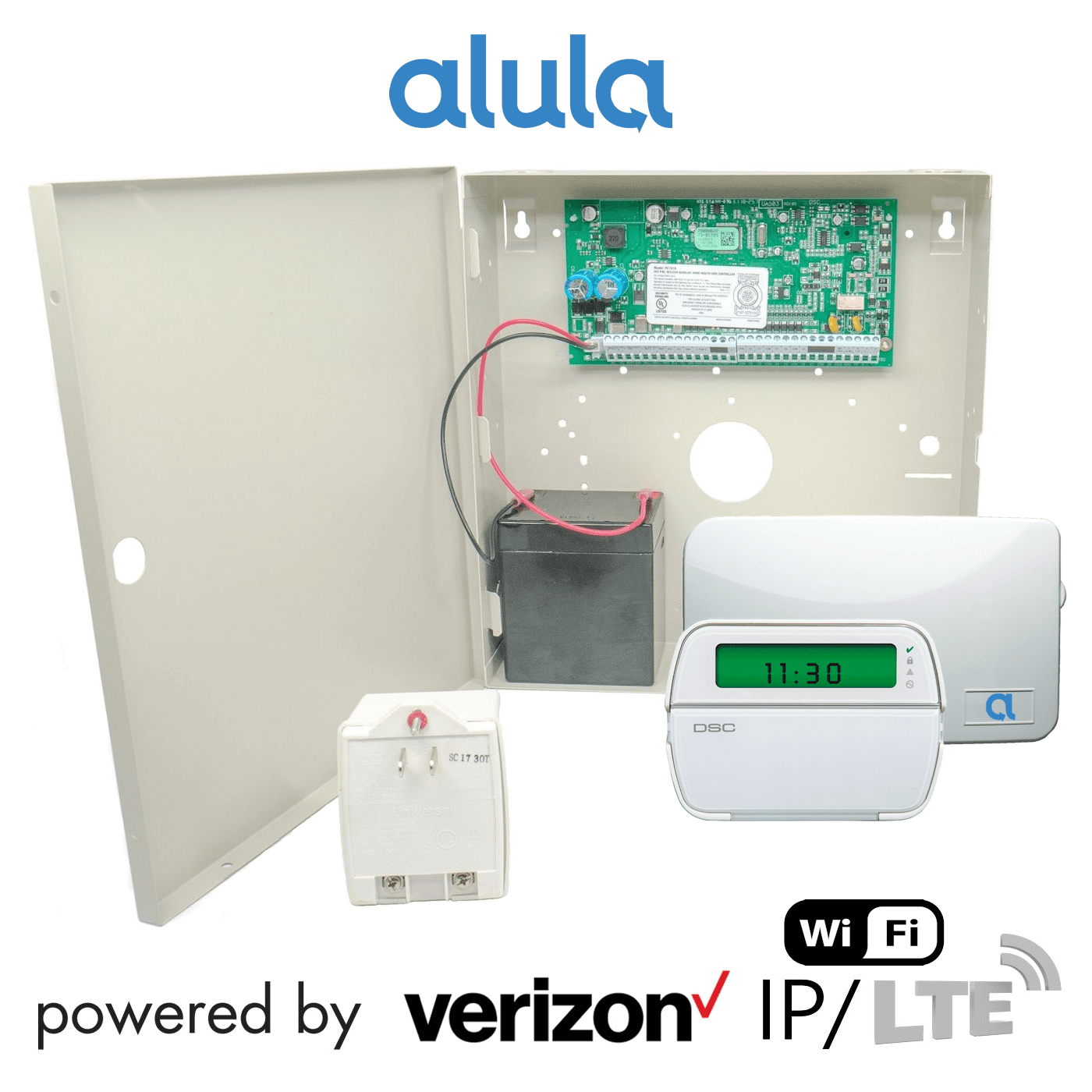

DSC PowerSeries PC1616 Kit Includes:

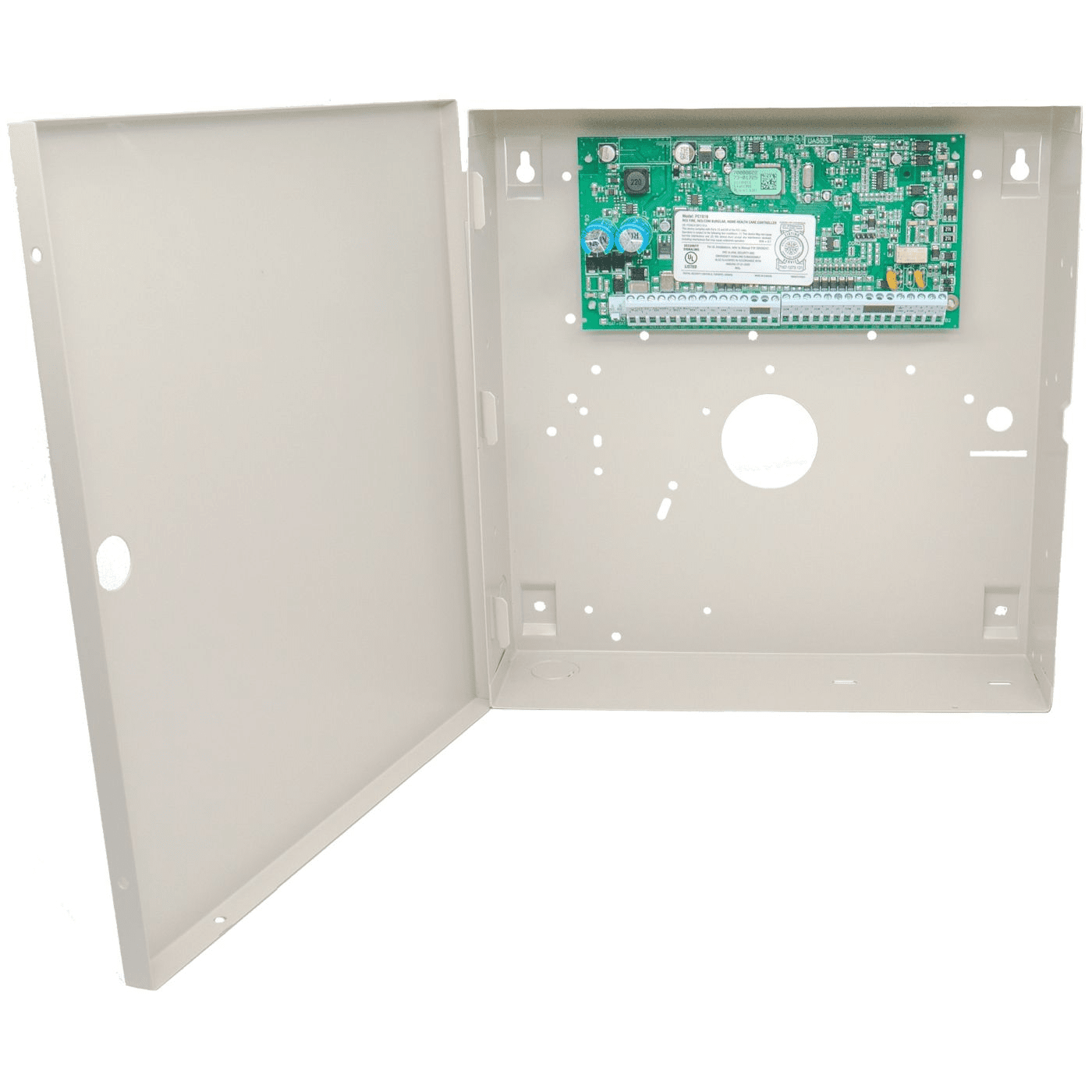

(1) DSC PC1616 PowerSeries Alarm Control Panel (PC1616NK)

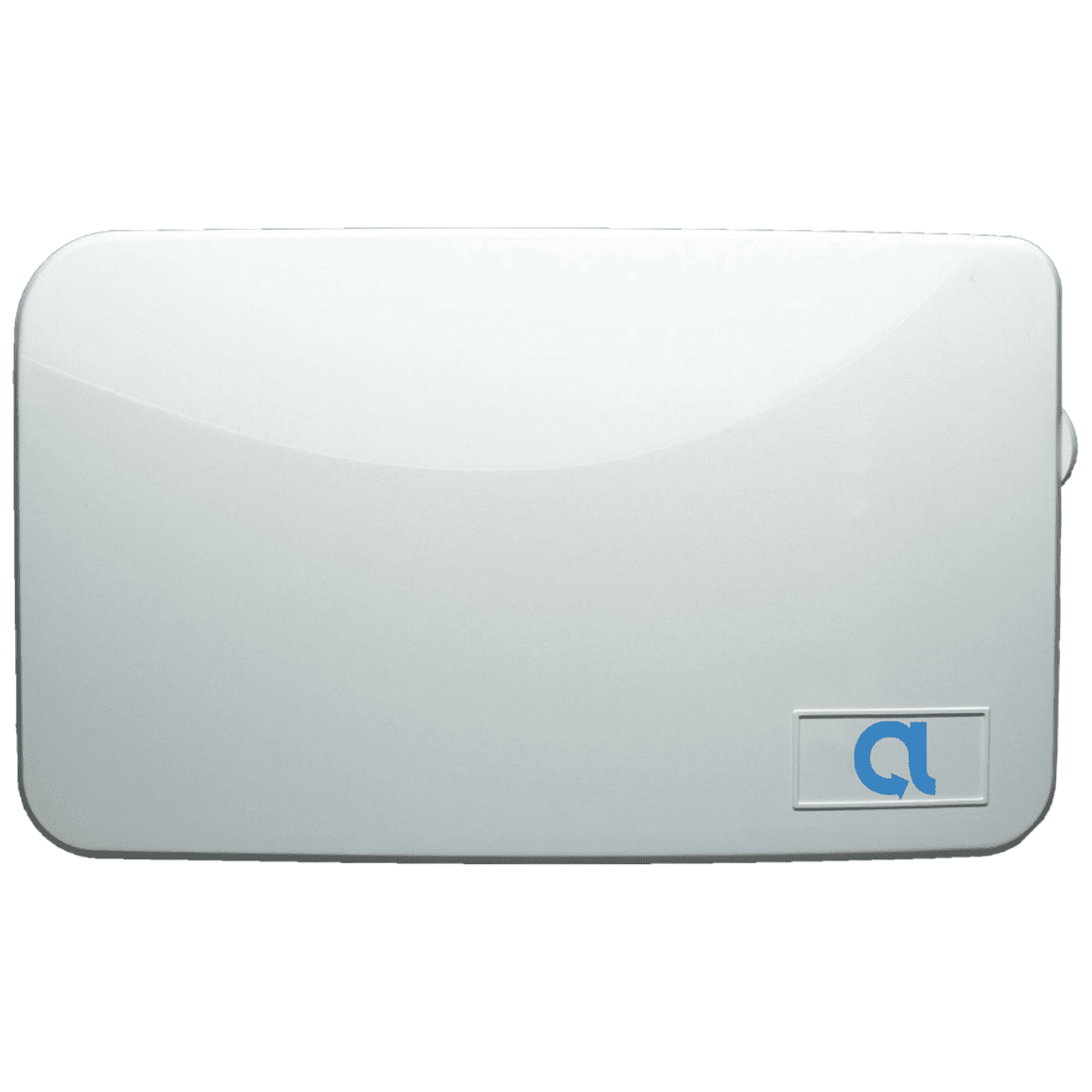

(1) Alula Tri-Path Ethernet/Wifi/Cellular Verizon LTE Alarm Communicator (BAT-CONNECT-V)

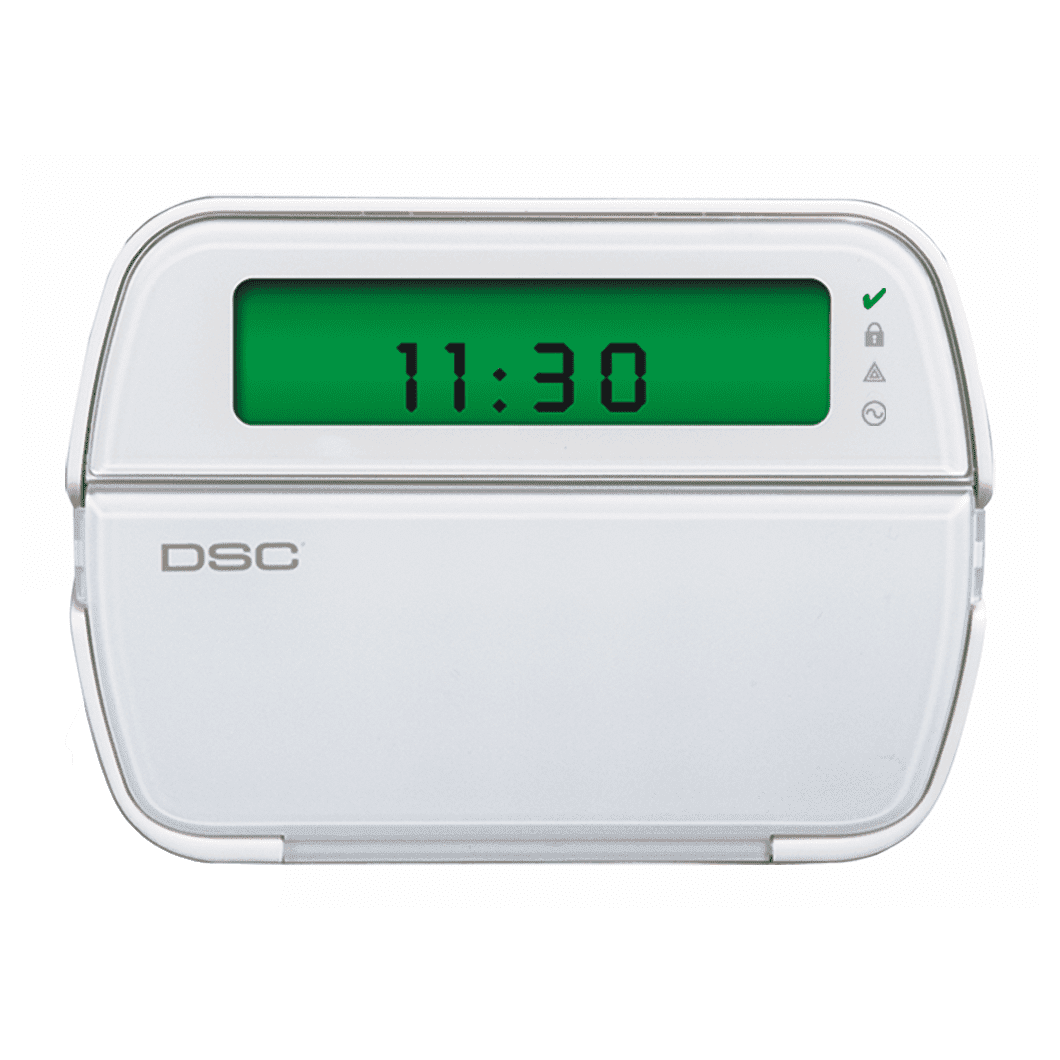

(1) DSC Picture-Icon Alarm Keypad (PK5501ENG)
(1) BAT1245 Sealed Lead Acid 12V 5.0AH Alarm Battery (BAT1245)
(1) DSC 16.5V 40VA Plug-In AC Power Transformer (PTD1640U)
Miscellaneous: User Manual
