▼ DSC PowerSeries Hybrid Security Systems ▼
 |

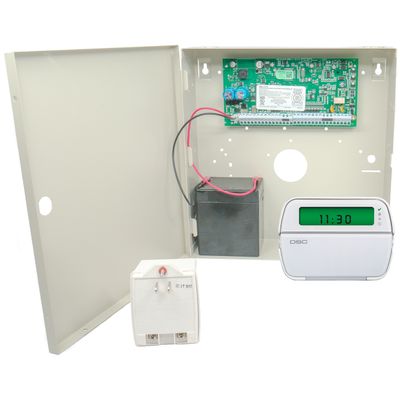

DSC Hybrid PC1616 Kits |

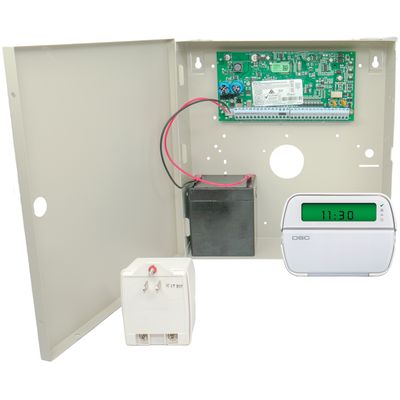

DSC Hybrid PC1832 Kits |

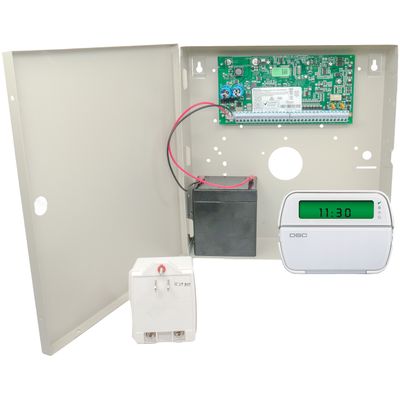

DSC Hybrid PC1864 Kits |
| Number of Built-in Wired Zones: | 6 | 8 | 8 |
| Total Number of Zones Supported: | 16 | 32 | 64 |
| Hardwired Zones Supported: | 14 (1 x PC5108) | 32 (3 x PC5108) | 64 (7 x PC5108) |
| Number of Wireless Receivers: | 4 (PC5320) | 4 (PC5320) | 4 (PC5320) |
| On-Board PGM Outputs: | PGM 1 = 50mA PGM 2 = 300mA |
PGM 1 = 50mA PGM 2 = 300mA |
PGM 1, 3, 4 = 50mA PGM 2 = 300mA |
| Number of Main Panel Low-Current PGM Outputs: | 1 | 1 | 3 |
| Number of Main Panel High-Current PGM Outputs: | 1) | 1 | 1 |
| PGM Expansion: | 8 x 50mA (PC5208) 4 x 500mA (PC5204) |
8 x 50mA (PC5208) 4 x 500mA (PC5204) |
8 x 50mA (PC5208) 4 x 500mA (PC5204) |
| Total Number of Keypads: | 8 | 8 | 8 |
| Number of Access Codes: | 47+ Master Codes | 71+ Master Codes | 94+ Master Codes |
| Number of Partitions: | 2 | 4 | 8 |
| Flexible Alarm Communication Paths: |
 |
|
|
| Burglary Monitoring: |
|
|
|
| Fire/Smoke Monitoring: |
|
|
|
| Residential & Commercial Monitoring: |
|
|
|
|
Environmental Monitoring: (Carbon Monoxide, Flood, Freeze) |
|
|
|
| Keypad Zone Expansion: | Yes | Yes | Yes |
| Hardwired Zone Expansion: | Yes | Yes | Yes |
| Wireless Zone Expansion: | Yes | Yes | Yes (64 Wireless) |
| Addressable Zone Expansion: | Yes | Yes | Yes (32 Addressable) |
| Phone Line Supervision: | Yes | Yes | Yes |
| Siren Supervision: | Yes | Yes | Yes |
| SIA CP-01 Compliant: | Yes | Yes | Yes |
| Event-Initiated Personal Paging: | Yes | Yes | Yes |
| Upload/Download Support: | Yes | Yes | Yes |
| Direct-Connect (PC Link) Downloading Support: | Yes | Yes | Yes |
| DLS SA End-User Downloading Support: | Yes (v4.1 & higher) | Yes (v4.1 & higher) | Yes (v4.1 & higher) |
| Audio Alarm Verification: | Yes | Yes | Yes |
| Internet Alarm Communications: | Yes | Yes | Yes |
| Cellular Alarm Communications: | Yes | Yes | Yes |
| Panel Event Buffer: | 500 | 500 | 500 |
| Bell Output: | 12V / 700mA (cont) | 12V / 700mA (cont) | 12V / 700mA (cont) |
| Battery Required: | 4Ah / 7Ah /14 Ahr | 4Ah / 7Ah /14 Ahr | 4Ah / 7Ah /14 Ahr |
