PC5108 - DSC Hardwired 8-Zone Alarm Expansion Module (for PowerSeries Control Panels)

PC5108 - DSC Hardwired 8-Zone Alarm Expansion Module (for PowerSeries Control Panels)
PC5108 - DSC Hardwired 8-Zone Alarm Expansion Module (for PowerSeries Control Panels)
Item# PC5108

Please Note: The DSC PC5108 hardwired 8-zone alarm expansion module has been discontinued and replaced by the PC5208 model number.

DSC PC5108 Product Description:

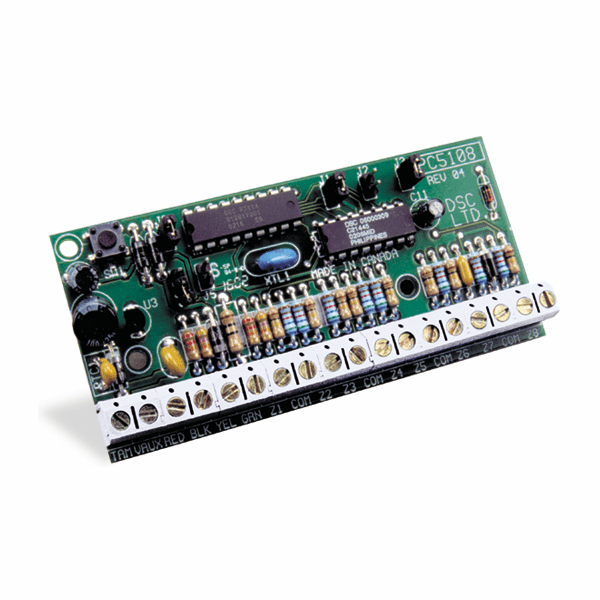

The DSC PC5108 8-zone expansion module can be used to extend up to additional 8 hardwired input zones onto compatible DSC PowerSeries hardwired control panel (e.g. PC5015, PC1616, PC1832, PC1864). There is a built-in tamper switch on the expander module located in the top left corner of the PC5108 circuit board.

The PC5108 module may be installed in the same metallic cabinet as the alarm controller/power supply or in a separate enclosure (PC4003C). Internal and/or external wiring for the PC5108 shall be routed, supported, clamped or secured in a manner that reduces the likelihood of (a) excessive strain on wire and termal connections, (b) loosening of terminal connections, and (c) damage of conductor insulation.

Product Features:

DSC PC5108 Product Specifications:


  • Board Dimensions: 45 mm x 92 mm
  • Operating Temperature: 14°F to 131°F (-10°C to 55°C)
  • Relative Humidity: Up to 93% non condensing
  • Power Input Rating: 12VDC/135mA (set and unset state)
  • Board Current Draw: 35mA (set and unset state)
  • VAUX Output Ratings: 12VDC, -15%/ 10% when input voltage is between 85% to 110% of rated value and output current is between 0mA to 100mA max.
  • Resettable fuse (PTC): used on circuit board instead of replaceable fuses

DSC PC5108 Product Compatibility:


  • PowerSeries PC1616
  • PowerSeries PC1832
  • PowerSeries PC1864
