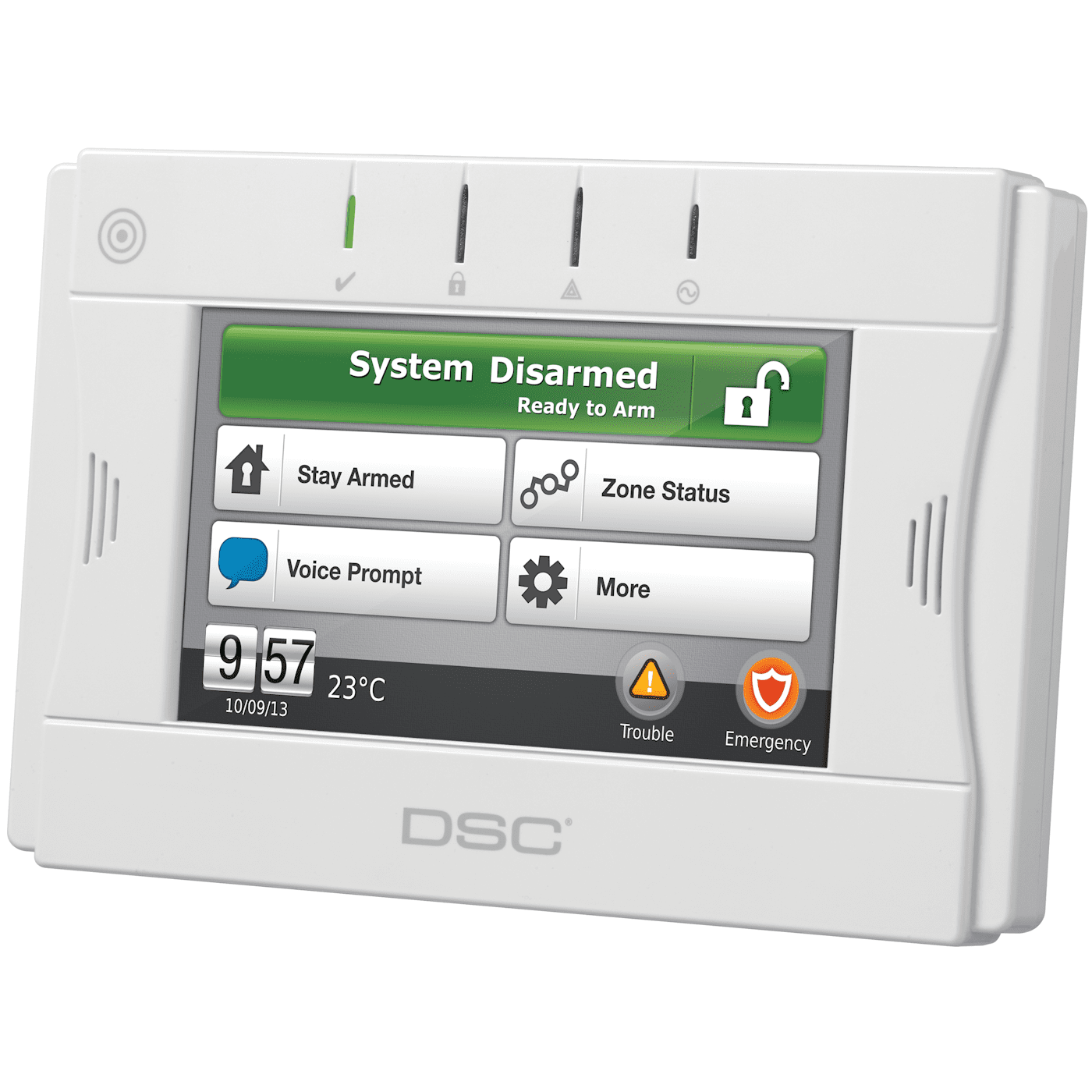

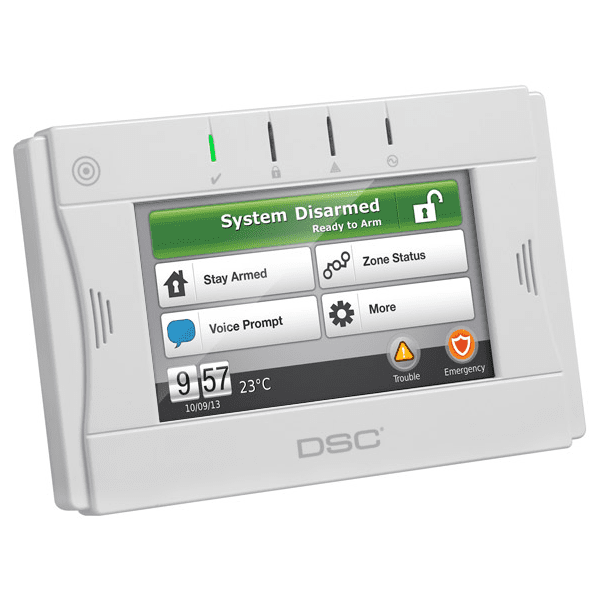

WTK5504 - DSC Wireless 2-Way Touchscreen Alarm Keypad (for DSC Alexor/Impassa/PowerSeries Control Panels)
Please Note: The DSC WTK5504 wireless touchscreen alarm keypad has been discontinued without replacement.
DSC WTK5504 Product Description:
The DSC WTK5504 wireless 2-way touchscreen alarm keypad that is compatible with the DSC Alexor, DSC Impassa and DSC PowerSeries control panels. The WTK5504 keypad offers an ultramodern take on the look of a traditional keypad and presents a solution that easily fits into the most updated and contemporary dÉcor.
Designed to enhance the user experience, controlling the compatible DSC security system has never been easier. At the touch of a finger, extremely intuitive, menu-driven screens allow full control over the system. For ultimate convenience and comfort, the 2-Way Wireless TouchScreen boasts a Voice Prompts and Voice Chime feature, offering verbally enunciated system status updates.
Capitalizing on the wireless factor, the DSC WTK5504 2-Way Wireless TouchScreen can be conveniently installed anywhere in the house on a wall or desk stand mount. With minimal installation time required and no holes to drill, the 2-Way Wireless TouchScreen offers homeowners more choice in where the keypads may be located throughout the home, including locations where wiring is difficult or impossible. Aesthetically pleasing and simple to use, this 2-Way Wireless TouchScreen becomes the preferred way to control the user functions of the security system. The DSC 2-Way Wireless TouchScreen has been designed with the user in mind, without sacrificing form for function. Configuring, programming and controlling user options of the system is now easily achieved through an intuitive, menu driven, interface.
Seamlessly integrated with Alexor, Impassa and PowerSeries (via the TR5164) security systems, the full-message WTK5504 2-Way Wireless TouchScreen supports up to a maximum of 64 zones. Equipped to support multiple languages, a maximum of four Wireless TouchScreens can be connected, depending on the security system that they are connected to. The 2-Way Wireless TouchScreen conveniently displays user-relevant information, such as the outside temperature, registered through the WT4911 Outdoor Siren.
The WTK5504P Prox version of the 2-Way Wireless TouchScreen allows the user to arm or disarm the system in one easy swipe of the prox tag, without needing to remember a security code. Rechargeable batteries and a "low charge" indicator take away the hassle of battery replacement operations. Mount the keypad where it is accessible from designated points of entry. Once a dry and secure location is selected, perform the following steps to mount the keypad.
Product Features:
- 4.3" full color display
- AC plug-in
- Rechargeable batteries
- 24 hr battery back-up
- User programming
- User function
- Night light with adjustable brightness
- Sleep mode
- Case Tampers
- Voice chime/voice prompts
- Wall and desk stand mount
- Multi-language support
- 3-5 year battery life
- Tamper switch
- 5 programmable function keys
- 3 emergency keys
- Ready, Armed, Trouble and AC status LEDs
- Supports Alarm.com messaging
- Compatible with Alexor, Impassa and PowerSeries (via TR5164)
- Backed by DSC's 1-year limited manufacturer's warranty
DSC WTK5504 Product Specifications:
- Dimensions (on the backplate): 6" x 4" x 1-1/4" in (153mm x 102mm x 32mm)
- Weight (with battery in): 11.5oz (325g)
- Battery Type: NiMH rated 4.8V, 2.1mAh , Model 4PH-H-AA2100-S-D22 UL listed (DSC P/N17000153)
- Battery Life: 24 hour backup capacity, expected 3 to 5 years of life under normal operation
- Operating Temperature: 0°C to 49°C (32°F to 120°F)
- Humidity: 93% RH non-condensing
- Power Adapter Output Voltage: 9VDC @ 1.25A
- Input Ratings: 9VDC/200mA (standby) / 300mA (maximum, alarm condition). Use only in conjunction with the provided power adapter
- Touchscreen Display: 4.3" WVGA
- Horizontal Viewing Angle: 130°
- Vertical Viewing Angle: 70° top, 70° bottom
- Brightness: 400cd/m2
- Desk-Stand: WTK5504DMK (not included)
- Frequency: 433.92MHz
- Approval Listings: FCC/IC, UL/ULC, CP-01
Note: When the power adapter is used, the battery pack provides minimum 24h back-up.
Note: The WTK5504 can be used in UL/ ULC listed residential fire and burglary installations with all compatible control panels.
Note: The WTK5504 can be used in UL/ULC listed commercial burglary installations with PowerSeries models PC1864, PC1832 and PC1616.
DSC WTK5504 Product Documents:
• Product Datasheet for DSC WTK5504 Wireless 2-Way Touchscreen Alarm Keypad
• Installation Instructions for DSC WTK5504 Wireless 2-Way Touchscreen Alarm Keypad
• User Guide for DSC WTK5504 Wireless 2-Way Touchscreen Alarm Keypad
DSC WTK5504 Product Compatibility:
- DSC Alexor Panel 9155
- DSC Impassa Panel SCW9055
- DSC Impassa Panel SCW9057
- DSC PowerSeries PC1616 v4.6+ (via TR5164)
- DSC PowerSeries PC1832 v4.6+ (via TR5164)
- DSC PowerSeries PC1864 v4.6+ (via TR5164)
