DSC Impassa Tri-Path Ethernet/WiFi/Cellular Verizon LTE Wireless Security System (Powered by Alula)

DSC Impassa Tri-Path Ethernet/WiFi/Cellular Verizon LTE Wireless Security System (Powered by Alula)
DSC Impassa Tri-Path Ethernet/WiFi/Cellular Verizon LTE Wireless Security System (Powered by Alula)
Item# IMPASSSA-TRI-ALU-LTEVKIT

Please Note: DSC Impassa tri-path ethernet/wifi/cellular Verizon LTE wireless security system has been discontinued without replacement.

▼ Compatible 433 MHz Wireless Sensors ▼

DSC Impassa Kit Description:


The DSC Impassa SCW9057 is a all-in-one wireless security system kit, with a compatible Alula tri-path (Ethernet/WiFi/Cellular Verizon LTE) alarm communicator, that is designed for small business and home security installations. This Impassa kit provides users with Alula tri-path security solutions they already know and trust. In addition, the freedom to add smart home devices, that are compatible with Alula interactive alarm monitoring services. With Impassa you can start with a 3-1-1 security only kit, and then scale up at anytime to a full security with Alula home automation, security cameras and video doorbells. With the Alula interactive app our clients get the peace of mind of easily monitoring your home or business remotely, regardless of how tech-savvy they are. The Impassa panel can add up to 64 wireless zones, 4 keypads, 16 keyfobs, 17 user codes, and 4 sirens.

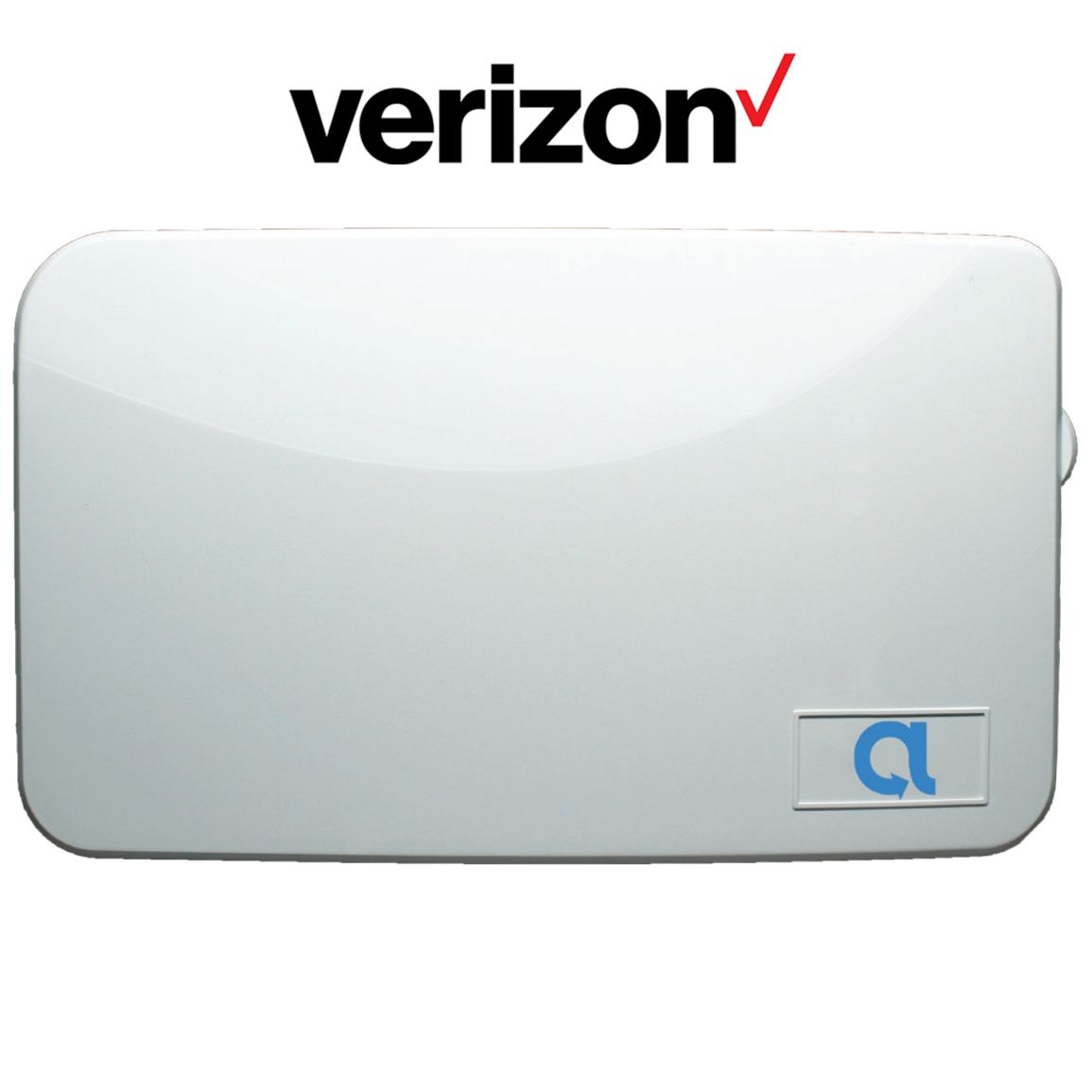

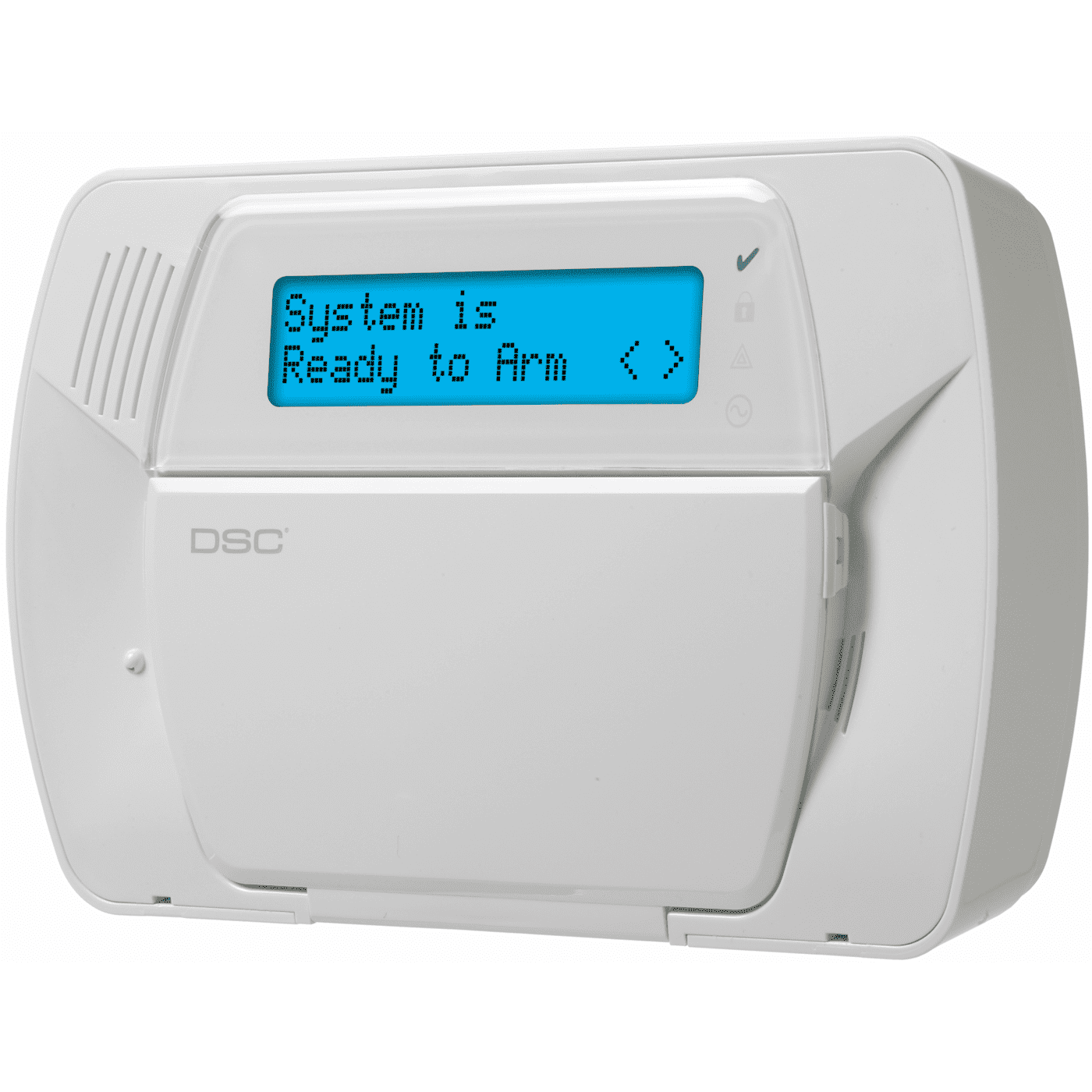

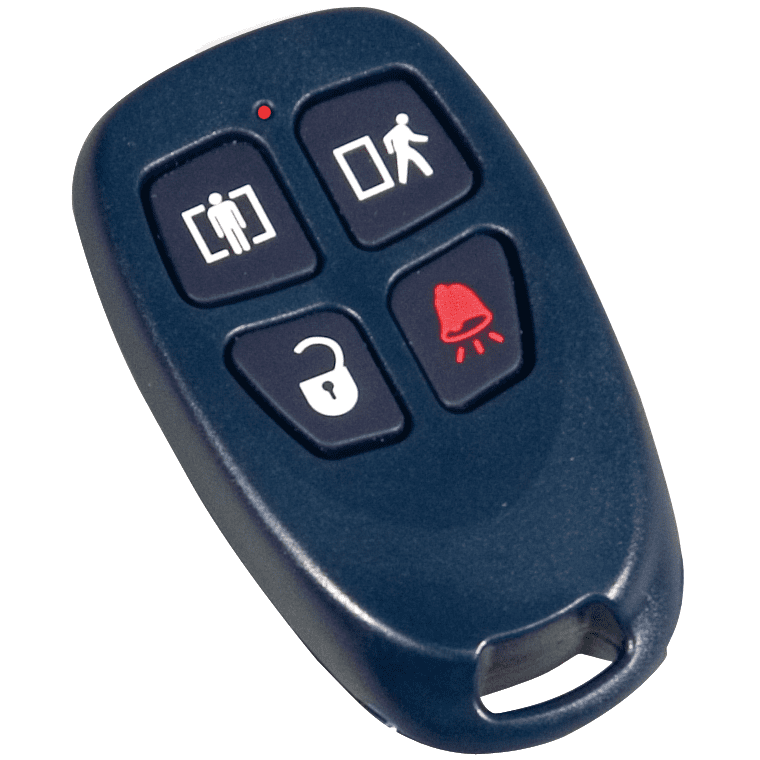

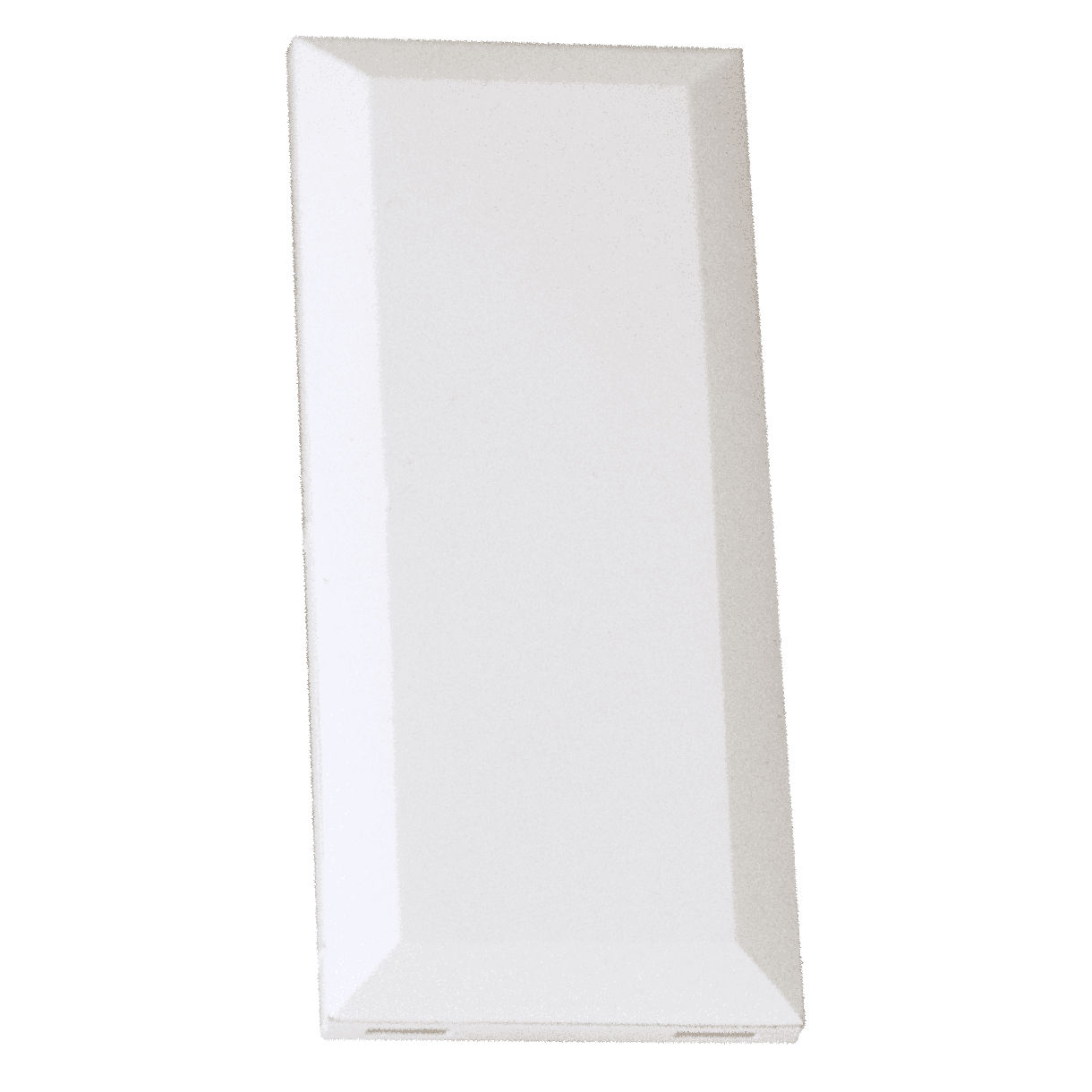

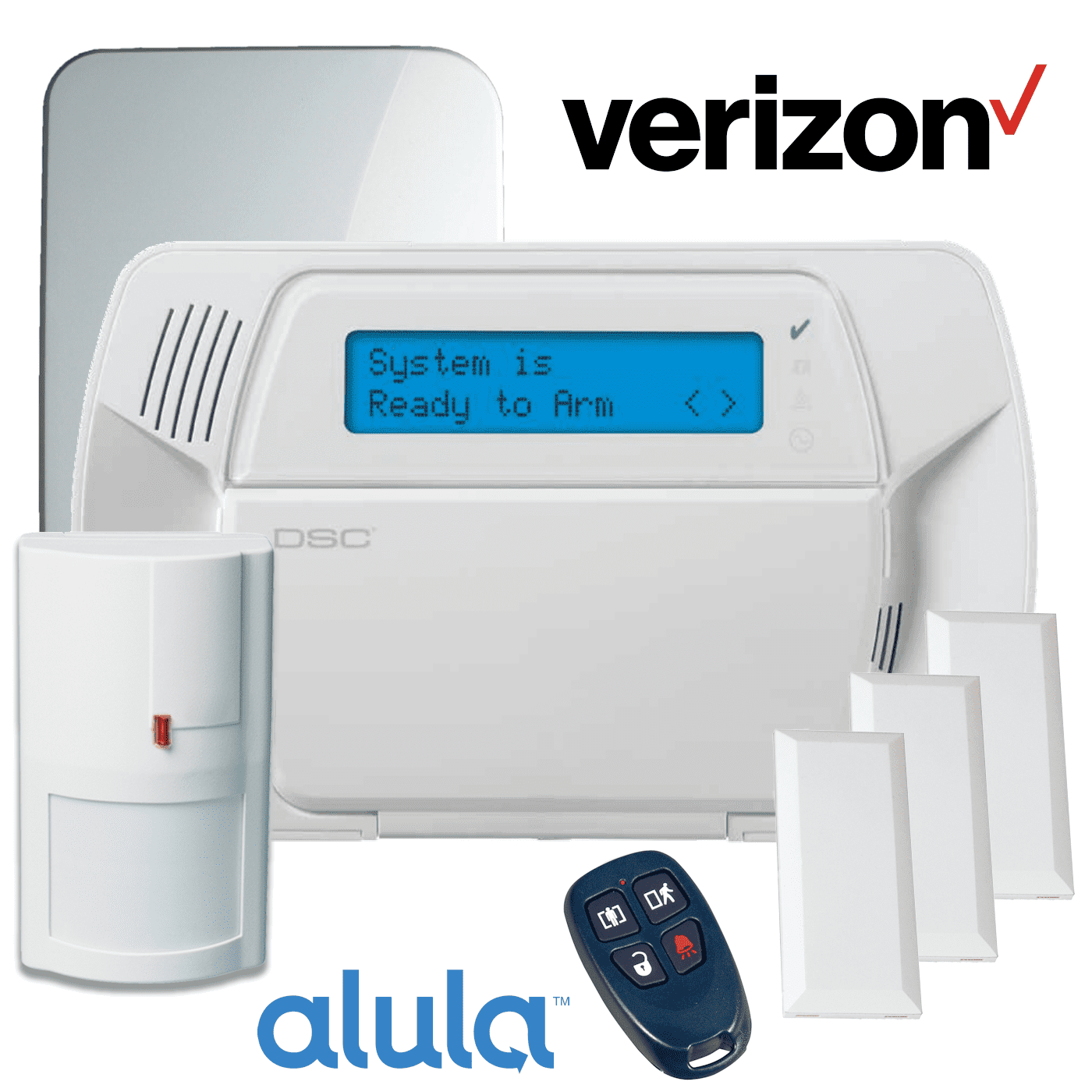

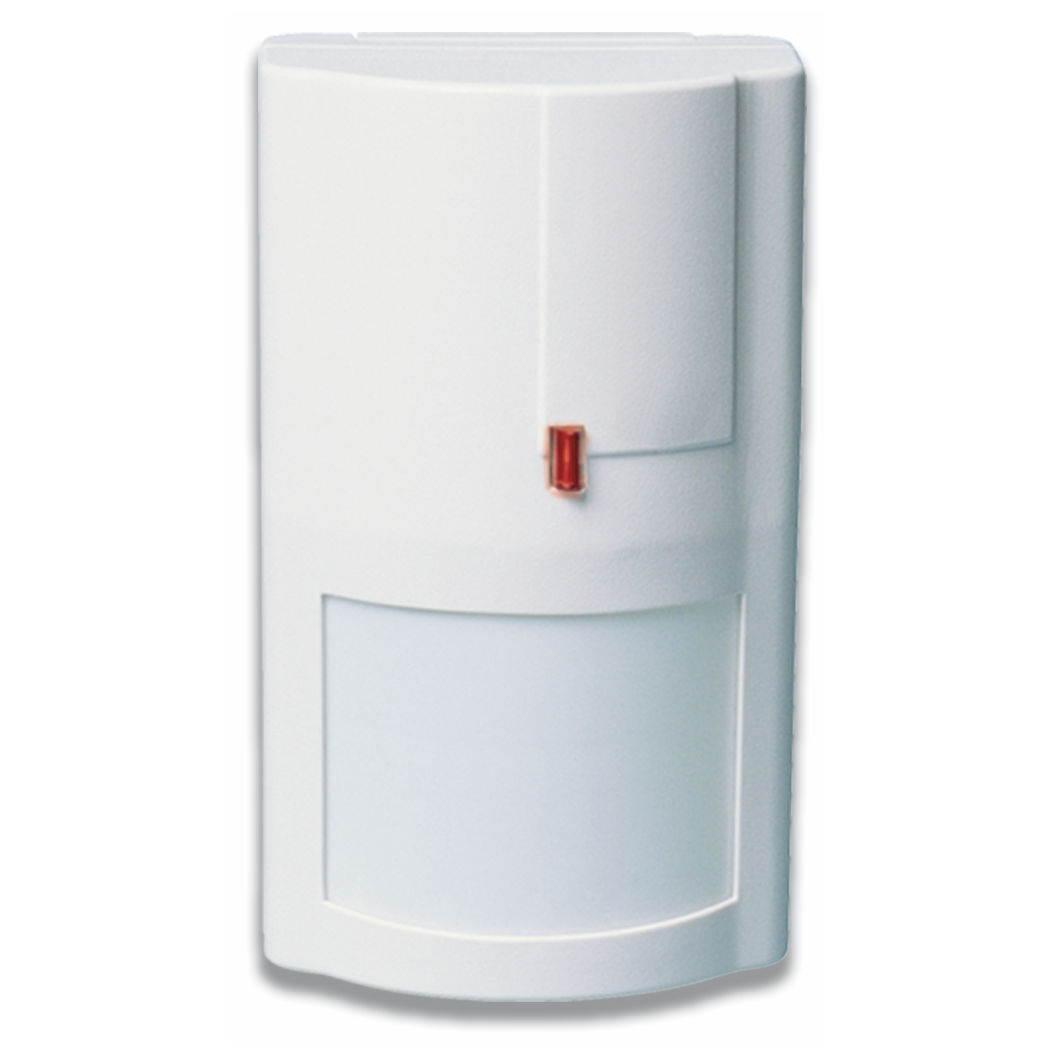

This Impassa tri-path security system kit includes; an Impassa control panel (SCW9057), three door/window contacts (EV-DW4975), one motion detector (WS4904P), one 4-button keyfob (WS4939) and the Alarm.com dual-path ethernet/cellular Verizon LTE alarm communicator (BAT-CONNECT-V). Rest assured knowing the Alula tri-path communicator is reliable, and that it sends your important alarm data over three fully redundant and secure communication paths.

The DSC Impassa is compatible with Alula for a best-in-class home control and interactive alarm monitoring experience. With interactive services DiYers' can connect to their favorite home devices, including Z-Wave/Z-Wave Plus standard lights, thermostats, power sockets, door locks, and more. Users can choose the level of engagement and control what they desire, ranging from local notifications and keypad activation, to full remote control via cloud-based intelligence using the Alula mobile app. All intelligent actions can be implemented according to user defined triggers and customized schedules or simply on-demand. Expansion of your DSC Impassa panel can be done at anytime, with compatible Alula smart home automation devices that can be added. For video surveillance solutions, the Impassa can also integrate with the full-line of Alula security cameras and video doorbells.

To meet DIYers' needs for easy installation, the DSC Impassa needs only one wire for AC power. This allows for DiYer's to drill fewer holes and pull fewer wires, reducing the difficulty of the installation. With Impassa's easy enrollment process, the time spent enrolling compatible wireless devices is reduced. All you have to do is enter the Electronic Serial Numbers (ESN), zone numbers and zone type through a series of user friendly screens. In addition, Impassa's template programming feature allows end users to quickly program basic functions by just entering a 4-digit code. Codes exist for pre-defined zone definitions, reporting code formats, communication call directions and DLS setup. When the wireless sensors batteries transit a low battery signal, they are simple to replace on your own. Say goodbye to those expensive onsite service calls forever.

Product Features:

  • Supports 64 wireless zones and 16 wireless keys
  • Alula Tri-Path Ethernet/WiFi/Cellular Verizon LTE Networks
  • 2-way wireless support
  • Up to 4 keypad(s)
  • Up to 4 siren(s)
  • Easy wireless device enrollment
  • Template programming
  • Full 32-character programmable labels
  • 5 programmable function keys
  • Individual FAP keys
  • Up to 17 user codes
  • 500 event buffer
  • Enlarged keypad buttons
  • Outdoor temperature display

DSC Impassa Kit Documents:


DSC Impassa Control Panel (v1.1 en) - User Manual
DSC Impassa Control Panel (v1.1 Rev 3) - User Manual
DSC Impassa Control Panel (v1.2 eng) - User Manual
DSC Impassa Control Panel (v1.1 Rev 4) - Installation Guide
DSC Impassa Control Panel (v1.2 en) - Installation Guide
DSC Impassa Control Panel - Quick Start Installation Guide
DSC Impassa Control Panel - Time/Date Programming
DSC EV-DW4975 Wireless Door/Window Contact - Data Sheet
DSC EV-DW4975 Wireless Door/Window Contact - Installation Guide
DSC WS4904P Wireless Motion Detector - Data Sheet
DSC WS4904P Wireless Motion Detector - Installation Guide
DSC WS4939 4-Button Keyfob - Multi-Lingual Operating Instructions
DSC WS4939 4-Button Keyfob - User Friendly Operating Instructions

DSC Impassa Kit Specifications:


  • Dimensions (W x H x D): 8.93 x 5.51 x 1.65 (in), 227 x 140 x 42 (mm)
  • Current Draw: 425mA - 750mA
  • Power Supply: 16.5VAC/20VA @ 50/60Hz
  • Aux+ Output: 12.0-12.5 VDC/100mA
  • Battery Backup: 24-Hour Backup
  • Operating Environment: 32° to 120°F (0° to 49°C)
  • Operating Relative Humidity: 5% to 95% (non-condensing)
  • Wireless Zone Count: 64
  • Access Codes: 17
