WT5500 - DSC Wireless 2-Way Alarm Keypad (for DSC Alexor/Impassa Control Panels)

Please Note: The DSC WT5500 2-way alarm keypad has been discontinued without replacement.

Description
Specifications
PDF Documents
Includes
Compatible

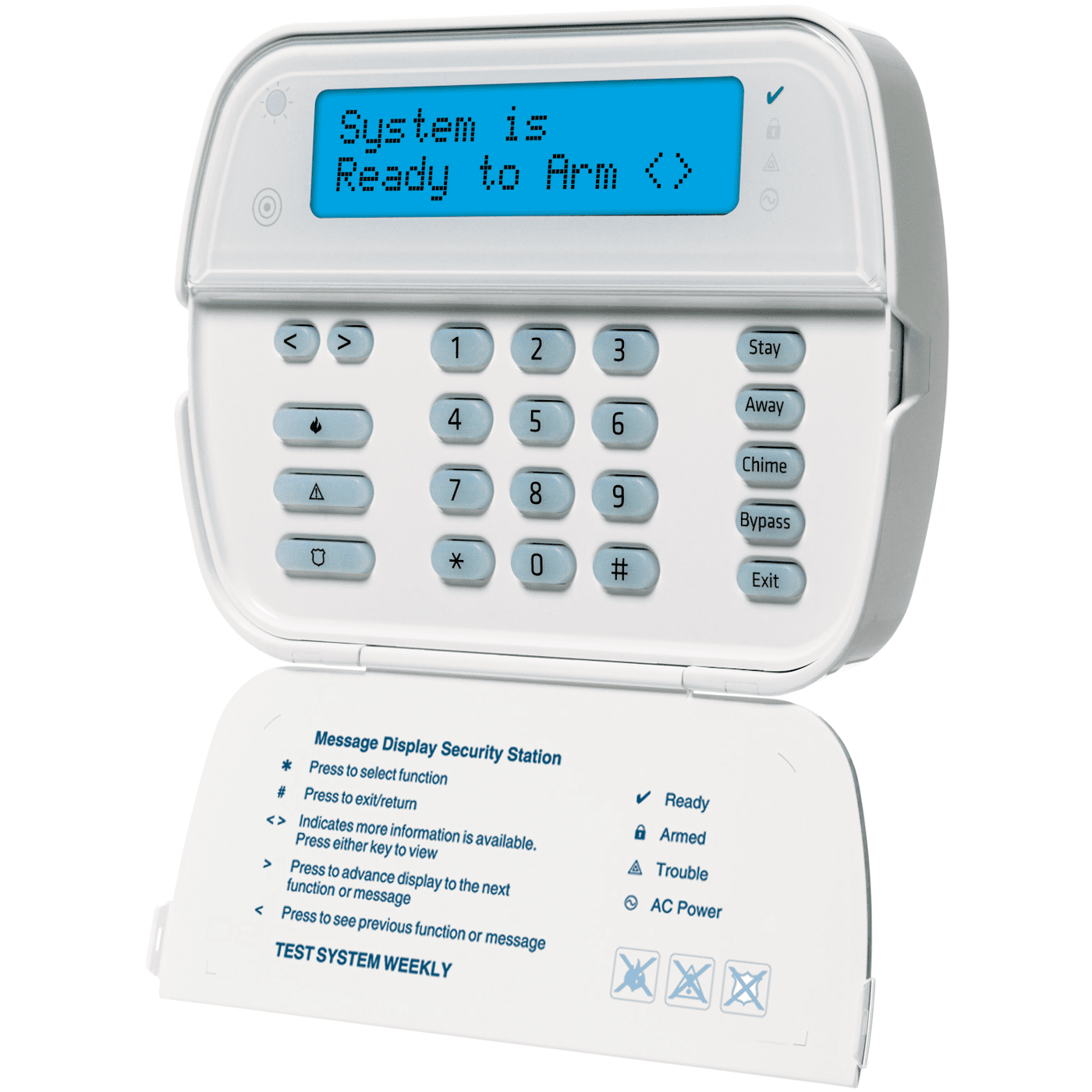

DSC WT5500 Product Description:

The WT5500 2-way wireless keypad provides an intuitive and convenient interface to the Alexor or Impassa wireless security system control panels. The keypad allows you to arm or disarm your security system as well as check system status.

Each WT5500 keypad is powered by (4) alkaline AA batteries and requires absolutely no electrical wiring for installation. If the keypad is ever removed or tampered with, the 2-way wireless supervision between the Alexor/Impassa control panel and each installed keypad will alert both you and GeoArm's central station that the system has lost a keypad. The 2-way wireless signal between the control panel and each WT5500 keypad is fully encrypted and secure which prohibits any unauthorized signal interference.

In addition to a large, easy-to-read LCD display, the keypad has an ambient light sensor which can detect the light in a room and automatically adjust the display and keypad backlighting. The keypad is also capable of multiple door chimes so you can setup pre-programmed chimes to distinguish which door is being opened even when the system is disarmed. For instance, your front door could make a different chime than your liquor cabinet or pool gate. These different audible chimes provide additional value from your Alexor/Impassa security system beyond simple burglary protection.

Install a WT5500 wireless keypad at every frequently used entry/exit point to your location (maximum of 4 keypads per Alexor/Impassa security system). Use GeoArm’s included industrial strength VELCRO® strips or wall anchors and screws to mount the keypad wall plate in a convenient location near each entry point. The keypad then easily snaps into the wall plate, making removal for battery replacement simple and fast. Because the keypads can be programmed with (3) panic buttons (medical, police, and fire), a master bedroom is another recommended place to install a WT5500.

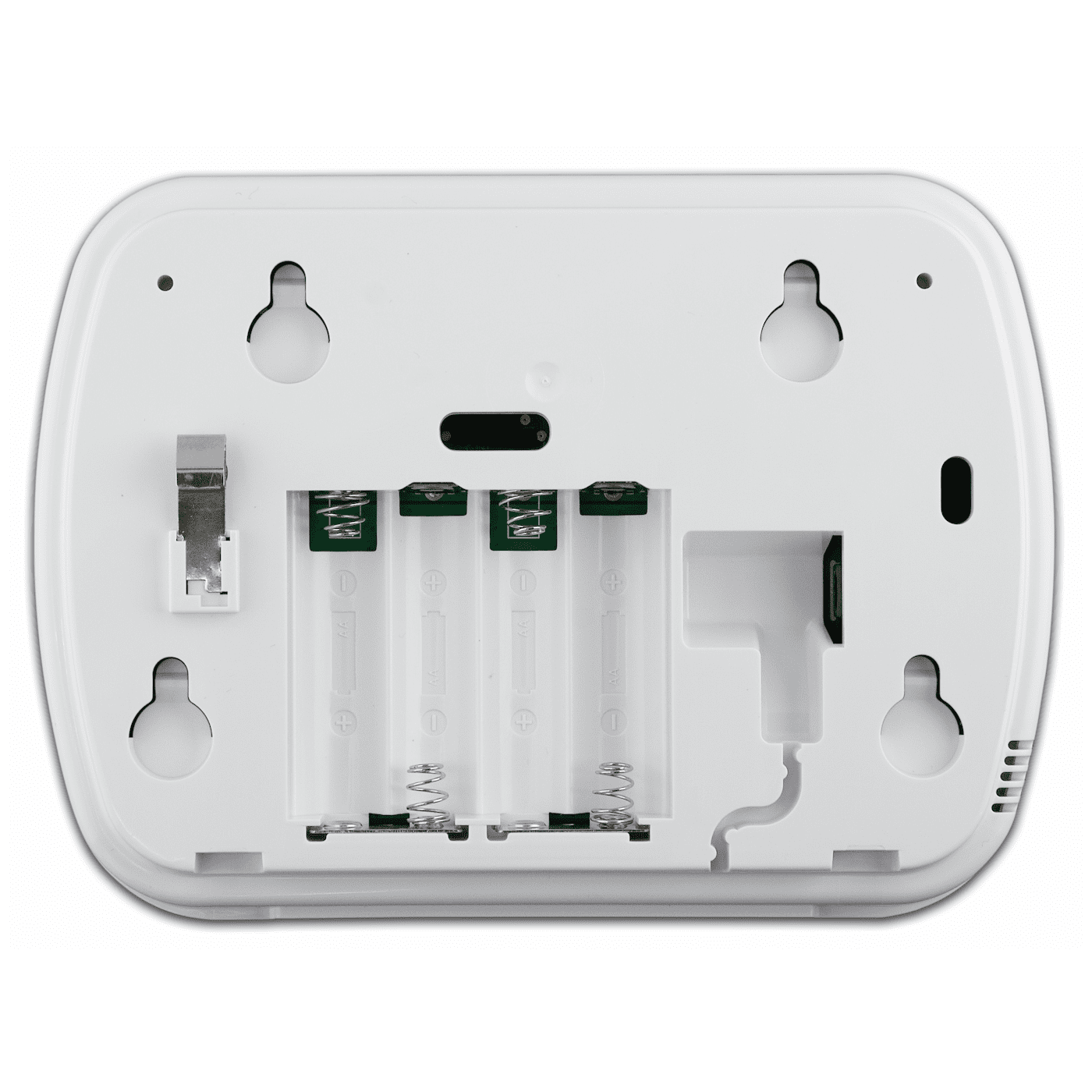

When the wire-free WT5500 keypad is not in use, it moves into a battery preservation mode while remaining entirely online. When the batteries are low, an indication light alerts the end user to change them. The user can easily remove the product from the wall mount, take off the backing and make the replacement. When the WT5500 is wirelessly connected to the WT4911 outdoor siren (equipped with a temperature sensor), the keypad also displays the outdoor temperature.

Product Features:

2 x 16 full message display
Intuitive clock programming
Display and keypad backlighting
Multiple door chime
Outdoor temperature display (requires wireless outdoor siren/strobe)
Capable of programming an Alexor security system
Multi-language support
(5) programmable function keys
(3) one-touch emergency keys
2-way wireless supervision and wall mount tamper protection
Compatible with DSC Alexor and DSC Impassa panels
Backed by DSC's 1-year limited manufacturer's warranty

DSC WT5500 Product Specifications:

Dimensions: 6.7" × 4.9" × 1.42" in (170 mm × 124 mm × 36 mm)
Weight (with backplate and battery): 1.0 lb (450 g)
Battery: 4 AA batteries, 1.5 V, Energizer Alkaline
Battery Life: 1 year (typical usage)
Standby Current: 140mA @ 12 VDC
Current Draw: 50mA
Low Battery Indication: 2.2V
Power Adapter Output Voltage: 4.5 VDC @ 0.5A
Plastic Enclosure Protection Degree: IP30, IK04
LED Color: Ready (Green LED), Armed (Red LED), Trouble (Yellow LED), AC (Green LED)
Frequency: 433.92 MHz (WT5500-433/WT5500P-433 only)
Frequency: 868.35 MHz (WT5500-868/WT5500P-868 only)
Operating Environment: 14°F to 129°F (-10° to 54°C)
Relative Humidity: 5 to 95% non-condensing
