Product Features:

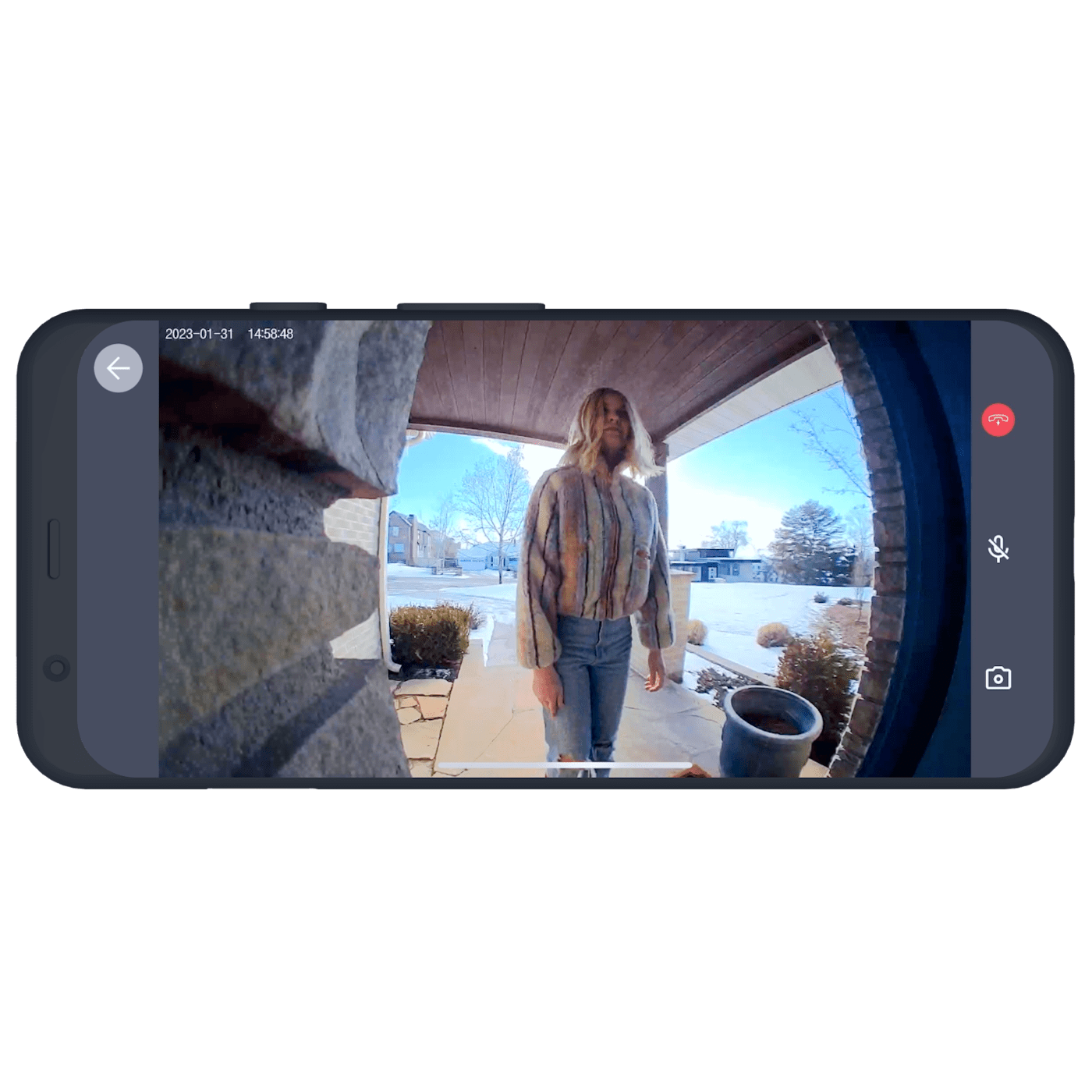

• Live view streaming via GeoAlarm Mobile App or GeoAlarm Panel
• Two-way Audio through GeoAlarm Mobile App or GeoAlarm Panel
• Security RF included (Connecting the complete ecosystem: Panel, Sensor, Doorbell)
• Expansive Field of View: 202° (Horizontal) x 119° (Vertical)
• Full HD 1920 x 1080 video resolution
• 2T2R Dual Band 2.4GHZ/5GHZ WIFI for improved WIFI range
• On-Device AI (Instant analysis of each event and accurate reduction of false triggers)
• Real Time Communication to anyone who approaches your door via 2-way Audio
• Pre-Record Supported (Capture all actions in video clips to be stored at Amazon server)
• As a Sensor to GeoAlarm Panel (Doorbell camera can send outdoor motion events to Panel)
• Compatible with the Existing Doorbell Transformers (10-30VAC, 10VA)
• Compatible with Mechanical and Digital Chimes

• Doorbell Dimensions (H x W x D): 5.25" x 1.38" x 1.13" in. (133 x 35 x 29 mm)
• Memory: 2GB Embedded DDR3
• Image Sensor: 1/2.7" FHD (1080P) sensor
• Streaming Resolution: HD(720P)/FHD(1080P)
• Video Framerate: Variable framerate 10-15fps
• OS: Dual OS (RTOS + Linux 4.9)
• Field of View: 202° (Horizontal) x 119° (Vertical)
• WiFi Radio: IEEE 802.11 a/b/g/n/ac 2.4/5GHz dual band
• SubG RF Radio: 433 MHz
• Motion Detect: Motion sensor/130° @ 10ft., AI Human detection algorithm to reduce false trigger, Support pre-recording before Motion trigger
• Video/Audio Streaming: Full-Duplex two way call
• Video Compression Format: H.264+ AAC/PCM (For Video Clip and Video streaming)
• Network Protocol: P2P Video streaming/Camera configuration (HTTPS and OTA support)
• Night Vision: B&W Night Vision/850nm @ 16ft.
• LED: RGB color status LED
• Chime: Security Panel (GeoCP-AT/GeoCP-VZ) as Doorbell Chime, AC Mechanical Chime, AC Digital Chime (Works with DDA board)
• Local Storage: N/A (Reserved MicroSD Socket)
• Cloud Storage: Amazon KVS Video storage
• Power: 10-30VAC, 10 VA or 12 VDC 0.5A
• Battery: Built-in 450mAh battery
• Operation Temperature: -10°C to 45°C
• Waterproof: IPX4
• Weight: 94g (110g with mounting plate)
• Certification: FCC/IC

Installation Tips:

• Doorbell Camera (1)
• Wall Mounting Bracket (1)
• Angle Correction Plate (1)
• Wall Screw (2)
• Doorbell Fixing Screw (3)
• Expansive Rubber Sleeve (2)

Power:

• 10-30VAC, 10VA or 12VDC, 0.5 to 1.0A wired to an in home mechanical or digital doorbell chime.
• Note, a digital doorbell adapter must be installed if a digital doorbell chime is present.
• An in-line resistor (10 Ohm, 10 Watt) is required when installing the doorbell camera without a wired, in-home doorbell chime. This is typically done when testing the doorbell or performing a demonstration. Failure to install a resistor when a chime is not present may result in damage to the doorbell camera.

Chime:

• GeoAlarm Control Panel as Chime- Panel can be a chime of the GeoVDBC doorbell.
• Mechanical Chime- If the chime has metal bars and a striker pin, it is mechanical and will work without additional hardware.
• Digital Chime- If the chime has a speaker that plays a tone when pressed, it is digital and will require the installation of the Digital Doorbell Adapter and the enabling of the digital doorbell setting in the app to function properly
• Tube Chime- If the chime has a series of tubular bells, it is a tube chime and is incompatible with the doorbell camera
• Intercom System- If the doorbell button fixture includes a speaker, it is an intercom system and is incompatible with the doorbell camera
• No Chime- If there is no chime in the system, the customer will only receive alerts on their phone and a resistor (10 Ohm, 10 Watt) must be used in-line with the doorbell camera.

WiFi:

• A WiFi internet upload speed of at least 1.5 Mbps is required at the location where the doorbell camera is installed.
• Note, In Canada when using 5 GHz on band 1, the device is intended for indoor use only

• Cyan LED Color Flashing Pattern (Battery is Charging)
• Blue LED Color Breathing Pattern (System Booting)
• White LED Color Breathing Pattern (Doorbell Ready for Pairing)
• White LED Color Flashing Pattern (Doorbell Pairing In Progress)
• White LED Color Solid Pattern (Ready Mode)
• Green LED Color Solid Pattern (In-Call Mode)
• Blue LED Color Solid Pattern (Firmware Upgrade in Progress)
• Red LED Color Flashing Pattern (Alarm Triggered)
• Yellow LED Color Solid Pattern (Doorbell Pairing Failed - Check Wifi Credentials)
• White LED Color Rapid Flashing Pattern (WiFi Reset in Progress - Hold Button for 20 Seconds)
• Yellow LED Color Flashing Pattern (Power Cycle - Hold Button for 40 Seconds)
• Blue LED Color Rapid Flashing Pattern (Factory Reset - Hold Button for 60 Seconds)

• GeoCP-AT Control Panel
• GeoCP-VZ Control Panel
