IQPK086-433KIT - Qolsys IQ4 NS Dual-Path WiFi/Cellular Verizon LTE Wireless 433 MHz Security System (Powered by Alarm.com)
Qolsys IQ4 NS System Description:
The Qolsys IQ4 NS (Part Number: IQPK086) is an all-in-one wireless no-screen security system kit that contains a built-in Alarm.com dual-path WiFi/cellular Verizon LTE communicator, legacy 433 MHz wireless receiver and Z-Wave 800-Series automation module. The IQ4 NS provides full security and smart home functionality geared for the do-it-yourself security market.
With the IQ4 NS panel you can add new or switch existing legacy DSC 433 MHz wireless security sensors to the Qolsys platform. The IQ4 NS leverages the power of it's Android 9 operating system with a QualComm Snapdragon 8 core SOM (System on a Module) processor having 16GB NAND Flash internal memory. The IQ4 NS keeps you connected to an entire ecosystem of smart devices, giving you complete control over your entire home or business. The Qolsys no-screen panel serves as the brains of your security system and with it you can control Z-Wave 800 Series lights, locks, thermostats, garage doors and much more!
The IQ4 NS features a SmartMount system, all internal antennas and an easy on-screen installation wizard. With a built-in front speaker the IQ4 NS allows for 85dB piezo audible siren to alert nearby individuals of an alarm initiating event. It has a dual panel and wall tamper with spring release and smash and grab reporting. Additionally, the panel has a single wake/sleep button for added user convenience. The IQ4 NS panel has a plethora of Alarm.com security cameras that can be added, such as the ADC-V515 indoor security camera. In addition to cameras users can choose from a wide selection of Alarm.com video doorbells in different finishes, such as the Alarm.com ADC-VDB750 touchless WiFi 2MP video doorbell camera. With Alarm.com's interactive app installed on a mobile phone, Qolsys IQ4 NS users can control their security, home automation and video surveillance all from the convenience of a single app.
Product Features:
- Affordable Best-In-Class - Superior and economical end-to-end solutions
- Flexible Application - Perfect for use in Residential, Builder, MDU and SMB
- One Platform, One Solution - Join an ever-growing, seamless IQ ecosystem
- 433 MHz Compatible - Works with existing DSC legacy sensors
- Easy Automation - Z-Wave 800 Series for lights, locks, thermostats and more
- Effortless Setup - Simple installation with SmartMount, IQ Installer, and Alarm.com Integration
Qolsys IQ4 NS System Specifications:
- Dimensions (H x W x D): 6.1" x 7.5"W x 1"D (155mm x 191mm x 26mm)
- User Codes: Up to 242 Role-based (Dealer, Installer, Master, User, Guest, Duress)
- WiFi Network: Wi-Fi 802.11 a/b/g/n/ac dual-band 2.4/5GHz (including built-in access point capability)
- Cellular Network: AT&T LTE Category 4 (Bands 2/25, 4/66, 5, 7, 12/17, 13, 14 non-FirstNet, 26)
- Z-Wave Plus (800): Up to 137 total devices (Up to 80 lights, up to 20 locks, up to 10 thermostats, up to 6 garage doors, up to 21 misc.)
- Security RF: Up to 128 Devices (433 MHz Wireless Sensors)
- Bluetooth: Qualcomm Bluetooth Low Energy (BLE) 4.2
- Flash Memory: Internal Storage (16GB NAND Flash)
- LED Indicator: Power LED, Status LED (x1 Green LED, x1 Full-color RGB LED)
- Speaker/Siren: Front-facing 2W speaker + 85dB piezo siren
- Tamper Switch: Dual panel and wall tamper with spring release and Smash and Grab reporting
- Battery Type: 18650 Rechargeable Lithium Ion 3000mAh rated for over 24 hours
- Buttons: Single hard button for pairing and troubles / alarm in memory announcements
- Power Supply: 7v DC 1000mA CC, Input 100-240VAC 50/60Hz adapter evaluated at 120vAC for UL/cUL
- Back Plate Mount: SmartMount for wall mounting included. SmartMount table stand
- Certification FCC: 2AAJXQS-IQP4Z (may contain additional modules with separate FCC IDs) 2AAJXQS-ZW8
- Certification IC: 11205A-QSIQP4Z
- Certification UL: UL-985, UL-1023, UL2610, ULC-S545, ULC-S304
- Operational Temperature: 32°F to 120.2°F (0°C to 49°C)
- Storage Temperature: -4°F to 122°F (-20°C to 50°C)
- Relative Humidity: Up to 93% max (indoor, dry ordinary locations use only)
- Operating System: Android 9 (OTA updates, custom text-to-speech, language translations)
- Processor: Qualcomm Snapdragon 8-core SOM (System on a Module) with 16GB of NAND Flash
Qolsys IQ4 NS System Documents:
• Data Sheet for Qolsys IQ4 NS Control Panel (Part Number: IQPK086)
• Quick Guide for Qolsys IQ4 NS Control Panel (Part Number: IQPK086)
• Installation Manual for Qolsys IQ4 NS Control Panel (Part Number: IQPK086)
• User Manual for Qolsys IQ4 NS Control Panel (Part Number: IQPK086)
• 1-Year Product Warranty and Return Policy for Qolsys, Inc.

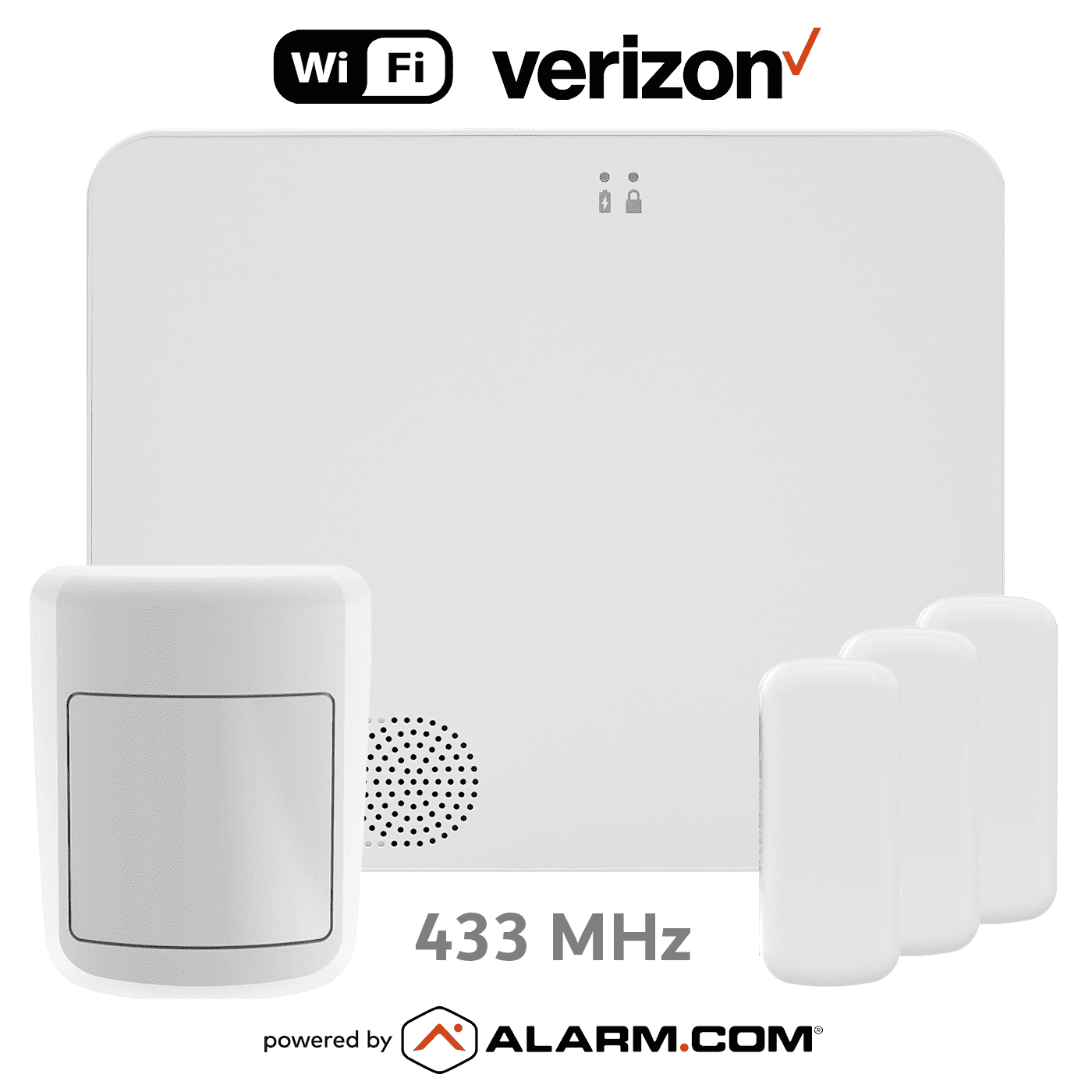

Qolsys IQ4 NS System Includes:
(1) Qolsys IQ4 NS Wireless No-Screen Control Panel (IQPK086)
(1) Verizon Cellular LTE Alarm Communicator (Built-Into Qolsys IQ4 NS Controller)
(3) DSC Wireless 433 MHz Door/Window Alarm Contacts (WS4945)
(1) ADI PRO Wireless 433 MHz Motion Detector (0E-PIR433)
Miscellaneous: Transformer w/Power Cord, Back Up Battery, User Manual
