QS9302-0208-840-ATTKIT - Qolsys IQ Hub Dual-Path WiFi/Cellular AT&T LTE Wireless PowerG Security System (Powered by Alarm.com)

Please Note: This Qolsys IQ Hub Dual-Path WiFi/Cellular AT&T LTE wireless PowerG security system kit has been discontinued and replaced by the IQ4 Hub and IQ Panel 4 kits.

Description
Specifications
Documents
Compatible
Kit Includes

Qolsys IQ Hub Product Description:

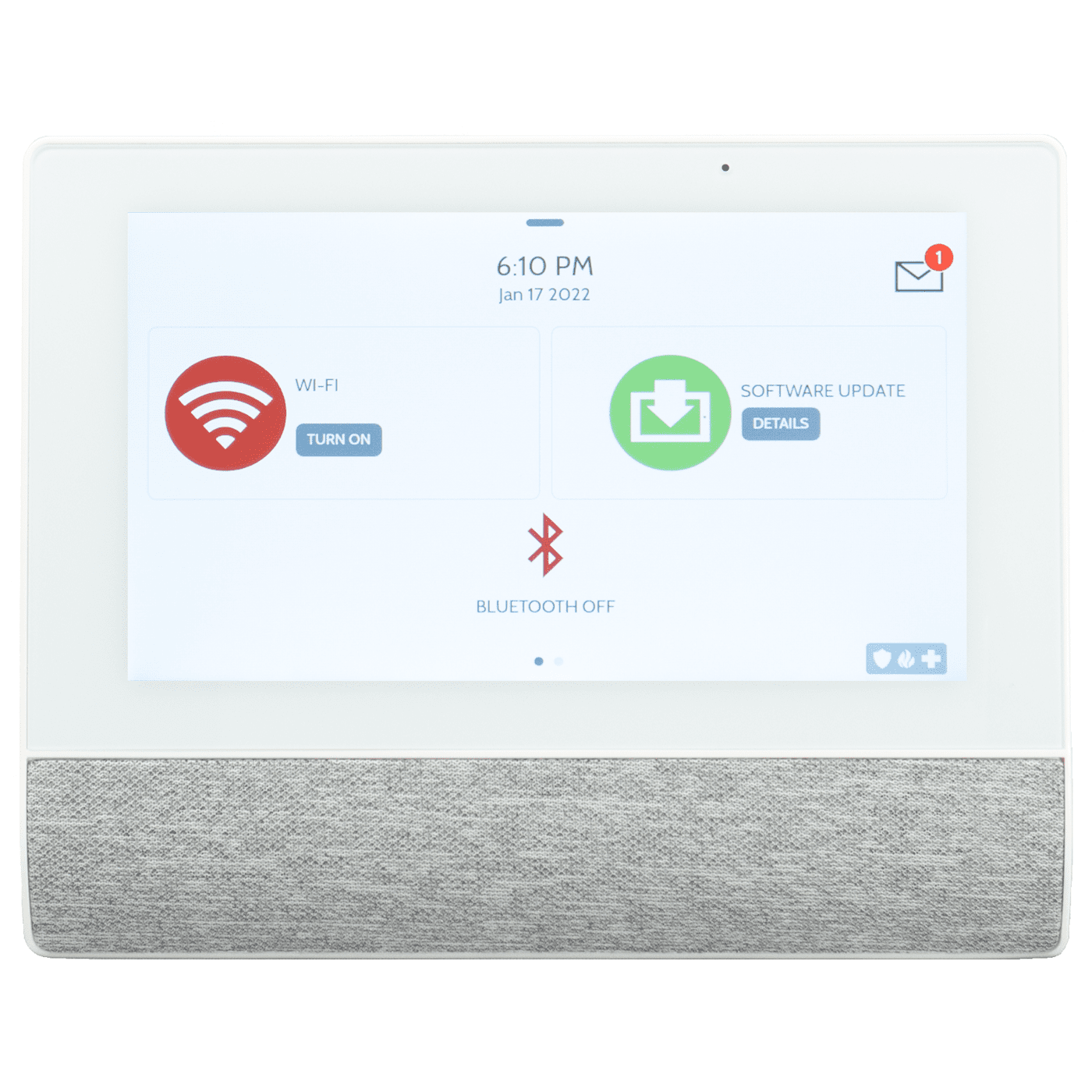

The Qolsys QS9302-0208-840 IQ Hub all-in-one wireless 7" touchscreen control panel contains a built-in dual path wifi/cellular AT&T LTE Alarm.com communicator, designed for small business and home security. With the QS9302-0208-840 panel you can add new or switch existing PowerG wireless encrypted security sensors to the Qolsys platform. The IQ Hub leverages the power of it's built-in Android 7 operating system with 8 core processor with 16GB NAND Flash internal memory to provide excellent live view and live answer. The IQ Hub has an aesthetically pleasing and elegant modern user interface that keeps you connected to an entire ecosystem of smart devices, giving you complete control over your entire home or business.

The IQ Hub has multiple wireless radios built-in including; Alarm.com AT&T Cellular LTE, WiFi, Z-Wave Plus 700 Series, Bluetooth Low Energy BLE Touchless Disarming, and PowerG secure radio. The panel serves as the brains of your security system and with it you can control lights, locks, thermostats, security and much more. The IQ Hub makes the installation a breeze. It's is easy to mount, easy to install using the wizard and easy to run diagnostics. With large speakers built into the IQ Hub, the user has the ability to utilize custom-text-to-speach, chimes and doorbells. The IQ Hub also has Bluetooth touchless disarming upon arrival. In the event of an alarm initiating event, the IQ Hub also includes a built-in 85dB siren to loudly alert nearby individuals.

The touchscreen panel also includes Live View which is the ability to view Alarm.com video cameras on the screen, and Live Answer. Live Answer give DIYer's the ability to answer their Alarm.com video doorbell from the IQ Hub inside the property, such as the Alarm.com ADC-VDB770 touchless video doorbell. Live Answer will also work with Live View cameras that have voice capability, such as the Alarm.com ADC-V515 indoor security camera. With Alarm.com's video monitoring solutions in place you can view and respond through the interactive app, and you can also see who is at the front door by just looking at the IQ Hub touchscreen.

Product Features:

7" Touchscreen Panel
Expandable with DSC PowerG Encrypted Sensors
Dual-Path Communications (WiFi and AT&T Cellular LTE)
Z-Wave Plus Automation
Replaceable Battery
Live View and Live Answer
Compatible with Alarm.com Interactive App

Qolsys IQ Hub Product Specifications:

Dimensions (H x W x D): 6.1" x 7.7" x 1" (155mm x 195mm x 27mm)
Weight: 0.65 Kg
LCD Display Size: 7" inch LCD
LCD Display Resolution: 1024 x 600 pixels
LCD Display RGB: 24bit
Touchscreen Type: Capacitive glass multi-touch
Operating System: Android 7.1
User Codes: Up to 242 Role-based (Dealer, Installer, Master, User, Guest, Duress)
Wireless WiFi Network: WiFi 802.11 a/b/g/n/ac dual band 2.4/5GHz - including built-in access point capability
Wireless Cellular Network: AT&T LTE (Bands 2, 4, 5, 12, 13)
Wireless Z-Wave Plus (700): 152 total devices (Up to 80 lights, up to 20 locks, up to 10 thermostats, up to 6 garage doors, up to 21 misc.)
PowerG: 128 total devices (915 MHz long range secure encrypted 2-way wireless)
Wireless Bluetooth: Bluetooth Low Energy (BLE)
Flash Memory (internal storage): 16GB NAND Flash
LED Indicator (Status LED): Green (Disarmed), Red (Armed)
Speaker: SPL minimum 85dB for UL985
Microphone: 1 Microphone
Panel and Wall Tamper Switch: Tamper switch with spring release and reporting to status app
Battery: Rechargeable Lithium Polymer 2600mAh Rated for over 24 hours (Type 18650)
Hard Buttons: Right side button used for sleep/wake, hard reboot, and clean screen cancel
Power Supply DC: 12v DC 1000mA CC, Input 100-240VAC 50/60Hz Adapter evaluated at 120vAC for UL/cUL
Mount Back Plate: SmartMount for wall mounting included (SmartMount table stand sold separately)
Certification FCC: FCC: 2AAJXQS-IQHUB
Certification IC: IC: 11205A-QSIQHUB
Certification UL: UL-985, UL-1023, UL2610, ULC-S545, ULC-S304
Operational Temperature: 32°F to 120.2°F (0°C to 49°C)
Storage Temperature: -4°F to 122°F (-20°C to 50°C)
Relative Humidity: Up to 93% max (indoor, dry ordinary locations use only)
