DSC PG9945 Product Description:

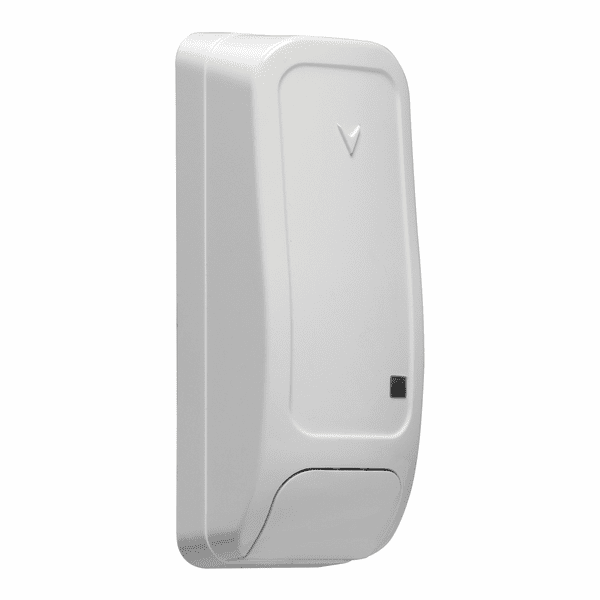

The DSC PG9945 is a white-color, PowerG, wireless door/window contact with auxiliary input is installed on common intrusions points such as windows and doors to provide perimeter protection of the premise. The PG9945 is designed to communicate with the security system to report openings and closings of doors and windows. Known for its versatility and reliability, the PG9945 is an easy to install device ideal for a wide range of environments.
The PG9945 PowerG door/window contact is equipped with a visible link quality LED indicator on the contact that lets the DIYer choose the optimal location for installation, eliminating the effort of going back and forth to the keypad. Additionally, device configuration is quick and easy with no hardware switches or need to re-open devices. All device configuration settings are handled on the system keypad.
The PG9945 contact features an auxiliary input that can be used to easily connect a standard hardwired contact. The auxiliary input can be configured to be Normally Open, Normally Closed or Single End-of Line. This feature is useful in installations where space is of a premium and it is difficult to mount the magnet within the maximum allowable gap of the contact.
Product Features:
- PowerG robust industry leading commercial grade wireless technology
- Visible link quality LED indicator shown on device
- Option Configurable Auxiliary Input
- Fully supervised
- Selectable operation of auxiliary input as NO, NC or EOL supervision
- Case and wall tamper
- Available in either white (PG9945) or brown (PG9945BR) to blend into any décor
- Prolonged battery life (8 years with typical use)
- Back tamper switch options
- Compatible with DSC Iotega, DSC PowerSeries Neo systems, Qolsys IQ Panel 2+ systems
- Certified with ULC Wireless Commercial Burglary Listing under ULC-S304-16 Standard - an industry first in Canada!
DSC PG9945 PowerG Technology:
Since its introduction in 2010, PowerG has revolutionized the wireless industry. Today, as a result of extensive research and development, it is clear that PowerG's ability to provide robust communication - even in areas that were previously only suitable for hardwired applications - makes it ideal for a wide range of applications.The power of the technology lends itself to a multitude of installs, from residential sites to small enterprises and big-box operations.
- Multichannel, Frequency Hopping Spread Spectrum technology - to overcome frequency blocking and interference
- Adaptive Transmission Power - for battery life preservation
- High transmission ranges - for reliable communication within up to 2km/2187 yards line-of-sight
- TDMA synchronized communication technology - to prevent message collisions
- 128 bit AES encryption - high level protection against analysis tools and digital attacks
DSC PG9945 Product Specifications:
- Dimensions: 81 x 34 x 25mm (3.19 x 1.25 x 1in)
- Weight: 53g (1.9oz)
- Color: White
- Operating Temperature: 14° to 131°F (-10° to 55°C)
- Battery Life: up to 8 years (typical use)
- Battery Type: 3V CR123A Lithium Battery
- Approvals Listings: FCC/IC, UL/ULC
DSC PG9945 Product Documents:
• Installation Manual for PG9945 Wireless PowerG Door/Window Alarm Contact
• Installation Sheet for PG9945 Wireless PowerG Door/Window Alarm Contact
• Data Sheet for PG9945 Wireless PowerG Door/Window Alarm Contact
DSC PG9945 Product Product Compatibility:
- DSC Iotega Control Panels
- DSC PowerSeries Neo Control Panels
- DSC PowerSeries Pro Control Panels
- Qolsys IQ Panel 2 Plus Control Panels
- Qolsys IQ Panel 4 Control Panels
- Qolsys IQ Hub Control Panels (Model Numbers: QS9301-0208-840, QS9302-0208-840)
- Qolsys IQ4 Hub Control Panels (Model Number: IQPH054)
