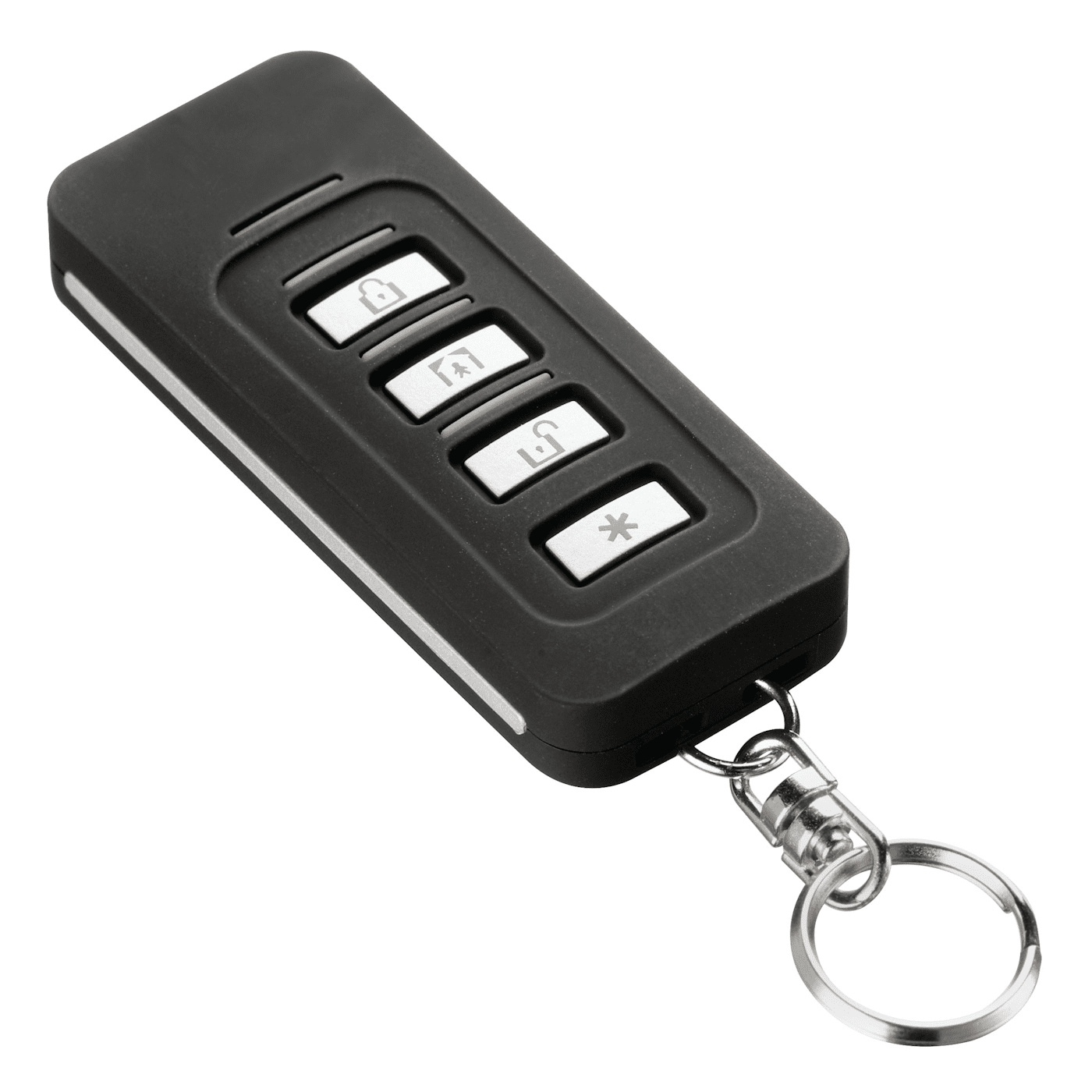

PG9929 - DSC PowerG Remote 4-Button Slim Design Alarm Keyfob
DSC PG9929 Product Description:
The DSC PG9929 is a programmable PowerG encrypted 4-button remote keyfob that combines easy management of your compatible security system with the added confidence of personal portable protection. The modern, compact slim design wireless key lets users easily arm/disarm the system as they approach the building or call for help in the event of a danger when in close proximity to or inside the building.
The PG9929 is a multi-LED and 2-way wireless key. It can be configured to transmit up to five separate commands to the alarm system. Four of the commands are transmitted by pressing one of the buttons separately, and the fifth is by pressing button 1 and 2 simultaneously. Sending a command to the system causes the red LED to briefly illuminate. If the system successfully acknowledges the command the green LED briefly lights, then the associated blue LED lights and the acknowledgment tone sounds. If the system cannot perform the command the red LED briefly lights and the error tone sounds. If the wireless key battery is low the yellow LED blinks for 2 seconds. If there is a trouble on the system the yellow LED lights for 2 seconds. If the system is armed and an entry occurs, the DISARM LED blinks.
The PG9929 keyfob provides both visual and audible verification of the successful execution of any requested commands. The dual confirmation that the message has been executed by the security system offers "peace of mind" to users. The PG9929 can also be used to provide system information back to the user. For instance, if a system trouble event is present, the PG9929 will provide notification to the user via the onboard message LED.
The PG9929 is equipped with a full three second activation delay on its panic function to help reduce false alarms, thus minimizing costly false dispatches caused by accidental activations. Additionally, the other keys incorporate a one-second delay to minimize false activations.
Product Features:
- PowerG robust industry leading commercial grade wireless technology
- 4 programmable function keys
- Integrated LED to indicate signal transmission and acknowledgement
- Full 3-seconds delay on panic function to reduce false alarms
- Visual and audible indicator to acknowledge requested action
- Prolonged battery life (5 years with typical use)
- Certified with ULC Wireless Commercial Burglary Listing under ULC-S304-16 Standard - an industry first in Canada!
- Backed by DSC's 1-year limited manufacturer's warranty
DSC PG9929 Product Specifications:
- Dimensions (L x W x D): 2.64 x 1.09 x 0.47 in (67mm x 27.6mm x 12 mm)
- Weight (including battery): 25g (0.9 oz)
- Frequency Band: CE Listed PG4929: 433-434MHz; CE/EN listed PG8929: 868-869MHz; FCC/IC/UL/ULC listed PG9929: 912-919MHz
- Communication Protocol: PowerG
- Battery Life: 5 years (typical use)
- Battery Type: 3V CR2032 Lithium Battery (VARTA or Energizer for UL/ULC listed installation)
- Low Battery Threshold: 2.1 V
- Operating Temperature: 14°F to 131°F (-10°C to 55°C)
- Humidity: Up to max. 93% RH, non-condensing
- Maximum Devices in any combination: 32 (PG9929, PG9938, PG9939 and PG9949)
- Compatible Receivers: 433 MHz Band: HSM2HOST4; HS2LCDRF(P)4; HS2IC-NRF(P)4; PG4920
868MHz Band: HSM2HOST8; HS2LCDRF(P)8; HS2IC-NRF(P)8; PG8920
912-919MHz Band: HSM2HOST9; HS2LCDRF(P)9; HS2IC-NRF(P)9; PG9920 - Color: Black
- Approvals: FCC/IC, UL/ULC
DSC PG9929 Product Documents:
• DSC PG9929 Remote 4-Button Keyfob - Datasheet
• DSC PG9929 Remote 4-Button Keyfob - Installation/Operation Guide
DSC PG9929 Product Compatibility:
- DSC Iotega Control Panels
- DSC PowerSeries Neo Control Panels
- DSC PowerSeries Pro Control Panels
- Qolsys IQ Panel 2 Plus Control Panels
- Qolsys IQ Panel 4 Control Panels
- Qolsys IQ Hub Control Panels (Model Numbers: QS9301-0208-840, QS9302-0208-840)
- Qolsys IQ4 Hub Control Panels (Model Number: IQPH054)
