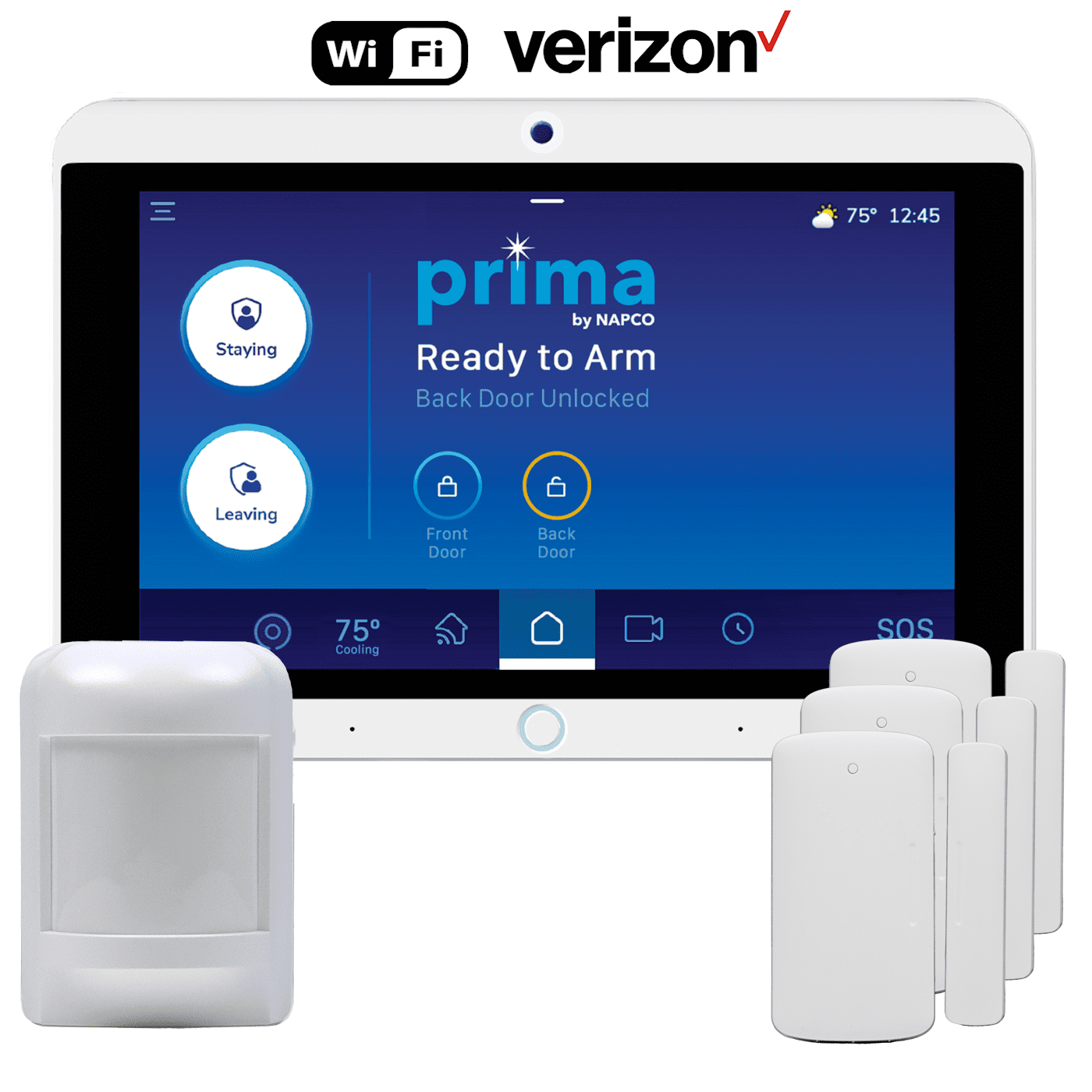

Product Features:

• Color Graphic Display - Easy-to-use 7" large capacity touchscreen controller
• Verizon Cellular Radio - Fast, reliable and future-proof communications
• Dual-Path Connectivity - WiFi and Cellular 4G LTE improve latency, reliability
• Secure Encryption - Make your home safer with Prima wireless encrypted security sensors
• Sub-1 GHz RF Sensors - Industry-leading range (250M) Strong, Reliable RF Signal
• Panel Access Point - Communicate with secure network
• 5MP Panel Camera - Take disarm/arm photos, alarm videos and sends them to secure cloud and your phone
• Z-Wave Plus - Control lights, locks, thermostats, garage doors, etc.
• Security Alarm Process - DIY and Professional GeoArm 24/7 security alarm monitoring to protect your home or business
• Audio Event Detect - Sense Smoke, CO, Glassbreak alarm detection
• Prima App - Download on Apple App Store and Google Play

• Control Panel Dimensions (W x H x D): 7.75" x 5.7" x 1.13" in. (197 x 145 x 29 cm)
• UI Touchscreen Dimensions (W x H x D): 5.15" x 3.6" (131 x 92 mm)
• Platform (DSP): Smart Device Chipset
• OS (Android OS): Android 7.1
• Flash (Internal Storage): 8GB EMMC
• Dram (Ram Flash): DDR3 SDRAM 1GB
• LCD Size (Resolution): 7" (1024 x 600 pixels)
• LCD Brightness: 300 cd/m2
• Touchscreen (Type): Capacitive glass multi-touch
• Proximity Sensor (Digital): Motion detect with in 1.5m of device
• Wireless (WIFI): WIFI 802.11 a/b/g/n 2.4/5G
• Wireless (Z-Wave): 232 total devices (Support S2 encryption and smart device)
• Wireless (Cellular): Verizon 4G LTE
• Wireless (T3,T4): Audio sense smoke, CO, glassbreak alarm detect
• Wireless (Security RF): 433 MHz, 250M and up to 128 security zones with Encryption
• Wireless (Bluetooth): Bluetooth Low Energy (BLE 4.2)
• Antenna (Radio Antenna): Embedded Antenna Design
• Camera (Front Camera): Build-in 5M Pixel fixed focus
• Users (Up to 40): Installer (1), Master (1), Normal (38)
• Zone Partition (Up to 4): Support 4-zone Partitions
• Button (Home Button): Wake up Button
• SD Card Slot (Push-Push): MicroSD x1, PCBA only
• Speaker (Stereo 1Wx2): Stereo speakers
• Microphone: Stereo Microphones
• Internal Siren (Piezo): SPL minimum 85dB for UL985
• Tamper (Tamper Switch): Panel Tamper switch and reporting to App
• Temperature (Operational): 14° to 122°F (-10° to 50°C)
• Battery (Type): Lithium Polymer 4500mAH
• Power Supply (DC): 5V 3A DC adapter, Input 100~240VAC 50/50HZ
• Mount (Back Plate): Wall mount or table stand
• FCC Certification: FCC CE
• UL/SIA Certification: UL985, UL1023, UL1635, SIACP01
• Z-Wave Certification: Z-Wave Gateway

• Data Sheet - Napco Prima Touchscreen Panel
• User and Installation Guide - Napco Prima Touchscreen Panel

Quick Start the Prima Panel:

• Installation Instructions: Unbox the panel and individual sensors. Remove the back panel. Plug in the 12V DC mini-USB power cord to the DC input. Replace the back panel with the power cord placed in the cut out. Install the strand or use the wall mount.
• Guided Setup: The first time the panel boots it will guide you through the basic installation process. To link into the local WiFi network, select the WiFi network and enter the WiFi password.
• Master PIN: Enter the master PIN code for the panel. This PIN will be required to make settings changes. It can also be used to arm/disarm the panel. Keep this PIN safe and use something difficult to guess.
• Panel Location: Select the floor and room that best describes where the panel will be installed.
• Device Installation: Install the first device. Select the device type, then follow the on-screen instructions to trigger and install the device. Repeat the process for additional devices. Press "Finish" to complete device installation.

Arming the Prima Panel:

• Arming Stay (Staying): Pressing the "Staying" button arms the system immediately in "Staying Mode" to protect you while you're inside the property. In Stay Mode, external doors and window will be armed.
• Arming Away (Leaving): Pressing the "Leaving" button arms the system after an exit duration. Away Mode is used to protect the propert while you are away. During the exit duration one or more devices must be triggered or the system will fall back to "Staying".
• Bypass and Arm: By default, the system cannot be armed with doors or windows open. If you attempt to arm the system with open door or window sensors, then "Bypass and Arm" will allow you to proceed.

Disarming the Prima Panel:

Triggering an Emergency Event:

Panel LED:

• Green: Ready to Arm
• Yellow: Not ready to arm due to issues
• Red: Armed

Arming Issues:

Panel Functions:

• Volume: Adjust the panel volume from 0 - 100%
• Brightness: Adjust the panel brightness from 0 - 100%
• Clean Screen: Disable the panel touchscreen for 30 seconds to allow for cleaning.

Devices:

Rooms:

Camera:

Live Camera Interaction:

Doorbell Operation:

Cameras:

Events:

History:

User:

User Types:

• Member: Full access rights to the panel (e.g. family member)
• Scheduled: Arm/Disarm during scheduled times (e.g. housekeeper)
• Temporary: Arm/Disarm between a start and end date (e.g. house guest)

Hostage:

Emergency Device:

Devices

• Custom Name: Provide a custom name for the device to be shown on the panel screen.
• Location: Allows the user to select a location of the sensor, including floor and room.
    Range- Room Location
• Alarm Delay:
  1. Entry Delay - Set the number of seconds following an alarm event before triggering an alarm. For example, how much time should elapse before entering the Front Entry Door before triggering and alarm?
  2. Instant Report Only - Only log the event, don't trigger an alarm.
  3. Instant Alarm - When armed, trigger an alarm instantly for this device.
  4. Instant Follower - Sets this device as an internal sensor; armed in Leaving, disarmed in Staying mode.
  5. 24 Hr Alarm - The device will always be active regardless of arming status; alarms will be triggered immediately if the sensor is violated.
    Range- 30-240 seconds
    Factory Setting- 30 seconds (door/window) follower (motion)
• Voice: Enable or disable voice announcements for this sensor.
    Range- On/Off
    Factory Setting- On

• Chime: Enable or disable voice chime for this sensor.
    Range- On/Off
    Factory Setting- On

• Signal: Shows the signal strength from the panel to the device.
• About: Show internal diagnostic information including serial number and firmware version.
• Delete: Remove the sensor.

Doorbell Options

• Ring Panel: When the doorbell is pressed, a chime plays on the doorbell.
    User Adjustable Settings- On/Off
    Factory Setting- On


• Video & Image >> Image Quality: The video quality used for recording.
    User Adjustable Settings- 1080p or 720p
    Factory Setting- 1080p


• Video & Image >> Timestamp: Overlay a timestamp on the video recording.
    User Adjustable Settings- On/Off
    Factory Setting- On


• Video & Image >> Avatar: Capture thumbnails to display on the panel.
    User Adjustable Settings- On/Off
    Factory Setting- On


• Doorbell Sound >> Doorbell Chime: Play a chime when someone presses the doorbell.
    User Adjustable Settings- On/Off
    Factory Setting- On


• Doorbell Sound >> Chime Volume: Adjust the chime volume.
    User Adjustable Settings- High/Medium/Low
    Factory Setting- High


• Doorbell Sound >> Chime Ringtone: Change the chime ringtone. This is useful if you have multiple doorbells and want to distinguish between them audibly.
    User Adjustable Settings- Tone 1, 2, 3
    Factory Setting- Tone 1


• Doorbell Sound >> Speaker Volume: Adjust the speaker volume on the doorbell.
    User Adjustable Settings- High/Medium/Low
    Factory Setting- Medium


• Doorbell Sound >> Siren: In an alarm event, play the siren on the doorbell.
    User Adjustable Settings- On/Off
    Factory Setting- On


• External Chime >> Type: The type of external chime used. For older doorbells use "Standard".
    User Adjustable Settings- Standard/Digital


• Button LED >> LED: The doorbell has a white LED around the button. This LED can be turned off.
    User Adjustable Settings- On/Off
    Factory Setting- On


• Button LED >> Brightness: Adjust the brightness of the white LED.
    User Adjustable Settings- High/Medium/Low
    Factory Setting- High


• Motion Detection >> Status: Enable or disable motion detection of the doorbell. With motion detection on, motion events will be captured and available for view on the Prima app. The doorbell uses intelligent motion detection that should only capture people, not cars or trees or other motion.
    User Adjustable Settings- On/Off
    Factory Setting- Off


• Motion Detection >> Sensitivity: Sensitivity adjusts the range of the motion detection. High/Medium/Low adjusts the distance. If you are getting unwanted motion detection events, try adjusting the sensitivity down. For example, if you have sidewalk traffic, but only want to capture people who approach the house, try turning down the sensitivity.
    User Adjustable Settings- High/Medium/Low
    Factory Setting- Medium


• Change WiFi: If your home network changes or if the password is updated, then you'll need to update the WiFi username and password to the panel and the doorbell. After the panel WiFi is set, use the "Change WiFi" option to update the WiFi on the doorbell. Press the "Change WiFi" and follow the instructions on the screen.

Arming

Auto Arm

Network

• Cellular: View the status of the panel's cellular connection, including signal and network.
• WiFi: View or edit the current WiFi used by the panel
• Ethernet: A USB-C ethernet adapter (not included) may be used to connect the panel to a network via an ethernet connection.

Test

Info

• Account: GeoArm contact information is provided, along with your account information.
• System: System information is provided for troubleshooting.

Security

• Smart Arm: The panel can automatically enter into Armed Away mode if the motion sensors haven't been triggered during the present time. Note: This feature requires one or more motion sensors.
    Range- On/Off
    Factory Setting- Off



• Transmission Delay: The abort window for non-fire alarms. During this time the alarm will sound and the alarm will be annunciated but monitoring services will not be triggered until the transmission delay has elapsed.
    Range- 0, 15, 30, 45 second delay
    Factory Setting- 30 seconds



• Siren Timeout: The duration that the siren will sound during an alarm event.
    Range- 1-10 minutes
    Factory Setting- 4 minutes



• Swinger: Swinger shutdown is a false alarm prevention setting that prevents the alarm on the panel from repeatedly going off from the same sensor or room. For example, if a single door is opened and closed multiple times then the panel will only sound X alarms, where X is the shutdown setting. Note, this setting does not affect calls to the GeoArm central monitoring station.
    Range- 1-5x shutdown
    Factory Setting- 2x shutdown



• Intellizone: When enabled, the alarm will be triggered when two sensors are violated and the second sensor isn't a follower; or if the same sensors is violated, restored, then violated again.
    Range- On/Off
    Factory Setting- Off



• Smart Alarm: A door/window sensor and motion sensor can be grouped in a room. When enabled, a motion sensor event would precede a door/window event otherwise an alarm would be triggered. For example, in Staying (Armed Stay) mode opening a window from inside would be allowed (if there was a motion sensor) but not be allowed from outside.
    Range- On/Off
    Factory Setting- Off



• Exit Restart: By default, the panel will restart the exit time if the entry/exit sensor or zone is tripped twice prior to the exit. For example, a user arms the system and exits; during that time, they forget their car keys and re-enters; the sensor was tripped twice so the exit timer will restart.
    Range- On/Off
    Factory Setting- Off



• Unvacated Premises: If the exit time expires and no exit has been made then the system will switch to Armed Stay (Staying) instead of Armed Away (Leaving).
    Range- On/Off
    Factory Setting- Off



• Keyfob Instant Arming: When set as "Enabled", press the keyfob Stay or Away button, Panel will enter into Armed mode without exit delay.
    Range- On/Off
    Factory Setting- Off



• Force Zone: Any open Force Zones at the time of arming will be considered deactivated by the control panel. If during this period a deactivated zone is closed, the control panel will revert that zone to active status. Consequently, the control panel will generate and alarm if the zone is breached.
    Range- On/Off
    Factory Setting- Off



• Abort Annunciation: If the alarm system is disarmed within the Abort Window, no alarm transmission will be sent. By default, the alarm system will annunciate that no alarm signal was transmitted.
    Range- On/Off
    Factory Setting- On



• Cancel Annunciation: If an alarm has previously been transmitted, a Cancel signal will be transmitted when the alarm system is Disarmed during the cancellation window. By default the alarm system will announce the cancellation.
    Range- On/Off
    Factory Setting- On



• Tamper: By default the panel will record if the panel has been tampered, including removing the panel stand or back cover.
    Range- On/Off
    Factory Setting- On



• G-Sensor: The panel contains an accelerometer to detect changes in panel position. When enabled, if the panel moves while in an Armed Away (Leaving) mode then an alarm will be triggered.
    Range- On/Off
    Factory Setting- Off



• Cross-Zoning: When cross zoning is enabled, it will require that two separate zone alarms are tripped in a given time before transmitting an alarm.


• Siren Mute: When set as "Enabled", if Alarm is triggered, all functions, protocols to server will work as expected but Siren will not ring. After 30 min., the panel whould automatically turn on Siren again.
    Range- On/Off
    Factory Setting- Off



• CS Signaling > Open/Closing: Enable or disable sending arm/disarm events.
    Range- On/Off
    Factory Setting- Off



• CS Signaling > System Trouble: Enable or disable system issues like low battery warnings.
    Range- On/Off
    Factory Setting- Off



• CS Signaling > Zone Trouble: Enable or disable zone issues like tamper, loss of supervision, etc.
    Range- On/Off
    Factory Setting- Off



• CS Signaling > Zone Bypass: Enable or disable arming bypass when one or more devices are not closed when system is armed.
    Range- On/Off
    Factory Setting- Off


Panel

• Panel Location: The room where the panel is installed.
    Range- Room Location


• Screen Timeout: The length of time until the panel shuts off to save energy.
    Range- 1, 3, 5, 10, 30, 60 minutes or never
    Factory Setting- 5 minutes


• Time Format: The time format displayed on the panel.
    Range- 12 hr / 24 hr
    Factory Setting- 12 hr


• Take Picture: Use the panel camera to take a picture of the user for arm/disarm state changes. Note, pictures can be viewed in the history.
    Range- On/Off
    Factory Setting- On


• Video Capture: Use the panel camera to take a video during alarm events. Note, videos can be viewed in the history.
    Range- On/Off
    Factory Setting- On


• Front LED: By default the 'home' button displays a LED status light. This can be disabled.
    Range- On/Off
    Factory Setting- On


• Restart Panel: The panel can be restarted.
