Product Features:

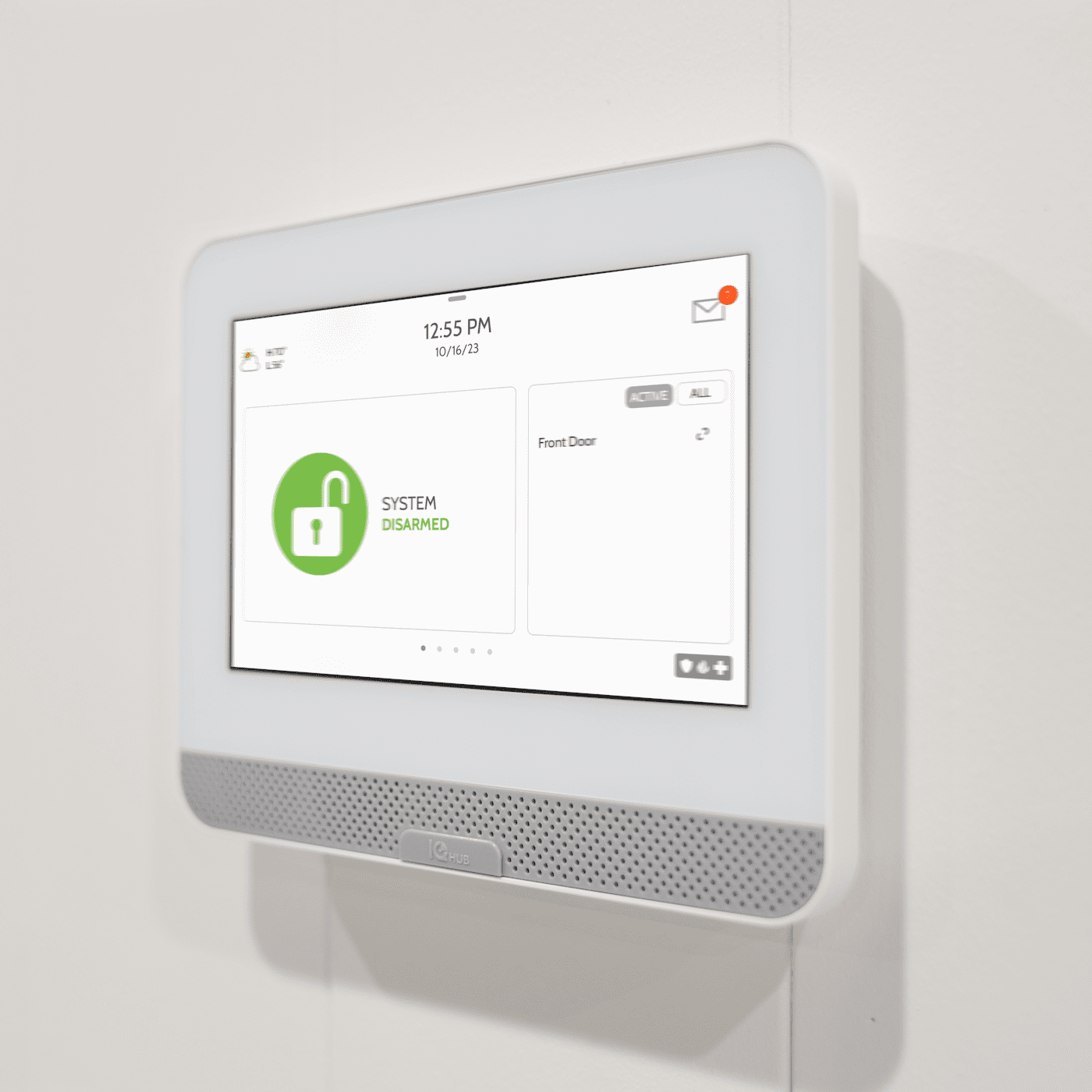

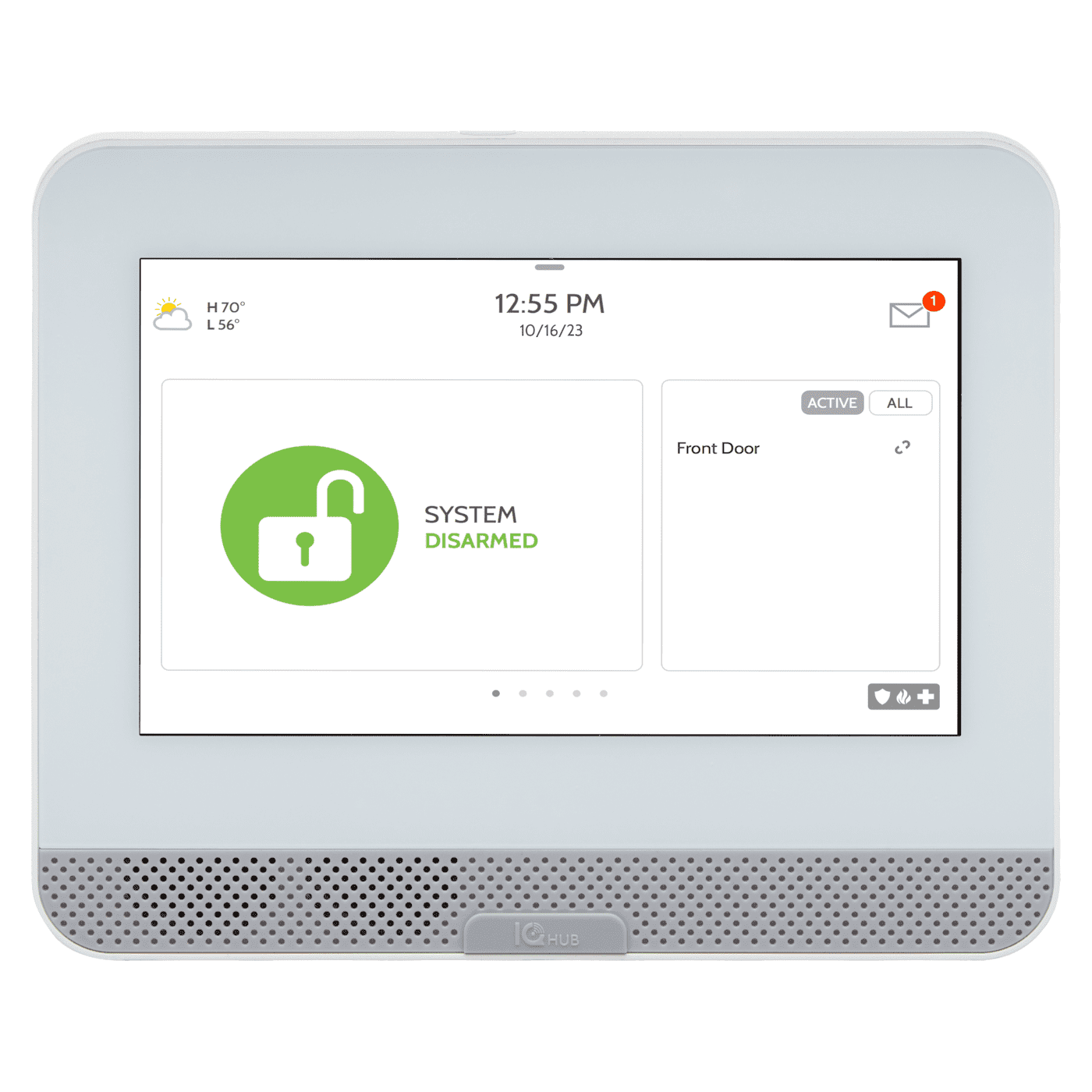

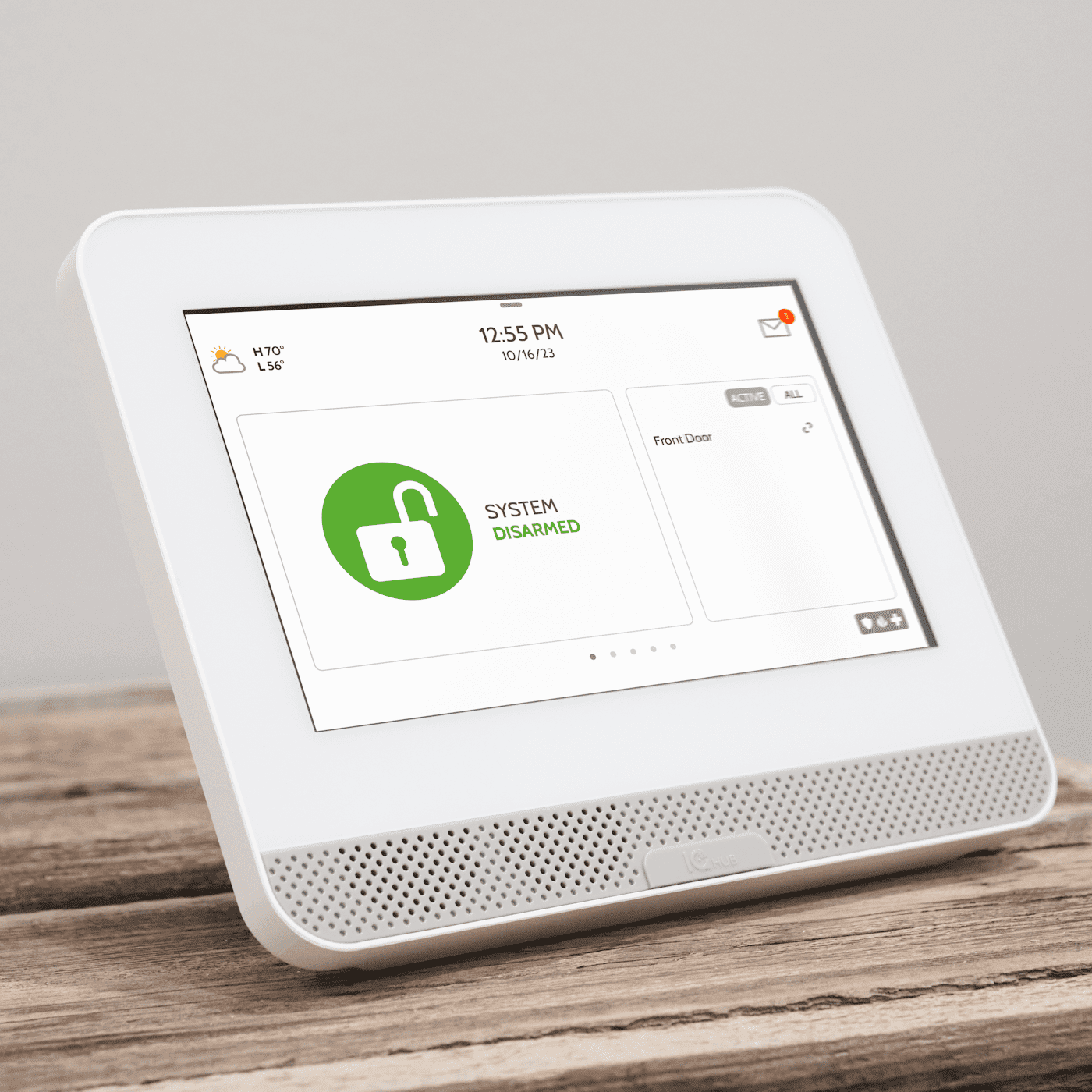

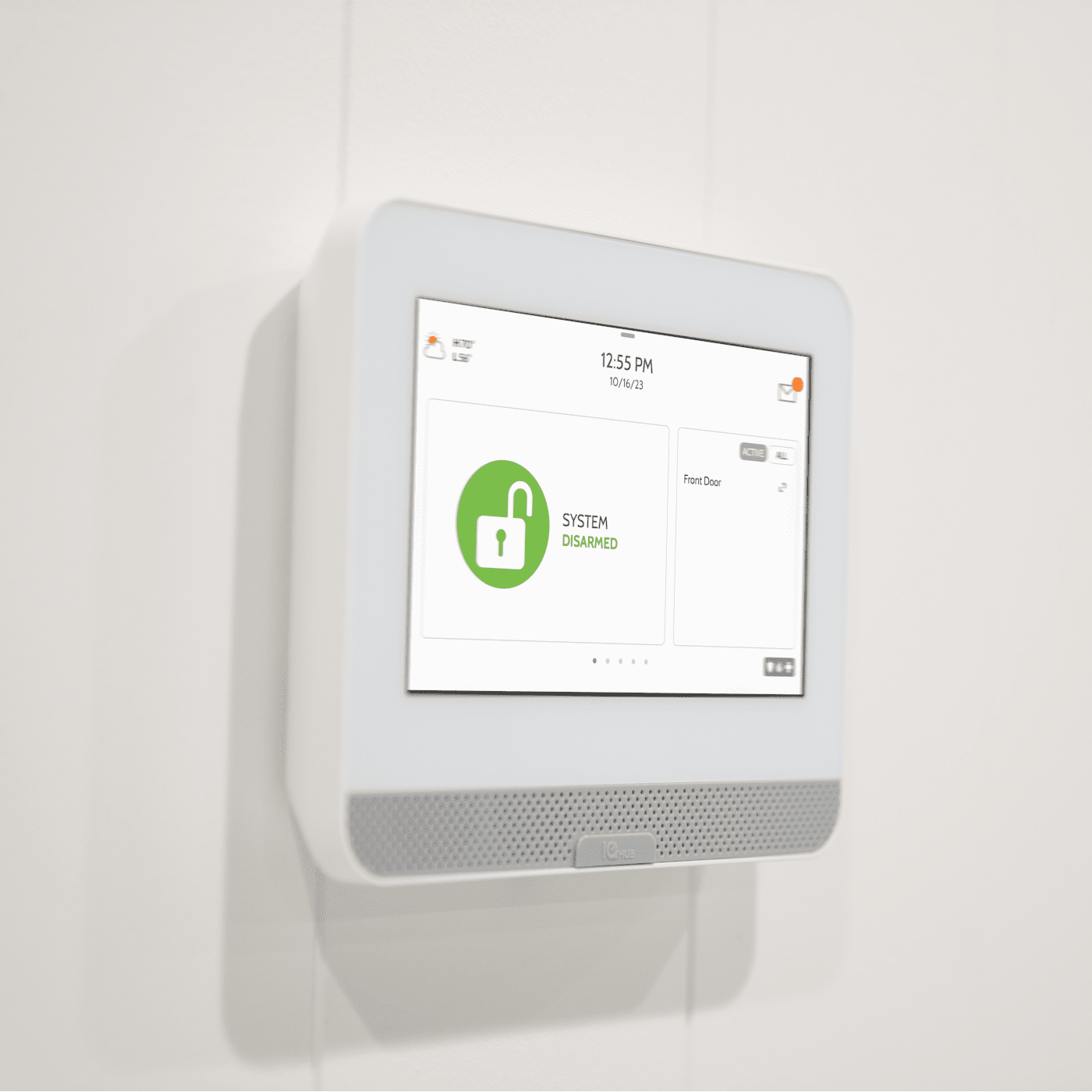

• 7" capacitive touchscreen with intuitive swipe/scroll/touch-based user interface
• Built-in AT&T LTE Cellular Communicator (powered by Alarm.com)
• Easy Wall Mount or Table Stand Mounting Options
• SmartMount system, all internal antennas, on-screen Installation Wizard
• 319.5 MHz legacy radio connects to previously existing sensors
• Bluetooth touchless disarming, live view, live answer
• Built-in panel Glass Break uses microphones and complex algorithms to detect the sound of breaking glass
• Interactive services powered by Alarm.com give you mobile apps on any platform and enable powerful features like geo-fences, scenes, and notifications
• Dual path connectivity uses WiFi and AT&T Cellular LTE simultaneously for speed, flexibility and redundancy
• Panel turns into a customizable photo frame when not in use
• Over the air software updates ensure your panel always has the latest and best features available
• Control your entire home with the built-in Z-Wave 800 Series radio that securely connects to lights, locks, thermostats, garage...etc.
• Built-in microphones and speakers allows you to two-way voice talk directly to your monitoring station agent from the panel
• Bluetooth Audio from your Smart Phone using the 4 watt speaker
• Front-facing 4W speaker and 85-decibel audible siren
• Rechargeable Lithium Ion 3000mAh rated for over 24 hours
• 16GB NAND flash memory internal storage
• Dual panel and wall tamper with spring release and Smash and Grab reporting
• Message Center allows you to get messages about your system or from GeoArm

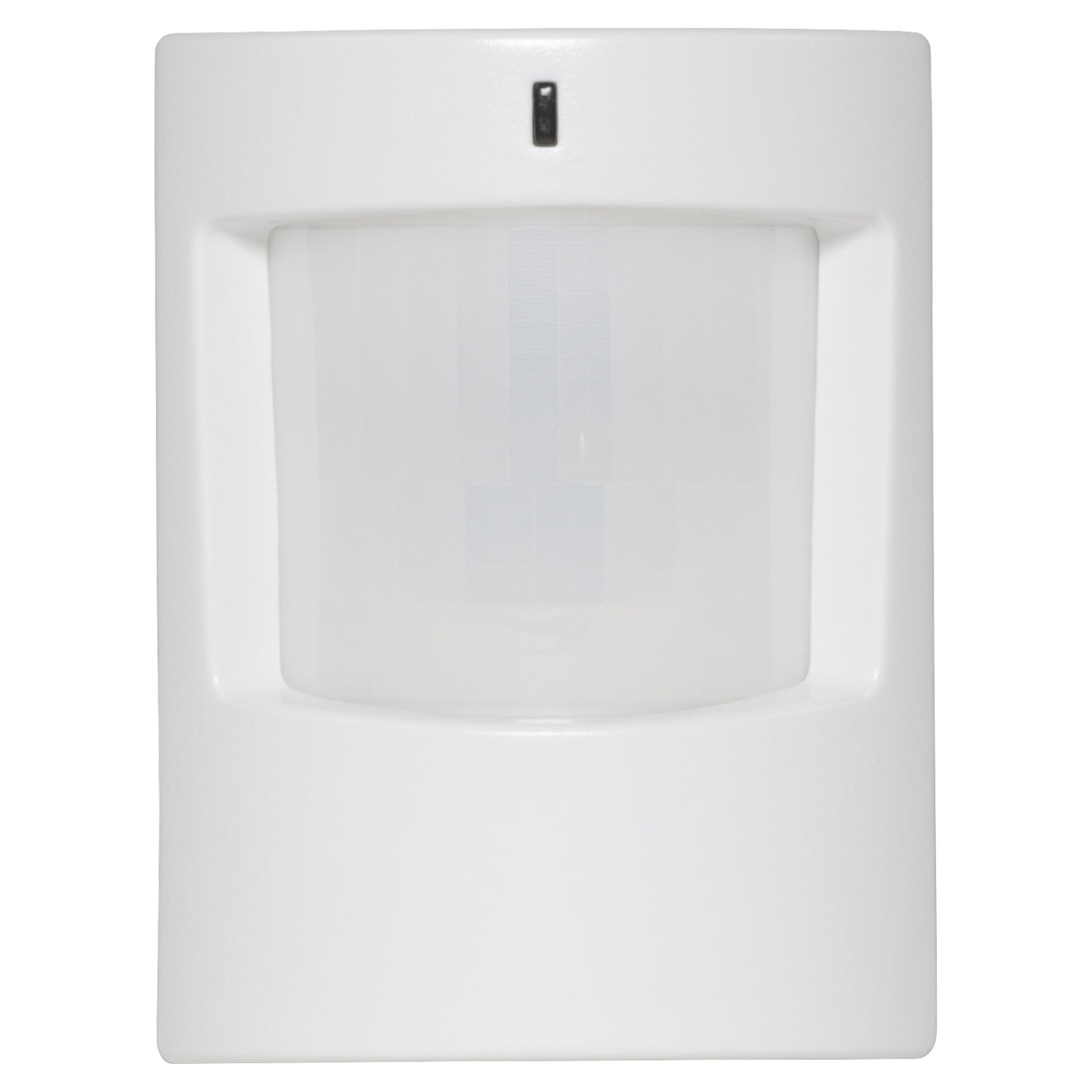

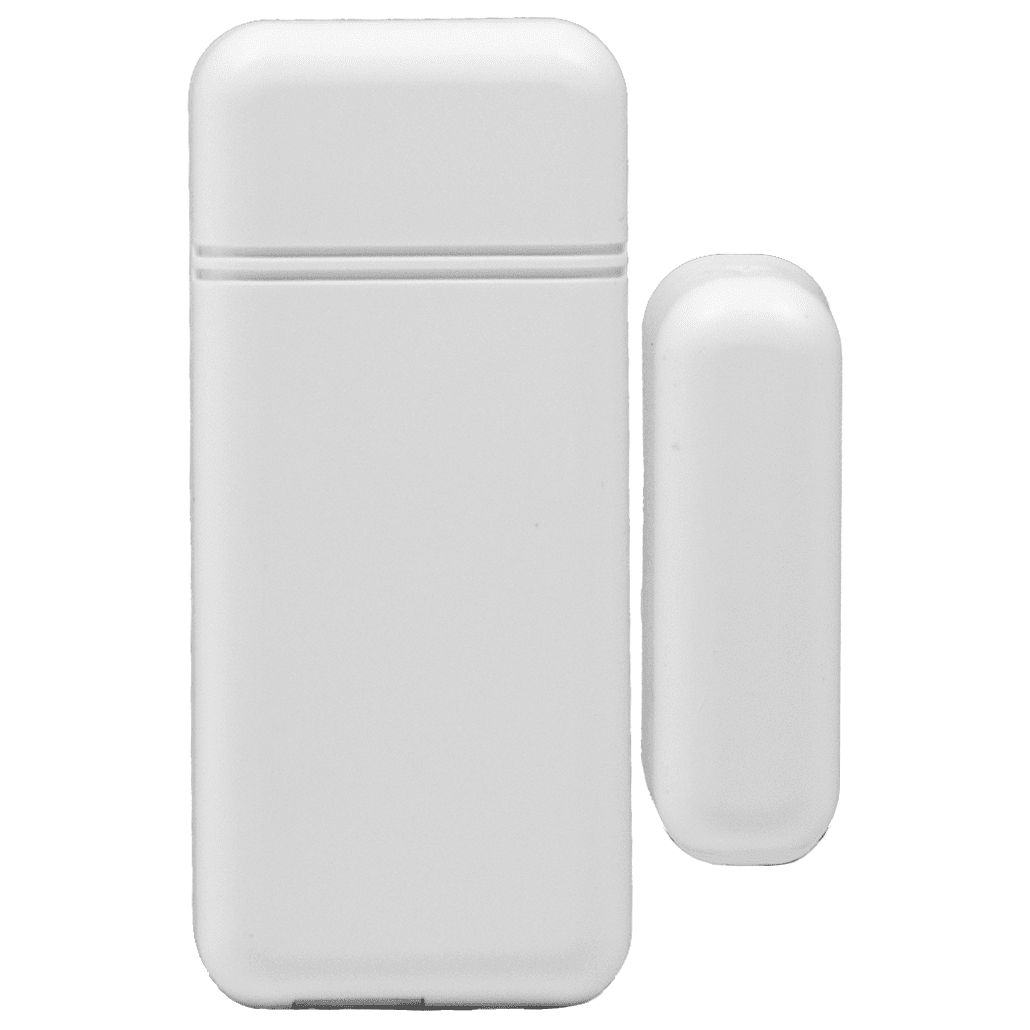

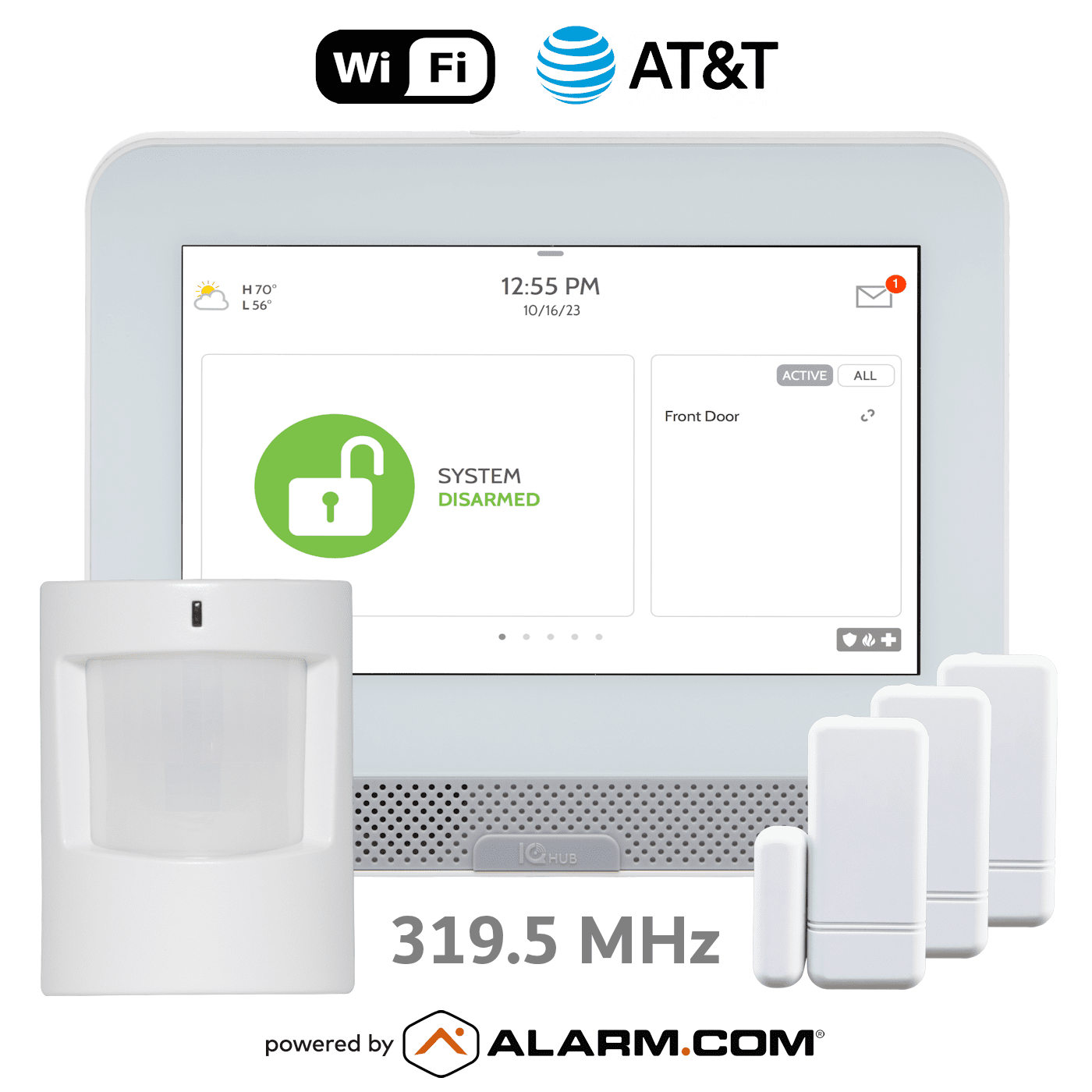

• Legacy 319.5 MHz Sensors: This IQ4 Hub includes the wireless RF receiver for both 319.5 MHz Legacy non-encrypted and 319.5 MHz S-Line encrypted security sensors.
• Light Control: You can add up to 80 Z-Wave lights, lamp modules, or lightbulbs to the IQ4 Hub. This will allow you to control your lights (e.g. turn on/off, adjust the dimmer) locally on the panel and also from your Alarm.com mobile app.
• Lock Control: You can add up to 20 Z-Wave locks to the IQ4 Hub. This will allow you to control your locks (e.g. lock/unlock doors individually or all at once) locally on the panel and also from your Alarm.com mobile app.
• Thermostat Control: You can add up to 10 thermostats to the IQ4 Hub. This will allow you to control the temperature (e.g. turn up, turn down or change mode) locally on the panel and also from your Alarm.com mobile app.
• Garage Door: You can add up to 6 Z-Wave overhead garage door controllers to the IQ Panel 4 panel. This will allow you to control the garage door (e.g. open/close it) locally on the panel and also from your Alarm.com mobile app.
• Live View: Streaming live camera feeds (up to 40 cameras) on the IQ4 Hub is a Qolsys exclusive in the Alarm.com ecosystem. "Live View" allows supported Alarm.com indoor and outdoor WiFi cameras to be viewed on the 7" HD resolution touchscreen. With a wide range of available Alarm.com video devices, user's can become even more connected to their smart homes or businesses. The supported Alarm.com smart security cameras include: ADC-V515, ADC-V523, ADC-V622-WELL, ADC-V723, ADC-V821, ADC-VC726, ADC-VC736, ADC-VC826 and ADC-VC836.
• Live Answer: An industry first, "Live Answer" streams the supported Skybell or Alarm.com Video Doorbell direct to the IQ Panel 4 high-definition touchscreen. This innovative feature replicates the mobile app experience enabling users to answer the video doorbell, remote door lock/unlock, while continuing to provide doorbell call and motion notifications sent to your smart device. The supported Alarm.com video doorbell cameras include: ADC-VDB101, ADC-VDB102, ADC-VDB105, ADC-VDB106 and ADC-VDB770.
• Install Wizard: The Install Wizard streamlines installation by taking an installer step-by-step through set up ensuring key functions and features are properly configured. The already fast and intuitive installation process is made even easier ensuring every install is consistent and follows best practices, resulting in a better install experience and reduced installation times and long-term support. The new user-friendly wizard will also further simplify DIY self-installations.
• Partitions: The panel allows for up to 4 partitions to be programmed. Partitions allow for the creation of zone groups in a home or business so that users can arm some sections of the property while leaving others disarmed. Partitioning enables greater personalization and functionality while simplifying installation. Each partition controls its local zone status, alerts and notifications. Any area or zone that needs to be armed or disarmed separately from the rest of the structure can be turned into a partition.
• Photo Frame: When your IQ4 Hub is not in use you can program the panel to turn into a customizable photo frame. Inside the panel's settings you can choose whether you want photos or a weather clock or if you want the panel to turn itself off automatically in the evenings, and more.
• Schedule Scenes*: Allows you to control multiple devices with the click of a single button right from your IQ4 Hub touchscreen (Powered by Alarm.com). Each option is a multi-device command that coordinates different smart devices to accomplish a complete task.
• User Types: You can add up to 242 users to the IQ4 Hub system, each with a custom name and access level that you allow. There are three levels you can program for staring with the top "master" level allows the user to access panel functions, camera and system settings. Next, the "user" level allows access to panel functions, camera, but NOT system settings. Lastly, the "guest" level is used to give arm and disarm access to those users who will use the panel on a temporary basis. By creating individual users, you can set up custom text notifications when they access or use your system, keeping you connected no matter where you are.
• Wellness*: Allows quick and easy access to the emergency panic for senior care directly on your IQ4 Hub touchscreen (Powered by Alarm.com). This "wellness" page replaces the Security and Arming page as the default, home page to simplify use and access to help. The check in and check out feature notifies you when assisted living caregivers arrive and leave so that you have the peace of mind knowing that your loved one is getting the care they need and deserve.

• Dimensions (H x W x D): 6.1" x 7.5"W x 1"D (155mm x 191mm x 26mm)
• LCD Display Size: 7 inch LCD
• LCD Display Resolution: 1024 x 600 pixels
• LCD Display Brightness: 300 cd/m2
• LCD Display RGB: 24bit, 16.9 million colors
• Touchscreen Type: Capacitive glass multi-touch
• Operating System: Android 9
• Processor: Qualcomm Snapdragon 8 core SOM (System on a Module) with 16GB of NAND Flash
• User Codes: Up to 242 Role-based (Dealer, Installer, Master, User, Guest, Duress)
• Wireless WiFi Network: WiFi 802.11 a/b/g/n/ac dual band 2.4/5GHz - including built-in access point capability
• Wireless Cellular Network: AT&T LTE Category 4 (Bands 2/25, 4/66, 5, 7, 12/17, 13, 14 non-FirstNet, 26)
• Wireless Z-Wave Plus (700): 137 total devices (Up to 80 lights, up to 20 locks, up to 10 thermostats, up to 6 garage doors, up to 21 misc.)
• Security R/F: 128 total devices (S-Line Encrypted 319.5 MHz)
• Bluetooth: Bluetooth Low Energy (BLE) 4.2 (disarm and audio streaming)
• Flash Memory (internal storage): 16GB NAND Flash
• LED Indicator (Status LED): Full full color RGB LED
• Speaker/Siren: Front-facing 4W speaker + 85-dB piezo siren
• Microphone: 1 x MEMS (Micro-Electro-Mechanical System) Microphones
• Tamper: Dual panel and wall tamper with spring release and Smash and Grab reporting
• Battery: Rechargeable Lithium Ion 3000mAh Rated for over 24 hours
• Buttons: Single wake/sleep button, all user controls through touch interface
• Power Supply DC: 7v DC 1000mA CC, Input 100-240VAC 50/60Hz adapter evaluated at 120vAC for UL/cUL
• Mount Back Plate: SmartMount for wall mounting included. SmartMount table stand
• Certification FCC: 2AAJXQS-IQ4H (may contain additional modules with separate FCC IDs)
• Certification IC: 11205A-QSIQ4H
• Certification UL: UL-985, UL-1023, UL2610, ULC-S545, ULC-S304
• Operational Temperature: 32°F to 120.2°F (0°C to 49°C)
• Storage Temperature: -4°F to 122°F (-20°C to 50°C)
• Relative Humidity: Up to 93% max (indoor, dry ordinary locations use only)
