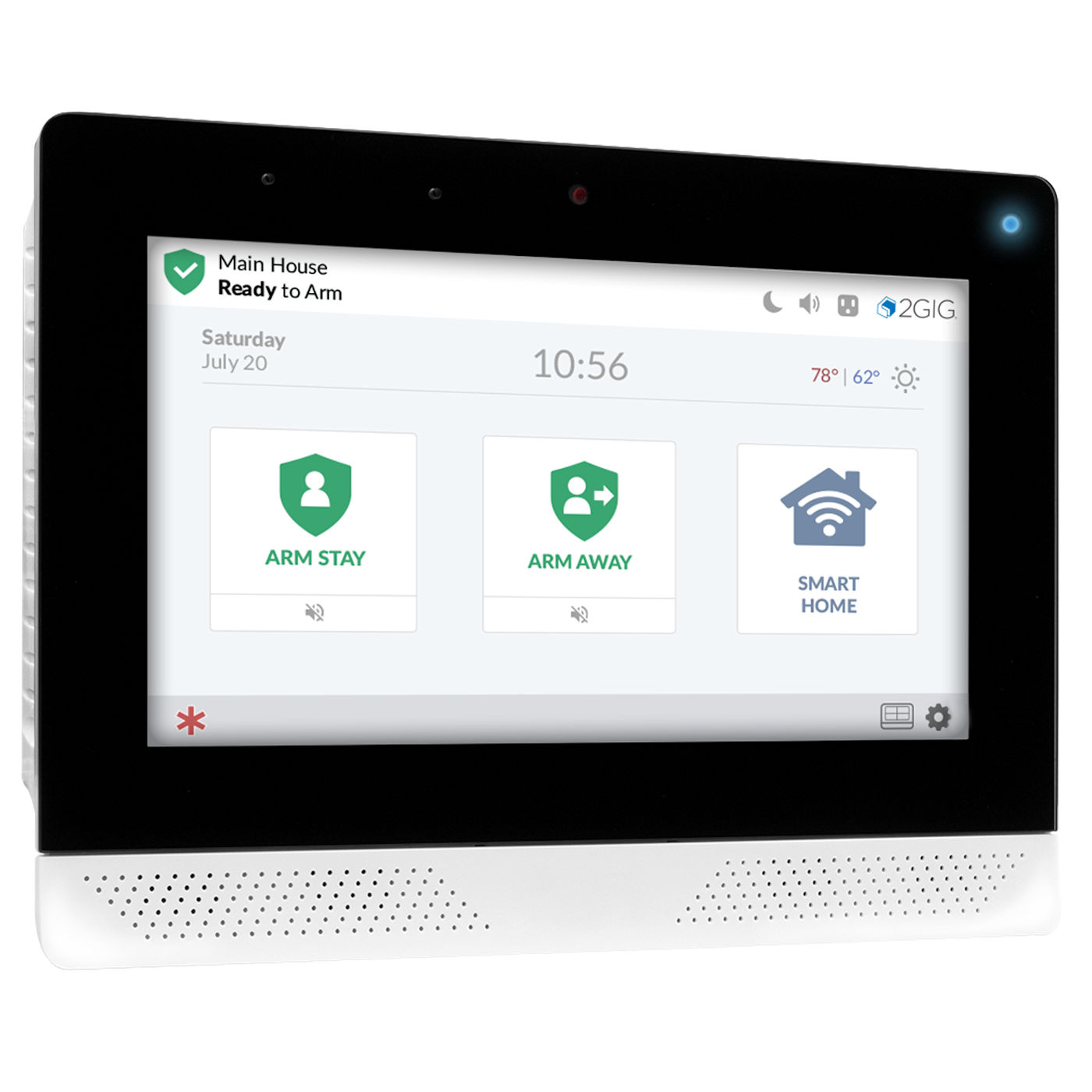

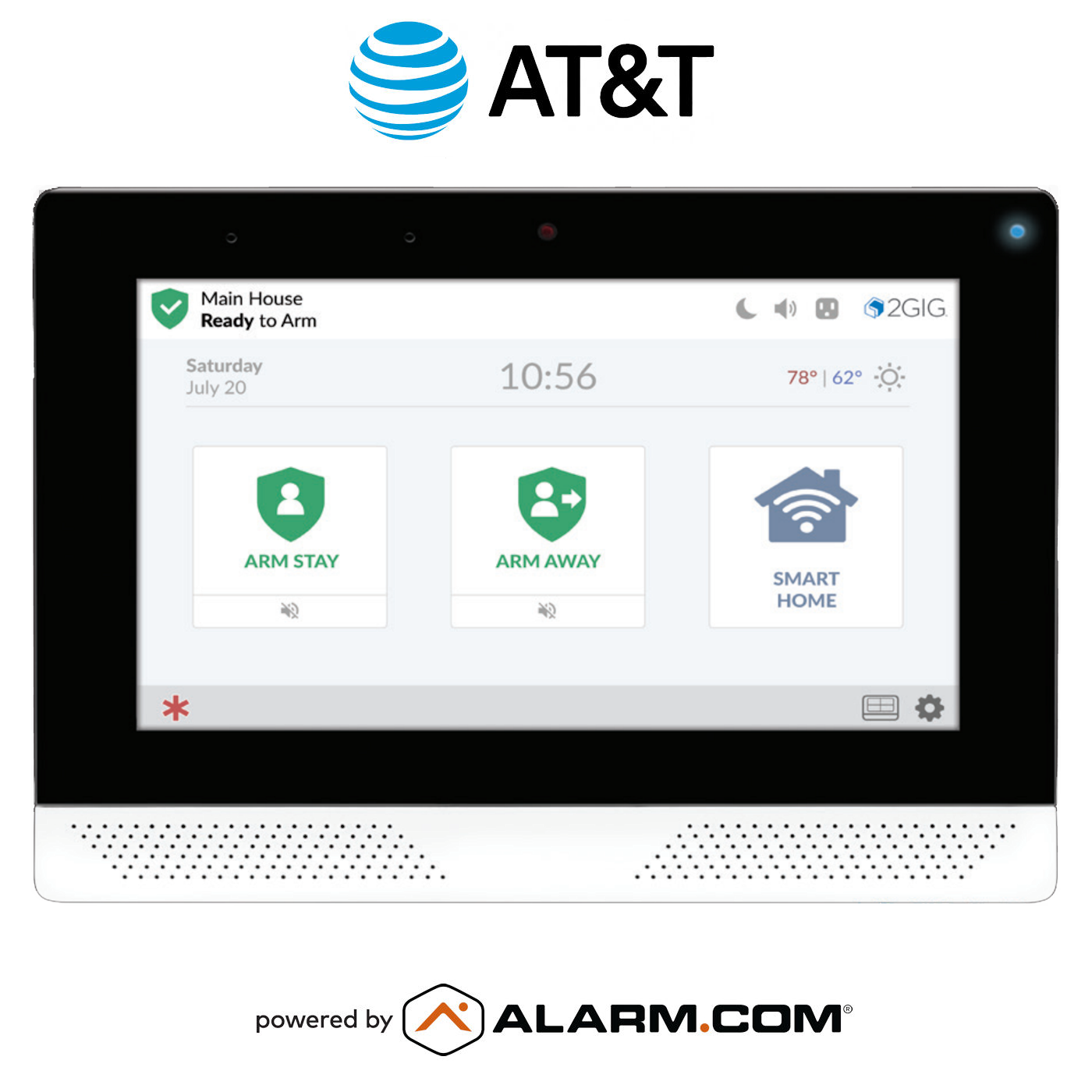

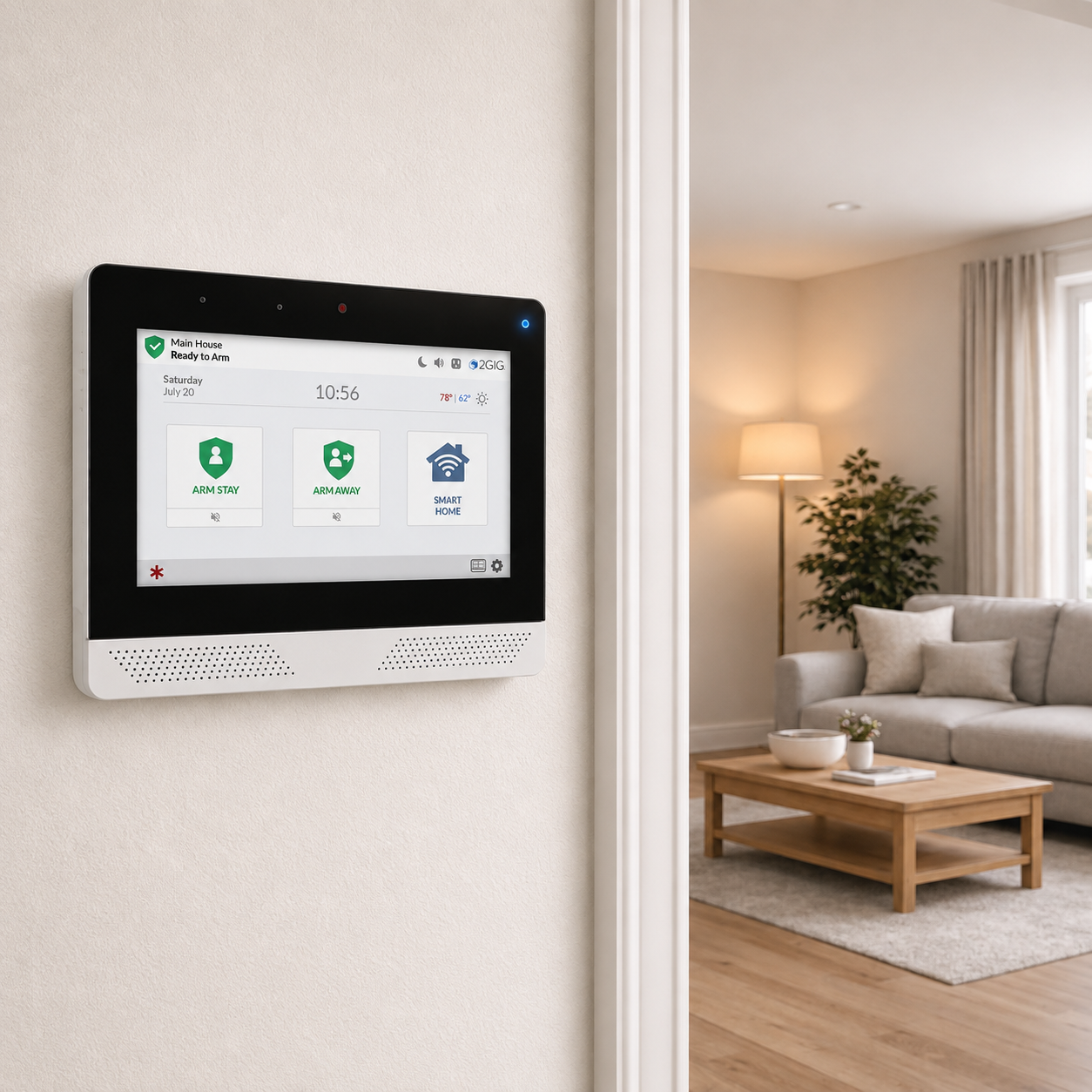

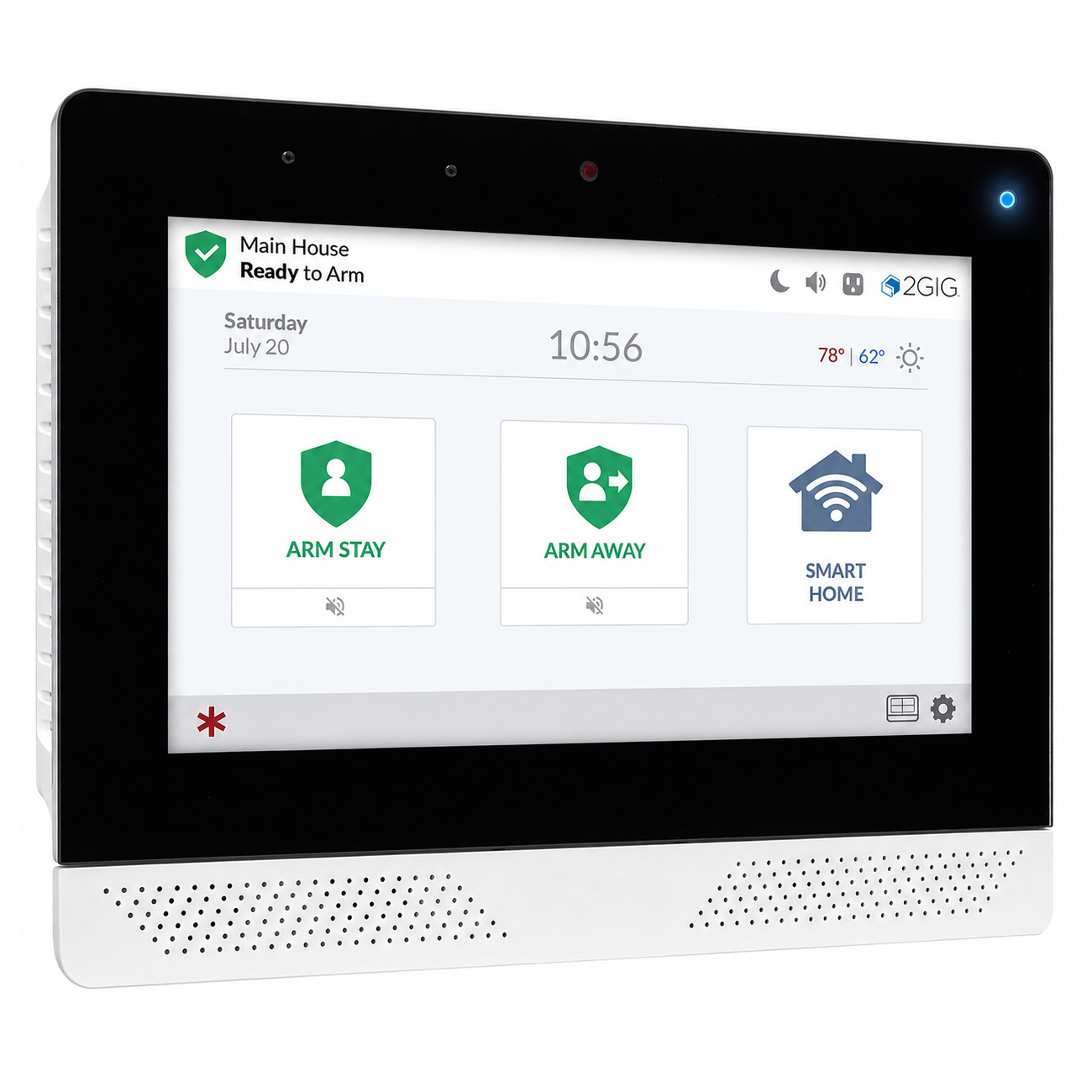

2GIG-EDG-NA-AA - 2GIG EDGE Wireless Touchscreen Control Panel (Built-In Alarm.com Cellular AT&T LTE Communicator)
2GIG-EDG-NA-AA Product Description:
The 2GIG EDGE (Part Number: 2GIG-EDG-NA-AA) eSeries security and control panel sets a new benchmark in form and function with its sleek design that is thinner and more powerful than ever. The 2GIG-EDG-NA-AA contains a wireless 7" touchscreen control panel that comes with a built-in WiFi and cellular AT&T LTE alarm communicator which is powered by Alarm.com. With on the edge processing technology, the 2GIG EDGE enables touchless Bluetooth disarm capabilities. The EDGE panel also features facial recognition and analytics within the panel so private data stays private for greater peace of mind.
Regardless of the property type that you plan on installing the 2GIG EDGE panel in, it can expand when the time comes. The EDGE can add up to 100 users, 32 keyfobs, 8 keypads, 100 wireless zones and even has two wired zone inputs. 2GIG has developed a wide range of wireless eSeries encrypted sensors which may be added to the EDGE panel, together with older non-encrypted 2GIG and Honeywell 5800-Series security sensors if desired.
The EDGE panel can also integrate Z-Wave and Z-Wave Plus sensors so users can take control of their home automation. For more complete automation, users can create and execute scenes and schedules. Additionally, the panel is also compatible with voice controls through Google Assistant, Amazon Echo and Siri Shortcuts. So, you can easily lock your front door from your couch by asking "Alexa" or "Siri" to do so!
For video surveillance solutions, the 2GIG EDGE can integrate with the full-line of Alarm.com security cameras and video doorbells. Having a built-in front video camera, the 2GIG Edge can also display the live video on the touchscreen and/or up to 4 cameras feeds at the same time.
With cutting-edge enhancements such as double the viewing area, higher resolution, two speakers and dual microphones, the 2GIG EDGE delivers superb audio quality and 2-way voice communication. Together with smart automation, the 2GIG EDGE was developed as an all-in-one easy small business and home security solution for the DIYer.
Product Features:
- Touchless Convenience: Integrated face recognition and Bluetooth technologies significantly streamline operation - no putting down grocery bags to disarm the system.
- Smart Home Capabilities: Ability to customize with controls, rules, scenes, and notifications.
- Partitioning/Smart Areas: Intuitive, easy to use partitions. Independently secure and control up to 4 seperate areas of the house or small business.
- Live View Video: Cameras and doorbell cameras work with the 2GIG EDGE panel, with up to 8 different camera feeds viewable directly from the panel. View 4 camera feeds at a time.
- Encrypted Sensors: Help eliminate system hacks and reuse your older equipment. The panel is backwards compatible with older 2GIG® and Honeywell sensors.
- Increased Data Privacy: Processing analytics on the edge versus the cloud better protects homeowner information.
- Extra Security: Packed with built-in features homeowners demand - onboard camera, 2-way audio, cell radio, glassbreak sensor.
- 2GIG Security and Automation Systems: 2GIG products are known for their quality and field proven reliability with more than 15 million systems and 35 million sensors deployed that boast a less than 0.03 percent failure rate.
- Dual Communication Paths: Uses both cellular AT&T LTE and WiFi. If one service goes down, the other is always available. WiFi connection also enables faster updates.
* Items listed above with an asterisk symbol require a subscription to Alarm.com powered by GeoArm.
2GIG-EDG-NA-AA Product Documents:
• 2GIG-EDG-NA-AA - EDGE Wireless Control Panel Data Sheet
• 2GIG-EDG-NA-AA - EDGE Wireless Control Panel Installation Guide
• 2GIG-EDG-NA-AA - EDGE Wireless Control Panel Quick Start Guide
• 2GIG-EDG-NA-AA - EDGE Wireless Control Panel User Guide
• 2GIG-EDG-NA-AA - EDGE Wireless Control Panel Smart Home Manual
• 2GIG-EDG-NA-AA - EDGE Wireless Control Panel Battery Replacement Installation Instructions
2GIG-EDG-NA-AA Product Specifications:
Panel Features:
- Face recognition disarm
- Bluetooth disarm
- Glassbreak detection with advanced audio analytics
- Video live view on the panel
- Alarm.com cameras on the panel
- Doorbell on the panel with 2-way audio and door unlock
- ONVIF camera support
- Photo capture while viewing on a 7" LCD - RGB: 16.7 million colors
- Data privacy
- 2GIG secure 6-digit personal codes
Security:
- One-touch arming
- eSeries encrypted sensors
- Emergency (fire, medical, police)
- 100 users
- 100 wireless zones
- 2 wired zones
- Wired bell output
- 32 keyfobs
- 8 keypads
- 2 open collector outputs
- Image sensor 3
Audio:
- Best in class 2-way voice
- Dual microphones (digital)
- Noise and echo cancellation
- Front firing speakers
- Siren/piezo
- Annunciations and chimes
Automation:
- Integrated Z-Wave Plus V2 (700-Series)
- Z-Wave S2
- Create and execute scenes and schedules
Voice Controls:
- Google Assistant
- Amazon Echo
- Siri Shortcuts
Communication:
- 4G LTE (AT&T Network)
- 3G fall-back
- WiFi 2.4 GHz (802.11 b/g/n, WPA-TKIP/WPA2-AES)
- WiFi access point
Operating Specifications:
- Operating Temperature: 32°F to 104°F (0°C to 40°C)
- Max Humidity: 90%
- Power Requirements: 100-240VAC 50/60Hz 1.7A 14VDC adapter
- Battery: Lithium-polymer backup battery (24 hrs.)
- Dimensions (L x W x D): 7.5 x 5.625 x 1.0 (in) 19.05 x 14.29 x 2.54 (cm)
- Weight: 1.39 lbs (0.63 kg)
Certifications:
- FCC: Part 15, Part 68
- ISED, RSS210/RSS247
- UL 985, UL 1023, UL 2017, ULC-S545, ULC S304 (for Canada)
- SIA CP-01
- CSFM BML Listed
- PROP-65, ROHS
Firware Updates:
- Over-the-air
- USB
Warranty:
- Limited 3 years
