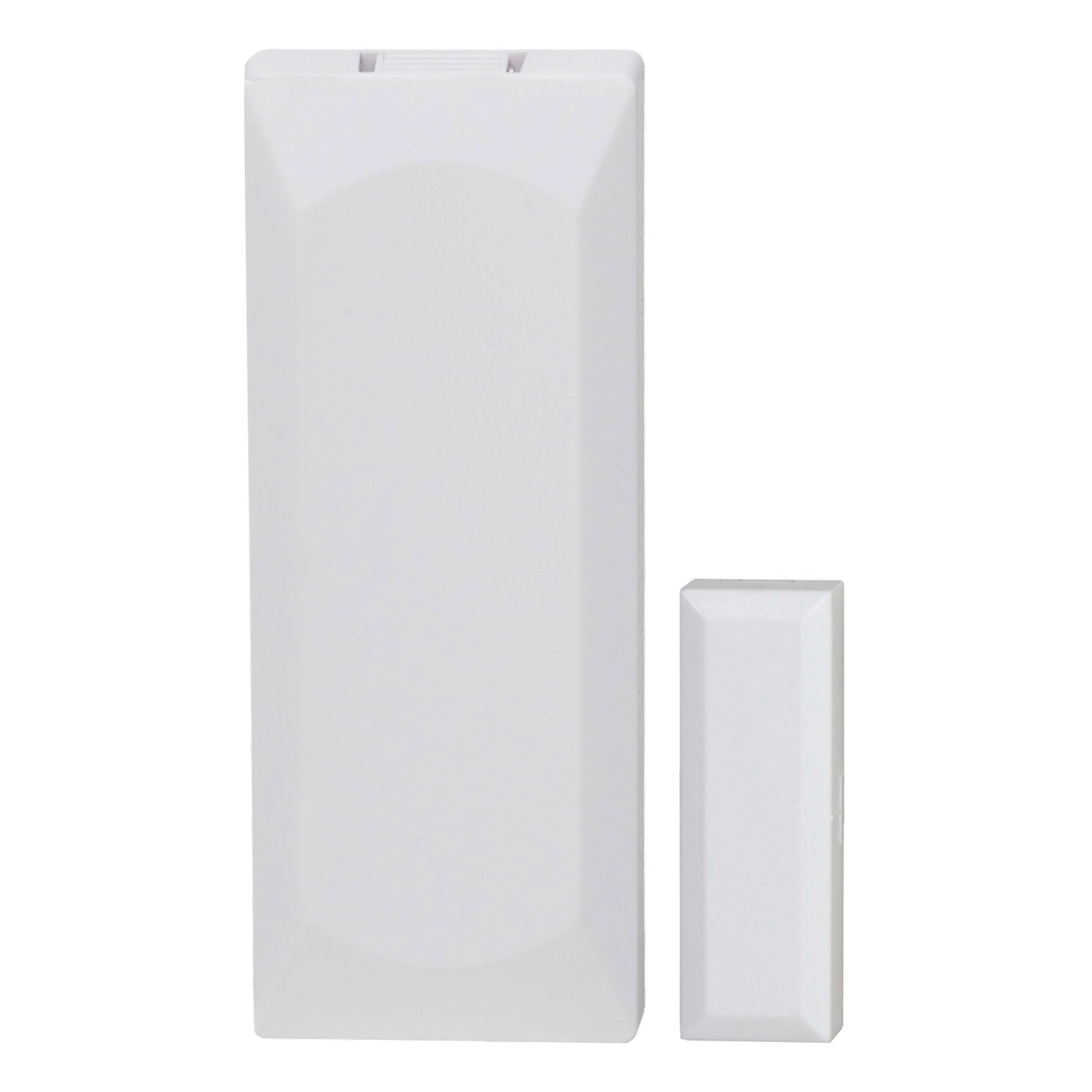

2GIG-DW10e-345 - 2GIG Wireless eSeries Thin Door/Window Alarm Contact

Item# 2GIG-DW10e-345

Average Customer Rating:
Read Review(s) | Write a Review

List Price: ~~$30.35~~

Your Price: $20.24

Availability: In Stock

QTY:

ShippingFast shipping

Returns30-day return window

PaymentSecure Transaction

Description
Specifications
Installation
Includes

2GIG-DW10e-345 Product Description:

The 2GIG-DW10E-345 wireless, eSeries encrypted, alarm contact is designed to be installed on doors, windows, jewelry boxes, and many other objects that open and close. This thin door/window contact sends alarm signals to the 2GIG GC2e and GC3e control panels, when a magnet mounted near the sensor is moved away from or closer to the sensor's transmitter. The DW10e-345 sensor is also equipped with cover tamper for additional security.

The DW10e-345 communicates with the control panel using the 345 MHz frequency. When the magnet (which is mounted near the sensor) moves away from or closer to the door contact's sensor, signals are transmitted to the control panel. The door contact also has an external input that accepts connections from normally-closed (NC) dry contact devices.

Product Features:

For narrow applications, sensor is only 3/4" wide
Fully supervised
Rare earth magnet
Lithium battery
Supports internal and external contacts
Can be used for two zones of protection
345 MHz
eSeries encryption
ETL Listed

2GIG-DW10e-345 Product Specifications:

Wireless Signal Range: 350 ft (106.7 m), open air, with Wireless Control Panel
Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery; External Alarm; External Restore; Tamper; Tamper Restore
Transmitter Frequency: 345.00 MHz (crystal controlled)
Unique ID Codes: Over one (1) million different code combinations
Supervisory Interval: 70 minutes
External Input: Accepts N/C dry contact devices
Magnet Dimensions (L x W x D): 1.3 x 0.435 x 0.312 in (3.3 x 1.1 x 0.79 cm)
Magnet Type: Rare Earth
Sensor Dimensions (L x W x D): 2.59 x 1.03 x 0.49 in (6.58 x 2.62 x 1.24 cm)
Weight: 1.1 oz (31.2 g)
Housing Material: ABS Plastic
Color: White
Operating Temperature Limits: 32° to 120°F (0° to 49°C)
Relative Humidity: 5-90% Non-Condensing
Battery (included, not installed): Two (2) CR 2032 or equivalent Lithium batteries
Certification: Anatel, ETL, FCC, Industry Canada, and NOM

2GIG-DW10e-345 Installation Guidelines:

Mount Sensors within 100 ft (30 m) of the Control Panel: Although the transmitter may have a range of 350 ft (106.7 m) open air, the sensor location can have a significant effect on range. In open/unobstructed situations, the transmitter range may be greater. In adverse wireless conditions, changing the sensor orientation may lead to improved range.
Mount Sensors at Least 4.7 in (12 cm) Above the Floor: Placing sensors slightly above floor level helps to minimize possible sensor damage.
Single vs. Double Door Installation: For single?door installation, mount the sensor on the door frame and the magnet on the door. For double?door installation, mount the sensor on the least?used door and the magnet on the most?used door.
Do Not Expose Sensors to Moisture or Extreme Temperature: It is best to mount sensors in a dry location where the operating temperature do not exceed 32° to 120°F (0° to 49°C).
Keep Sensors and Magnets Away from Metal/Metallic Surfaces: To keep sensors and magnets away from metal or metallic surfaces (for example, foil wallpaper), it is recommended that you use spacers (not included). You should also avoid mounting sensors in areas where there is a large quantity of metal or electrical wiring (for example, near a furnace or in a utility room).
Align Magnet with Sensor: Make sure the alignment arrow on the magnet points to the center alignment mark on the sensor.

2GIG-DW10e-345 Product Includes:

(1) Thin Door/Window Contact
(1) Rare Earth Magnet
(2) Phillips Head Screws
(2) Lithium Coin Batteries
(2) Adhesive Foam Tape
(1) 12 in (30 cm) Wire Lead
