2GIG-DW20e-345 - 2GIG Wireless eSeries Recessed Door/Window Alarm Contact
2GIG-DW20e-345 Product Description:

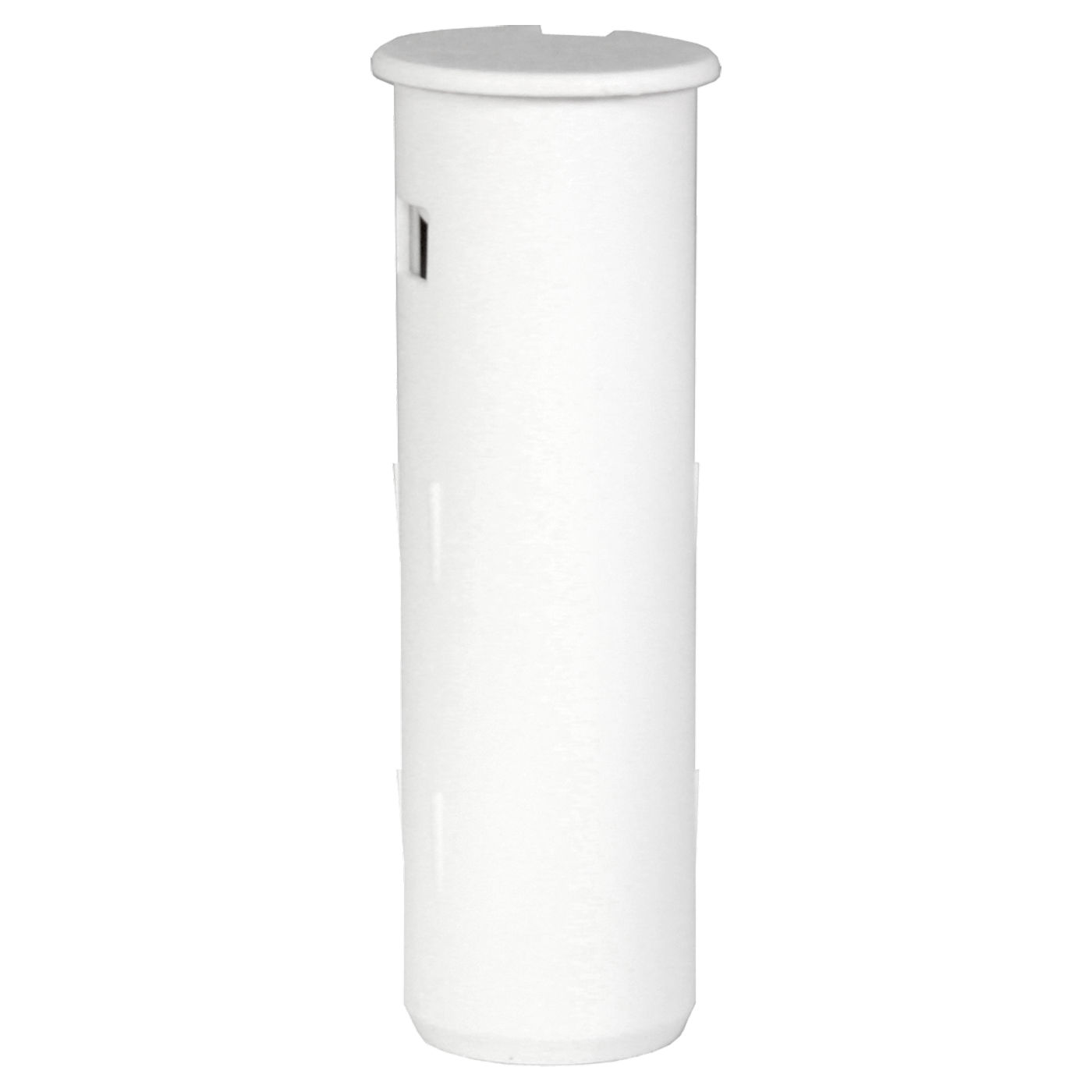

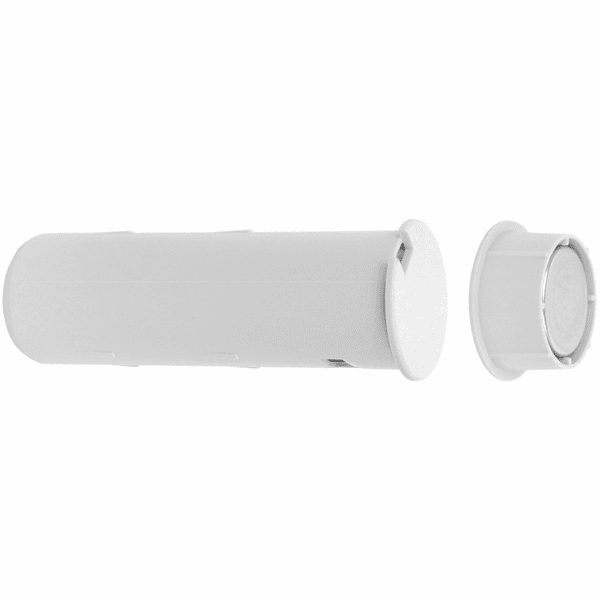

The 2GIG-DW20e-345 is a recessed, eSeries encrypted, wireless door and window contact that disappears in the shadow of the door or window frame, leaving intruders unaware of the protected entrance. This small frame sensor is so sensitive, that it can detect even the softest opening and closing of the entrances, making it a great option for enforcing curfew as well. The 2GIG-DW20e-345 communicates wirelessly with the 2GIG GC2e and GC3e control panels via the 345 MHz frequency. Powered by a replaceable three-volt lithium battery, the DW20e-345 sensor will last around five years with normal use.
Product Features:
- Compact size, only 2-1/2" long
- Fully supervised
- Rare earth magnet
- Lithium battery
- 345 MHz
- eSeries encryption
- ETL Listed
2GIG-DW20e-345 Product Specifications:
- Wireless Signal Range: 450 ft (137.2 m), open air, with Wireless Control Panel
- Code Outputs: Alarm; Alarm Restore; Supervisory; Low Battery
- Transmitter Frequency: 345.00 MHz (crystal controlled)
- Unique ID Codes: Over one (1) million different code combinations
- Supervisory Interval: 70 minutes
- Magnet Dimensions (H x D): 0.5 x 0.75 in (1.27 x 1.9 cm)
- Magnet Type: Rare Earth
- Sensor Dimensions (H x D): 2.57 x 0.75 in (6.53 x 1.9 cm)
- Weight (including battery & magnet): 1.25 oz (35.4 g)
- Housing Material: ABS Plastic
- Color: White
- Operating Temperature Limits: 32° to 120°F (0° to 49°C)
- Relative Humidity: 5-90% Non-Condensing
- Battery (included, not installed): One (1) 3V CR-2 or equivalent Lithium battery
- Certification: Anatel, ETL, FCC, IC, and NOM
2GIG-DW20e-345 Installation Guidelines:
- Mount Sensors within 100 ft (30 m) of the Control Panel: Although the transmitter may have a range of 450 ft (137.2 m) in open/unobstructed situations, the environment at the installation site can have a significant effect on transmitter range.
- Install the Recessed Sensor in the Door or Door Frame: It is important to select the proper placement of the recessed sensor/transmitter and magnet. The sensor comes with two different tops, however, the screw mount is recommended for securing the sensor to a door frame. The magnet does not have a second top with a flange to screw it into place so you must be extremely careful to ensure that the magnet is tightly in place upon installation.
- Use Screw Mount to Secure the Sensor to a Door Frame: The magnet does not have a second top with a flange to screw it into place so you must be extremely careful to ensure that the magnet is tightly in place upon installation. The door contact can be mounted in either the door jamb or door frame. The best practice is to mount it in the door frame.
2GIG-DW20e-345 Product Includes:
- (1) Recessed Door/Window Contact
- (2) Plastic Door Contact Covers
- (2) Plastic Two?Hole Screw Mount Contact Covers
- (2) Phillips Head Screws
- (2) Plastic Magnet Caps
- (1) Rare Earth Magnet
- (1) Lithium Battery
