TCAT - Honeywell Total Connect GPS Valuable Asset Tracker

TCAT - Honeywell Total Connect GPS Valuable Asset Tracker
TCAT - Honeywell Total Connect GPS Valuable Asset Tracker
Item# TCAT-EB

Average Customer Rating:
Read Review(s) | Write a Review

Please Note: The Honeywell TCAT-EB asset tracker (w/extended battery) has been discontinued without replacement.

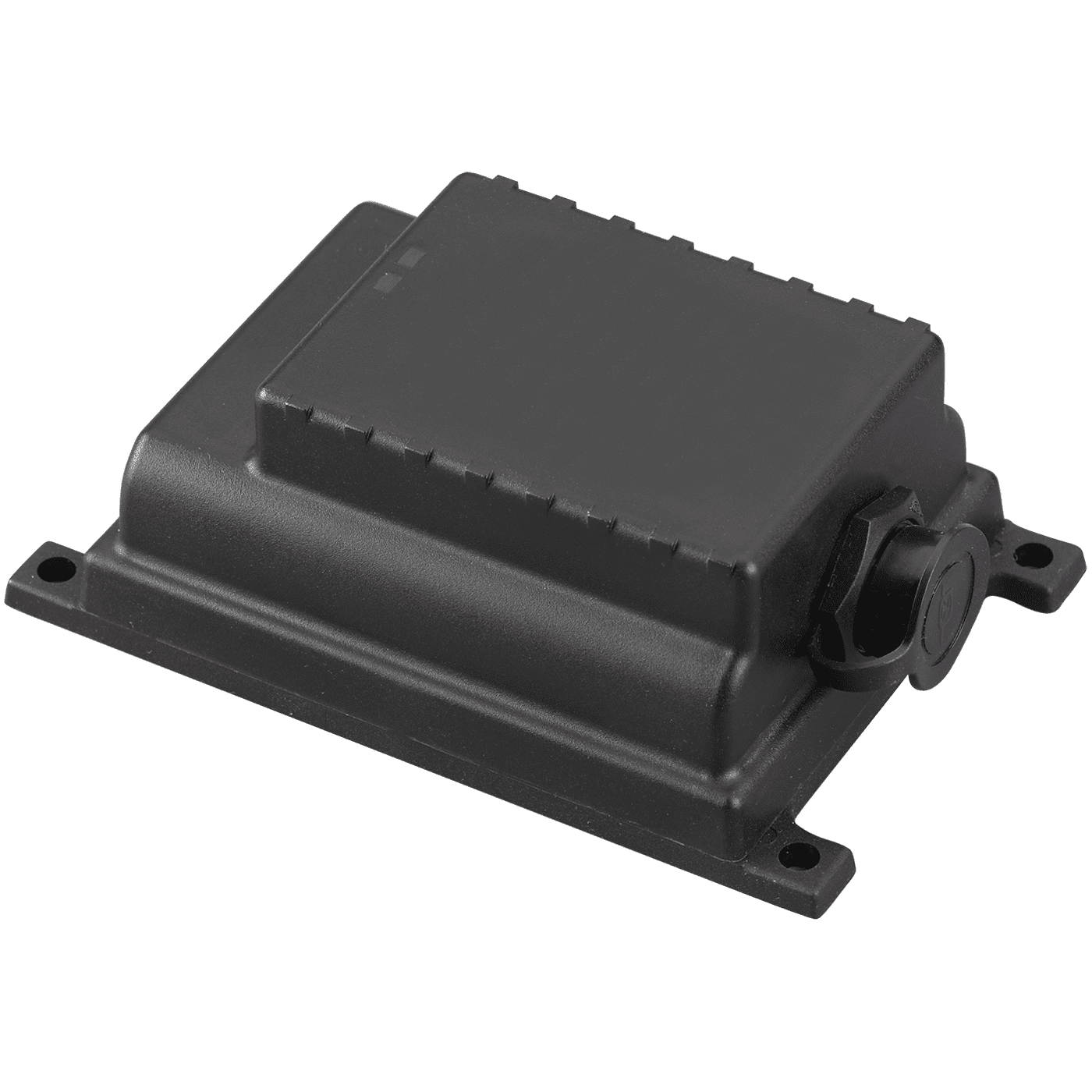

Honeywell TCAT-EB Product Description:


The Honeywell TCAT-EB is an extended battery tracker that is recommended for non-powered applications designed for heavy machinery and equipment, freight containers, and general valuables. The TCAT-EB has an internal 6600 ma rechargeable battery for applications requiring longer battery life (may last up to two years, depending upon the activity use of the asset).

When the asset starts moving, the tracker will record a "movement initiated" event on the GPS web interface and a TC2 notification will be generated to report "Asset Start." When the asset stops moving, the tracker will record a "movement concluded" event on the GPS web interface and a TC2 notification will be generated to report "Asset Stop." The tracker does not provide breadcrumb location updates. This tracker is intended for use on assets that are not expected to be moved much. If the asset will be moved frequently, the tracker should be connected to a power source. The GPS tracking device gathers position data from the GPS satellites. This information along with other asset data (such as; start/stop, speed, low battery, etc.) is then communicated, using CDMA cellular technology, to Honeywell's AlarmNet monitoring center.

The customer can monitor this information using their Total Connect Remote Services® account. Note: Total Connect 2.0 Remote Services are required to use this tracker.

Product Features:

  • CDMA 1XRTT
  • Extended Battery
  • Recommended for heavy machinery and equipment, jet skis, snow mobiles, boats, ATVs, trailers and RVs, and motorcycles
  • 1XRTT supports 800/1900 MHz dual band
  • LED status indicators for GPS, network registration
  • Over-the-air configuration and firmware upgrade
  • Supports TCP and UDP
  • Integrated GPS receiver and antenna for tracking applications
  • Supports SMS connectivity
  • Internal 650 mAh rechargeable battery (up to a two-month battery life)

Honeywell TCAT-EB Product Specifications:


Mechancial

  • Dimensions: 4.4" L x 2.7" W x 1.6" H (121mm x 76 mm x 51mm)
  • Housing: ABS plastic; optional weather-proofing
  • Weight: 8.5 oz.
  • Status indicators: Network registration/GPS status


Cellular CDMA 1XRTT Characteristics

  • Dual-band support: 800 MHz, 1900 MHz
  • Protocol: Supports TCP and UDP
  • PS (Packet Switched) data rate: CDMA PS data up to 153 kb/s DL/UL


GPS Specification

  • Receiver: 50 channels
  • Receiver Sensitivity: -161 dBm
  • Accuracy: +/- 2.5m CEP
  • Cold Start: <33 seconds
  • Hot Start: <1 second


Physical Connection

  • Eight pin microfit connector
  • Four configurable I/O


Environment

  • Operating temperature: -4°F to 140°F (-20°C to 60°C)


Power

  • Input Power, current: 12-24VDC
  • Current: Approx. 40ma active average; 120 ?a sleep mode
  • Battery: Internal 6600 rechargeable Li-Ion


Certifications

  • FCC: Parts 15, 22 and 24
  • Verizon Network: CDMA
