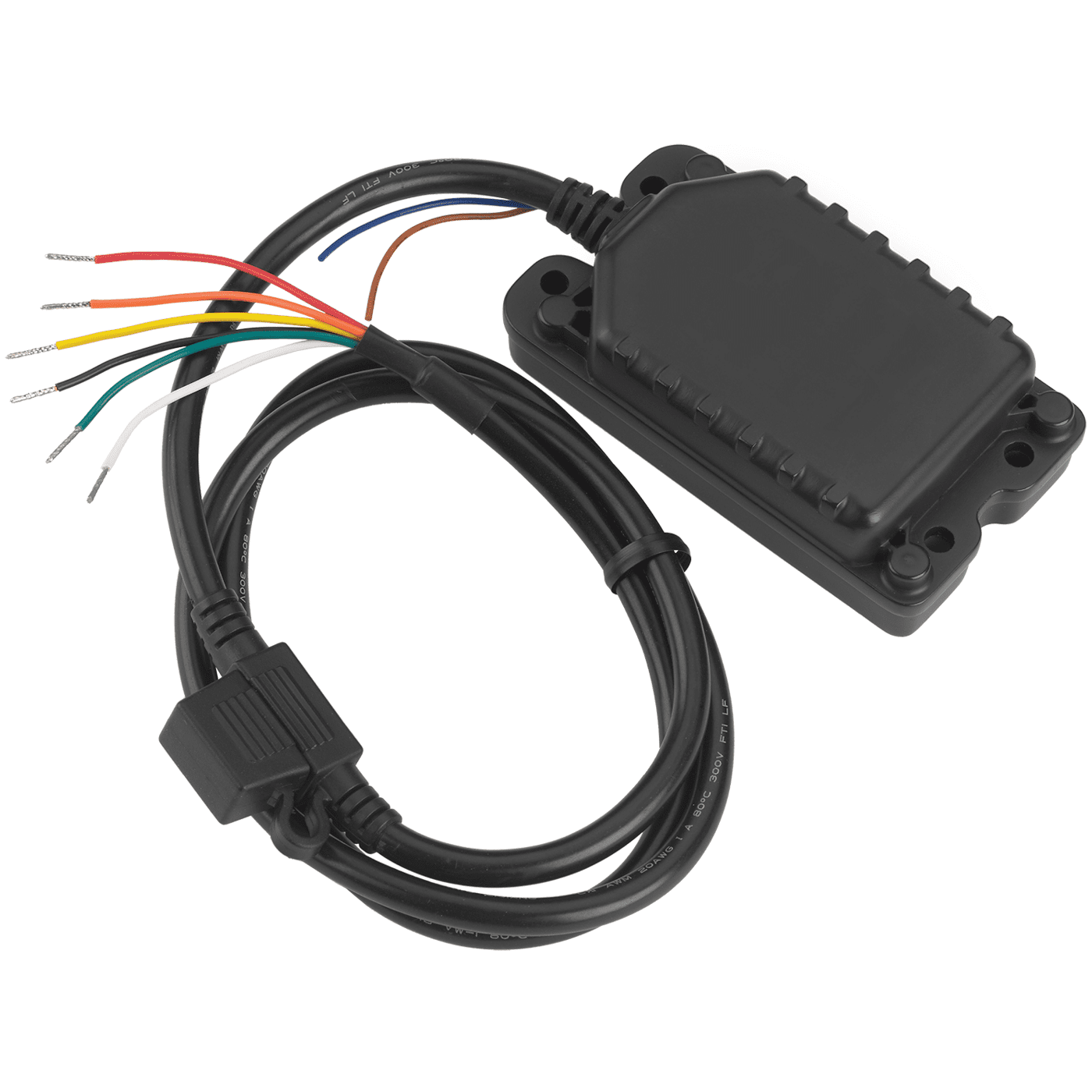

TCAT - Honeywell Total Connect GPS Valuable Asset Tracker

TCAT - Honeywell Total Connect GPS Valuable Asset Tracker
TCAT - Honeywell Total Connect GPS Valuable Asset Tracker
Item# TCAT

Average Customer Rating:
Read Review(s) | Write a Review

Please Note: The Honeywell TCAT asset tracker has been discontinued without replacement.

Honeywell TCAT Product Description:


The Honeywell TCAT is a Total Connect asset tracker. The TCAT is recommended for constant powered applications and designed for heavy machinery and equipment, jet skis, snow mobiles, boats, ATVs, trailers and RVs, and motorcycles. The TCAT provides an easy solution for tracking small fixed or mobile OUTDOOR assets. Each Total Connect account location may have up to 20 asset trackers (mixed models).

The TCAT asset tracking device gathers position data from the GPS satellites. This information along with other asset data (such as; start/stop, speed, low battery, etc.) is then communicated, using CDMA cellular technology, to Honeywell's AlarmNet monitoring center. The TCAT provides location and motion information.

The customer can monitor this information using their Total Connect Remote Services® account. Note: Total Connect 2.0 Remote Services are required to use this tracker.

Product Features:

  • CDMA 1XRTT
  • Recommended for heavy machinery and equipment, jet skis, snow mobiles, boats, ATVs, trailers and RVs, and motorcycles
  • 1XRTT supports 800/1900 MHz dual band
  • LED status indicators for GPS, network registration
  • Over-the-air configuration and firmware upgrade
  • Supports TCP and UDP
  • Integrated GPS receiver and antenna for tracking applications
  • Supports SMS connectivity
  • Internal 650 mAh rechargeable battery (up to a two-month battery life)

Honeywell TCAT Product Specifications:


Mechancial

  • Dimensions: 2.4" x 1.8" x 0.7"
  • Housing: ABS plastic; optional weather-proofing
  • Weight: 4 oz.
  • Status indicators: Network registration/GPS status


Cellular CDMA 1XRTT Characteristics

  • Dual-band support: 800 MHz, 1900 MHz
  • Protocol: Supports TCP and UDP
  • PS (Packet Switched) data rate: CDMa PS data up to 153 kb/s DL/UL


GPS Specification

  • Receiver: 50 channels
  • Receiver Sensitivity: -161 dBm
  • Accuracy: +/- 2.5m CEP
  • Cold Start: <33 seconds
  • Hot Start: <1 second


Physical Connection

  • Eight pin microfit connector
  • Four configurable I/O


Environment
  • Operating temperature: -22°F to 167°F (-30°C to 75°C)


Power

  • Input Power, current: 12-24VDC
  • Current: Approx. 45ma active average; 150 ?a sleep mode
  • Battery: Internal 650, 960 or 6600 rechargeable Li-Ion


Certifications

  • FCC: Parts 15, 22 and 24
  • Verizon Network: CDMA
