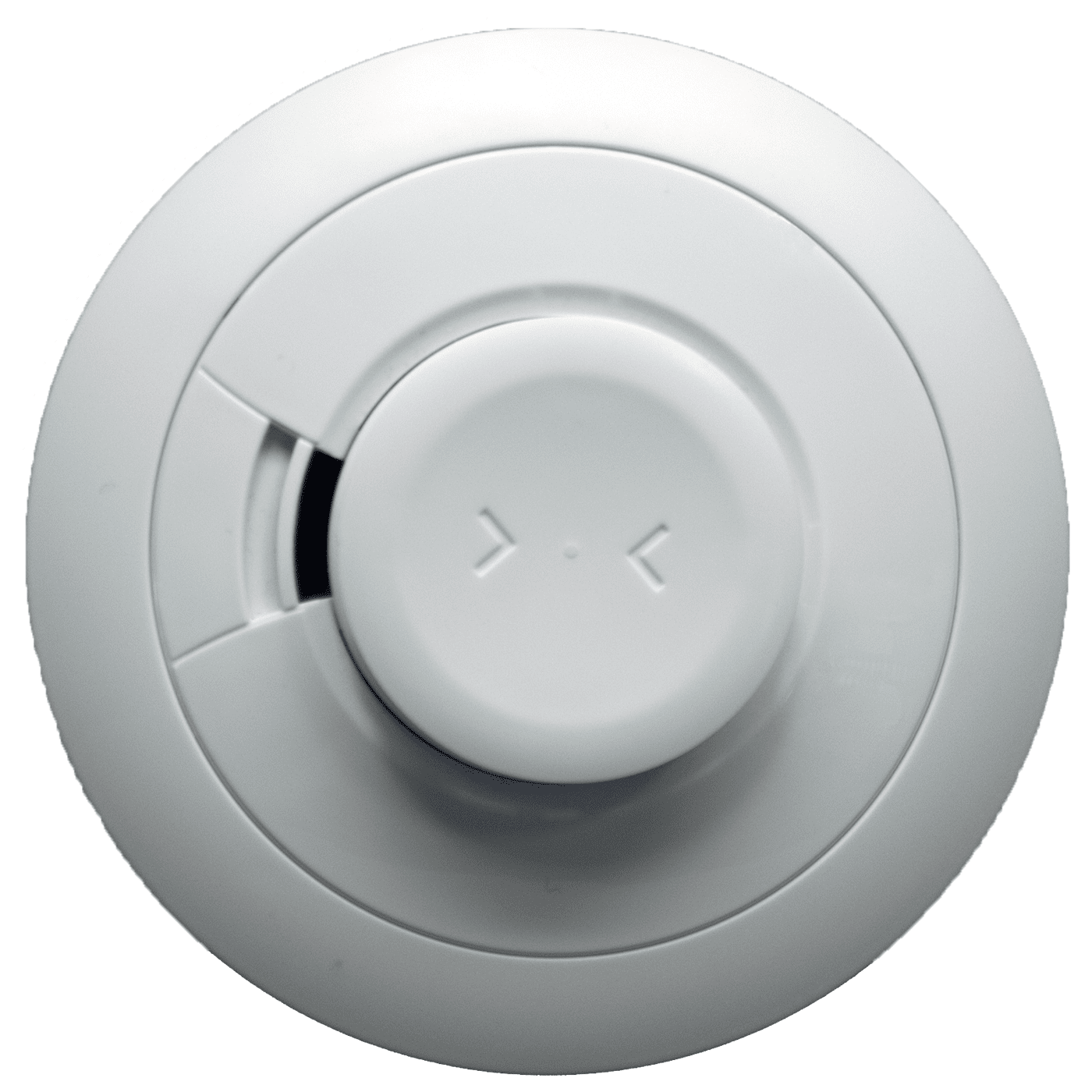

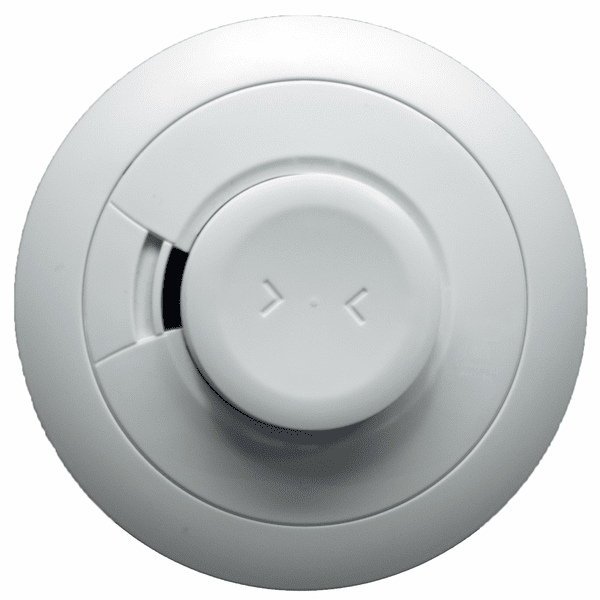

RE617 - Alula Wireless Heat Detector (for Connect+ Panel)
Please Note: The Alula RE617 Connect+ wireless heat detector is a special order item.
Alula RE617 Product Description:
The Alula RE617 is a Connect+ encrypted wireless heat detector that is compatible with the Alula Connect+ security system panel. The RE617 heat alarm is a fire-protection device that alarms when it detects temperatures above 135°F (57°C) or temperature changes greater than 15°F (8.3°C)/min and the temperature is above 104°F (40°C). The red LED on the alarm sensing heat flashes rapidly to indicate this is the alarm sensing heat/fire.
If the premises is one story you should put your first smoke alarm in a corridor or hallway between the sleeping and living areas. Place it as near to the living area as possible, but make sure that it can be heard loudly enough in the bedroom to wake someone. In houses with more than one sleeping area, smoke alarms should be placed between each sleeping area and the living area and it is recommended that heat alarms should be placed in the kitchen and garage.
If your home has more than one floor, at least one alarm should be fitted on each level. Preferably the alarms should be interconnected (if feature is present on unit) so as to give sufficient warning throughout the property. Alarms should be located in a typical two story house. Note the spacings in "Protection Levels" which ensure the early detection of fire and that the warning will be heard. Locate heat alarms in rooms adjoining escape routes - kitchens, garages, boiler houses etc. where smoke alarms are unsuitable.
Fire authorities recommend you put individual smoke alarms in or near all rooms where fire is most likely to break out (apart from the locations to avoid e.g bathrooms). The living room is the most likely place for a fire to start at night, followed by the kitchen (where a heat alarm is recommended) and then the dining room. Consideration should be given to installing smoke alarms in any bedrooms where fires might occur, for instance, where there is an electrical appliance such as an electric blanket or heater, or where the occupant is a smoker. In addition, consideration should be also given to installing smoke alarms in any rooms where the occupant is unable to respond very well to a fire starting in that room, such as an elderly or sick person or a very young child.
Product Features:
- Heat Detection
- Wireless Connect+ encryption
- UL539 and ULC-S530 listings
- 5 year warranty
Alula RE617 Product Specifications:
- Dimensions: 4.7 x 1.8 inches (12.0 x 4.6 centimeters)
- Weight (with Batteries): 7.36 ounces (210 grams)
- Mounting Fastener: #6 screws and anchors (provided)
- Temperature Range: 40°F to 100°F (4.4°C to 37.8°C) Long-Term
- Maximum Humidity: 15% to 95% non-condensing relative humidity
- Frequency: 433.92 MHz
- Replacement Batteries: Two Panasonic® CR123A
- Transmitted Indications: Low Battery, Supervision
- Loudness: 85 dBA at 10 feet (3m) minimum
- Heat Sensor: 135 ± 5°F (57 ± 2°C) or Rate of Rise 15°F (8.3°C)/min & >104°F (40°C), 70ft spacing
- Certification: FCC, IC, UL539, ULC-S530
Alula RE617 Product Documents:
• Installation/Operation Guide for Alula RE617 Wireless Connect+ Heat Detector
Alula RE617 Product Installation:
- In all sleeping rooms and guest rooms
- Outside of each separate dwelling unit sleeping area within 6.4 m (21 ft) of any door to a sleeping room, the distance measured along a path of travel
- On every level of a dwelling unit, including basements
- On every level of a residential board and care occupancy (small facility), including basements and excluding crawl spaces and unfinished attics
- In the living area(s) of a guest suite
- In the living area(s) of a residential board and care occupancy (small facility)
