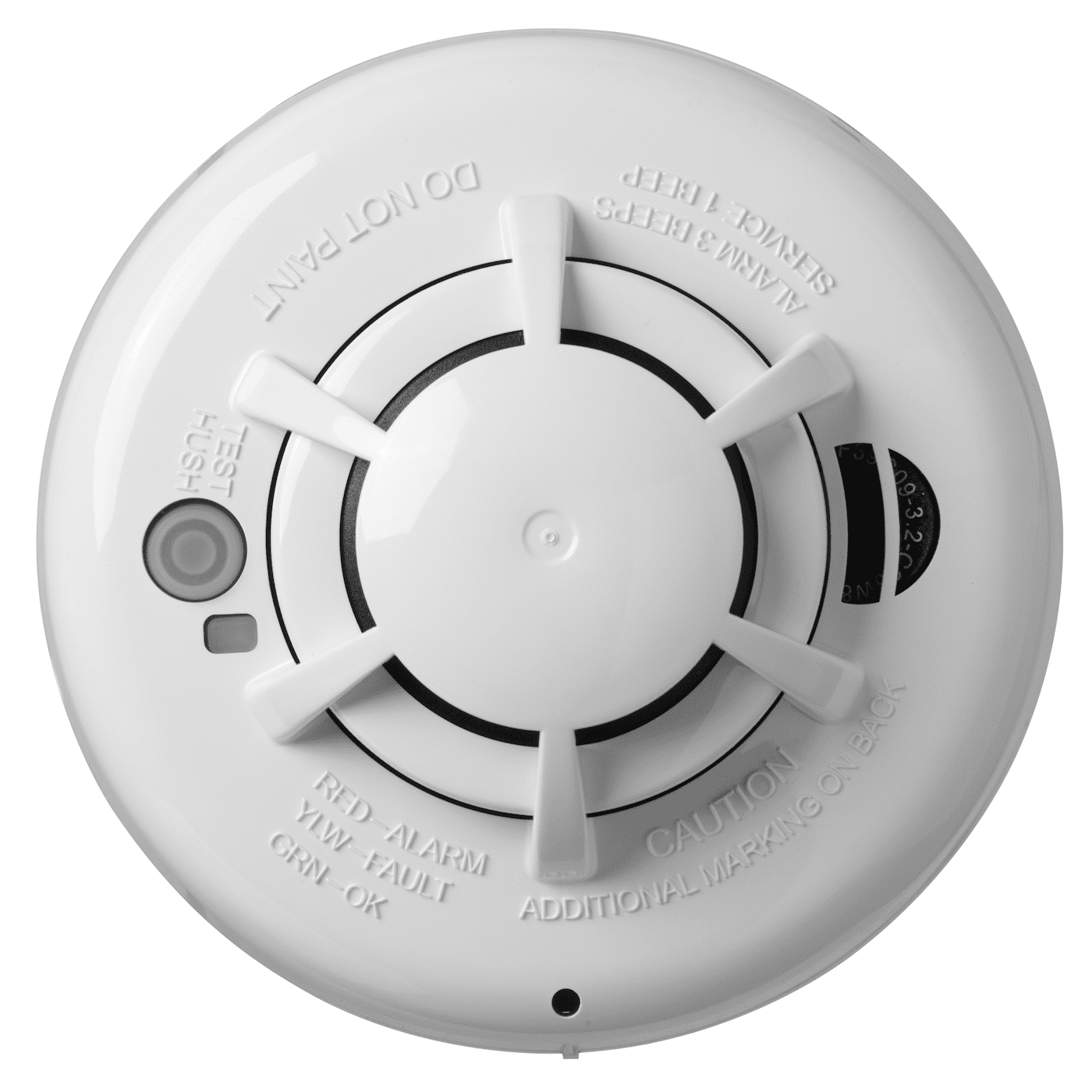

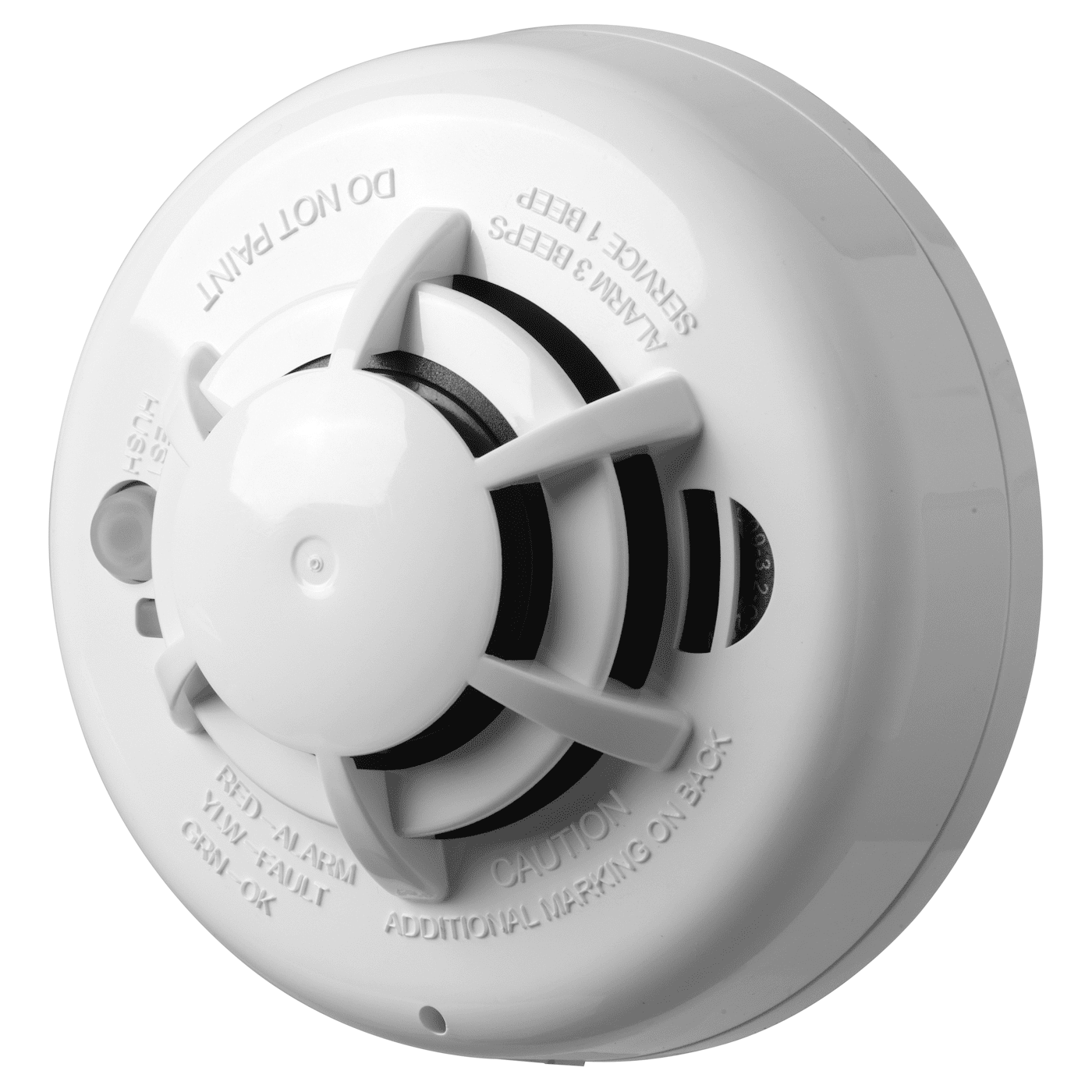

PG9936H - DSC Wireless PowerG Heat Detector
DSC PG9936H Product Description:
The DSC PG9936H is a wireless PowerG photoelectric heat detector with a fixed temperature and rate-of-rise heat detector. The PG9936 smoke/heat detector provides early warning of developing fire by sounding an alarm with its internal piezoelectric alarm siren, and by transmitting an alarm signal to the PowerG security system.
The PG9936H detector alerts occupants of the room by activating the built-in 85dB alarm buzzer and flashing LED light when temperature exceeding 57°C (135°F) are detected. At the same time, it transmits a coded signal to the compatible PowerG control panel to activate the system siren, alerting the end user and/or GeoArm central monitoring station to send onsite assistance.
With a quick installation process and just a few holes to drill, the PowerG wireless heat detector offers home and business owners more choice in terms of installation, including locations in which wiring is difficult or impossible. Maintenance is also made easy, with audio and visual sensitivity degradation indicators notifying when cleaning or replacement of the detector is required.
Product Features:
- Heat Only Detector - For areas such as kitchens, attics, and garages where the installation of a smoke detector is not recommended.
- PowerG - Wireless security eliminates the need for wires, providing secure and reliable communication with an industry-leading range and encryption.
- Easy Installation - Quick wireless installation allows for flexible placement and easy maintenance.
- Temperature Warning - Temperatures exceeding 57°C (135°F) trigger the built-in 85 dB alarm, flash the LED light, and activate IQ Panel notifications and siren.
- 3-Year Battery Life - Adaptive transmission power maximizes battery life. (Typical Use)
- Compatible Panels - Works with: IQ Panel 2+, IQ Panel 4, IQ4 Hub, IQ4 NS, DSC PowerSeries Neo, DSC PowerSeries Pro
DSC PG9936H Product Specifications:
- Dimensions: 5" x 2.5" in (125 x 63mm)
- Battery Life: 3 years (typical use)
- Battery Type: 3 AAA batteries (included)
- Weight: 243g (8.75oz)
- Siren: Built-in 85db
- Alarm Trigger Temperature: Exceed 57°C (135°F)
- Sensing Technology: Thermistor-based sensing
- Sensitivity Degradation: Audio and visual indicators notifying when cleaning or replacement of the detector is required
- Installation Locations: Wall or Ceiling installation, with bracket
- Operating Temperature: 40°F to 100°F (4.4°C to 37.8°C)
- Operating Environment: Indoors
- Approvals: FCC, UL, CSFM (for PGx936)
DSC PG9936H Product Documents:
• DSC PG9936H Wireless PowerG Heat Detector - Datasheet
• DSC PG9936H Wireless PowerG Heat Detector - Installation and Operation Guide
DSC PG9936H LED Indicators:
Visual Status Indications:
- Normal: LEDs - Double Green flash every 60 seconds; Sounder - Off
- Heat Alarm: LEDs - Red flash every 1 second; Sounder - ANSI S3.41 temporal 3
- Heat Test: LEDs - Red flash every 1 second; Sounder - ANSI S3.41 temporal 3
- Test Alarm (button press): LEDs - Red flash every 1 second; Sounder - ANSI S3.41 temporal 3
- Detector Trouble: LEDs - Yellow flash every 4 seconds; Sounder - One chirp every 48 seconds
- Low Battery: LEDs - Yellow flash every 12 seconds; Sounder - One chirp every 48 seconds (press button to hush for 12 hours)
- Power-up: Red, yellow, green, flash sequence; Sounder - One chirp at the end of the power-up sequence
- Tamper: Red, yellow, green flash sequence every 12 seconds; Sounder - off
DSC PG9936H Product Compatibility:
- DSC Iotega Control Panels
- DSC PowerSeries Neo Control Panels
- DSC PowerSeries Pro Control Panels
- Qolsys IQ Panel 2 Plus Control Panels
- Qolsys IQ Panel 4 Control Panels
- Qolsys IQ Hub Control Panels (Model Numbers: QS9301-0208-840, QS9302-0208-840)
- Qolsys IQ4 Hub Control Panels (Model Number: IQPH054)
