Resideo Honeywell Home LYNX Touch L7000 Cellular AT&T LTE Wireless Security System (Powered by AlarmNet)

Please Note: The Honeywell Home LYNX Touch L7000 wireless security system kit has been discontinued and replaced by the ProSeries PROA7 and PROA7PLUS kits.

Description
PDF Documents
Specifications
Kit Includes

Honeywell LYNX Touch L7000 Kit Description:

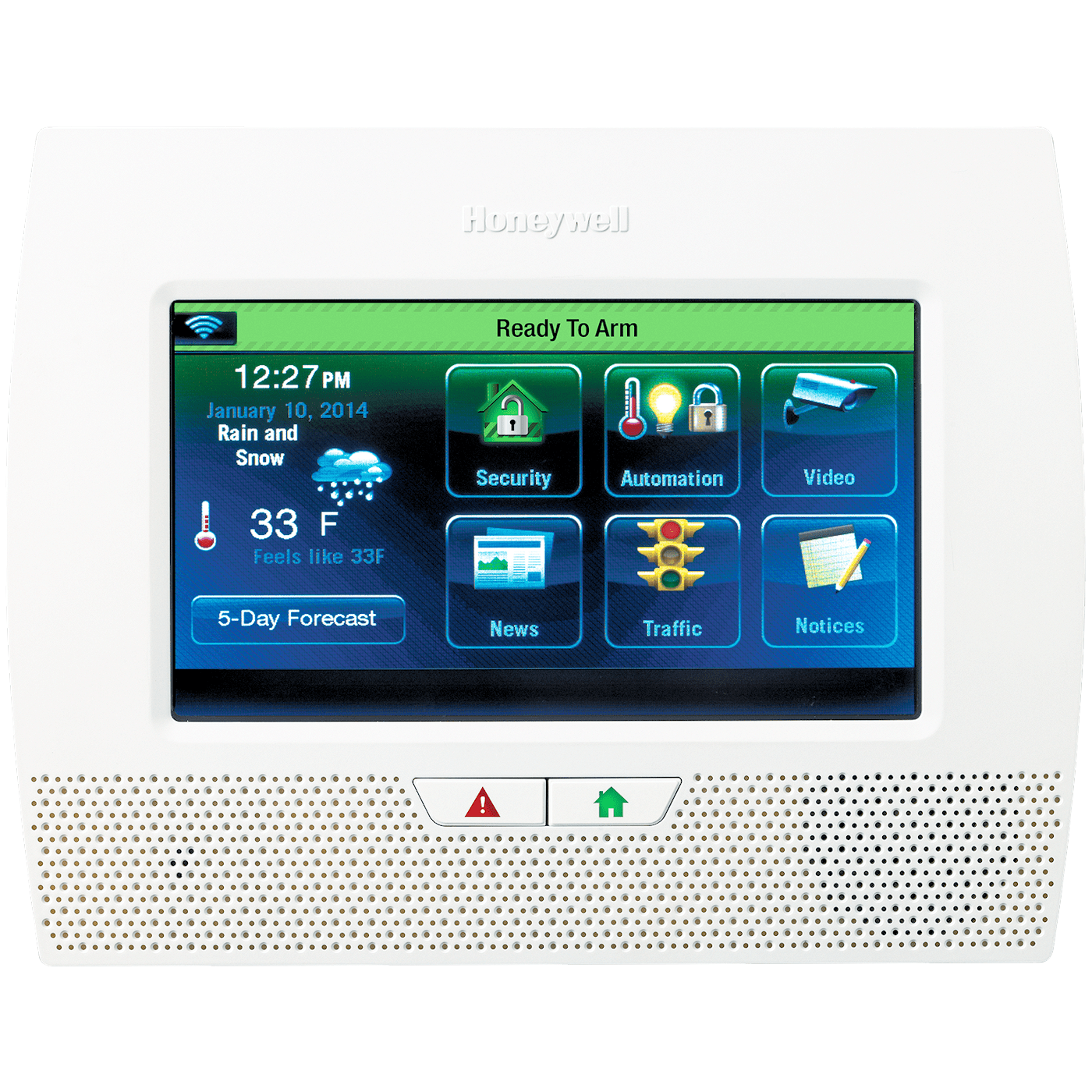

Part of Honeywell's family of self-contained wireless controls, Honeywell's LYNX Touch 7000 control panel features a bright, 7" full-color touchscreen with graphic icons and intuitive prompts for easy operation. It features on screen video, garage door notification and control, tornado alerts for U.S. and Canadian residents, Z-Wave® automation capabilities and advanced alarm communications. The cellular LTE-L57A radio utilizes the AT&T LTE cellular network in the area, improving longevity and maximizing installation coverage. Wireless LTE communication options, give DIYer's the flexibility to install the security system in even remote locations.

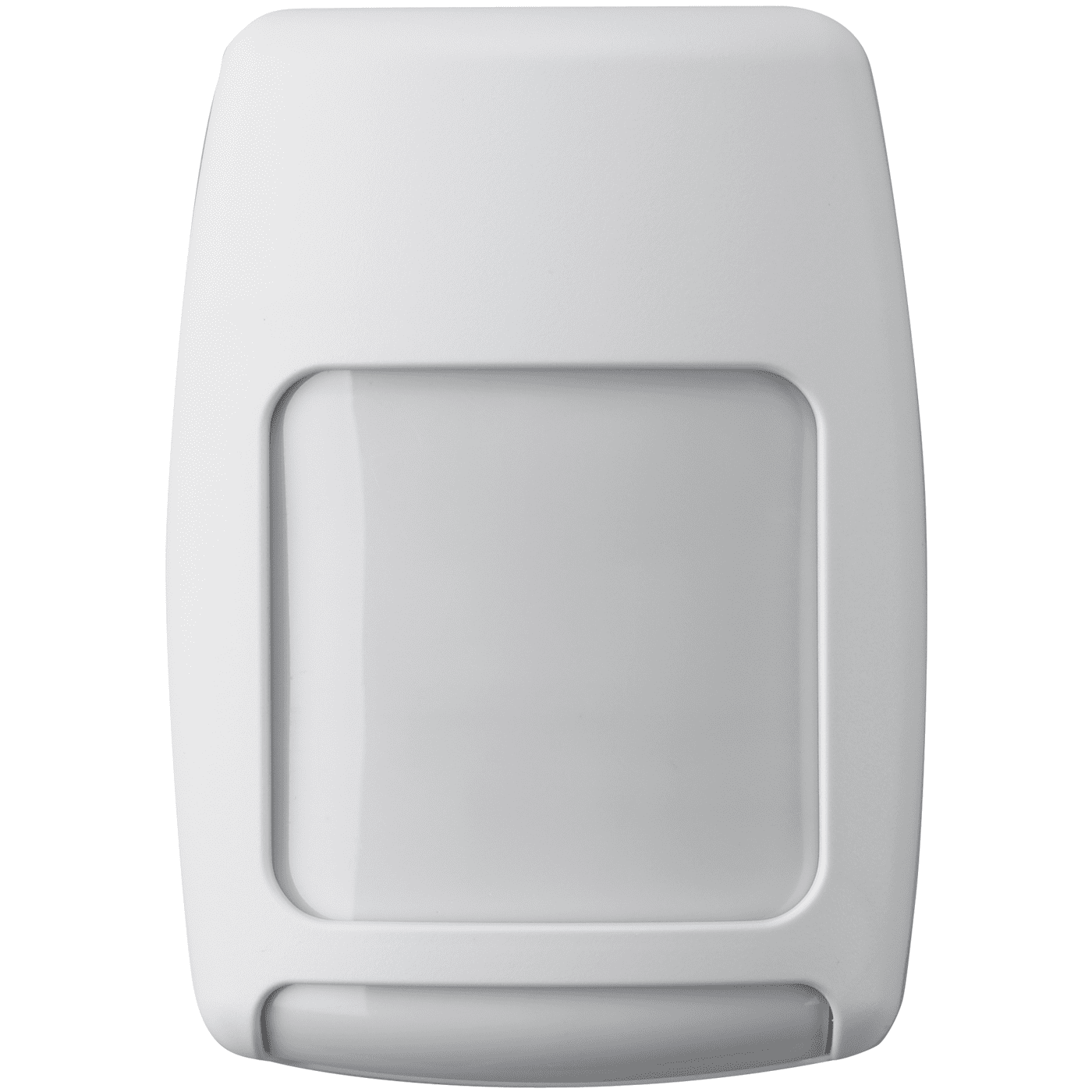

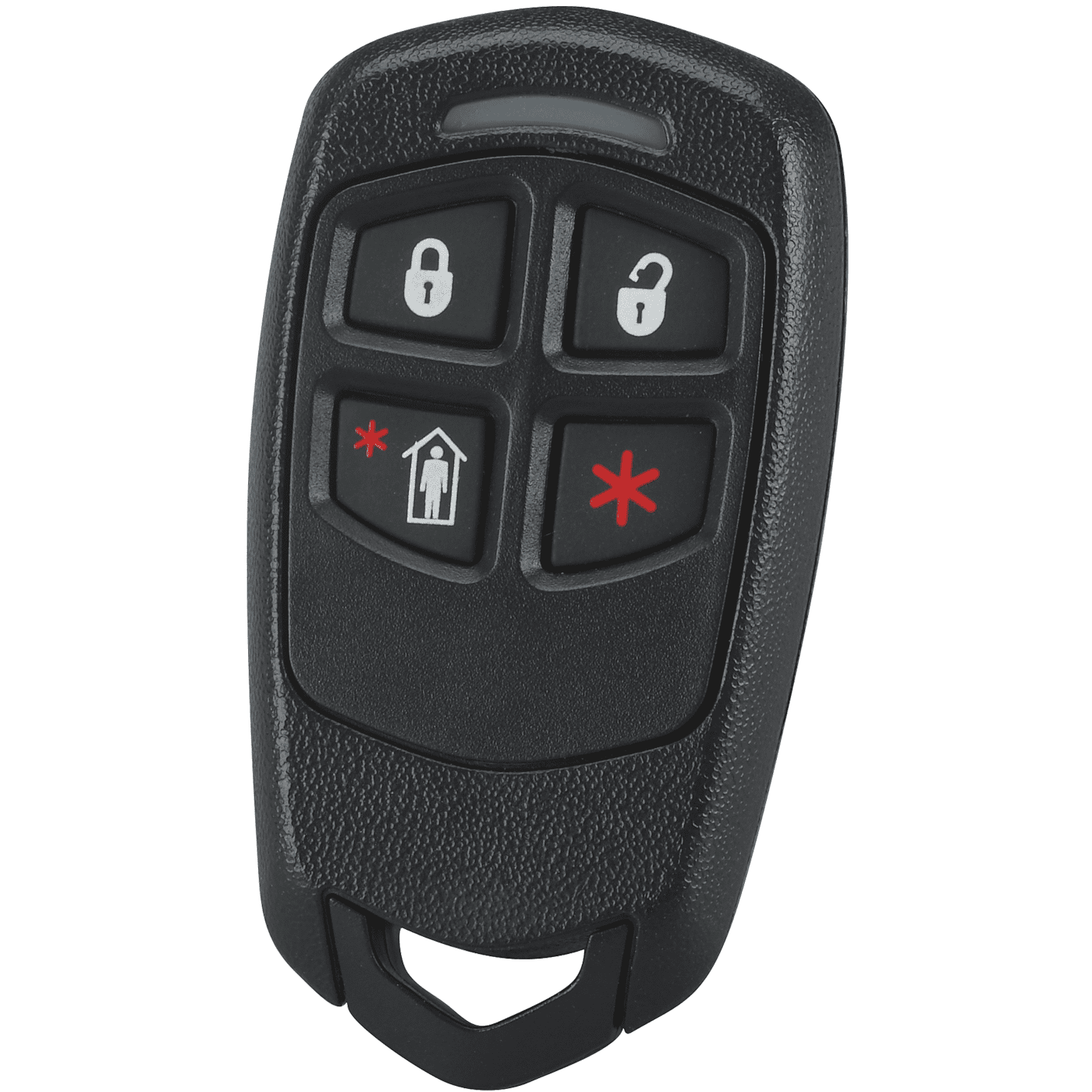

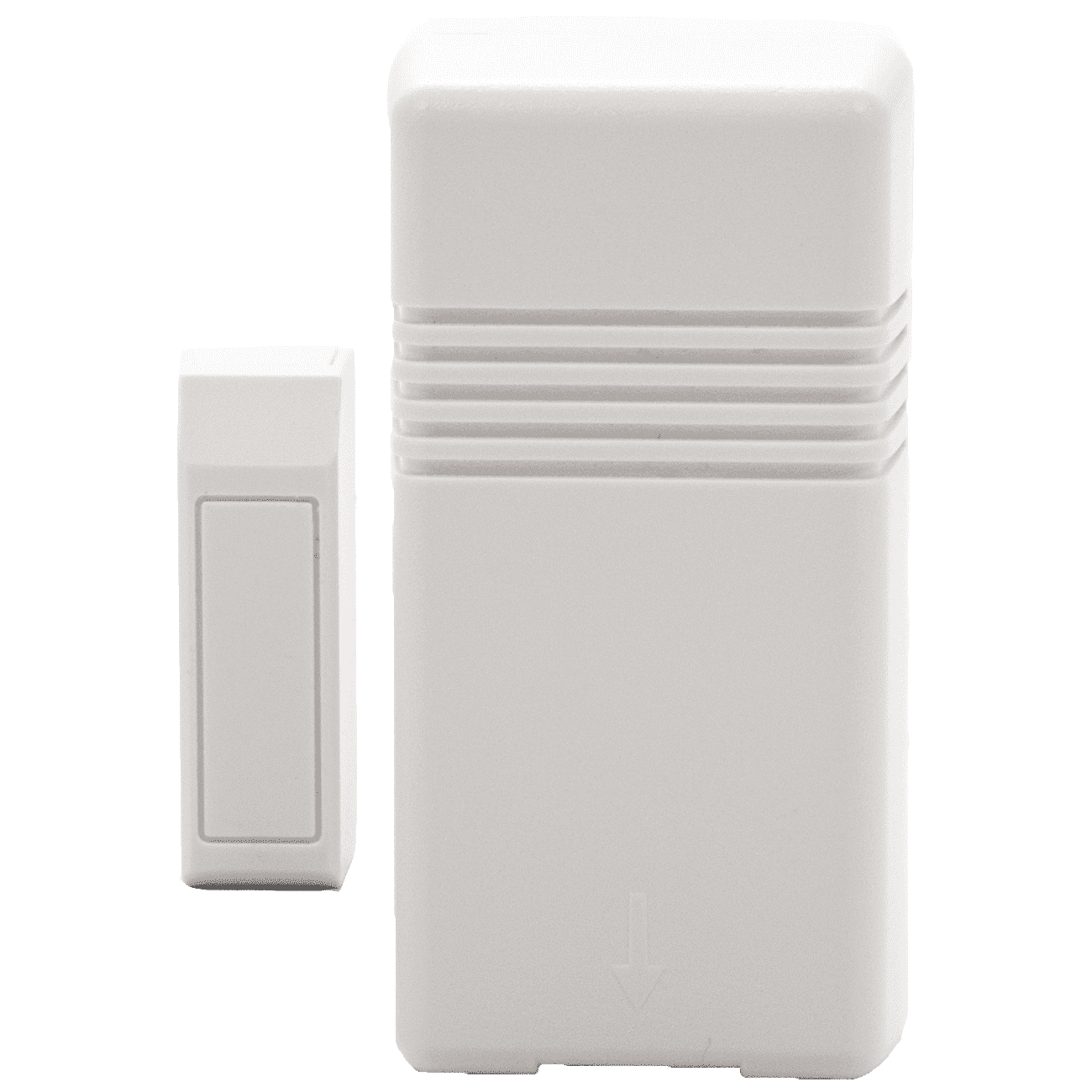

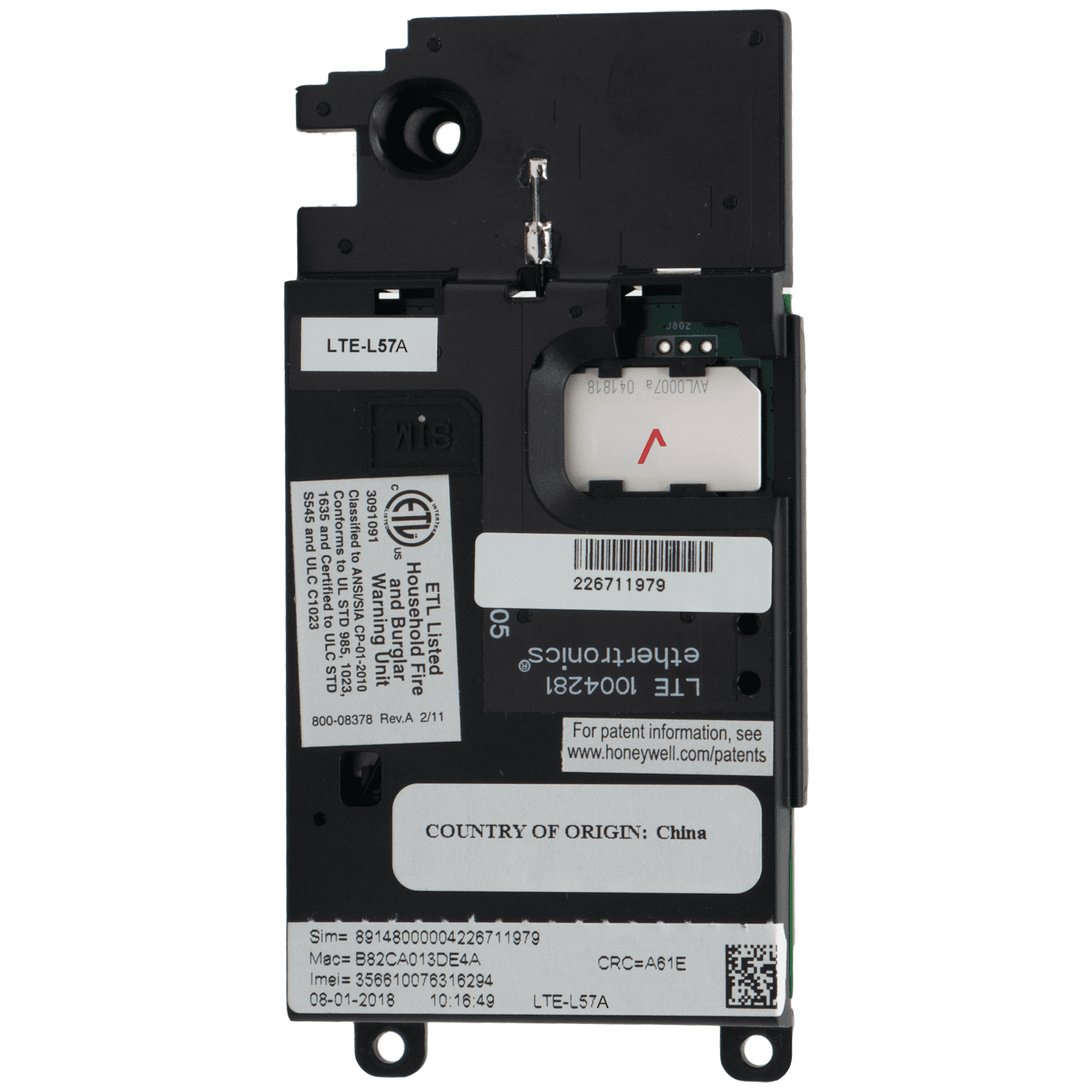

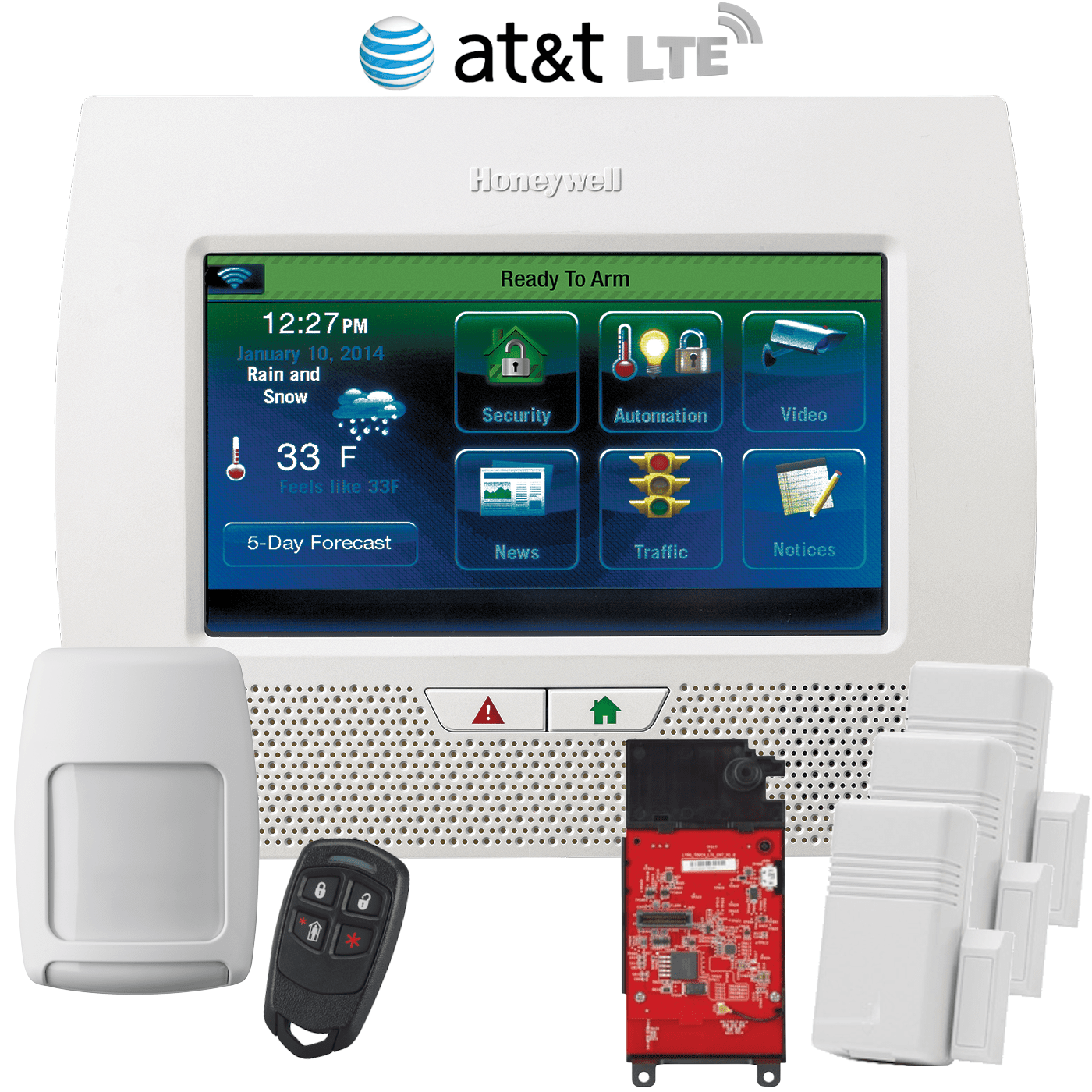

With it's uncompromising technology, reliability and self-contained architecture, Honeywell's LYNX Touch L7000 is an easy-to-install security system. This Honeywell LYNX Touch L7000 wireless security system kit includes; (1) wireless control panel L7000, (3) wireless door/window contacts 5816WMWH, (1) wireless pet-immune motion detector 5800PIR-RES, (1) remote 4-button keyfob 5834-4, (1) Wifi alarm communicator L5100-WIFI and (1) cellular LTE alarm communicator LTE-L57A. The Honeywell cellular LTE-L57A module provides for a secure wireless AT&T LTE alarm communications path for your Honeywell LYNX Touch L7000 control panel, that is less susceptible to line tampering.

Additionally, there is a Z-Wave® module L5100-ZWAVE which can be added, that lets DIYer's integrate security and home automation control in one platform. With Honeywell Total Connect™ Remote Services, end users can control remotely security, lighting, locks, water valves, thermostats, and receive timely alerts to most smartphones, tablets and computers.

Product Features:

7" color graphic touchscreen
On-premises video viewing
Wireless cellular AT&T LTE communications
Integrated Z-Wave for smart home automation
Push/Pull content through Honeywell Total Connect
Advanced Protection Logic Technology
Voice announcement of system and zone status
Family message center
Voice chime by zone
10 selectable chime tones
Automatic stay arming
48 user codes (Installer, Master, plus 30 Secondary, including Duress and Guest)
Three panic functions
Wall or desk mount
Viewable event log stores up to 256 events
Case tamper
RF jam detection
Quick Exit feature for exit delay after arming system
Night Stay and Silent Exit modes
Hinged cover for easy installation
Real-time clock display
Garage Door Function
Exit error feature

Honeywell LYNX Touch L7000 Kit Documents:

Honeywell LYNX Touch L7000 Kit Specifications:

•7" color graphic touchscreen
  -Resolution 800 x 480 pixels
  -16.7 million colors
  -Intuitive easy-to-use touchscreen interface
  -Easy to understand icons
  -Menu driven navigation
  -Quick, accurate programming
  -Two dedicated keys - for easy access to the home screen and emergency functions

•On-Premises video viewing
  -Integrated video: System supports one camera, which can be displayed on the touchscreen. Works with compatible Total Connect Video products only (IPCAM-WIC1, IPCAM-WIC2, IPCAM-WOC1, ACU)

•WiFi Support*
  Alarm communication to AlarmNet and lifestyle messaging via the user's internet connection
  -Two-way voice
  -Enables the LYNX Connect iOS app (available on iTunes) and the app for Android (available on Google Play)

*Requires the Honeywell L5100-WIFI WiFi Alarm Communicator. (Not Included)

•Z-Wave Automation Control*
  -Thermostats
  -Water Valves
  -Door locks
  -Sirens
  -Lighting
  -Scenes, schedules and rules
  -Local, automatic and remote control via Honeywell Total Connect

*Requires the Honeywell L5100-ZWAVE Home Automation Module. (Not Included)

•Push/Pull content through Honeywell Total Connect
  -Weather available in Fahrenheit or Celsius (one day or five day forecasts)
  -Emergency alerts (tornadoes) - requires Honeywell Total Connect with Information Services Package
  -Traffic Conditions
  -News Alerts
  -Dealer/central station messages (payments due, sales opportunities, community news)
  -End-user requests for sales or service

•Advanced Protection Logic technology
  -Alarm can be reported even if the system is tampered with during the entry and communications delay times, APL can be selected when using Honeywell GSM and IP communicators

•Exit error feature
  -Detects difference between an actual alarm and exit alarm caused by leaving a door open after the exit delay expires

•Garage Door Control*
  -Automatically control door via scenes, rules and schedules
  -Locally open/close garage door from touchscreen or compatible mobile device
  -Remotely open/close garage door via Honeywell Total Connect

*Requires the 5877GDPK Garage Door Kit, consisting of the 5877 relay receiver and Z-Wave strobe/sounder. Not compatible with certain garage doors and garage door openers. Garage door control must have working entrapment protection. See installation instructions for details.
