ACU - Honeywell AlarmNet Total Connect Analog Security Camera Converter
Please Note: The Honeywell ACU analog converter unit has been discontinued without replacement.
Honeywell ACU Product Description:

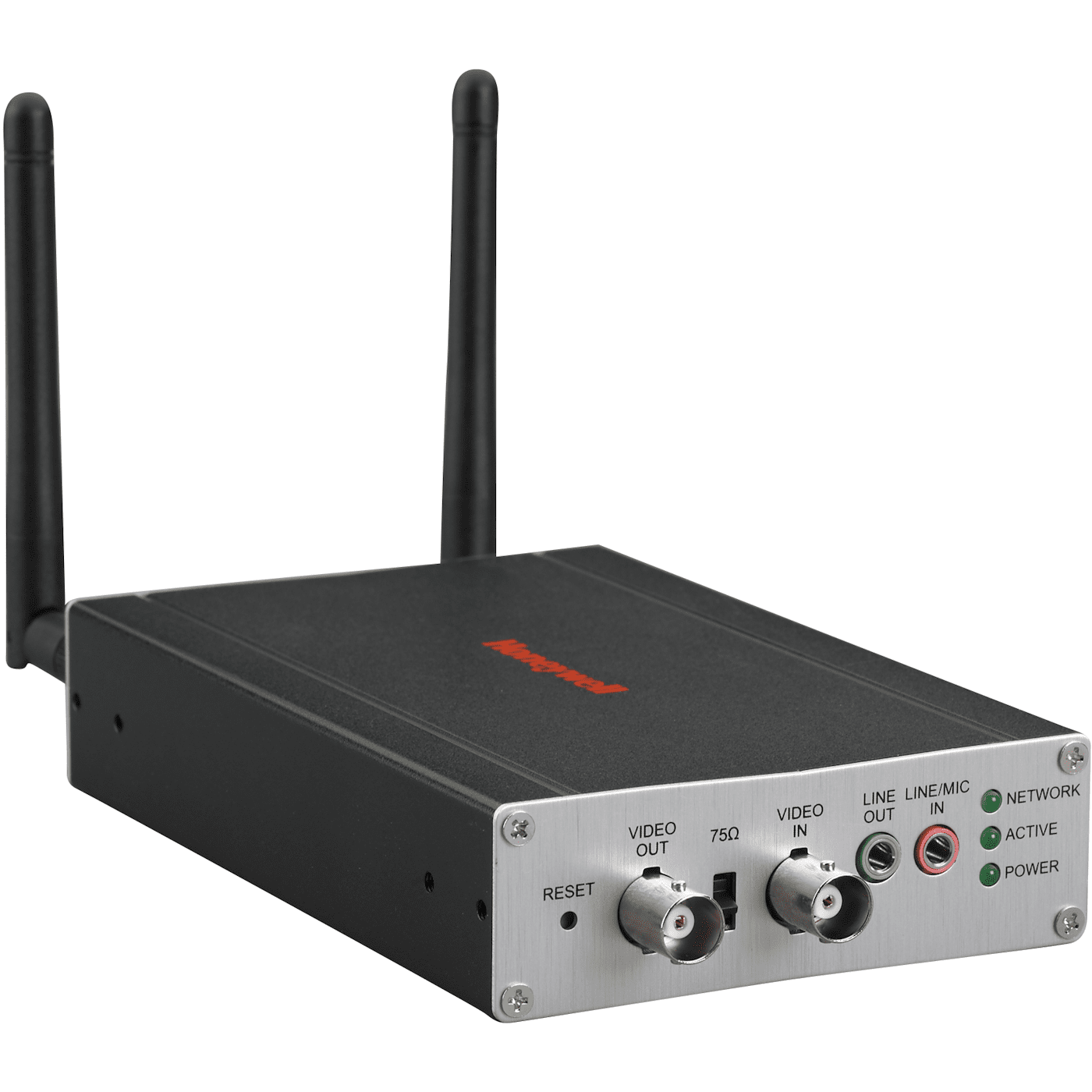

The Honeywell ACU is a wireless analog converter unit ("referred to as the ACU") for existing security cameras. The ACU allows any camera that outputs NTSC video to be used with AlarmNet Total Connect Video services. The ACU provides motion detection alerts in four detection areas with individual sensitivity, together with email alerts.
With AlarmNet's Total Connect Video services, you can look in live to your property anytime and anywhere as long as you have a web enabled PDA, cell phone, or computer. You also would have the ability to record video whenever a camera detects motion. Unlike an expensive traditional digital video recorder (DVR) surveillance system which stores its data on site, the ACU transmits its data to an offsite remote location ensuring the security of your recordings.
The ACU has a video pass-through connection for a direct NTSC video feed to a local monitor. It also has status LEDs, and 10/100 Mbps Ethernet port connectivity. In order to utilize the ACU, you must have: *Security system with a GSM, i-GSM or internet communications device, *Total Connect account through GeoArm, and *Internet access with a router capable of DHCP hosting.
Product Features:
- Use existing camera(s)
- Add Total Connect Interactive Services
- Access live and recorded video clips via the internet using iPhone, Blackberry, or other supported mobile device
- View live video from one or more of the ACU enabled cameras simultaneously
- Receive alerts with optional video attachments whenever new video is recorded
- Customize recording settings based on events, video motion detection, or time of day
- Record and store video securely on AlarmNet's remote servers (no local DVR or computer required)
- Includes built-in 802.11/WiFi connectivity
- High quality analog TV decoder supporting NTSC and PAL standard
- Provides MPEG4 Simple Profile
- LAN (10/100 Base TX Ethernet with auto MDIX)
- Hardware 128-bit AES and 64-bit DES/3DES data encryption
- Supports motion detection by analyzing video stream
Honeywell ACU Product Documents:
• Quick Installation Guide for Honeywell Analog Converter Unit (ACU)
Honeywell ACU Product Specifications:
- Dimensions: 1.18" H x 3.54" W x 5.51"L
- Case Color: Black and Silver
- Weight: 0.77 lbs. (350g)
- Operating temperature: 32°F to 104°F (0°C to 40°C)
- Humidity: 10-80&per;
- Indicators: Power, Active, Network
- Button: Reset/WPS
- Power Source: 12VDC
- Power Supply: 12V/1A, 100-240 VAC
- Image controls - Auto white balance (AWB), Auto Gain Control (AGC), Sharpness, Image Quality, Time Stamp, Text Overlay
- Video Compression - MPEG 4 SP; MJPEG
- Video Resolution - 640 x 480, up to 30 FPS (frames/second)
- Video Controls - NTSC/PAL auto detect
- Video Streaming - Simultaneous MPEG-4 and MJPEG 3GPP/ISMA compatible
- Connectors: Ethernet (RJ45 connector), composite video input (BNC connector), composite video output (loop out BNC connector), reset button, DC power jack
- Housing structure: Aluminum body and panels with wall mount kits
- Compatibility: Fully compatible with all VISTA Control Panels
- Network: Ethernet - 10/100 Base T, Auto-MDIX | Wireless - IEEE 802.11 b/g/n
- Processors and Memory: SoC - ARM9 (500 MHz) | RAM - 64 MB | Flash - 8 MB
- Agency Listings: CE, FCC, UL (power supply)
Honeywell ACU Product Compatibility:
• ACUPS
• L7000
• L5200
• L5200-CN
• L7000-CN
• L7000LA
• VIDEO ALARM VERIFICATION
• TUXWIFIS
• 5800
• L5210
• L5210-CN
• L5210LA
• LYRIC CONTROLLER
• LYRIC GATEWAY
• LYRIC CONTROLLER CANADA
• READYGD5200
• READYGD7000
• TUXWIFIW
