Resideo Honeywell Home LYNX Plus L3000 Phone/VoIP-Line Wireless Security System

Please Note: The Honeywell Home LYNX Plus L3000 wireless security system kit has been discontinued and replaced by the ProSeries PROA7 and PROA7PLUS kits.

Description
PDF Documents
Specifications
Kit Includes

Honeywell LYNX Plus L3000 Kit Description:

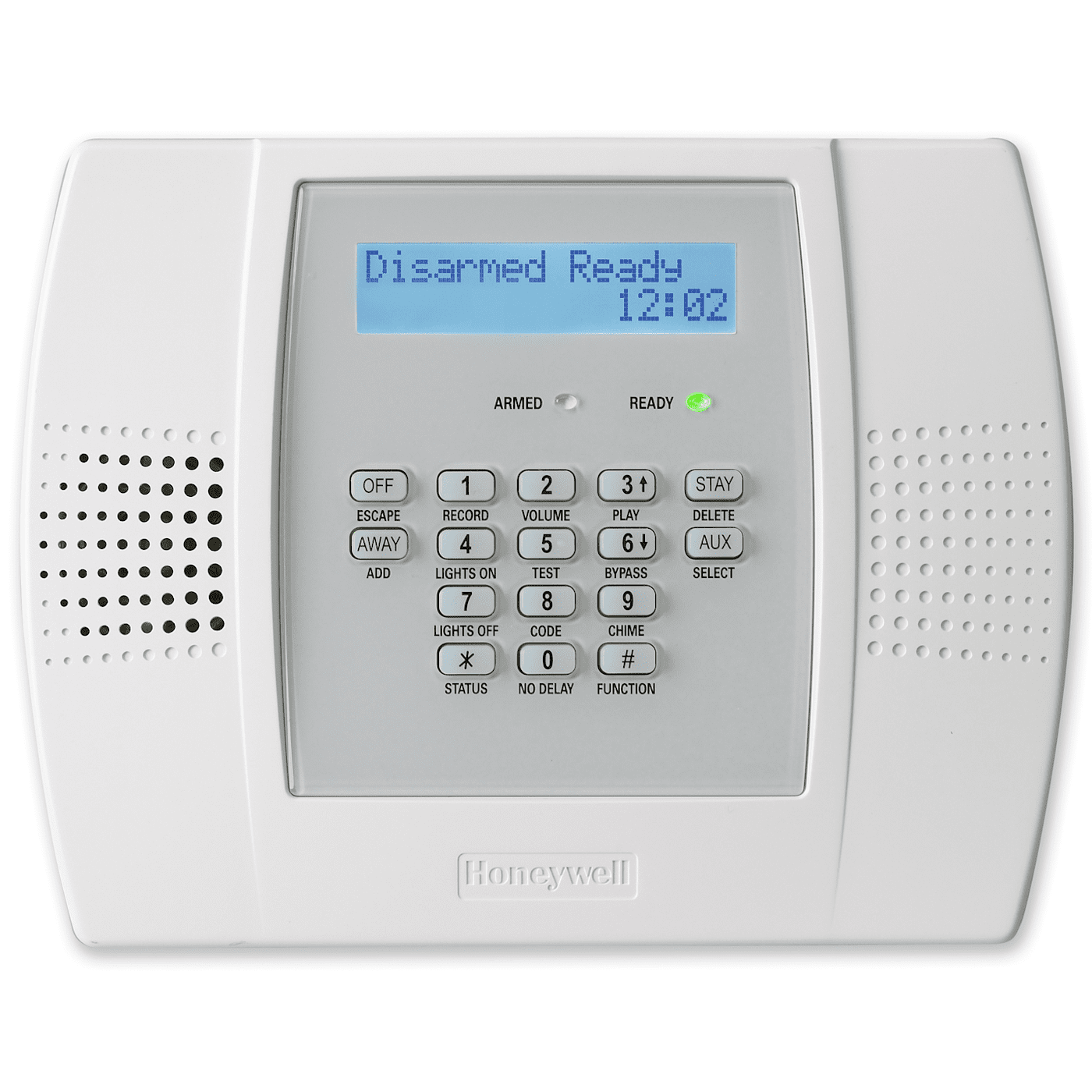

With its uncompromising technology, reliability and selfcontained architecture, Honeywell's LYNX Plus L3000 is an easy-to-install security system. LYNX Plus is a combination control panel, keypad, siren, dialer, two-way voice system and speakerphone in one. The L3000 offers full Contact ID information to your central station via TELCO, broadband internet or cellular 3/4G alarm communications using the 7847iL or GSMVLP-4G module. It also offers two-way voice over 3/4G GSM radio using the GSMVLP-4G. The 3/4G GSM radio or broadband internet communications module easily install inside the same plastic case as the LYNX Plus with no additional enclosures to mount. The new communications options give you the flexibility you need to address the emergence of VoIP, POTS migration to cellular and the growth of digital radio networks.

The all-in-one integrated design combines the installation flexibility for every job with the proven reliability of Honeywell's technology. The convenient voice prompt programming feature walks you through the installation process helping reduce installation costs. The voice annunciation of system status and alarm conditions greatly reduce the amount of end-user training. LYNX Plus supports all Honeywell 5800 Series wireless devices, including the 5828 and 5828V wireless keypads.

Product Features:

Up to 40 Zones
One hardwired zone onboard
Supports Total Connect remote services
Supports two-way voice over GSM radio (with the GSMVLP radio module)
Voice prompt programming mode
GSM signal strength indicator on the display
Lack of usage notification
Real time clock
Full 16-button keypad with easy-to-read LCD display and status LEDs
Built-in two-way voice system
Hinged front and back cover for simplet installations
Wall or optional desk-top mounting
85 dB internal sounder with voice siren
Internal speaker and microphone
Eight user codes
84 event log
Fully downloadable
Rechargeable battery backup
Scheduling
2 x 16 custom alpha backlit display
"Follow Me" alarm and reminder announcements
Voice prompted clock setting
Full voice response
Family message center that records and plays back voice messages
Speakerphone operation
Remote phone control
Optional bidirectional remote provides system status feedback
Optional wireless, programmable remotes offer single-button system control
Activates lights, appliances, garage doors and numerous other applications with the touch of a button or at specified times (with optional X-10 devices and transformer)
Quick exit feature enables users to leave the house for a brief time without disarming the system
Chime by zone feature sounds chime and speaks location in plain English
Single button operation

Phone Cord is Required for the Plain Ordinary Telephone Service ("POTS")

Honeywell LYNX Plus L3000 Kit Documents:

• Honeywell L3000 Control Panel - Data Sheet
• Honeywell L3000 Control Panel - User Guide
• Honeywell L3000 Control Panel - Installation/Setup Guide
• Honeywell L3000 Control Panel - Sales Brochure
• Honeywell L3000 Control Panel - Dealer Brochure

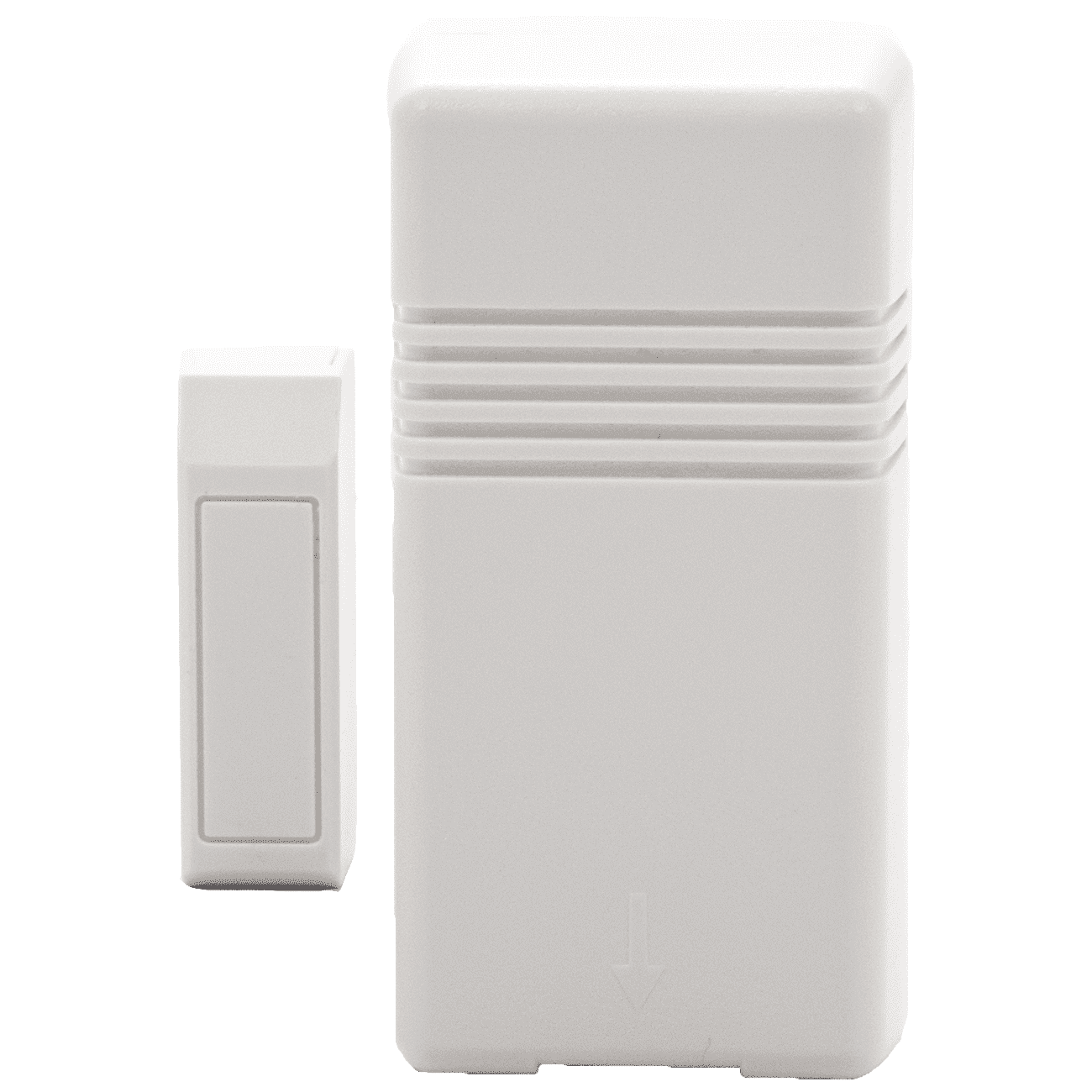

• Honeywell 5816WMWH Door/Window Contact - Data Sheet
• Honeywell 5816WMWH Door/Window Contact - Installation Guide

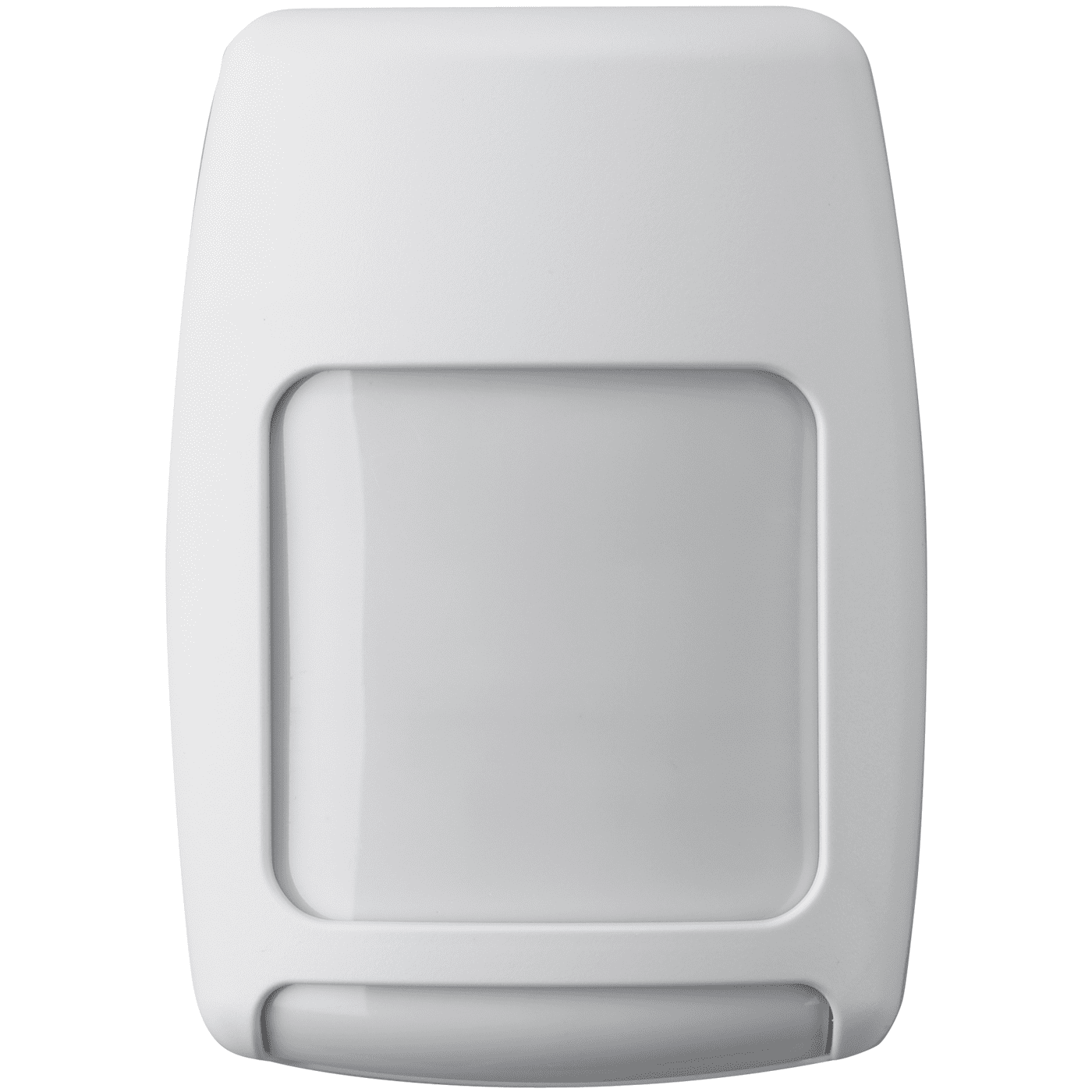

• Honeywell 5800PIR-RES Motion Detector - Data Sheet
• Honeywell 5800PIR-RES Motion Detector - Installation Guide
• Honeywell 5800PIR-RES Motion Detector - Box Installation Guide

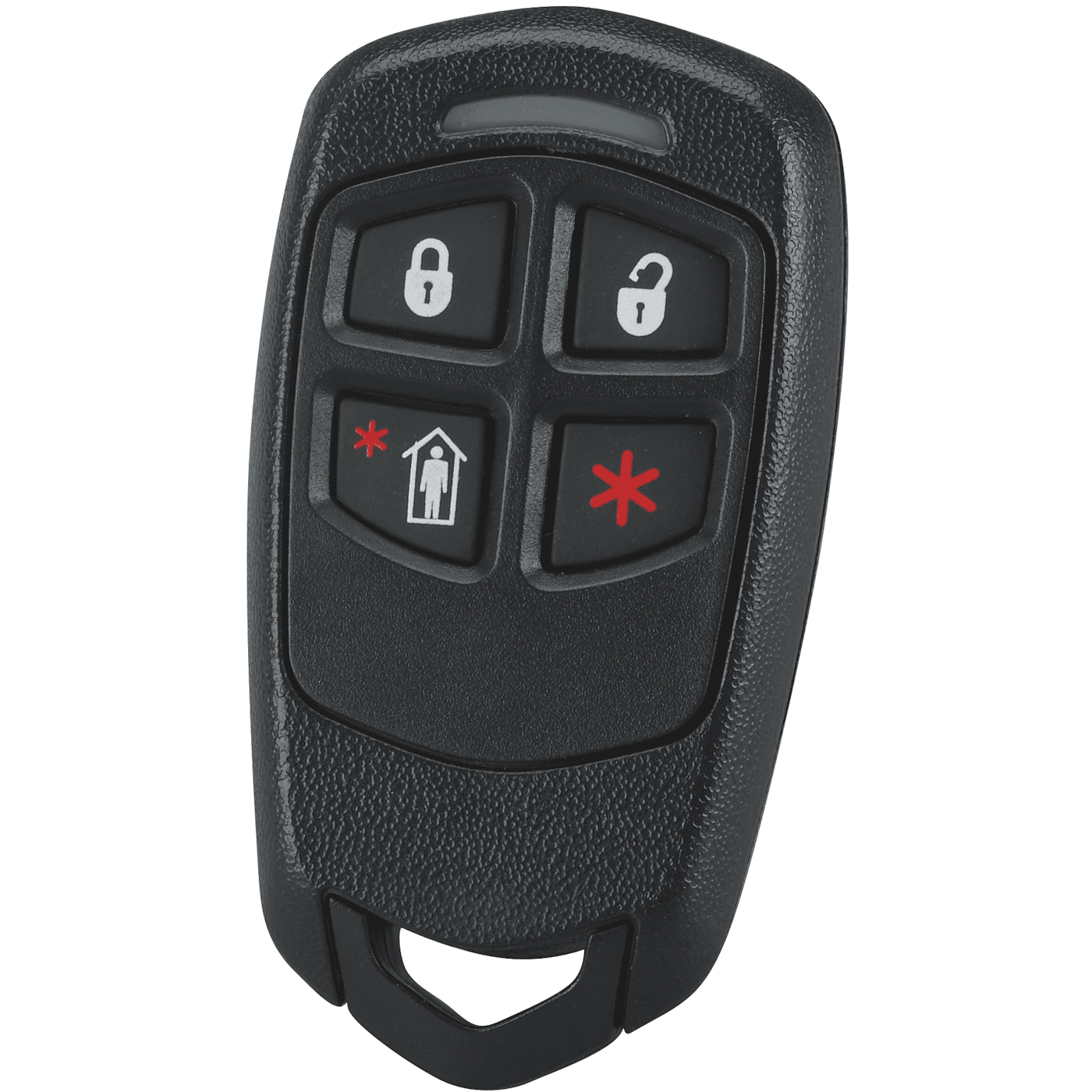

• Honeywell 5834-4 Remote Keyfob - Data Sheet
• Honeywell 5834-4 Remote Keyfob - Installation Guide
• Honeywell 5834-4 Remote Keyfob - Family End User Brochure

Honeywell LYNX Plus L3000 Kit Specifications:

For peace of mind, you need to know that what you cherish most, your family and your home, are safe and secure. Look no further than Honeywell's LYNX Plus security system. The LYNX Plus wireless security system provides superior home security, protecting your property and the people you love.

The LYNX Plus do-it-yourself home security system is user-friendly and puts security and convenience at your fingertips. The vibrant, easy-to-read display is easier to use than traditional security systems. The L3000 wireless alarm control panel announces the exact type and location of any alarm in plain English and gives you the information you need so you can react quickly. The LYNX Plus all-in-one control panel, keypad, and siren is encased in a sleek, stylish and portable wireless security system that blends with any decor. The LYNX Plus security system is backed by Honeywell's 2-year limited manufacturer's warranty and is compatible with the full line of Honeywell's 5800 series wireless security products. GeoArm and Honeywell give you the options you need to fully customize your DIY home security system. Isn't it time you got connected?

The LYNX Plus wireless security system comes equipped to send its alarm signals over a traditional phone line or by using an approved VoIP service provider. To complete your DIY home security installation, plug in the LYNX Plus transformer into a standard wall outlet and then plug in your active phone or VoIP connection to the jack on the back of the LYNX Plus alarm control panel. You will need long distance service turned on for the phone line alarm communications to work with GeoArm's central station. When choosing your installation location, make sure there is an open phone or VoIP jack and open wall outlet nearby.

GeoArm also recommends installing the LYNX Plus wireless security system in a location that is not near an entry/exit door, such as a utility closet or master bedroom. If the LYNX Plus alarm control panel is installed near an entry/exit door, an intruder can potentially disable the system before the entry delay times out. If this happens, GeoArm's central alarm monitoring station would not receive the alarm signal since the LYNX Plus alarm control panel and/or alarm communicator has been destroyed. A LYNX Plus wireless keypad installed at the entry/exit door would provide full system control and allow you to install your LYNX Plus wireless security system in a secure remote location.

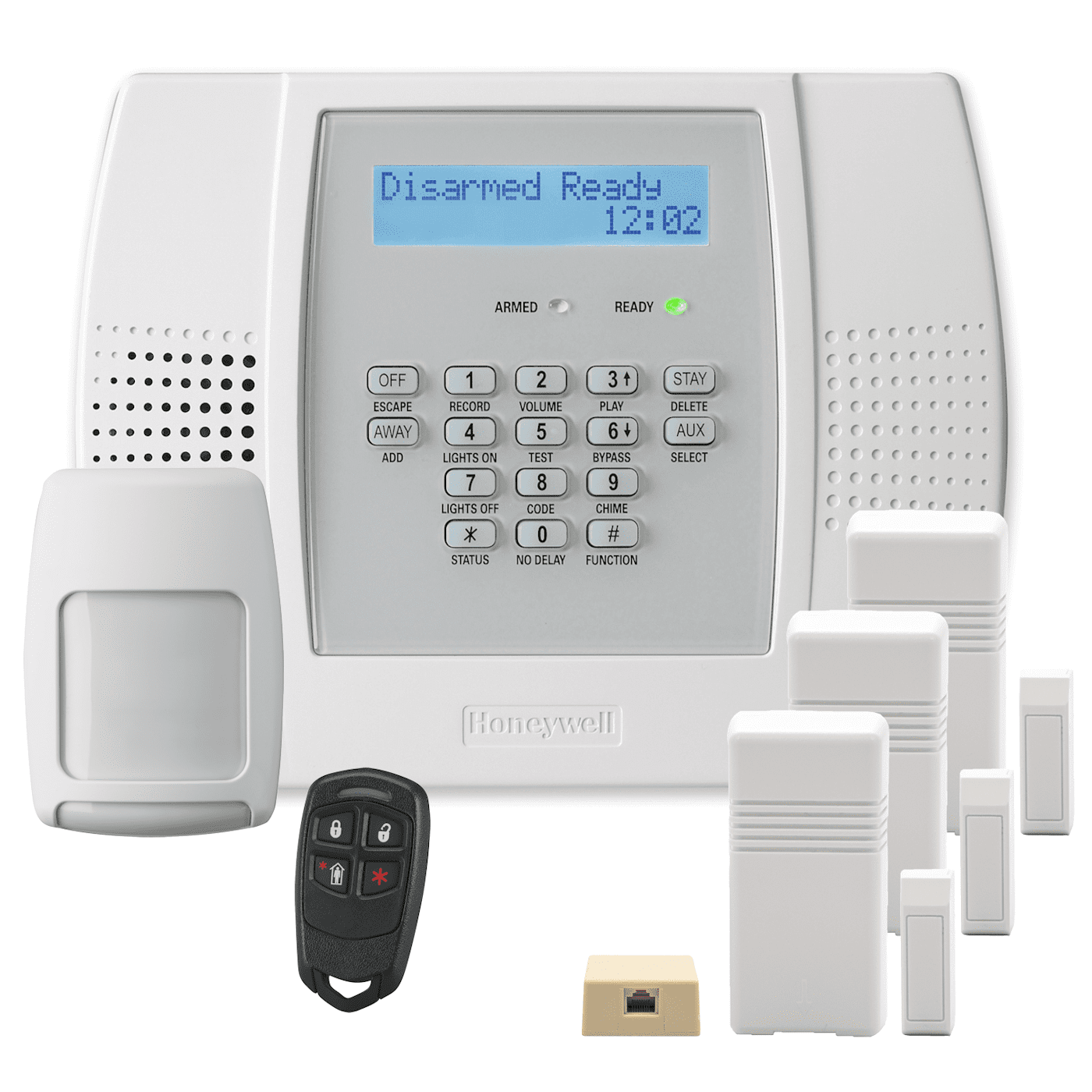

When designing your system, keep in mind that the Honeywell LYNX Plus wireless security system supports up to (40) wireless zones/devices. GeoArm includes (3) wireless devices in the base kit along with (1) 4-button wireless keyfob, so make sure you do not add more than (33) additional Honeywell security devices to your LYNX Plus security system.

Please note that while every wireless device counts for one wireless zone, every programmed button on a keyfob counts as a wireless zone. (e.g. 4-button keyfob with all buttons programmed will use (4) zones.)
