DSC PowerSeries Neo HS2016 Hybrid Security Systems - GeoArm Security®
▼ PowerSeries Neo HS2016 Hybrid Security Systems ▼
 |

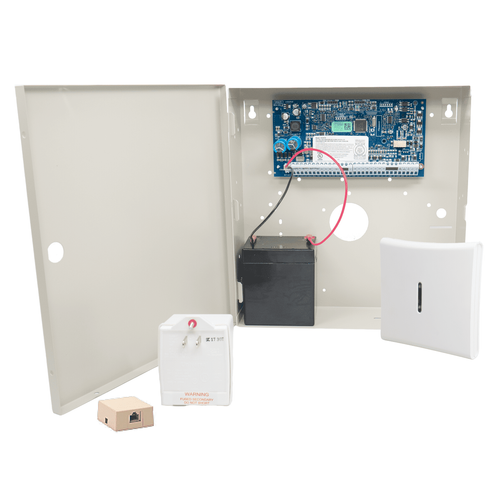

DSC Neo HS2016 Phone/VoIP |

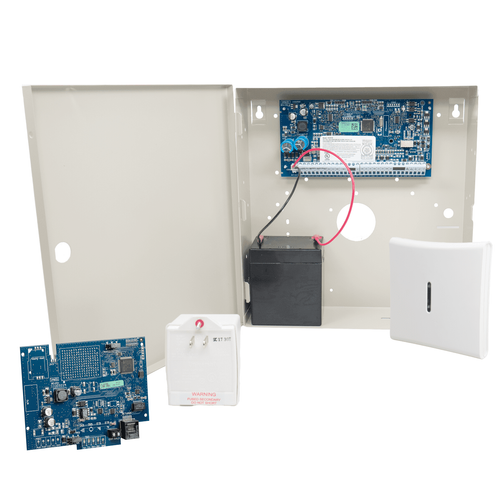

DSC Neo HS2016 Internet |

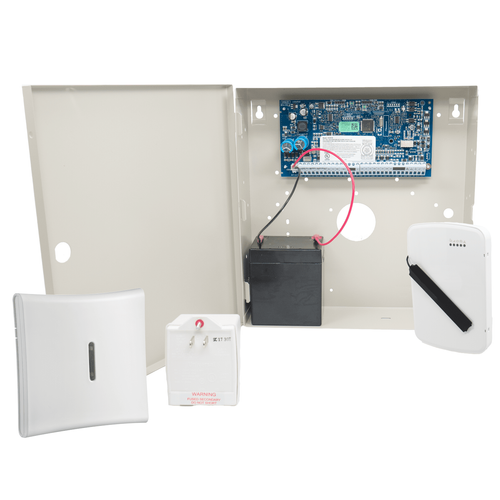

DSC Neo HS2016 Cellular |

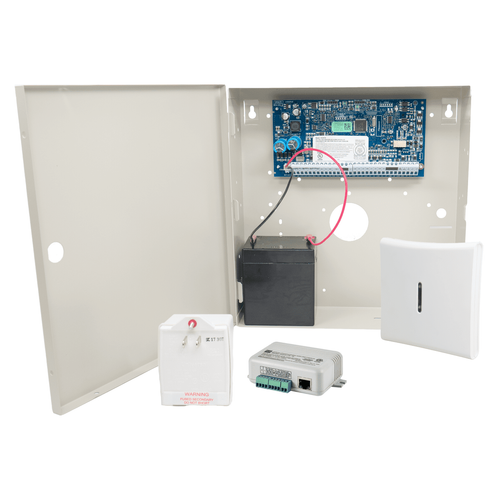

DSC Neo HS2016 Dual-Path |
DSC Neo HS2016 Tri-Path |
| Number of On-Board Zones: | 6 | 6 | 6 | 6 | 6 |
| Total Zones Supported: | 16 | 16 | 16 | 16 | 16 |
| Keypad Zone Expansion: |
 |
|
|
|
|
| Hardwired Zone: |
|
|
|
|
|
| Wireless Zone Expansion: |
|
|
|
|
|
| Number of Hardwired Keypads: | 8 | 8 | 8 | 8 | 8 |
| Number of Wireless Keypads: | 8 | 8 | 8 | 8 | 8 |
| Number of Wireless Receivers: | 1 | 1 | 1 | 1 | 1 |
| Number of Wireless Repeaters: | 4 | 4 | 4 | 4 | 4 |
| On-Board PGM Outputs: | 2 | 2 | 2 | 2 | 2 |
| Number of Main Panel Low-Current PGM Outputs: | 1 | 1 | 1 | 1 | 1 |
| Number of Main Panel High-Current PGM Outputs: | 1 | 1 | 1 | 1 | 1 |
| PGM Expansion: |
|
|
|
|
|
| Number of Additional High-Current PGM Outputs: | 4 | 4 | 4 | 4 | 4 |
| Number of Additional Low-Current PGM Outputs: | 16 | 16 | 16 | 16 | 16 |
| Number of Access Codes: | 47 + master | 47 + master | 47 + master | 47 + master | 47 + master |
| Number of Partitions: | 2 | 2 | 2 | 2 | 2 |
| Panel Event Buffer: | 500 | 500 | 500 | 500 | 500 |
| Panel Supervision: |
|
|
|
|
|
| Siren Supervision: |
|
|
|
|
|
| Bell Output: |
|
|
|
|
|
| SIA CP-01 Compliant: |
|
|
|
|
|
| SMS Command and Control: |
|
|
|
|
|
| Upload/Download Support: |
|
|
|
|
|
| Direct-Connect (PC Link) Downloading Support: |
|
|
|
|
|
| DLS SA End-User Downloading Support: |
|
|
|
|
|
| Audio Alarm Verification: | with HSM2955(R) | with HSM2955(R) | with HSM2955(R) | with HSM2955(R) | with HSM2955(R) |
| Phone/VoIP-Line Communications: |
|
 |
|
|
|
| Internet Alarm Communications: |
|
|
|
|
|
| Cellular Alarm Communications: |
|
|
|
|
|
| Dual-Path Alarm Communications: |
|
|
|
|
|
| Tri-Path Alarm Communications: |
|
|
|
|
|
