ADC-VC728PF - Alarm.com Pro Series Indoor/Outdoor 4MP Varifocal Bullet PoE Security Camera
Alarm.com ADC-VC728PF Product Description:

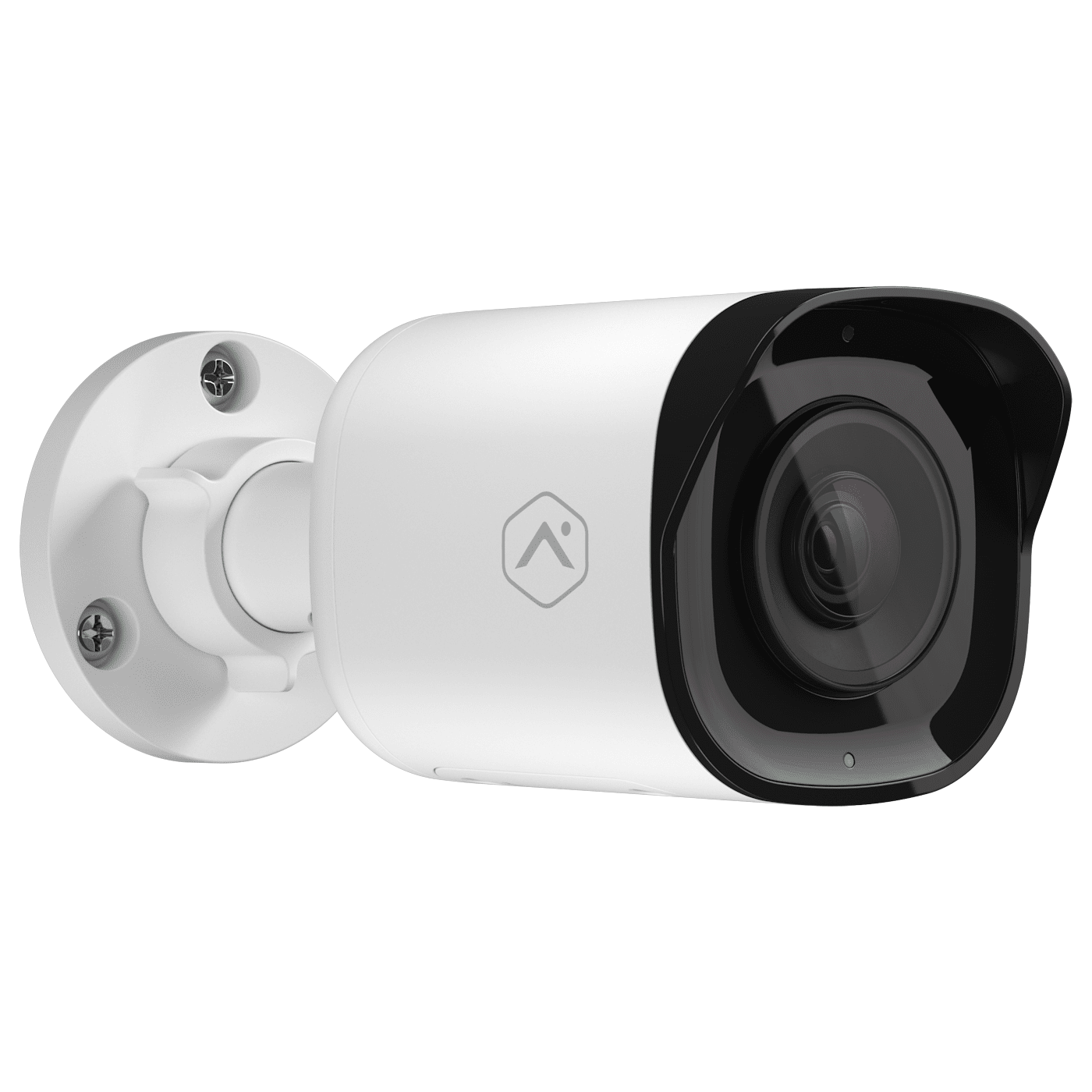

The Alarm.com ADC-VC728PF is a PoE bullet camera with an adjustable ball joint mount and motorized varifocal lens, offering greater installation flexibility in indoor and outdoor environments and allowing users to remotely widen and narrow the camera's field of view without any loss of quality. As part of the commercial Pro Series line, the ADC-VC728PF camera enables intelligent analytics for object detection and business activity tracking. In addition to cloud clip storage, the VC728PF supports 24/7 recording to an optional onboard microSD card and/or the Commercial-Grade Stream Video Recorder (CSVR126).
Product Features:
- 4MP HDR video*
- Business Activity Analytics
- Onboard Recording with Smart View
- Video Analytics with Object Detection
- Power over Ethernet
- IR night vision
- IP66-rated waterproof & dust-tight
*Please Note: 4MP recording coming soon. Only supported on Commercial SVR (ADC-CSVR126). The ADC-VC728PF security camera requires a subscription to Alarm.com commercial video surveillance services powered by GeoArm.
Alarm.com ADC-VC728PF Product Documents:
• Data Sheet - Alarm.com Varifocal 4MP Bullet Security Camera (ADC-VC728PF)
• Installation Guide - Alarm.com Varifocal 4MP Bullet Security Camera (ADC-VC728PF)
• Factory Reset to Default Settings - Alarm.com Varifocal 4MP Bullet Security Camera (ADC-VC728PF)
• LED Light Reference - Alarm.com Varifocal 4MP Bullet Security Camera (ADC-VC728PF)
Alarm.com ADC-VC728PF Product Specifications:
- Dimensions (L x W x H): 6.8 x 3.0 x 3.0" (17.4 x 7.5 x 7.5 cm)
- Weight: 19.1 oz (540 g)
- Supported resolutions: 2688x1520*, 1920x1080, 1280x720, 640x360
- Local recording: SVR and Onboard Recording**
- Image sensor: 1/2.7" progressive scan CMOS
- Lens & Field of view: 3.2 mm (W) - 9.8 mm (T), F1.8 - F3.3, 116° to 34°
- Iris: P-iris
- Remote varifocal control: Focal length, manual focus adjustment, autofocus
- Low-light sensitivity: 0 lux with IR
- IR range: Up to 30 meters (95 feet)
- Image adjustments: Flip, brightness, contrast, saturation, sharpness, exposure
- Ethernet connection: 10/100 Mbps RJ-45
- Operating temperature: -22° - 122° F (-30°C - 50°C)
- Operating humidity: 20% - 100% (non-condensing RH)
- Power: 12 VDC ± 10% or PoE (802.3af)
- Ingress protection: IP66
- Compliance: FCC, IC, C-Tick, CE Class B, UL, RoHS, WEEE
*Note: 4MP recording coming soon. Only supported on Commercial SVR.
** Note: For a list of supported microSD cards and recording resolutions, see pdf documentation for "Onboard Recording with Smart View".
Alarm.com ADC-VC728PF Business Activity Analytics:
- Occupancy + People Counting - Measure occupancy and foot traffic. Receive a notification when real-time occupancy reaches a specified threshold.
- People Counting - Measure foot traffic through a certain area. Count how many people cross a virtual line in one direction.
- Queue Monitoring - Monitor people waiting in line. Receive a notification when the number of people in line or average wait time reaches a specified threshold.
- Crowd Gathering - Monitor large groups. Receive a notification when the crowd size reaches a specified threshold.
- Heat Mapping - Visualize where people spend the most time within an area during a specified date and time range using a heat map.
Alarm.com ADC-VC728PF Onboard Recording with Smart View:
Record encrypted, 24/7 HD footage locally on the camera with a microSD card. View live and recorded video on the Alarm.com customer website and mobile app from anywhere, using the Smart View video timeline to search for important events such as person detected or door accessed, and jump straight to the corresponding footage.
Approximate Days of Recording:
- 1920x1080 30FPS - Recording Quality 32GB (1 Day), 64GB (2 Days), 128GB (5 Days), 256GB (10 Days)
- 1920x1080 15FPS - Recording Quality 32GB (2 Days), 64GB (4 Days), 128GB (7 Days), 256GB (15 Days)
- 1280x720 30FPS - Recording Quality 32GB (4 Days), 64GB (7 Days), 128GB (15 Days), 256GB (29 Days)
- 640x480 30FPS - Recording Quality 32GB (7 Days), 64GB (15 Days), 128GB (29 Days), 256GB (59 Days)
Recording days cannot be guaranteed and will vary depending on the amount of motion in the scene.
Alarm.com ADC-VC728PF Product Includes:
- Camera (ADC-VC728PF)
- Mounting hardware
- Torx wrench
- Water-resistant cap
