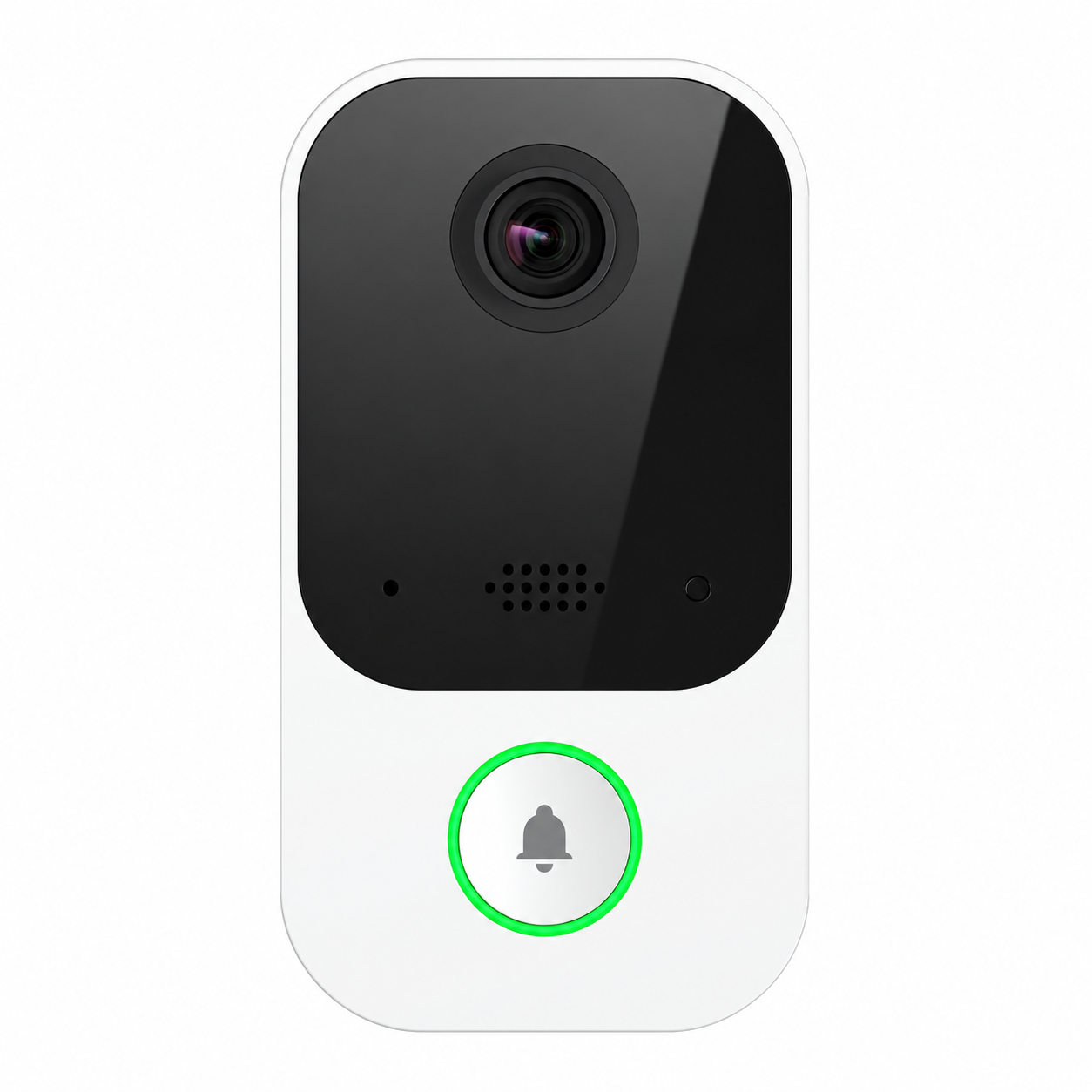

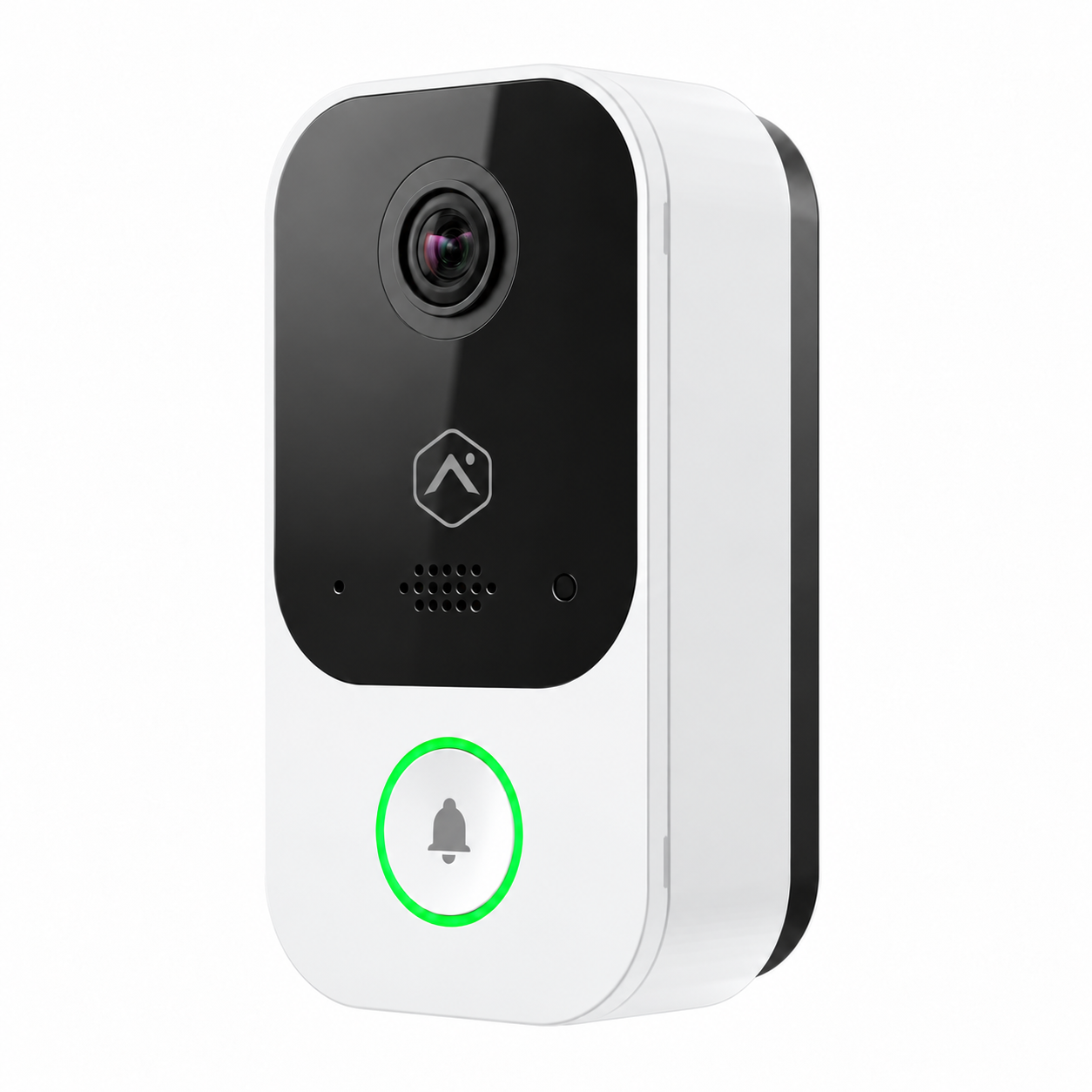

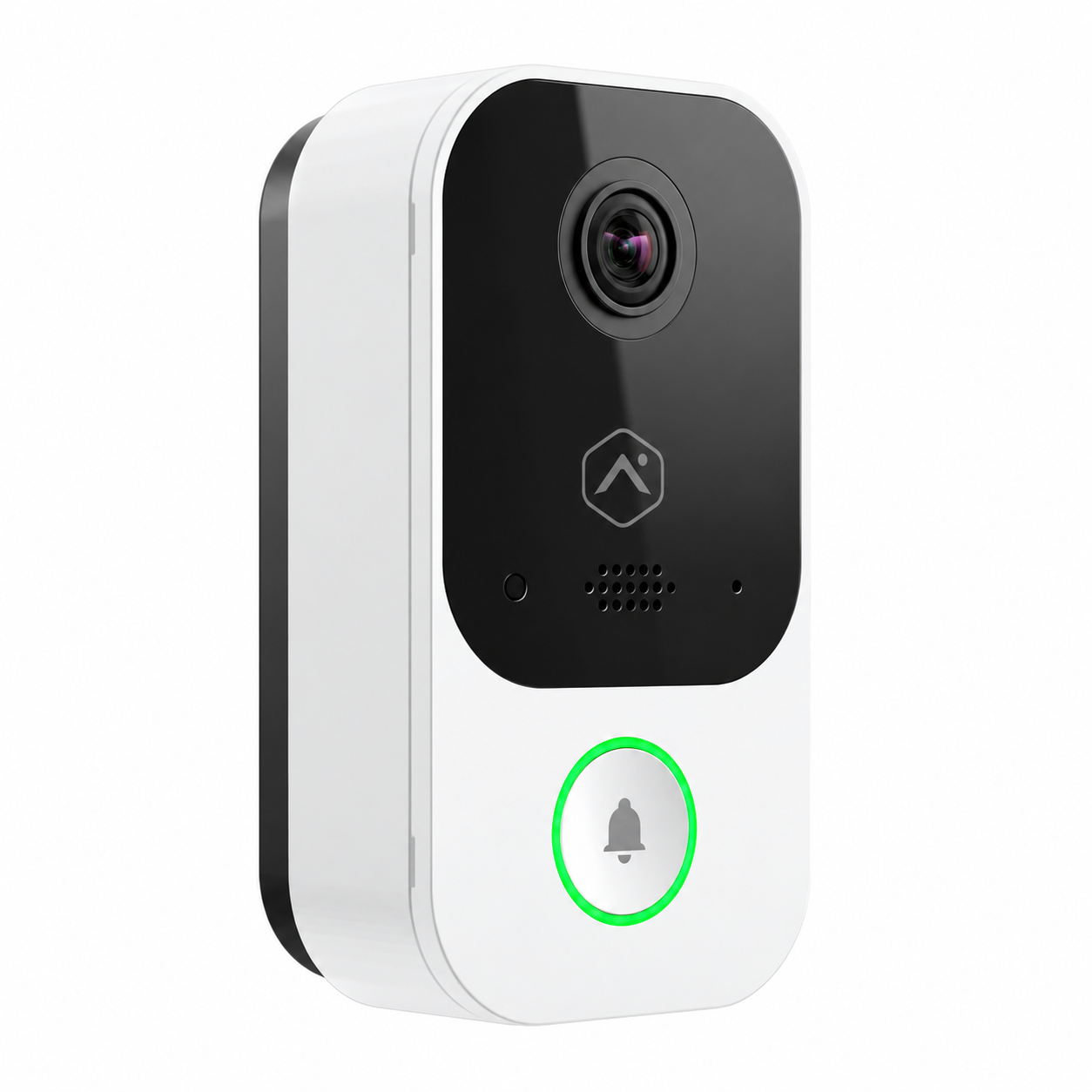

ADC-VDB755P - Alarm.com Pro Series PoE 2MP Video Doorbell Station
Alarm.com ADC-VDB755P Product Description:
The Alarm.com ADC-VDB755P ProSeries PoE 2MP video doorbell station is the latest addition to Alarm.com's family of video doorbells. The ADC-VDB755P is Alarm.com's first doorbell camera with Power over Ethernet (PoE) capabilities, allowing for a reliable network connection and power supply. This doorbell offers crystal clear 2MP picture and an expansive 150° horizontal and 150° vertical Field of View so customers can see and do more at the front door. Alarm.com's powerful People Detection and crisp Two-Way Audio help reduce false notifications while bringing increased awareness and allowing users to communicate with visitors. With support for SVR Recording your customers can locally record encrypted video and view footage from anywhere. Plus - a wide range of operating temperatures increases install flexibility, making this a great choice in any environment.
Product Features:
- Power over Ethernet
- Expansive 150° horizontal and 150° vertical Field of View ensures customers get a full picture of what's happening at their front door
- Video Analytics with rapid People Detection for faster, more relevant alerts and fewer false notifications
- Full HD resolution, High Dynamic Range (HDR), and infrared night vision
- Two-Way Audio
- 2MP live video and saved clip viewing via the customer app and customer website
- No power module required for compatibility with mechanical or digital chimes
- Compatible with the Alarm.com Smart Chime (W115C)
- Compatible with the Alarm.com CSVRs and SVR210 for continuous recording
Alarm.com ADC-VDB755P Product Documents:
• Data Sheet - Alarm.com Pro Series PoE Video Doorbell Station (ADC-VDB755P)
• Installation Guide - Alarm.com Pro Series PoE Video Doorbell Station (ADC-VDB755P)
• Factory Reset to Default Settings - Alarm.com Pro Series PoE Video Doorbell Station (ADC-VDB755P)
• Adjust Motion Detection - Alarm.com Pro Series PoE Video Doorbell Station (ADC-VDB755P)
• Constantly Buzzing or Humming - Alarm.com Pro Series PoE Video Doorbell Station (ADC-VDB755P)
• Indoor Chime Does Not Make Sound When Guest Rings - Alarm.com Pro Series PoE Video Doorbell Station (ADC-VDB755P)
• Unable to Hear Audio During Call - Alarm.com Pro Series PoE Video Doorbell Station (ADC-VDB755P)
• What do the LEDs Mean - Alarm.com Pro Series PoE Video Doorbell Station (ADC-VDB755P)
• What Types of Chimes are Compatible - Alarm.com Pro Series PoE Video Doorbell Station (ADC-VDB755P)
• How to Wire to a Chime - Alarm.com Pro Series PoE Video Doorbell Station (ADC-VDB755P)
Alarm.com ADC-VDB755P Product Specifications:
- Recording compression - H.264
- Max resolution - 1440 x 1440
- Lens/angle of view - 150° horizontal, 150° vertical
- Low-light sensitivity - 0 lux with IR
- IR range - Up to 15 feet (5 meters)
- Image adjustments - Flip, brightness, contrast, saturation, sharpness, exposure
- Wireless connectivity - N/A
- Operating temperature - -58°F - 122°F (-50°C - 50°C)
- Operating humidity - <95% (non-condensing) RH
- Dimensions (W x L x D) - 2.45 x 4.50 x 1.54" (62.3 x 114.2 x 39.1mm)
- Activity Detection - Advanced Video Analytics for People Detection
- Audio - Two-Way Audio (Full Duplex)
- Compliance - FCC, IC, C-Tick, CE Class A, CE Class B, UL, RoHS, WEEE, Compliant with Section 889 of the NDAA
Alarm.com ADC-VDB755P Product Requirements:
- Power - PoE 802.3af
- Ethernet connection - 10/100Mbps RJ-45
Alarm.com ADC-VDB755P Status Light Guide:
LED Patterns
- Off - Power off
- Blinking yellow - Camera power cycling
- Solid red - No local or internet connection
- Blinking red - Power on, camera booting
- Blinking green - Local network connection
- Solid green - Connected to Alarm.com
- Alternating red and green - Camera resetting to factory default (press and hold button for 45-50s)
- Alternating yellow and white - Change the chime type to mechanical (press and hold button for 60-65s). If the chime type is set to digital or none.
- Alternating blue and white - Change the chime type to digital (press and hold button for 60-65s). If the chime type is set to mechanical.
Alarm.com ADC-VDB755P Product Includes:
- ADC-VDB755P Video Doorbell
- Wall anchors (x2) & screws (x2)
- Foam gasket
Alarm.com ADC-VDB755P Product Compatibility:
- Alarm.com Smart Chime (W115C)
- Alarm.com CSVRs and SVR210 for continuous recording
