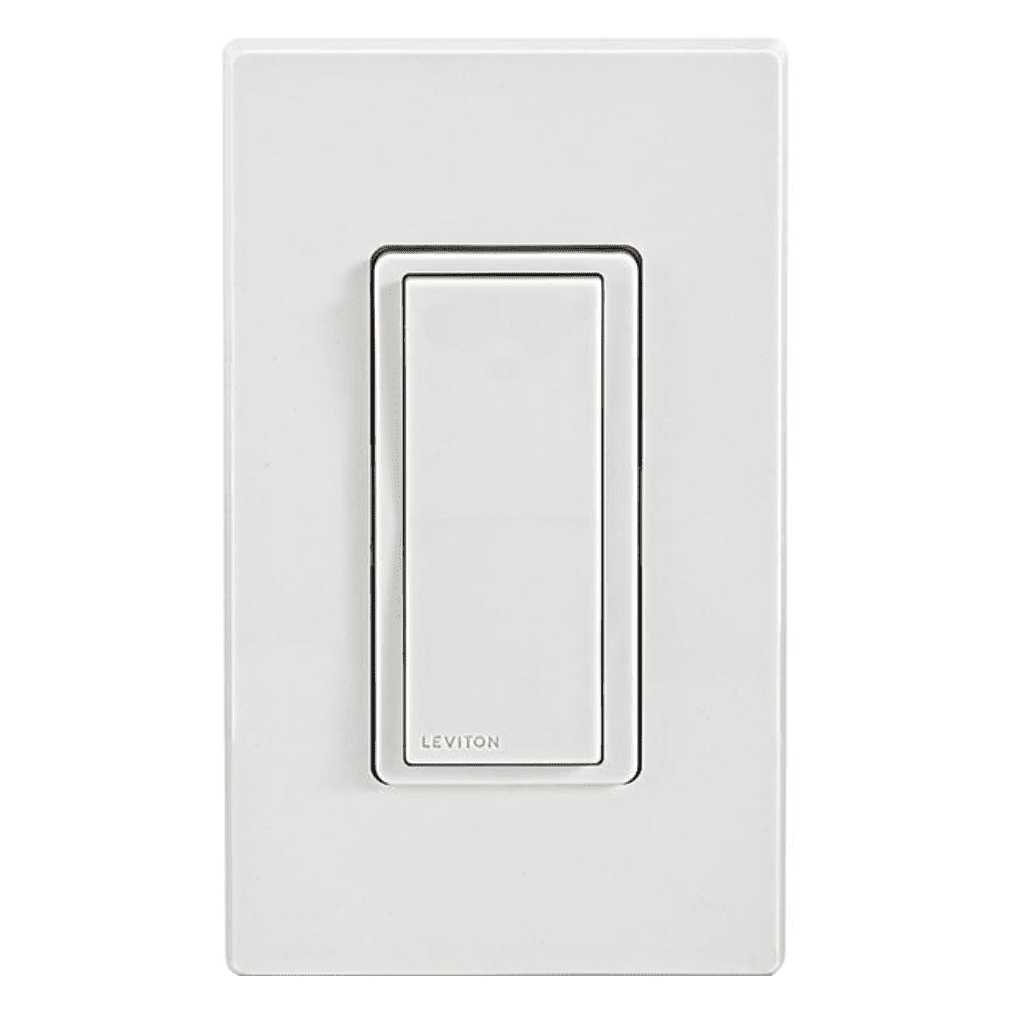

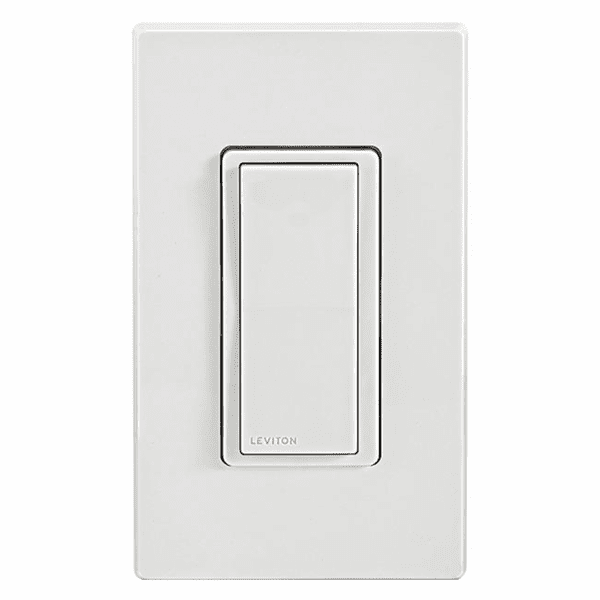

ZW15S-1RW - Leviton Z-Wave Plus Indoor 800-Series Decora Smart 15A Wall Dimmer
Leviton ZW15S-1RW Product Description:
The Leviton ZW15S-1RW is a Z-Wave Plus 800-Series indoor Decora® smart 15A wall switch. The Decora Smart Z-Wave 800 Series Switch is designed for use with modern Z-Wave hubs and makes it easier than ever to add smart lighting control to your home.
The ZW15S is compatible with any Z-Wave enabled network, regardless of the manufacturer, and can also be used with other devices displaying the Z-Wave logo. The ZW15S acts as a repeater to help increase the reliability of the Z-Wave network.
The Decora Smart Z-Wave 800 Series Switch aesthetically matches Decora in-wall devices and features intuitive on/off control. Add the switch to a certified Z-Wave hub to enable app commands, scheduling, and voice control of connected lighting.
Product Features:
- Never come home to a dark house again - schedule exterior lights to turn on at sunset
- Know if lights are on and adjust them whether you're home, at work, or on vacation - control from anywhere using a compatible Z-Wave hub
- Use your voice for control without lifting a finger - using a compatible Z-Wave hub
- Control this switch from another wall location in your home - pairs with DD0SR Wired Switch Companion
- Increase the reliability of your Z-Wave network - acts as a repeater to strengthen your Z-Wave Mesh network
- One switch does it all - supports on/off switching of loads up to 15A and 3/4 HP for control of lights, ceiling fans, exhaust fans, motors, pumps, and more
- Remote access, voice command, and scheduling - as part of a Z-Wave smart home solution
- Easy Install - replaces your existing switch; wire leads and slim design make install a breeze
- Single Pole or 3-Way - works with DD0SR Wired Switch Companion
- Change the color - using DDKIT faceplates available in six colors (see ordering information)
Leviton ZW15S-1RW Product Specifications:
Dimensions (L x W x D):
- 4.13" x 1.73" x 1.30"
Tech Specs:
- Neutral wire required for installation
- Z-Wave Plus Network - 908.40, 908.42, 916.00 MHz
- Z-Wave Range - 50 feet to the hub or another Z-Wave enabled repeater
Ratings:
- General Use - 300W - 120VAC, 60Hz
- LED/CFL/Electronic Ballast - 5A
- Incandescent/Halogen - 1500W
- Magnetic Ballast - 15A
- Motor - 3/4 HP
- Operating Temperature - 0° - 40°C (32° - 104°F)
- Operating Humidity - 10 to 90% non-condensing
Agency Standards and Compliance:
- Complies with UL917; CSA C22.2 No. 177-13
- CSA Certified for USA and Canada
- Z-Wave Plus v2 Certified
- Complies with FCC Part 15, Class B
- FCC ID - QGH-ZW15S
- IC - 2473A-ZW15S
Warranty Information:
- Two-Year Limited Warranty
Wired 3-Way/Multi-Location Control:
The Decora Smart Z-Wave Plus Switch can be paired with a DD0SR Switch Companion to control the lights from more than one location.Z-Wave Plus V2 Certified (800 Series):
- Supports Z-Wave 8th generation mesh wireless for control of connected lighting with certified Z-Wave hubs
- Compatible with any Z-Wave enabled network; works with other devices displaying the Z-Wave logo; backwards compatible with all generations of Z-Wave devices
- Meets the Z-Wave specification for the latest in speed, performance, and security
- Supports SmartStart enrollment when used with a Z-Wave controller that supports SmartStart inclusion. Also supports Network wide inclusion, and Classic inclusion enrollment methods
- Supports S2 Security and Z-Wave Over-the-Air updates
- Reference the Getting Started Guide for installation instructions and Advanced Options that can be configured over the Z-Wave network as well as a list of supported Z-Wave associations and classes
