VISTAHRELAY - Resideo First Alert VISTA H Relay Module

VISTAHRELAY - Resideo First Alert VISTA H Relay Module
VISTAHRELAY - Resideo First Alert VISTA H Relay Module
Item# VISTAHRELAY
List Price: $129.27
Your Price: $86.18
Availability: In Stock
QTY:
ShippingFast shipping
In stock items are shipped ground within approximately 3-5 business days from which the date the order was placed.

Read the full shipping policy
Returns30-day return window
This item can be returned in its original condition within 30 days of receipt, less a 25% restocking fee of the total invoice price.

Read the full return policy
PaymentSecure Transaction
We work hard to protect your security and privacy. Our payment security system encrypts your information during transmission. We don't share your credit card details, and we don't sell your information to others.

Read the full order processing policy

First Alert VISTAHRELAY Product Description:

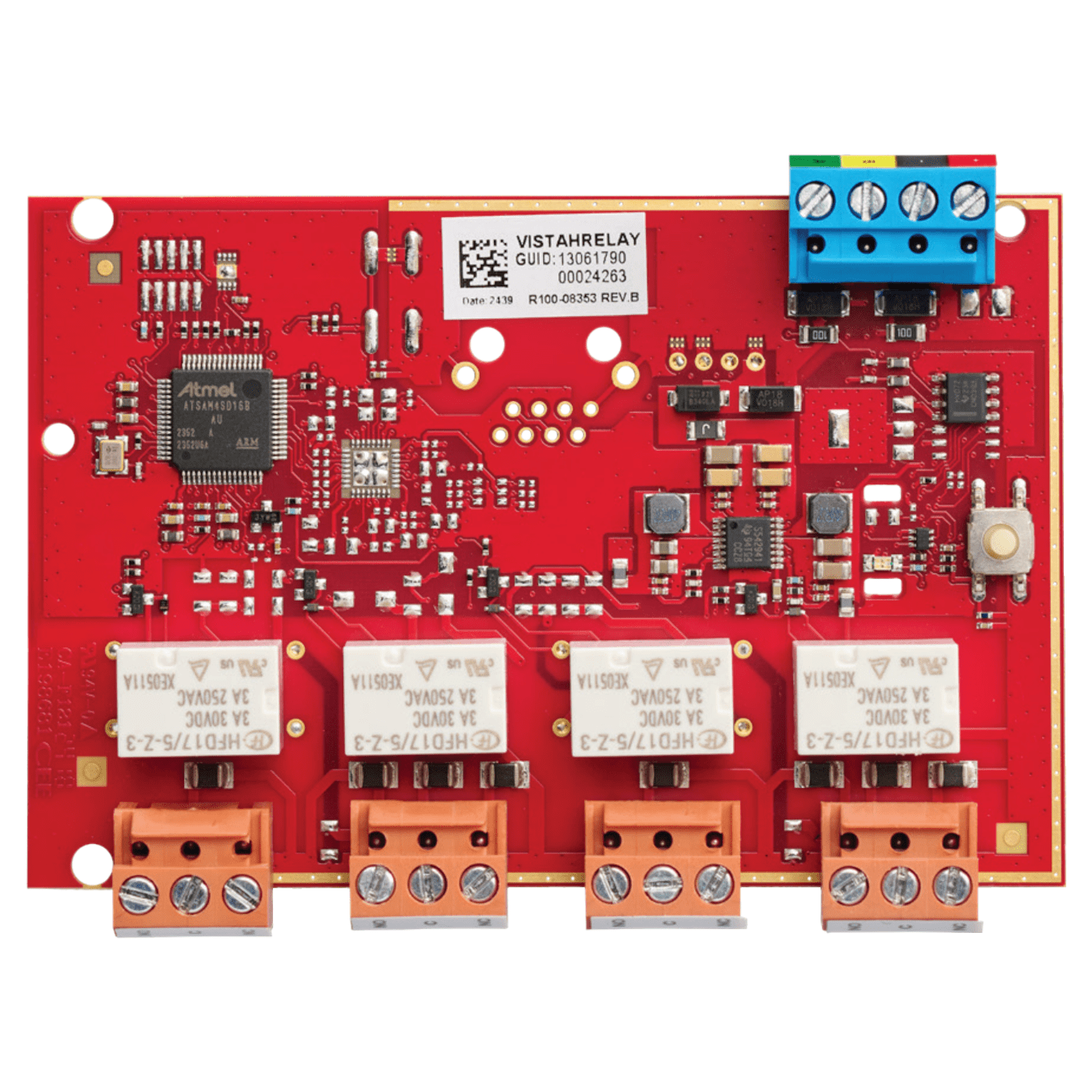

The First Alert VISTAHRELAY module allows up to four hardwired, form-C (SPDT) relay outputs per module to be added to the VISTA H series control panels. The VISTAHRELAY is mounted remotely and wired to the control panels iBus wiring terminals for power.

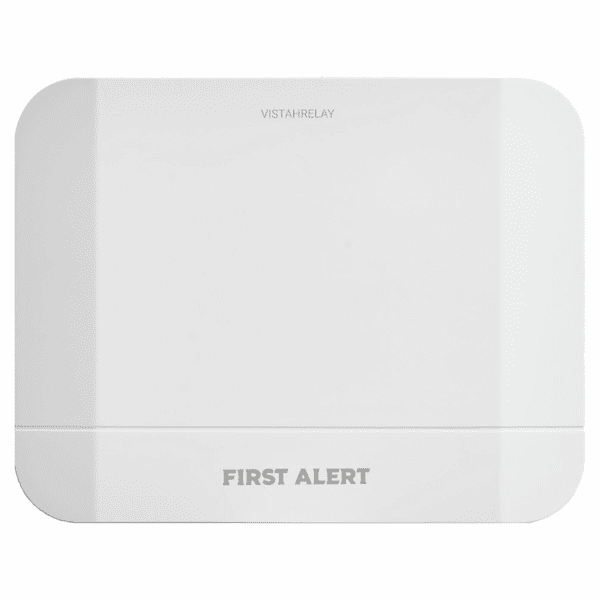

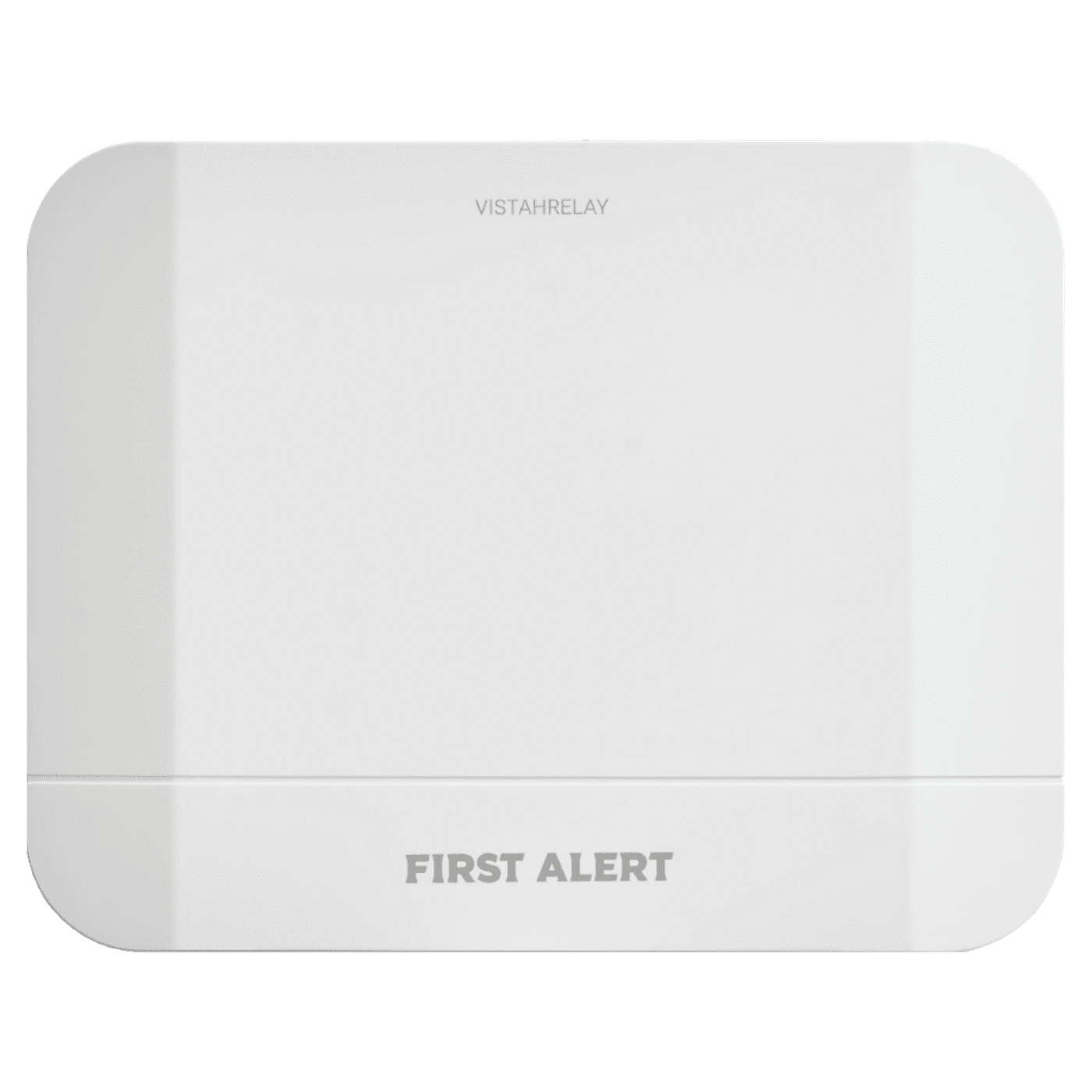

The module has a built-in tamper allowing detection and reporting if the front cover is removed and is supervised so if the wiring is cut a supervision alarm will result indicating the module may not be operational. The flexibility to mount the module on a surface wall or to a gang box depending on the installation environment and the terminal strips are removeable to give installers easier access to help making wiring easier.

Product Features:

  • Supports normally open, normally closed, common, double balanced, zone doubling and End of line resistors types
  • Power supply regulation on board - powered off the VISTAH3 controls power and battery backed up if panel losses AC

First Alert VISTAHRELAY Product Specifications:


  • Dimensions - 6.93" W x 5.43" H x 1.99" D (176mm W x 138mm H x 50.5mm D)
  • Operating Temperature - 32°F to 122°F (O°C to 50°C)
  • Operating Humidity - 0 to 95% Max (Relative Humidity)
  • Electrical Input Voltage - 12 VDC nominal (10-14 VDC)
  • Electrical Input Current - 25mA standby + 20Ma per active relay
  • Contact Rating - 3A max at 30VDC & #A max at 120/240VAC (Resistance Load)
  • Power supply (regulation on board) - powered off the VISTAH3 controls power and battery backed up if panel losses AC
  • Loop Response Time - 400ms
  • Required Loop Resistance - 2.2K ohm
  • Agency Listings - NFPA-72 Compliant
