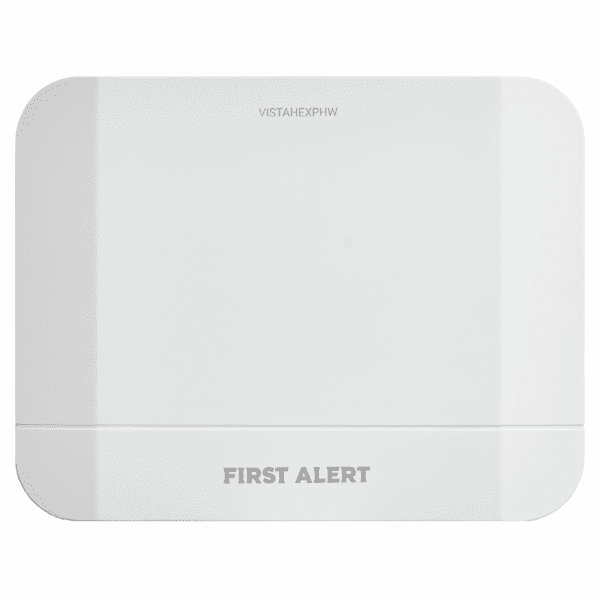

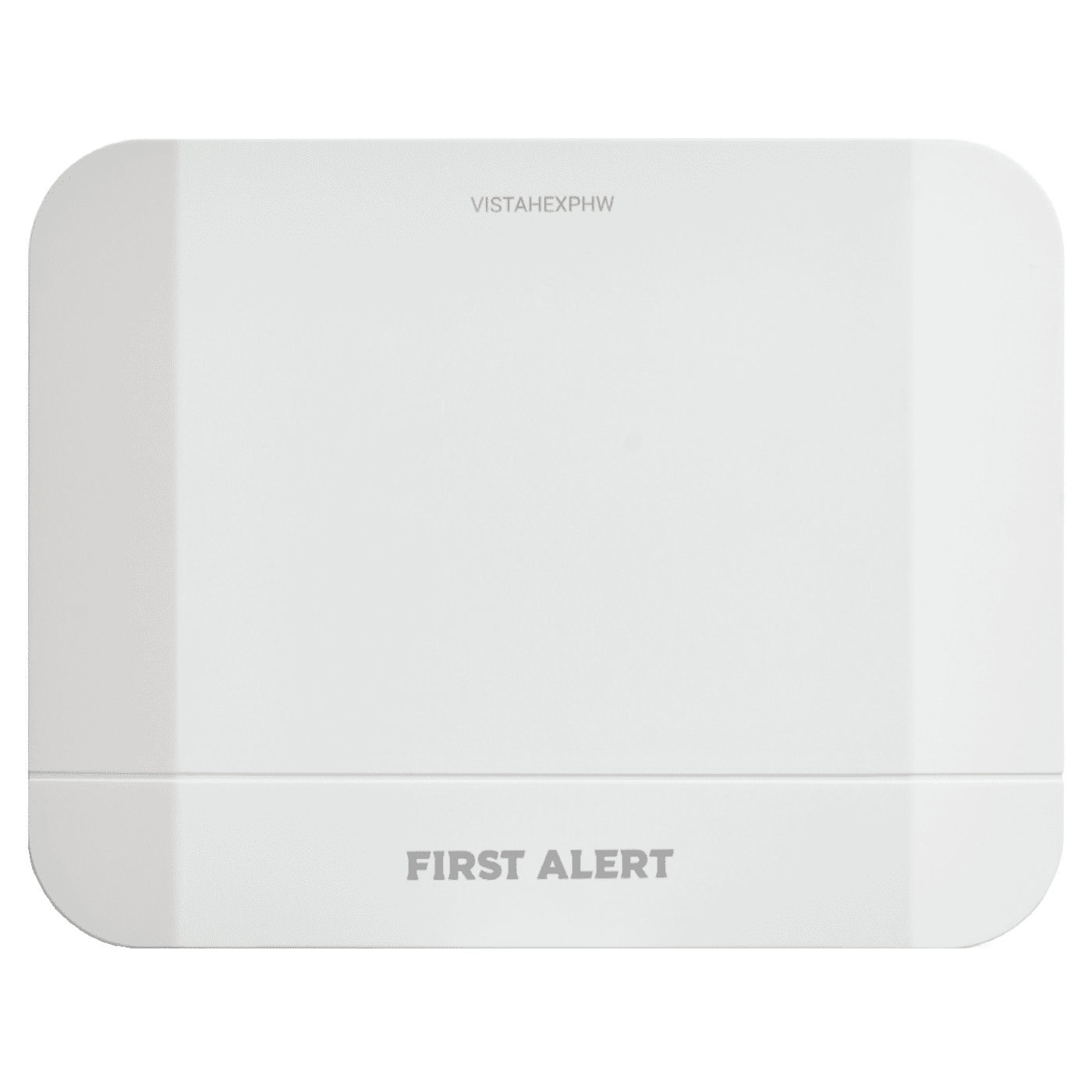

VISTAHEXPHW - Resideo First Alert VISTA H Hardwired 8-Zone Expansion Module

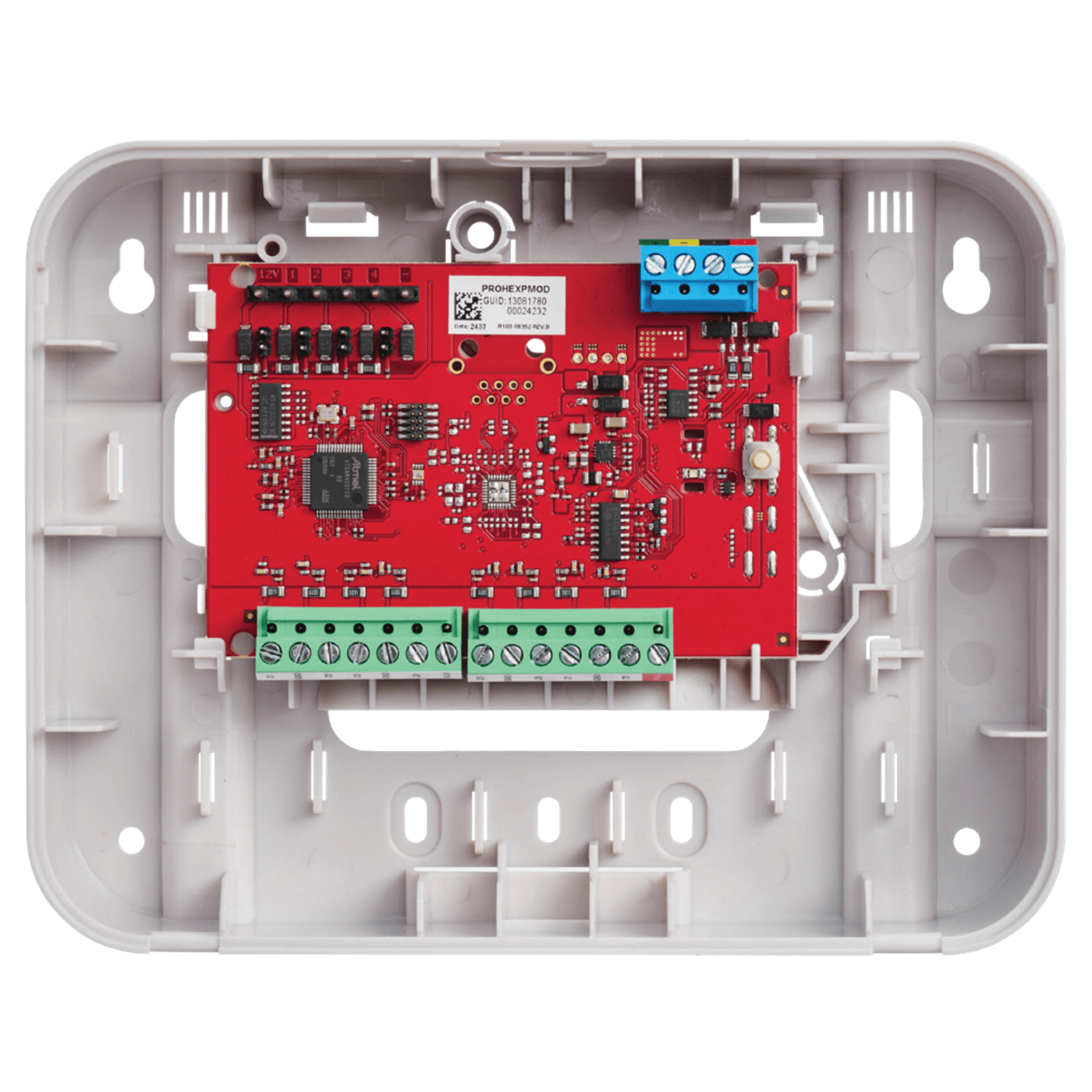

The First Alert VISTAHEXPHW hardwired zone expansion module allows you to add 8 additional hardwired zones (16 with zone doubling) per module to a VISTAH system. The VISTAHEXPHW module has a built-in tamper allowing detection and reporting if the front cover is removed and is supervised so if the wiring is cut a supervision alarm will result indicating the module may not be operational. The flexibility to mount the module on a surface wall or to a gang box depending on the installation environment and the terminal strips are removeable to give customers easier access to help making wiring easier.
Product Features:
8 hardwired zones per module
Supports normally open, normally closed, double balanced, zone doubling and End of line resistors types
Power supply (regulation on board) powered off the VISTAH3 controls power and battery backed up if panel losses AC
Dimensions - 6.93"W x 5.43"H x 1.99"D (176mm W x 138mm L x 50.5mm D)
*Electrical Input Voltage - 12 VDC nominal (10-14 VDC)
*Electrical Input Current - 40mA with all 8 zones used
Power supply (regulation on board) - powered off the VISTAH3 controls power and battery backed up if panel losses AC
Loop Response Time - 400ms
Required Loop Resistance - 2K ohm
Operating Temperature - 32°F to 122°F (0°C to 50°C)
Operating Humidity - 0 to 95% Max (Relative Humidity)
Agency Listings - NFPA-72 Compliant
*Note this does not include powered devices using the AUX terminals
