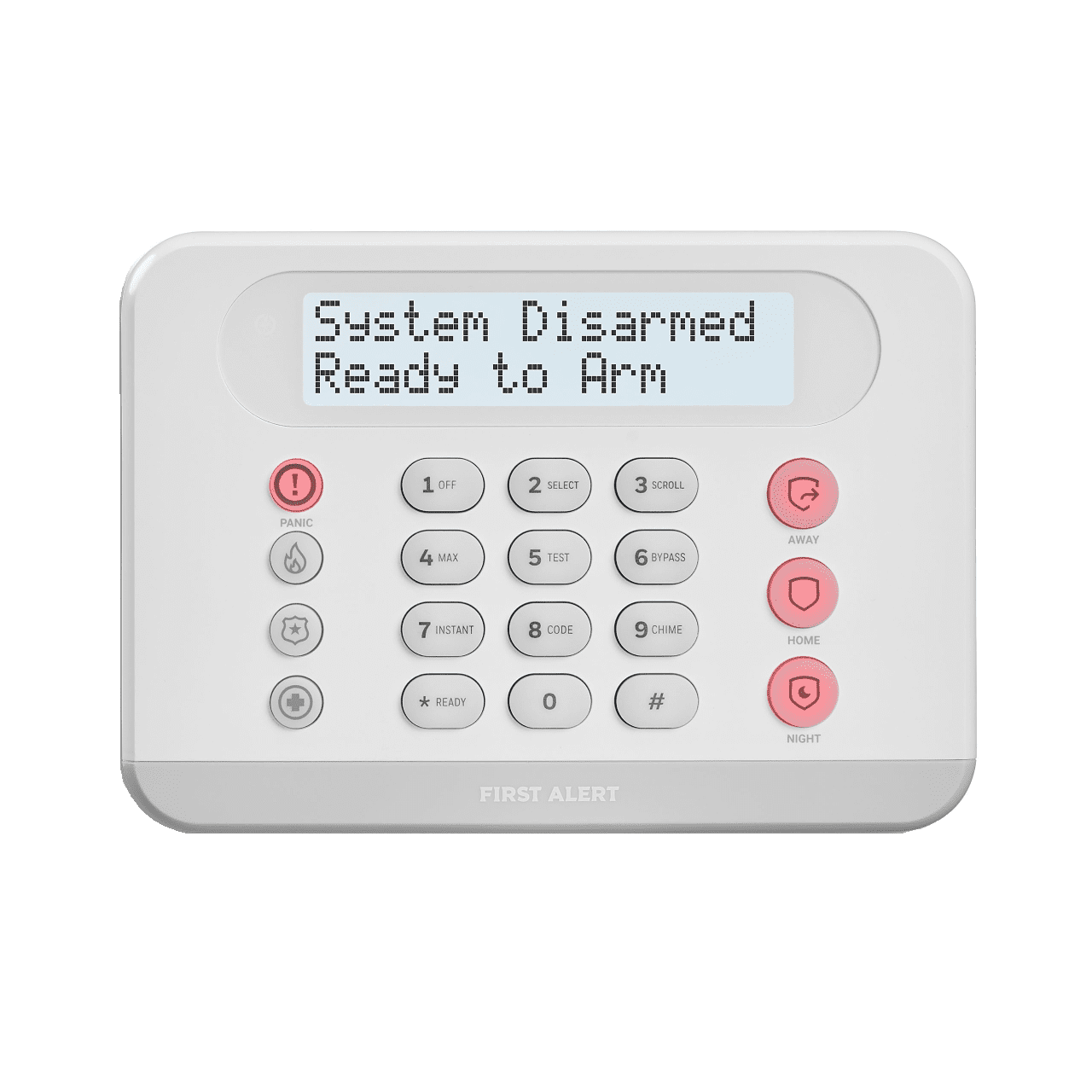

VISTAHLKP - Resideo First Alert VISTA H Hardwired Alphanumeric Landscape Alarm Keypad
First Alert VISTAHLKP Product Description:
The First Alert VISTAHLKP landscape keypad features an illuminated two-line alpha display that can be customized with zone descriptions, providing users with crucial information during emergencies. Its wider landscape design offers a larger, more readable display, while multiple function keys and audible alerts enhance usability and comprehension of system events and alarms. Dedicated emergency keys enable quick calls for help in urgent situations. The VISTAHLKP supports four languages (English, Spanish, French, and Portuguese) broadening its usability in diverse regions. Its landscape style resembles the 6160 model and includes a backplate to cover the wall area when upgrading 6160 VISTA installations. The 2x16 display interface is consistent with the VISTAHPKP and PROSIXLCDKP, allowing for easy integration of different keypads based on user preferences and budget, while minimizing training costs for end users. There are display language options for English (VISTAHPKP) and French (VISTAHPKPFR).
Product Features:
- Up to 8 hardwired keypads can be added to a VISTA H system
- Dedicated quick arm keys for arming away, stay and night
- Dedicated panic keys for panic, fire, medical and police (requires 2 button press to reduce false alarms)
- Display backlight can be adjusted for brightness
- Sounder is piezo-electric
- Built-in tamper from the wall
- Module is supervised for wires being cut and alarm signal will result
- Add supports 4 languages on display (English, French, Spanish, Portuguese)
First Alert VISTAHLKP Product Specifications:
- Dimensions (H x W x D) - 6.81" x 4.83" x 0.84"D
- LEDs - individual LEDs for power, status and trouble
- Electrical Voltage - 12 VDC (power limited)
- Electric Current - 70mA (20mA when panel in standby mode with backlight off, armed led lit, sounder on)
- Operating Temperature - 32°F to 122°F (0°C to 50°C)
- Operating Humidity - 0 to 95% Relative Humidity
First Alert VISTAHLKP Product Documents:
• Data Sheet - First Alert VISTA H Hardwired Landscape Alarm Keypad (VISTAHLKP)
• Installation Instructions - First Alert VISTA H Hardwired Landscape Alarm Keypad (VISTAHLKP)
