Honeywell Home VISTA 20P Dual-Path Ethernet/Cellular AT&T LTE-M Hybrid Security System (Powered by AlarmNet)
Honeywell VISTA 20P Kit Description:

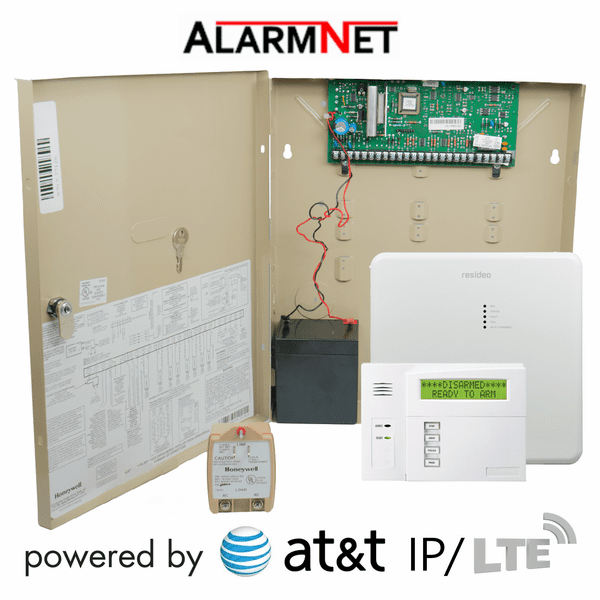

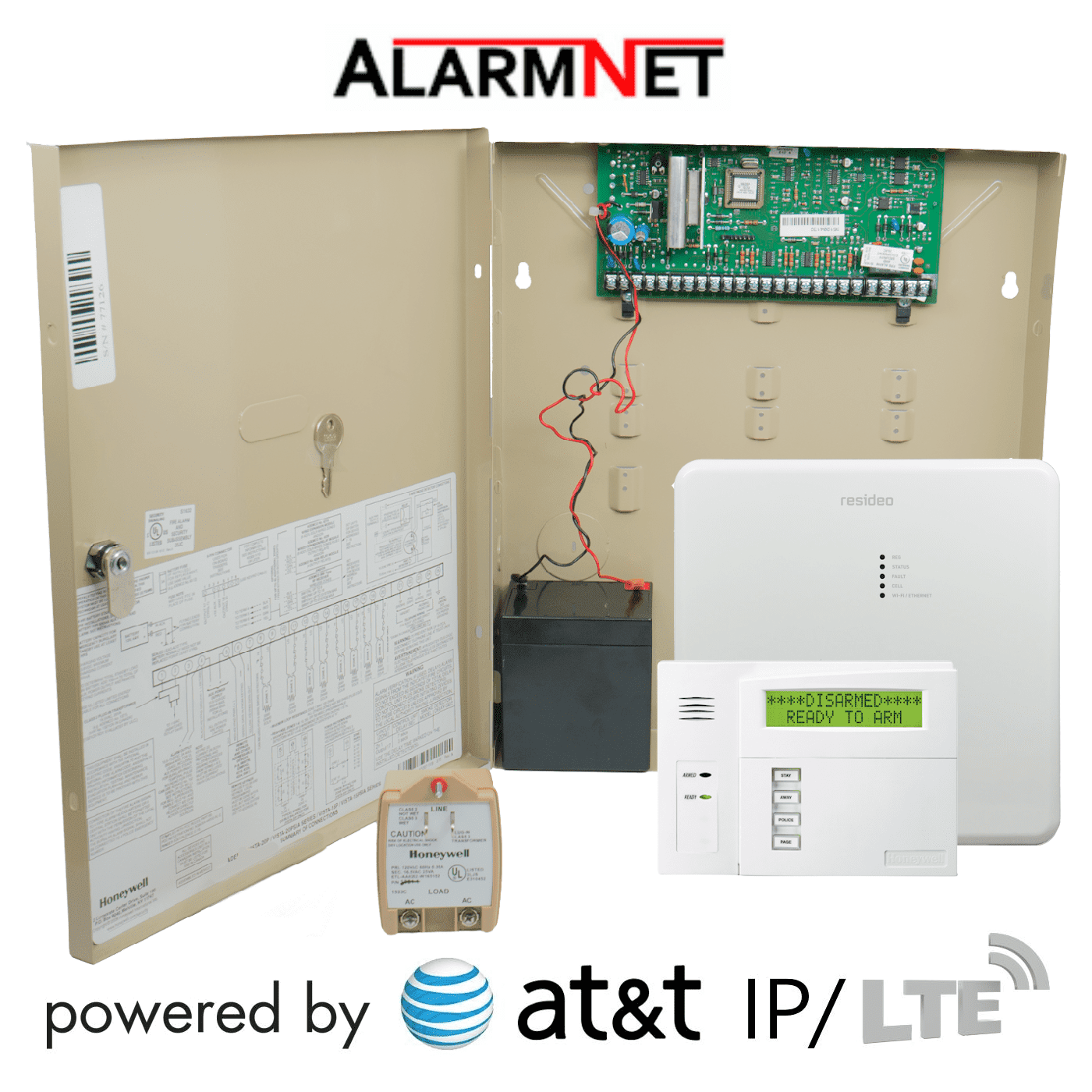

The Honeywell VISTA20P-DP-LTEM-PA-HBDSWAP is a VISTA 20P dual-path hybrid security system kit with a 6160RF hardwired keypad and wireless receiver. This hybrid security system kit is designed for multiple (internet IP/cellular Verizon LTE-M) alarm communication paths back to the GeoArm central monitoring station. The VISTA 20P is a high-capacity, feature-rich, 48-zones control panel that delivers more value to the end user.
The VISTA 20P comes with 8 on-board hardwired zones (up to 15 with zone doubling), up to 40 hardwired zones with expansion (8 on-board zones + 32 expansion zones = 40 total hardwired zones), and up to 40 wireless expansion zones (using the 6160RF keypad's wireless receiver). Additionally, the VISTA 20P supports up to 16 wireless keyfobs, up to 48 user codes and up to 32 schedules. With the VISTA 20P panel you get remote programming capability, graphic keypad support and 2 partitions. The VISTA 20P's installation advantages, innovative end-user benefits and robust system capacity make the value-priced security system an ideal choice for higher-end installations.
This VISTA 20P dual-path hybrid high-security system kit is backed by Honeywell's 2-year limited manufacturer's warranty and is compatible with the full-line of Honeywell 5800-Series wireless security products using the 6160RF keypad's wireless receiver. GeoArm and Honeywell give you the options you need to fully customize your DiY security system.
Honeywell VISTA 20P Dual-Path Hybrid Security System Applications:
- Homes
- Townhomes
- Apartments/Condos
- Offices
- Retail Spaces
- Small Businesses
- Warehouses
- Convenience Stores
- Gas Stations
- Churches
Security System Installation Notes:
To complete your hybrid security system installation, first wall-mount the VISTA 20P control panel. Next, wall-mount the 6160RF keypad close to the VISTA 20P control panel. Finally, connect the LTEM-PA dual-path (ethernet/cellular AT&T LTE-M) to the VISTA 20P control panel. Please take note that you will need an AlarmNet dual-path alarm monitoring account activated to work with GeoArm's central station.
When designing your system, keep in mind that the Honeywell VISTA 20P security system supports up to forty-eight (48) total zones with expansion modules but only supports eight (8) hardwired zones without expansion. You should add the Honeywell 4219 hardwired 8-zone expansion modules if you want to add more than eight (8) hardwired zones to your VISTA 20P security system. Also, remember you can use the 6160RF keypad's RF receiver to easily expand your VISTA 20P by up to 40 wireless zones. This VISTA 20P hybrid security system kit comes equipped to send its alarm signals over the dual-path (internet IP/cellular AT&T LTE-M) network(s). The Honeywell LTEM-PA dual-path alarm communicator sends your alarm signals over the primary internet communication path, and if down, over the backup cellular AT&T LTE-M communication path to the GeoArm central monitoring station.
With an AlarmNet alternative communicator in place (such as the LTEM-PA), you would no longer need traditional phone service at the property to monitor your VISTA 20P security system. The alternative communicator would also allow you to upgrade to GeoArm's Total Connect interactive alarm monitoring services, which enables you to receive important alerts, keep a close eye on your home and control your hybrid security system remotely via the internet and/or mobile devices you use each and every day. Isn't it time you got connected? Save money and take control of your business or home security with GeoArm.
*Please Note: Parts listed above with an asterisk symbol require a subscription to Total Connect 2.0 powered by GeoArm.
Honeywell VISTA 20P Kit Documents:
• Data Sheet for Honeywell VISTA 20P Control Panel
• User Guide for Honeywell VISTA 20P Control Panel
• Quick Installation Guide for Honeywell VISTA 20P Control Panel
• Installation/Setup Guide for Honeywell VISTA 20P Control Panel
• Residential Sales Brochure for Honeywell VISTA-Series Control Panels
• Commercial Sales Brochure for Honeywell VISTA-Series Control Panels
• Comparison Chart for Honeywell VISTA-Series Control Panels
• Programming Guide for Honeywell VISTA 20P Control Panel
Honeywell VISTA 20P Kit Specifications:
•Alarm reporting and uploading/ downloading capability for Internet and Intranet use via LTEM-PA alarm communicators
•Supports four graphic touchscreen keypads
•Wireless keys can be programmed without using zones
•Eight on-board hardwired zones standard (15 when Zone Doubling feature is used)
-40 wireless expansion zones
-40 hardwire expansion zones
•Two low current on-board trigger outputs
•100 Event Log viewable at system keypads with time/date stamp
•48 system user codes assignable to either partition
•Expandable to 48 total zones when used with hardwired and/or wireless expansion modules
•Two independent partitions plus a common partition
-Global Arming from any system keypad
-Go to function to view or operate one partition from the other
-Separate partition account numbers
•16 output devices
-Relays (Model 4204 Relay Modules, or 4229 Expansion Module)
•Four installer-configurable zone types allows the installer to create custom zone types by assigning all zone attributes
•Supports four-wire and up to 16 two-wire smokes
-Works with Sentrol CleanMe™ maintenance signal
•Multiple actions on output devices depending on system state
-Turns lights off when system arms
-Turns the same light on when system disarms
-Flashes same lights when system is in alarm
•Built-in phone line cut monitor with programmable delay and annunciation options
-Display on system keypads
-Trigger local sounders
-Trigger system bell
•Viewable on system keypads:
-Exit countdown
-Time and date display*
-Event log*
•Auto keypad backlighting on entry
•Keyswitch arming
•Programmable macro buttons and single-button arming
•Supports a variety of wireless remote controls for single-button operation
•VIP Module allows system control from any touchtone phone
•Chime by zone
•User Scheduling
-Latchkey reports to pagers
-Auto arm/disarm
-"User access" time windows
*Requires custom alpha keypad
Honeywell VISTA 20P Kit Includes:

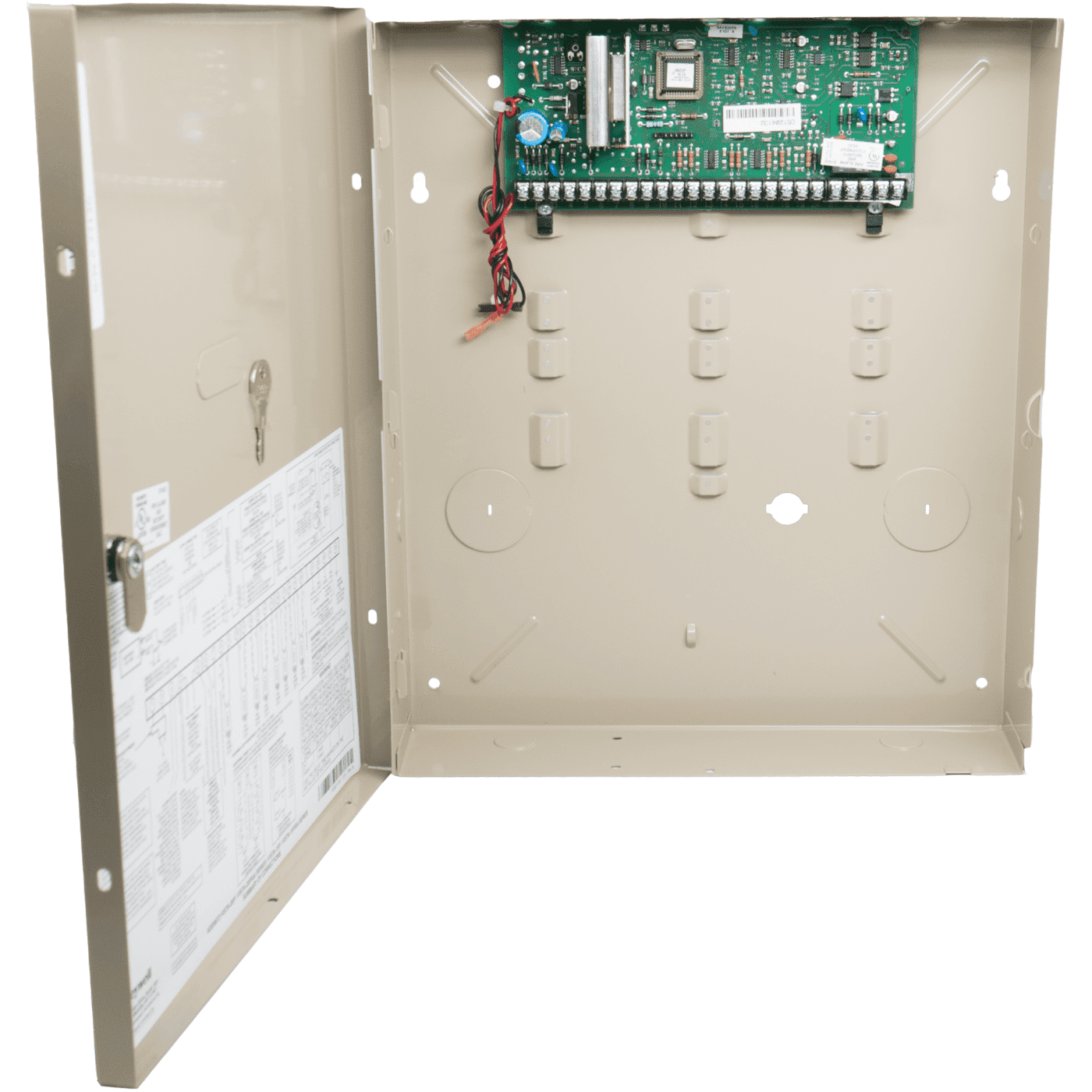

(1) Honeywell VISTA 20P Alarm Control Panel

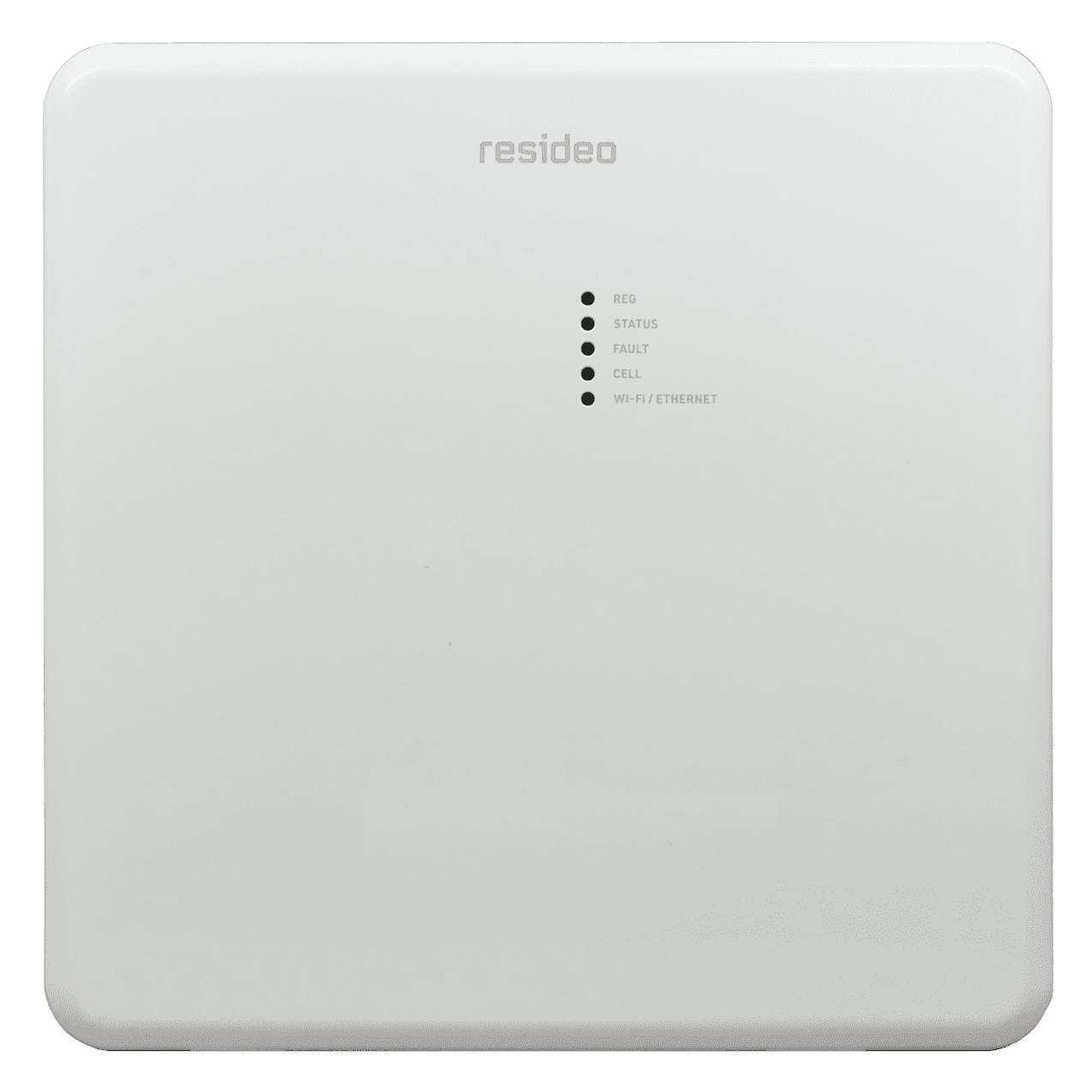

(1) Honeywell LTEM-PA Dual-Path Internet/Cellular AT&T LTE-M Alarm Communicator

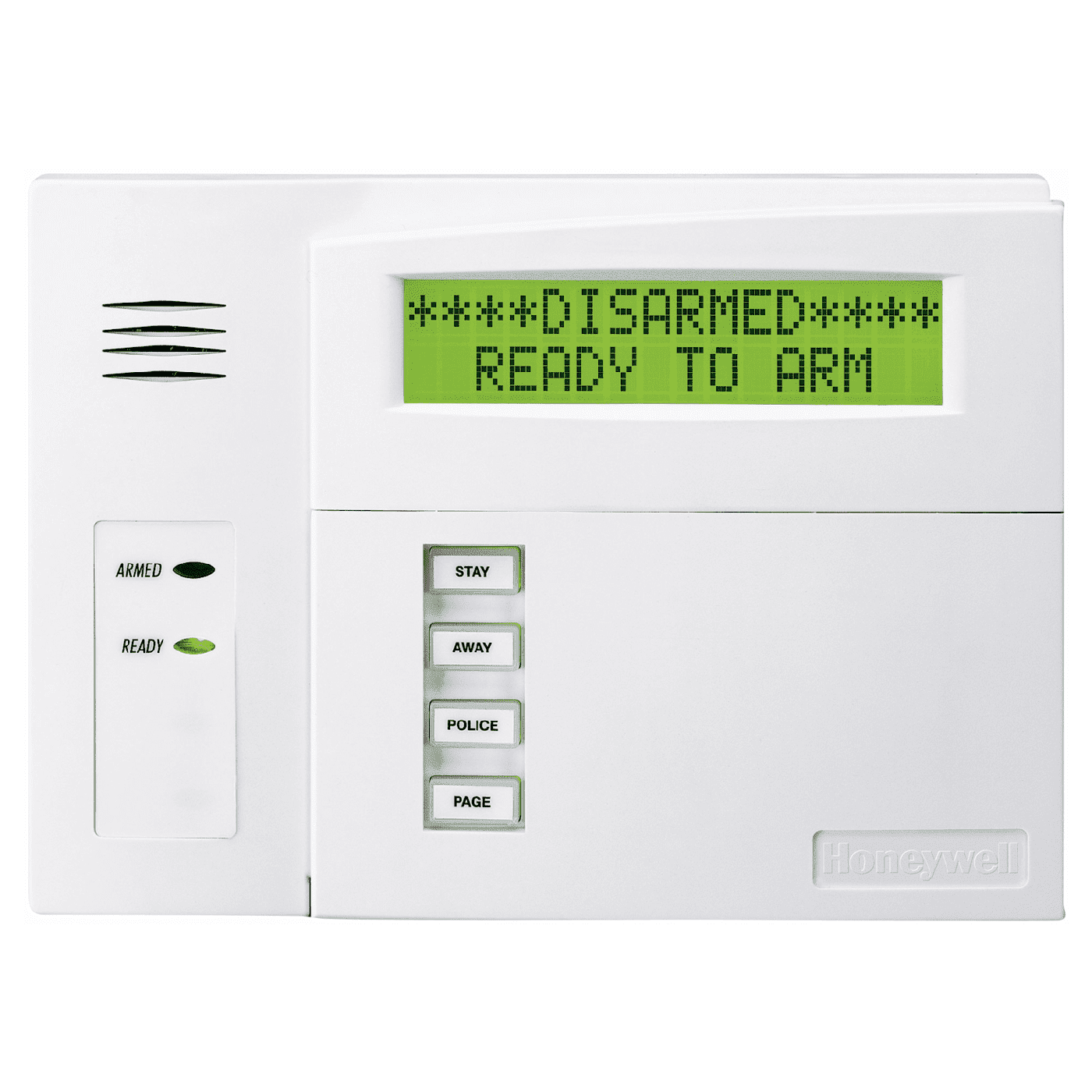

(1) Honeywell 6160RF Programming Alarm Keypad w/Wireless Receiver

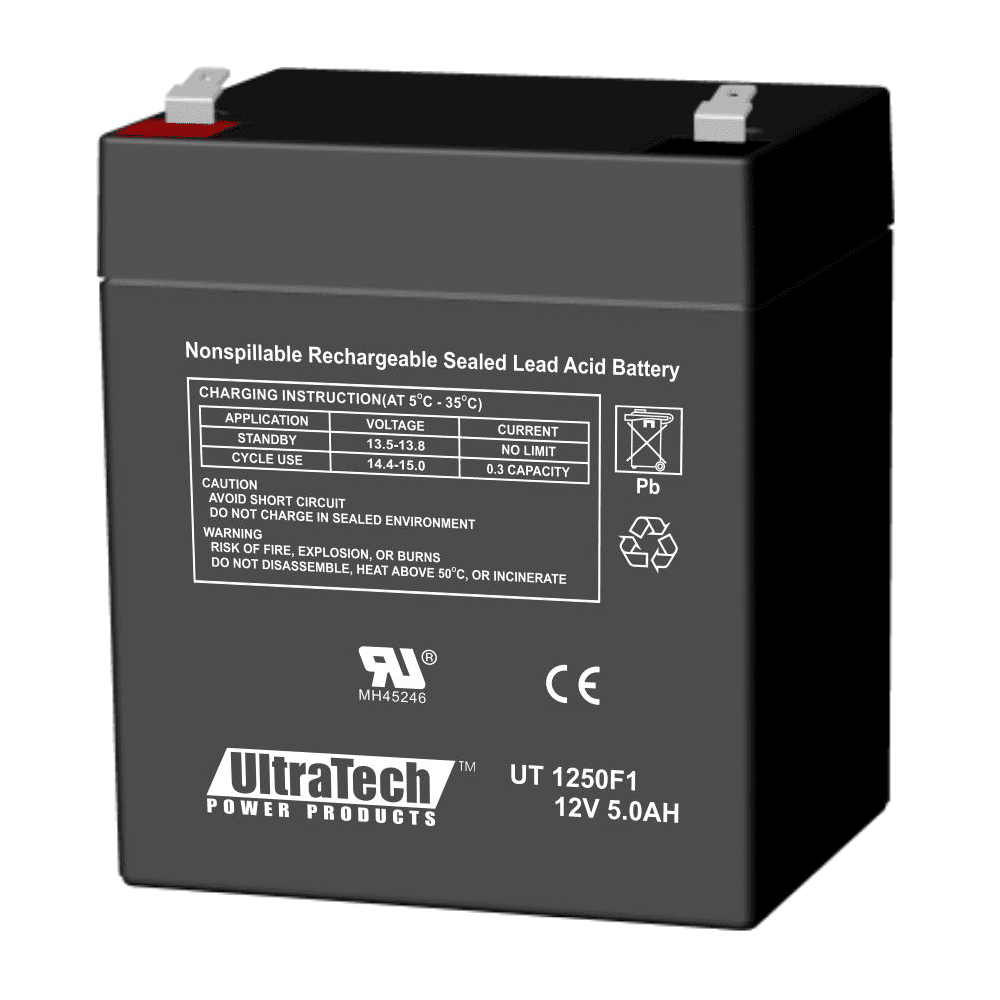

(1) UltraTech IM-1250F1 Backup Alarm Battery (12V @ 5.0 Ah)

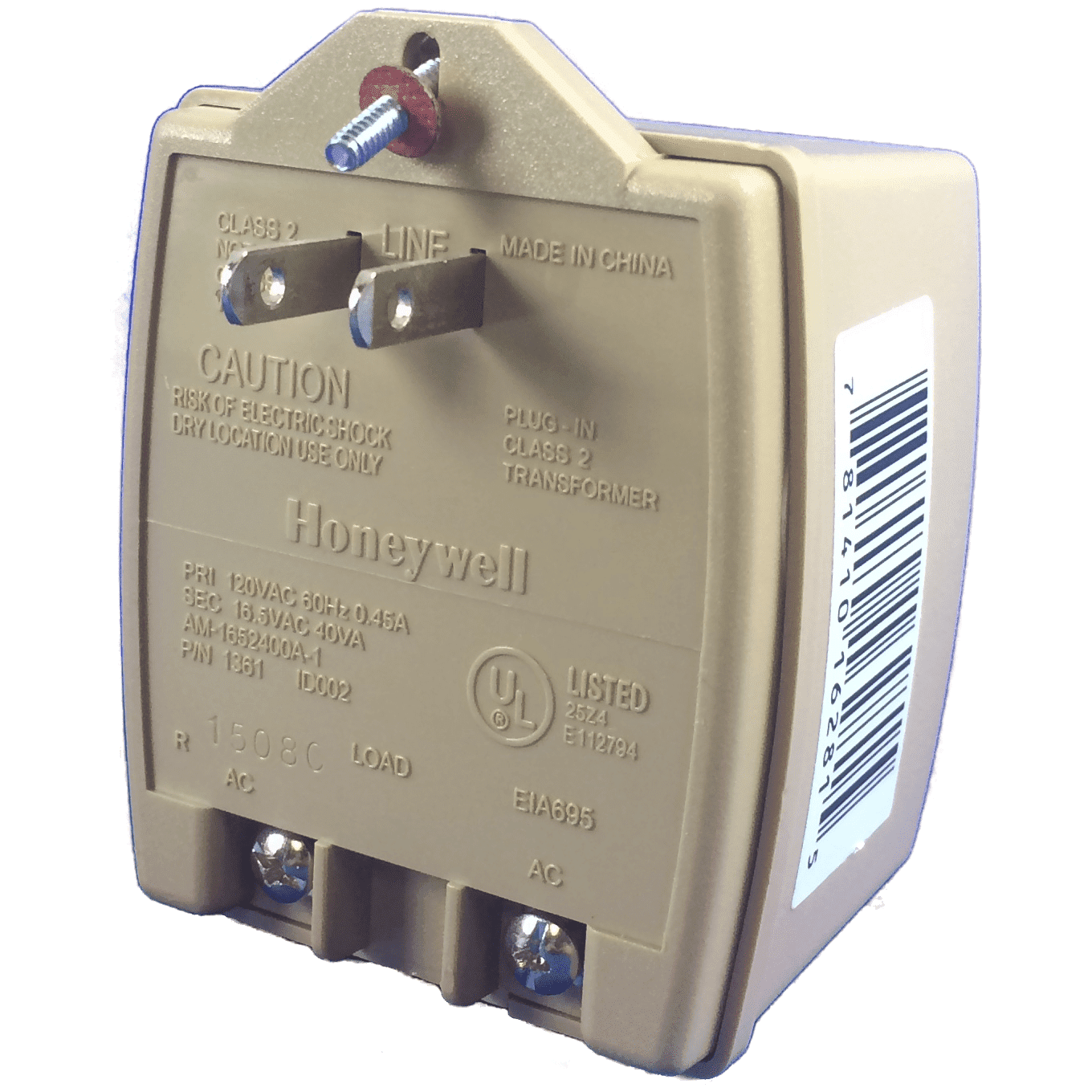

(1) AC Power Transformer (16.5VAC @ 40VA)
Miscellaneous: User Manual
