Honeywell Home VISTA 20P Dual-Path LAN/Cellular AT&T/Verizon LTE-M Hardwired Security System (Powered by M2M)
Honeywell VISTA 20P Kit Description:
The Honeywell VISTA 20P hardwired dual-path security system kit with included M2M (internet LAN and cellular AT&T/Verizon LTE-M) alarm communicator is a perfect for small business and home security. The VISTA 20P is a high-capacity, feature-rich, 48-zones wired control panel that delivers more value and multi-band redundant communications for the end user.
The VISTA 20P comes with 8 on-board hardwired zones (up to 15 with zone doubling), up to 40 hardwired zones with expansion (8 on-board zones + 32 expansion zones = 40 total hardwired zones), and up to 40 wireless expansion zones. Additionally, the VISTA 20P supports up to 16 wireless keyfobs, up to 48 user codes and up to 32 schedules. With the VISTA 20P panel you get remote programming capability, graphic keypad support and 2 partitions. The VISTA 20P's installation advantages, innovative end-user benefits and robust system capacity make the value-priced security system an ideal choice for most home and business owners.
The VISTA 20P dual-path hardwired security system is backed by Honeywell's 2-year limited manufacturer's warranty and once upgraded with a Honeywell wireless alarm receiver is compatible with the full line of Honeywell 5800-Series wireless security products. GeoArm, Honeywell and M2M provide the options you need to fully customize your hardwired security system.
VISTA 20P Security System Applications:
- Homes
- Townhomes
- Apartments/Condos
- Offices
- Retail Spaces
- Small Businesses
- Warehouses
- Convenience Stores
- Gas Stations
- Churches
When designing your hardwired system, keep in mind that the Honeywell VISTA 20P security system supports up to forty-eight (48) total zones with expansion modules but only supports eight (8) hardwired zones without expansion. You should add the Honeywell 4219 hardwired 8-zone expansion modules if you want to add more than eight (8) hardwired zones to your VISTA 20P security system. This VISTA 20P security system kit comes equipped to send its alarm signals over the multiple internet or cellular networks. The Honeywell-Compatible M2M MQ03-LTE-M-LAN-AV dual-path alarm communicator sends your alarm signals over the primary internet LAN communication path, and if down, over the backup cellular AT&T/Verizon LTE communication path to the GeoArm central monitoring station.
With an M2M universal alarm communicator in place, you would no longer need traditional phone service at the property to monitor your security system. The alternative communicator would also allow you to upgrade to GeoArm's M2M interactive alarm monitoring services. Once the M2M communicator is activated for monitoring you can receive important alerts, keep a close eye on your home and control your security system remotely via the internet and/or mobile devices you use each and every day. Isn't it time you got connected? Save money and take control of your business or home security with GeoArm.
*Please Note: Parts listed above require a subscription to M2M powered by GeoArm.
Honeywell VISTA 20P Kit Documents:
• Data Sheet for Honeywell VISTA 20P Control Panel
• User Guide for Honeywell VISTA 20P Control Panel
• Quick Installation Guide for Honeywell VISTA 20P Control Panel
• Installation/Setup Guide for Honeywell VISTA 20P Control Panel
• Residential Sales Brochure for Honeywell VISTA-Series Control Panels
• Commercial Sales Brochure for Honeywell VISTA-Series Control Panels
• Comparison Chart for Honeywell VISTA-Series Control Panels
• Programming Guide for Honeywell VISTA 20P Control Panel
Honeywell VISTA 20P Kit Specifications:
•Supports four graphic touchscreen keypads
•Wireless keys can be programmed without using zones
•Eight on-board hardwired zones standard (15 when Zone Doubling feature is used)
-40 wireless expansion zones
-40 hardwire expansion zones
•Two low current on-board trigger outputs
•100 Event Log viewable at system keypads with time/date stamp
•48 system user codes assignable to either partition
•Expandable to 48 total zones when used with hardwired and/or wireless expansion modules
•Two independent partitions plus a common partition
-Global Arming from any system keypad
-Go to function to view or operate one partition from the other
-Separate partition account numbers
•16 output devices
-Relays (Model 4204 Relay Modules, or 4229 Expansion Module)
•Four installer-configurable zone types allows the installer to create custom zone types by assigning all zone attributes
•Supports four-wire and up to 16 two-wire smokes
-Works with Sentrol CleanMe™ maintenance signal
•Multiple actions on output devices depending on system state
-Turns lights off when system arms
-Turns the same light on when system disarms
-Flashes same lights when system is in alarm
•Built-in phone line cut monitor with programmable delay and annunciation options
-Display on system keypads
-Trigger local sounders
-Trigger system bell
•Viewable on system keypads:
-Exit countdown
-Time and date display*
-Event log*
•Auto keypad backlighting on entry
•Keyswitch arming
•Programmable macro buttons and single-button arming
•Supports a variety of wireless remote controls for single-button operation
•VIP Module allows system control from any touchtone phone
•Chime by zone
*Requires custom alpha keypad

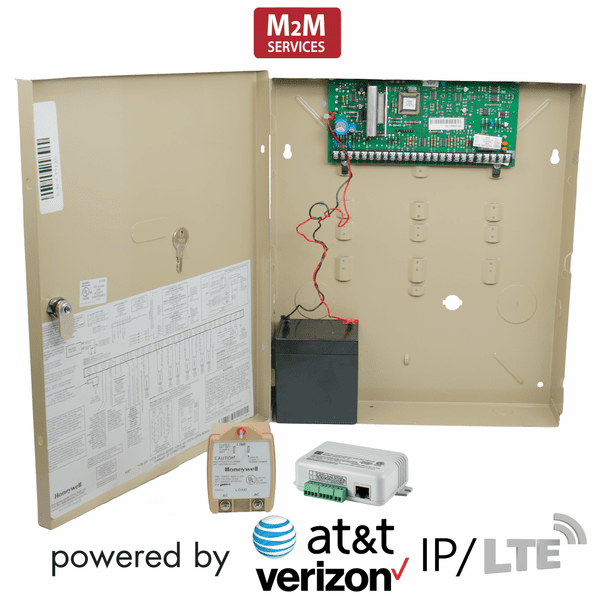

Honeywell VISTA 20P Kit Includes:

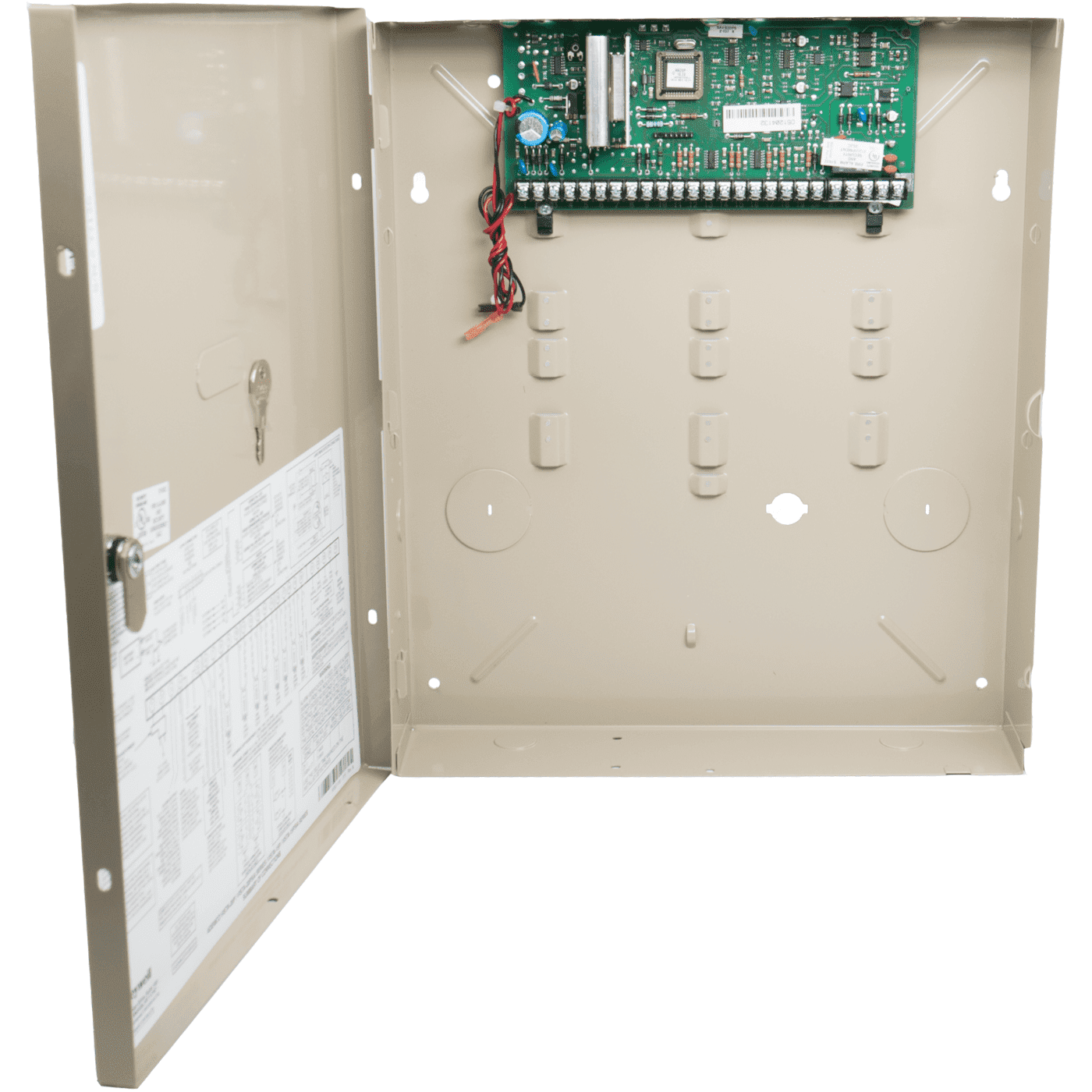

(1) Honeywell VISTA 20P Alarm Control Panel

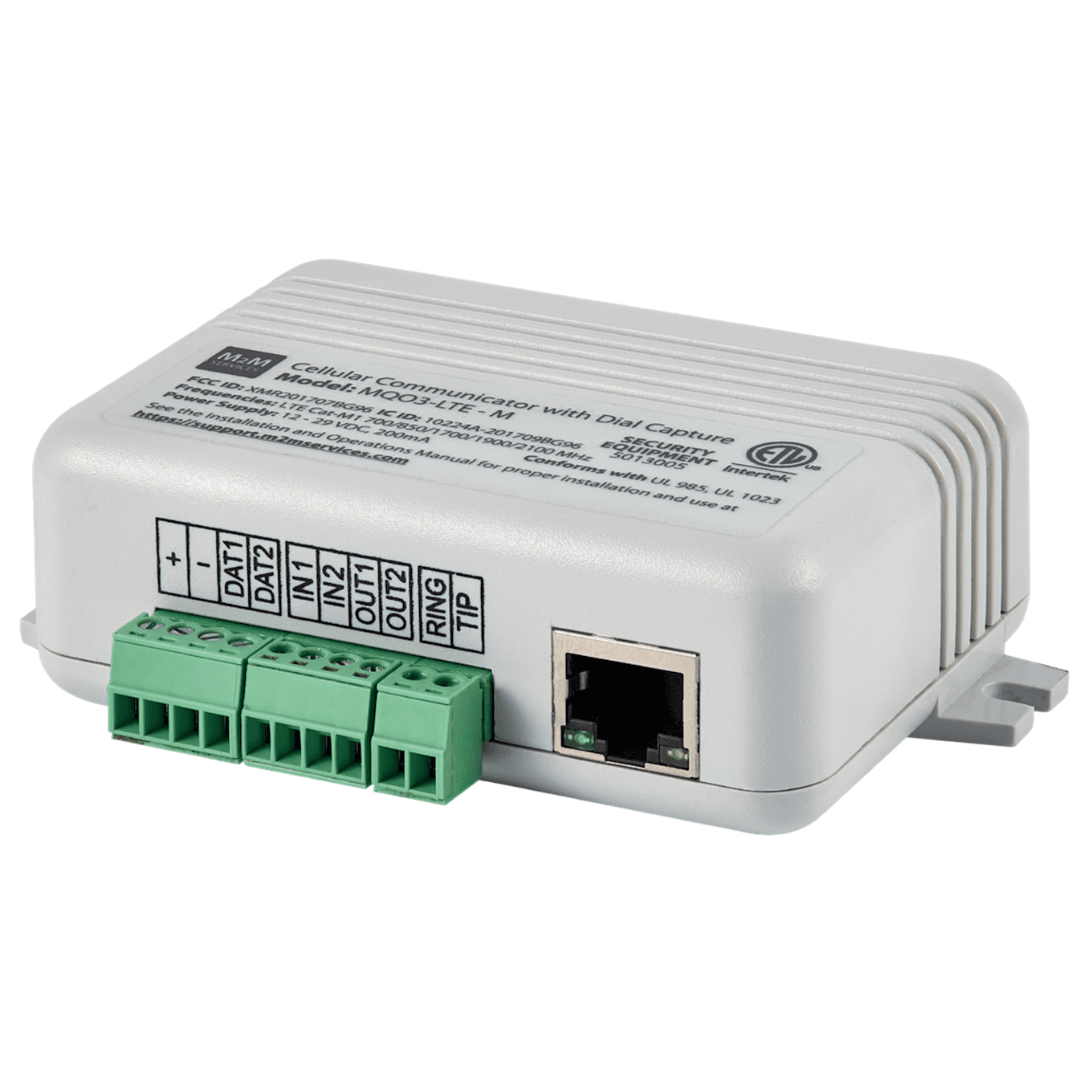

(1) M2M MQ03-LTE-M-LAN-AV Dual-Path Alarm Communicator (Internet and Cellular AT&T/Verizon LTE-M)
(1) UltraTech IM-1250F1 Backup Alarm Battery (12V @ 5.0 Ah)
(1) AC Power Transformer (16.5VAC @ 40VA)
Miscellaneous: User Manual
