RE626 - Resolution Products Wireless HeliRazor Alarm Siren (Cryptix-Encrypted)
Please Note: The Resolution Products RE626 wireless Cryptix HeliRazor alarm siren has been discontinued and replaced by the Alula RE626 model number.
Resolution Products RE626 Description:

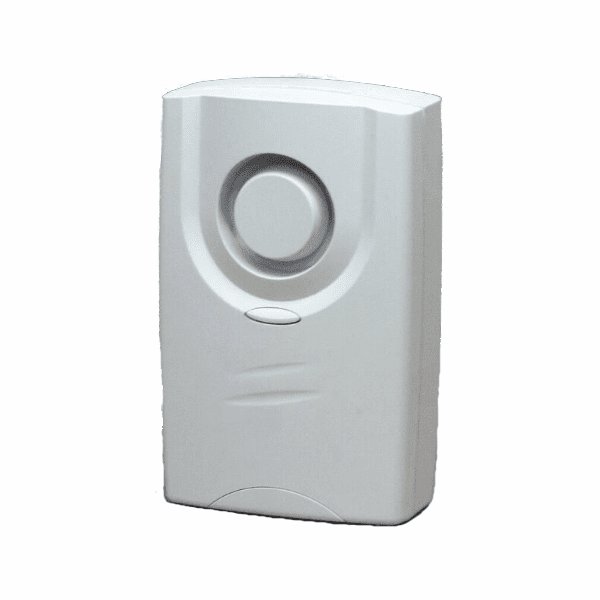

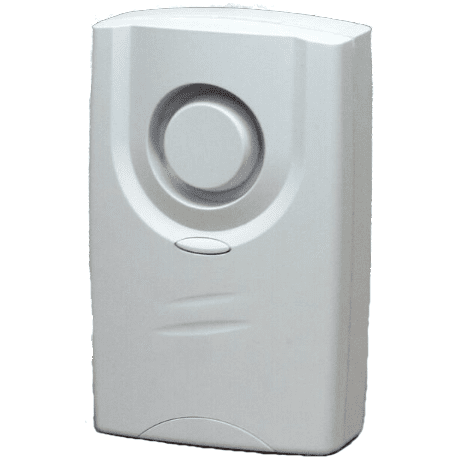

The Resolution Products RE626 is an Cryptix-encrypted, wireless siren warning device that produces high volume warning sounds and low volume notification sounds. The RE656 HeliRazor siren produces a high volume warning for burglary, smoke and carbon monoxide alarm conditions. Low volume notification sounds are made by the HeliRazor for auxiliary alarm, status, and trouble conditions. The HeliRazor does not produce a chime for opened and closed zones.
To enroll the RE626 HeliRazor, begin by placing the Helix control panel into wireless enrollment mode and then pressing the HeliRazor's enrollment button located inside the battery compartment. Only one HeliRazor may be enrolled at a time.
To install the RE626 HeliRazor, proceed by mounting the siren to a wall using the mounting screw holes on the back plate. An optional AC adapter allows for the siren to be powered from an electrical outlet. When an AC adapter is used the batteries act as a backup power source.
Product Features:
- Quick peel and press mounting
- Dual power options (Usable with no outlet available, Available AC adapter)
- Enables "Traditional Architecture" installation
- Auxiliary sounder allowing Helix to be installed in a safe location
- Prevents "Smash & Grab" style intrusions
- User replaceable AAA batteries
- AC Adapter Part Numbers (RE012-9)
- Secure encrypted wireless communications
- Runs on user-replaceable alkaline AAA batteries
- 5 year warranty
Resolution Products RE626 Specifications:
- Dimensions: 4.1 x 2.6 x 1.2 inches (10.4 x 6.7 x 3.0 centimeters)
- Weight with Battery: 4.7 ounces (132 grams)
- Mounting Fasteners: #4 or #6 screws
- Operating Temperature: 32°F to 120°F (0°C to 49°C)
- Maximum Humidity: 85% non-condensing relative humidity
- Frequency: 2.4 GHz
- Replacement Battery: Three Panasonic AAA (Alkaline)
- Nominal Battery Life: 6 Months
- Battery Voltage: 4.5 VDC (Nominal) 3.6 VDC (Low)
- Current Draw: 100 mA (Maximum) 4.0 uA (Quiescent)
- Sounder Loudness: 90 dBA at 10 feet
- Sounder Frequency: 3.2 kHz to 4.0 kHz
- Transmitted Indications: Low Battery, Supervision
- Certification: FCC, IC
