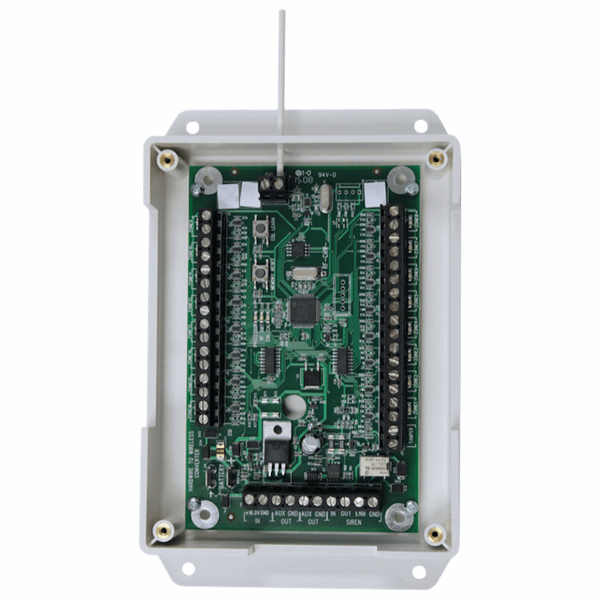

QS7131-840 - Qolsys IQ 16-S Hardwired-to-Wireless Sensor Translator (w/Small Enclosure)

QS7131-840 - Qolsys IQ 16-S Hardwired-to-Wireless Sensor Translator (w/Small Enclosure)
QS7131-840 - Qolsys IQ 16-S Hardwired-to-Wireless Sensor Translator (w/Small Enclosure)
Item# QS7131-840
List Price: $159.36
Special Order: $106.24
Availability: In Stock
QTY:
ShippingFast shipping
In stock items are shipped ground within approximately 3-5 business days from which the date the order was placed.

Read the full shipping policy
Returns30-day return window
This item can be returned in its original condition within 30 days of receipt, less a 25% restocking fee of the total invoice price.

Read the full return policy
PaymentSecure Transaction
We work hard to protect your security and privacy. Our payment security system encrypts your information during transmission. We don't share your credit card details, and we don't sell your information to others.

Read the full order processing policy

Please Note: The Qolsys QS7131-840 IQ 16-hardwired-to-wireless sensor translator is a special order item.

Qolsys QS7131-840 Hardwired 16:


The Qolsys QS7131-840 IQ Hardwire 16-S is the perfect device to allow hardwired systems to leverage the powerful IQ Panel. The ground-breaking QS7131-840 translator allows up to 16 hardwired devices to be "taken over" from any existing control panel. The QS7131-840 is a "problem solver" that allows a seamless use of existing security system features (e.g. sirens, contacts, motion detectors, glassbreak detectors) with no additional equipment needed. The IQ Hardwire QS7131-840 automatic EOL (end-of-line) resistor learning spans from 1k-10k oHms ending the hours of wire splicing you'd normally encounter in an existing system. With a backup battery recharging circuit, 500 amp power supply and siren relay it's ideal for new construction as well. Please note, this hardwired translator is not for use with life safety devices, such as smoke or carbon monoxide (CO) detectors.

Product Features:

  • In-line resistor learning replaces outdated rubber-button hardwire system with IQ panel
  • LED lighted zones for ease of "learn-in" installation/troubleshooting
  • EOL resistor learning supports 1-10K Ohm resistors
  • Charging circuit for back-up battery, fully supervised with power outage recovery

Qolsys QS7131-840 Product Specifications:


  • Dimensions: 5.5" x 3.5" inches
  • Backup battery: 12VDC, 5AH Max (optional)
  • Input voltage: 16VDC Plug-In Transformer
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Humidity: 95&per; RH Max
  • EOL Supervision: 1K to 10K Ohm
  • Input Zones: 16 (must have resistor)
  • Zone Type: N/O or N/C compatible
  • Auxiliary Voltage Output: 12VDC @ 500mA
  • Tamper Zone: Optional zone input for tamper
  • Relay Contact: 60VDC/1A Max drives siren or other device
  • Connects Using: Security RF 319.5MHz

Qolsys QS7131-840 Product Compatibility:


  • Qolsys IQ Panel (All Model Numbers)
  • Qolsys IQ Panel 2 (Model Numbers: QS9201-1200-840, QS9202-1200-840)
  • Qolsys IQ Panel 2+ (Model Numbers: QS9201-1208-840, QS9202-1208-840)
  • Qolsys IQ Panel 4 (Model Numbers: IQP4001, IQP4004, IQP4007)
  • Qolsys IQ Hub (Model Numbers: QS9301-1200-840, QS9302-1200-840, QS9307-1200-124)
  • Qolsys IQ4 Hub (Model Number: IQPH051)
