PROLTE-A - Resideo Honeywell Home Cellular AT&T US/Canada LTE Alarm Communicator (for ProSeries Control Panels)

PROLTE-A - Resideo Honeywell Home Cellular AT&T US/Canada LTE Alarm Communicator (for ProSeries Control Panels)
PROLTE-A - Resideo Honeywell Home Cellular AT&T US/Canada LTE Alarm Communicator (for ProSeries Control Panels)
Item# PROLTE-A

Average Customer Rating:
Read Review(s) | Write a Review

List Price: $175.14
Your Price: $116.76
Availability: In Stock
QTY:
ShippingFast shipping
In stock items are shipped ground within approximately 3-5 business days from which the date the order was placed.

Read the full shipping policy
Returns30-day return window
This item can be returned in its original condition within 30 days of receipt, less a 25% restocking fee of the total invoice price.

Read the full return policy
PaymentSecure Transaction
We work hard to protect your security and privacy. Our payment security system encrypts your information during transmission. We don't share your credit card details, and we don't sell your information to others.

Read the full order processing policy

ProSeries PROLTE-A Product Description:

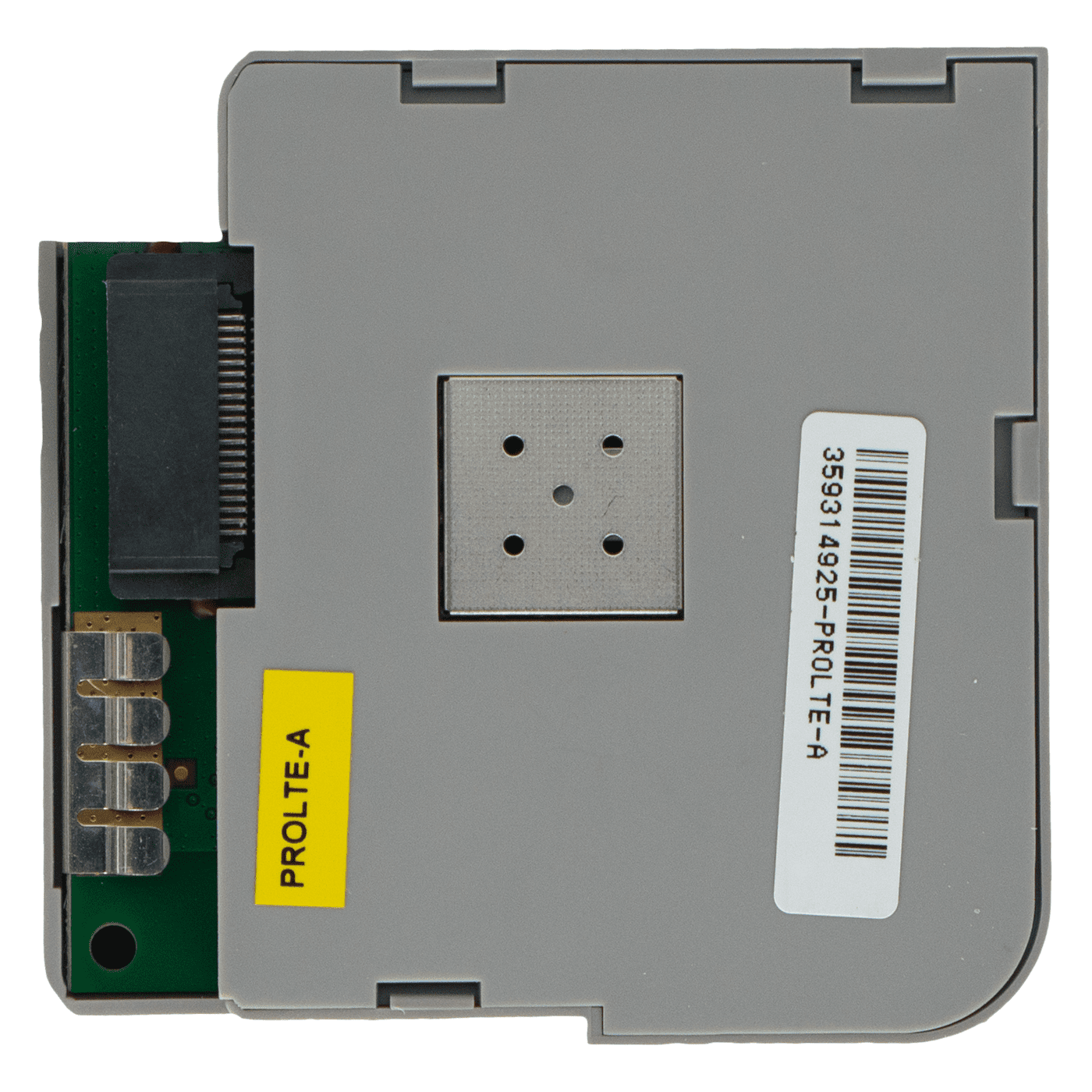

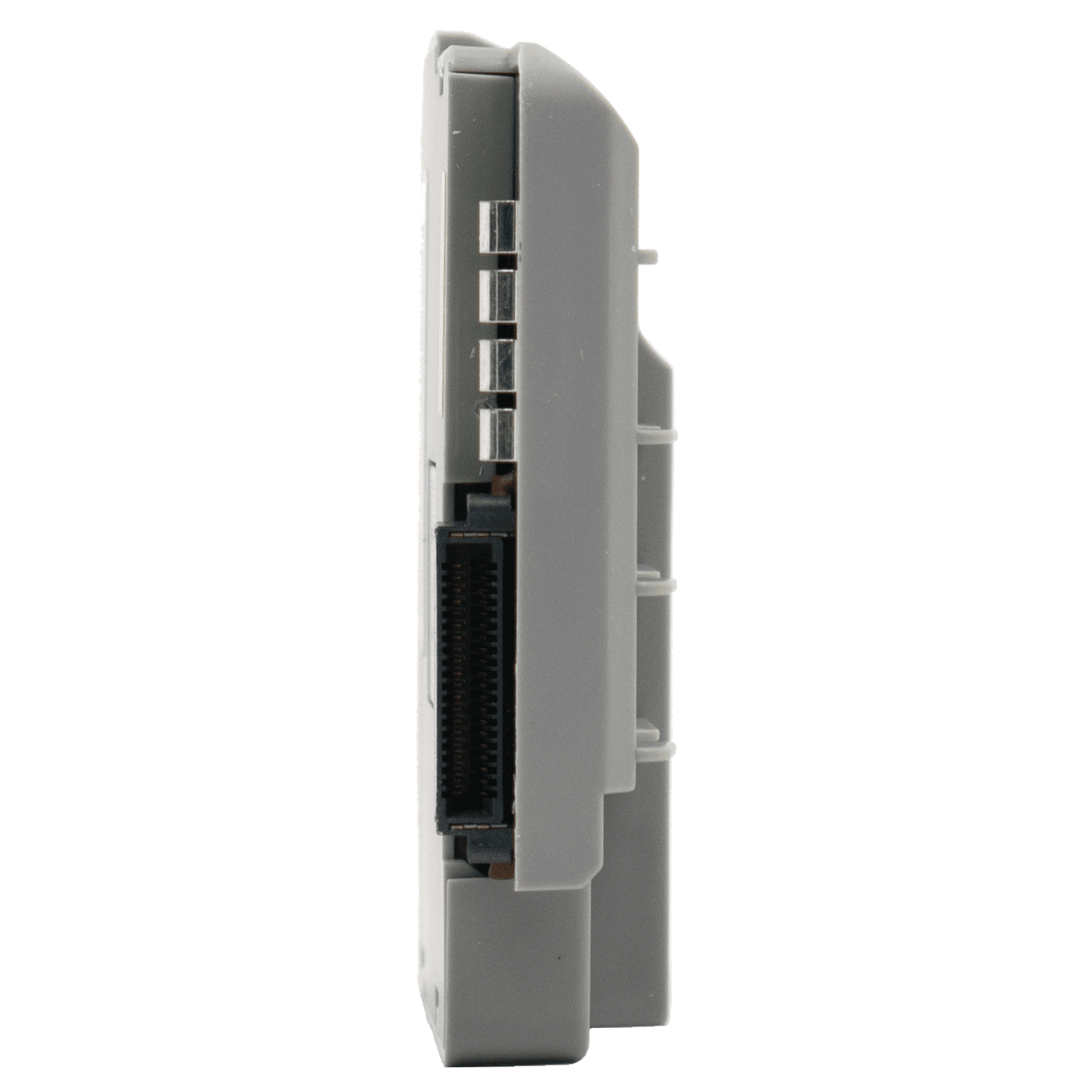

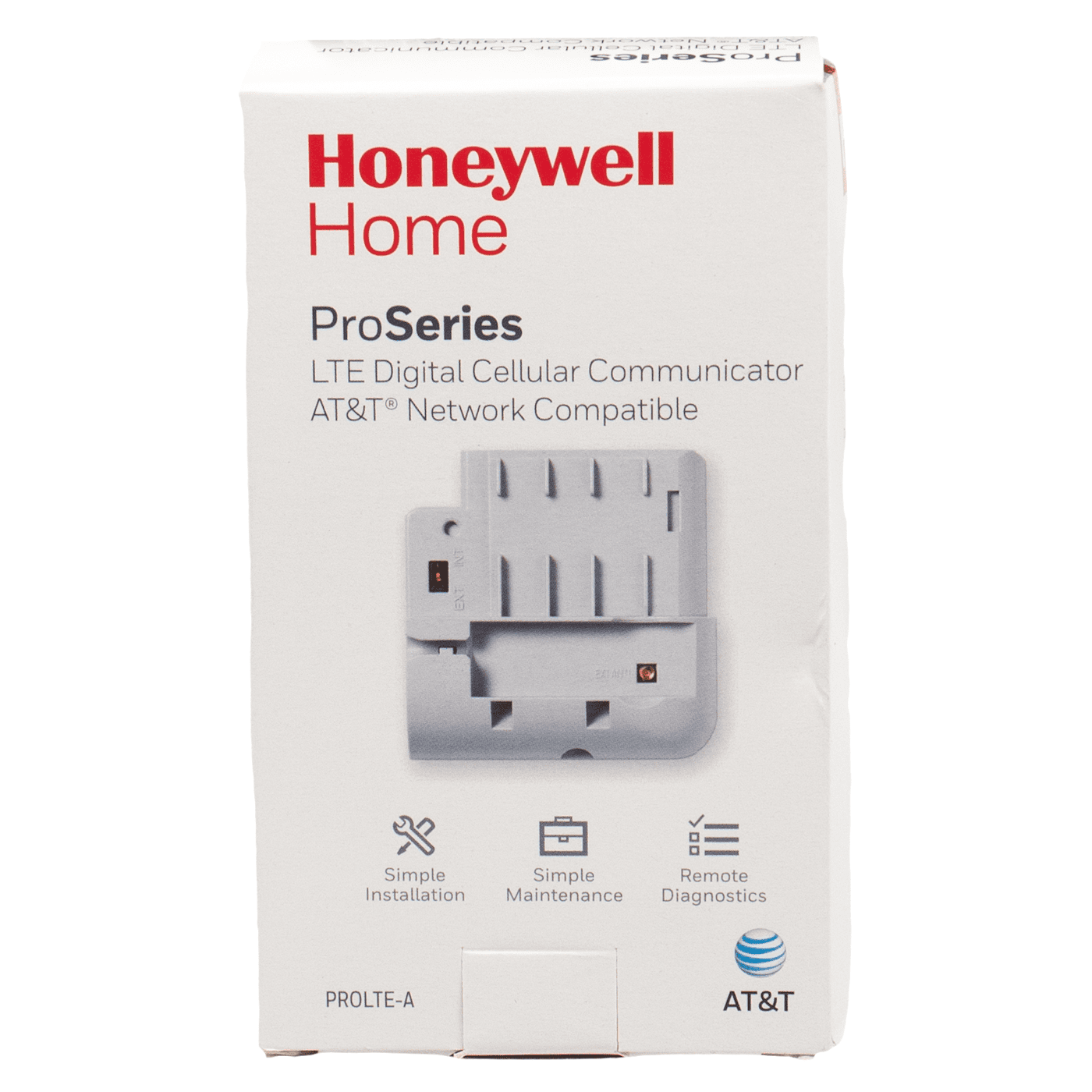

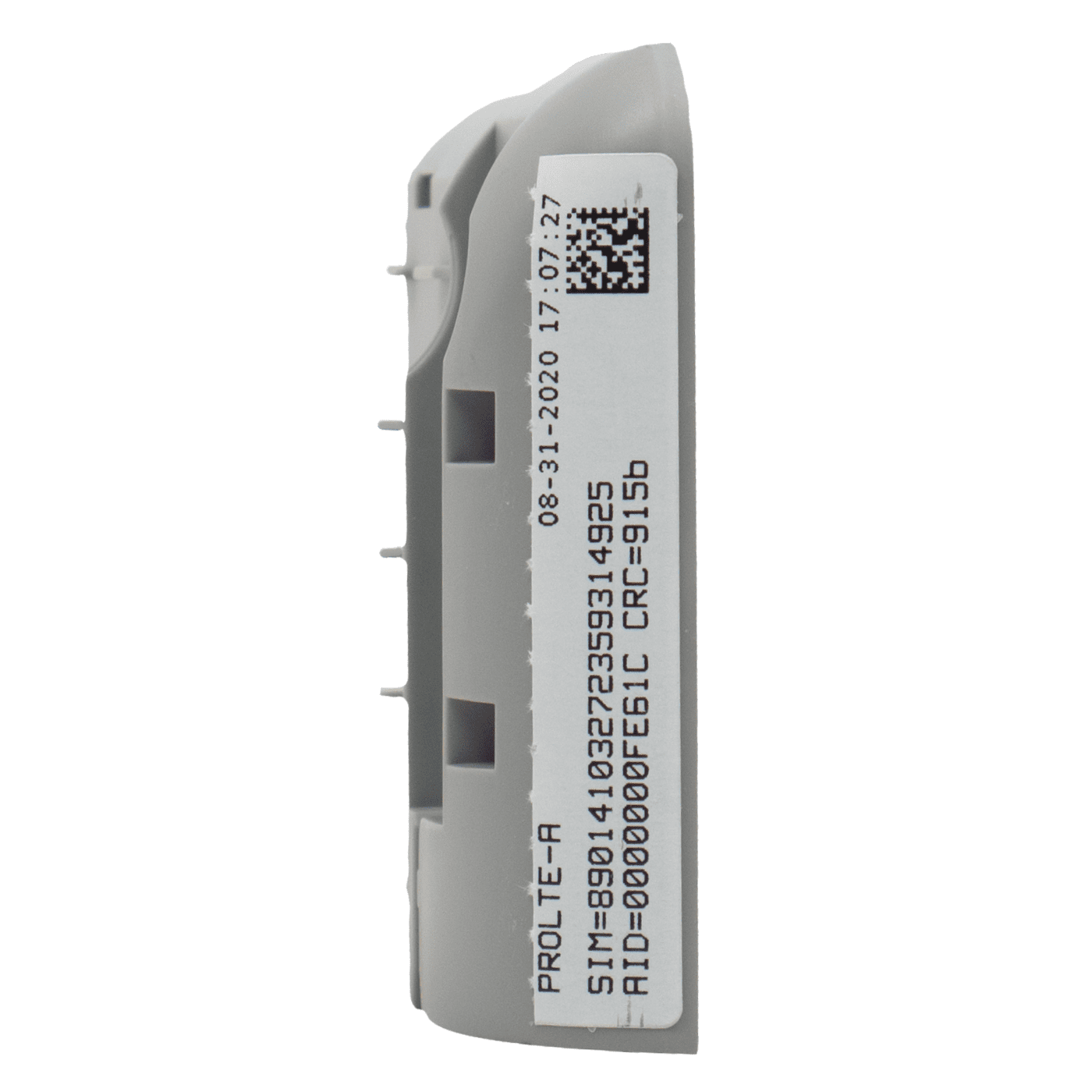

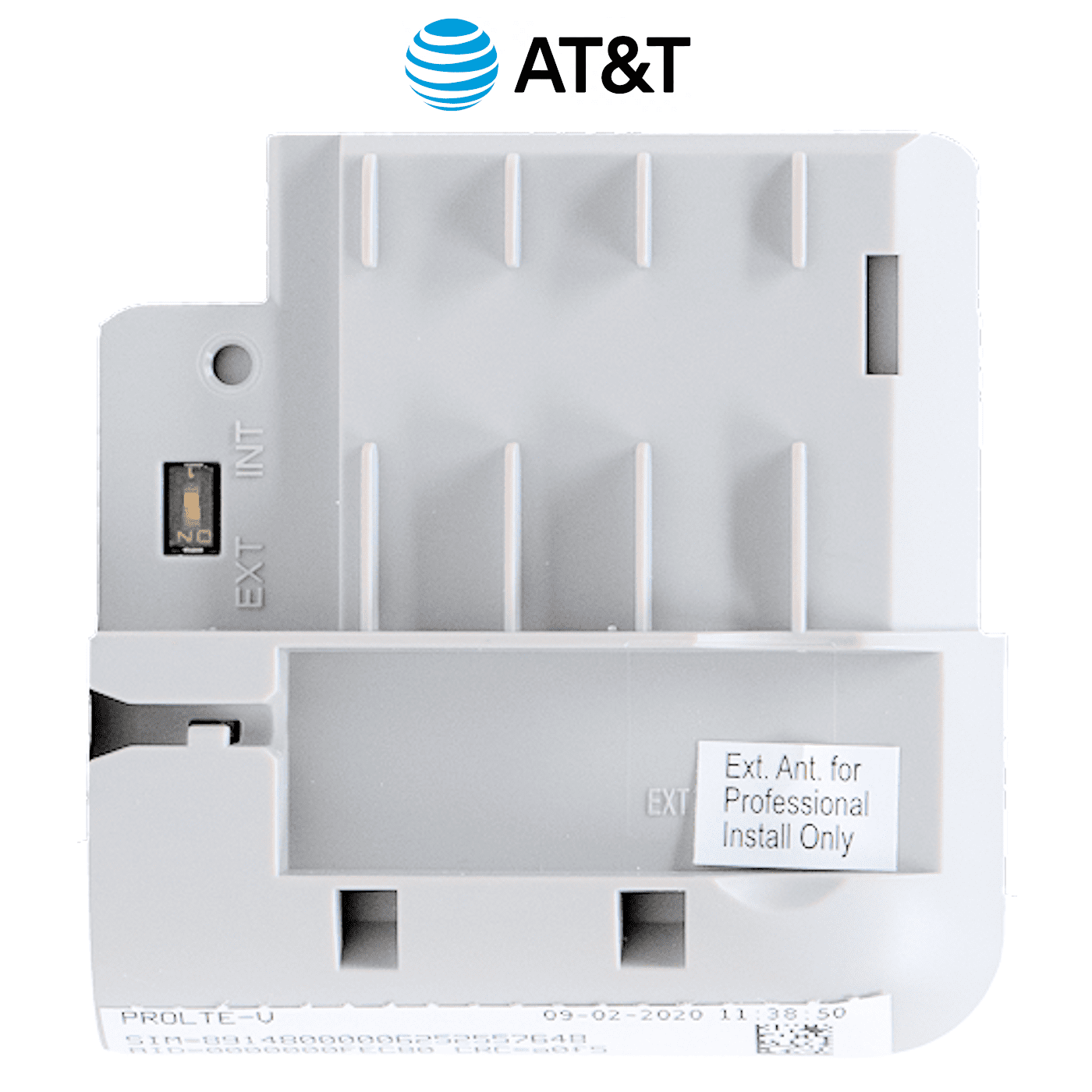

The Resideo Honeywell Home PROLTE-A is a cellular alarm communicator, designed for use with the ProSeries PROA7, PROA7CN, PROA7PLUS and PROA7PLUSCN wireless touchscreen control panels. The PROLTE-A communicator sends alarm signals over the AT&T cellular LTE towers within the United States, Latin America and/or Canada to GeoArm's central monitoring station. The module connects directly to the ProSeries control panel and is powered via the panel's connection.

If you are adding the external antenna PROLTE-ANT to your ProSeries PROLTE-A cellular AT&T LTE communicator please note the following. The external antenna gain shall not exceed 6.63 dBi for 700MHz and 850MHz, 6.0 dBi for 1700MHz and 8.51 dBi for 1900MHz. Under no conditions may an antenna gain be used that would exceed the ERP and EIRP power limits as specified in FCC Parts 22H, 24E and 27.

Product Features:

  • AT&T cellular LTE towers
  • Supports both all-in-one and hybrid solutions
  • End-user repleaceable
  • Extend the range and increase the signal coverage with optional extended antenna (PROLTE-ANT)

ProSeries PROLTE-A Product Specifications:


  • Dimensions (L x W x H): 2.7" x 2.8" x 0.7" (70mm x 72mm x 18mm)
  • Compatibility: Idle 30mA, standby
  • Transmit: 490mA, max. transmit
  • Battery Backup: Yes (panel)
  • Operating Temperature: 32°F to 122°F (0°C to 50°C)
  • Storage Temperature: -40°F to 158°F (-40°C to 70°C)
  • Operating Humidity: 95% max. non-condensing
  • Antenna: Penta-Band diversity antennas for LTE Supports LTE Brands 12, 13, 5, 4 and 2
  • Approvals: ETL
  • Authorized Countries: US, Canada, Latin America

Product Reviews

Other customers rated this item:
5 out of 5 stars
WRITE A REVIEW(Reviews are subject to approval)
  Impressive Cellular LTE Signal,
Posted By:
1 people found this review helpful

I live in the middle of Georgia where Verizon coverage is spotty, so it was nice that the AT&T sim communicator was available and was easy to snap into my ProSeries panel.
