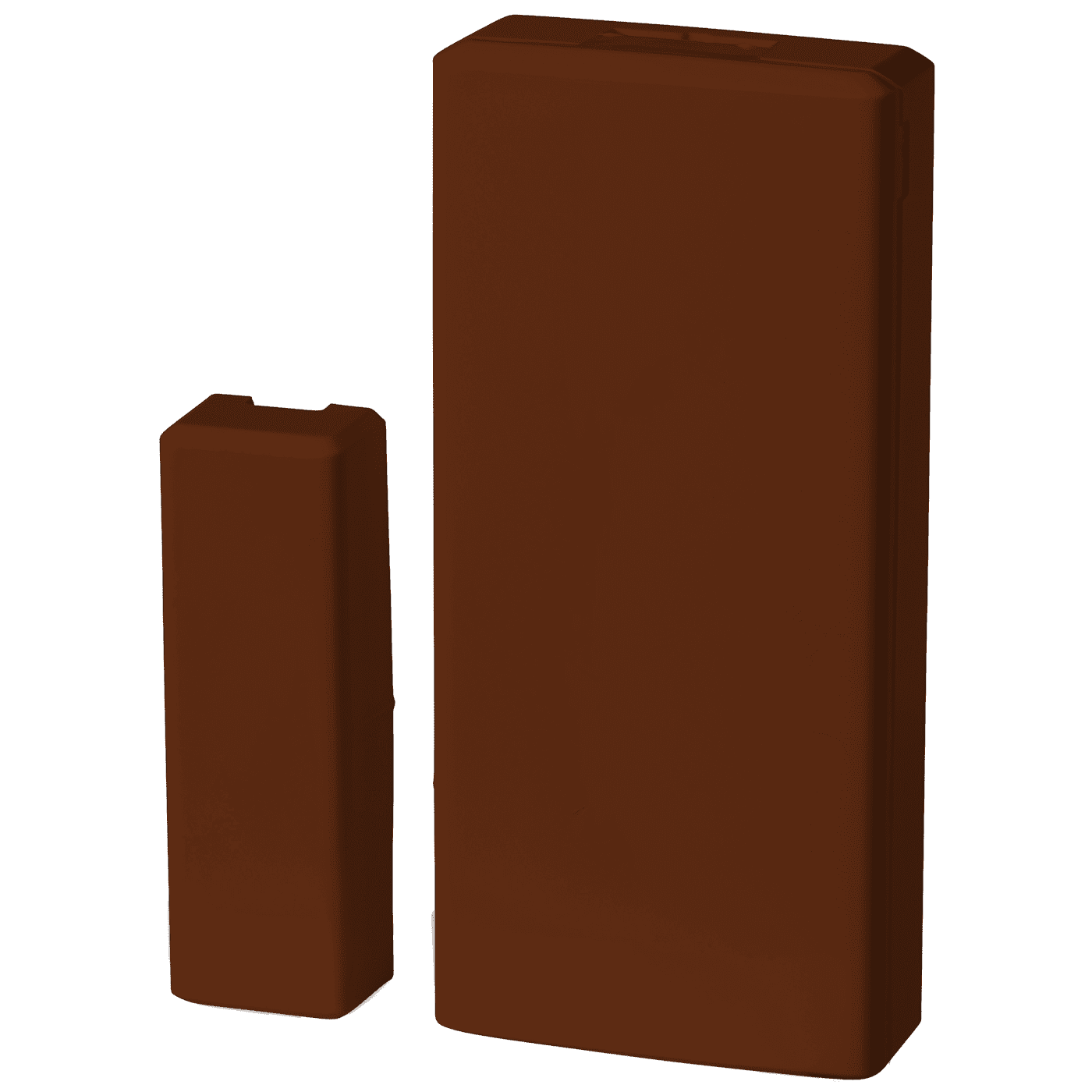

PG9303BR - DSC Wireless PowerG Door/Window Magnetic Alarm Contact (in Brown Color)
DSC PG9303BR Product Description:
The DSC PG9303BR is a PowerG wireless, brown color, thin door and window magnetic alarm contact that protects common intrusion points such as windows and doors. It communicates with the compatible DSC security systems and wireless receivers, reporting openings and closings of doors and windows. This provides additional protection of property, with timely alerts, instantly when an intrusion attempt begins.
The wireless device includes a built-in reed switch that opens a circuit when the magnet is moved from its normal position. A small and discreet, yet robust device, each part of the PG9303BR contact is housed within a compact casing that accommodates even the tightest-fitting installations, as well as those where aesthetics is critical. The slim, sleek design makes the device practically invisible once installed, minimizing visual impact and complementing the décor of just about any home or office space.
The PG9303BR door/window contact comes equipped with a visible signal quality LED indicator. This allows the installer to choose the optimal location for installation, without having to go back and forth to the keypad.
With an exceptionally long-lasting battery of up to 6 years, this magnetic contact delivers enduring security. The robust communication link enables long-range transmission and strengthens protection against interference. A convenient pull tab makes installation easy and fast.
Product Features:
- PowerG robust industry leading commercial grade wireless technology
- Ideal for protecting doors, windows and other entranceways
- Small size and unobtrusive design make it virtually unnoticeable when installed
- Provides reliable performance using built-in PowerG leading wireless intrusion technology
- Outstanding, robust communication enables long-range transmission and strengthens protection against interference
- Simple to install, with a time-saving pull tab
- Visible LED light signal quality indicator on the device
- Easy to maintain
- Low battery indication
- Front and back cover tamper detection
- Delivers long-lasting value with a 6-year battery life (with typical use)
- Backed by DSC's 1-year limited manufacturer's warranty
DSC PG9303BR Product Specifications:
- Dimensions (L x W x D): 2.6 x 1.2 x 0.4 in (67mm x 31mm x 11 mm)
- Weight (including battery): 20g (0.71 oz)
- Frequency Band: 433, 868, 915 (in accordance with the prevailing frequency of your region). Note: Only devicesin frequency band 912 MHz - 919 MHz are UL/ULC listed
- Maximum Tx Power: +14 dBm radiated @ 868 MHz; +10 dBm radiated @ 433 MHz
- Modulation: GFSK
- Antenna: Built-in inverted-F antenna
- Communication Protocol: PowerG
- Supervision: Signaling at 256 second intervals
- Battery Life: 6 years (typical use at room temperature 77°F)
- Battery Type: 3V CR2450 Lithium Battery (Panasonic)
- Operating Temperature: 14°F to 131°F (-10°C to 55°C)
- Relative Humidity: Up to 95% non-condensing, UL verified up to a maximum of 85% RH only
- Operating Environment: Indoors
- Color: Brown
- Approvals: FCC/IC, UL/ULC, CE, EN
DSC PG9303BR Product Documents:
• DSC PG9303BR Door/Window Contact - Datasheet
• DSC PG9303BR Door/Window Contact - Installation/Operation Guide
DSC PG9303BR Product Compatibility:
- DSC Iotega Control Panels
- DSC PowerSeries Neo Control Panels
- DSC PowerSeries Pro Control Panels
- Qolsys IQ Panel 2 Plus Control Panels
- Qolsys IQ Panel 4 Control Panels
- Qolsys IQ Hub Control Panels (Model Numbers: QS9301-0208-840, QS9302-0208-840)
- Qolsys IQ4 Hub Control Panels (Model Number: IQPH054)
