DSC PowerSeries PC1832 Dual-Path Ethernet/Cellular Verizon LTE Hardwired Security System (Powered by Alarm.com)

Please Note: DSC PowerSeries PC1616 Phone/VoIP-Line Hardwired Security System has been discontinued without replacement.

▼ Compatible DSC Hardwired Security Sensors ▼

DSC Wired Alarm Keypads

DSC Wired Motion Detectors

DSC Wired Alarm Sirens

DSC Wired Output Modules

DSC Wired Zone Expansion Modules

Description
PDF Documents
Specifications
Kit Includes

DSC PowerSeries PC1832 Kit Description:

This DSC PowerSeries PC1832 Alarm.com dual-path (internet IP and cellular Verizon LTE-M) kit is a feature-rich, hardwired security system that easily integrates with an array of compatible components to deliver an expandable (up to 32 total zones) business or home security solution. The PC1832 control panel comes out of the box with 8 hardwired on-board zones and it may be expanded to a total of 32 hardwired zones by using a PC5108 hardwired 8-zones expansion module. In addition, the PC1832 can accomodate up to 32 total wireless zones by adding an DSC wireless receiver (such as; RF5132-433 wireless receiver or RFK5501 combo keypad w/32-zone wireless receiver). With an DSC wireless receiver installed the PC1832 is compatible with the full line of DSC wireless security products. The PowerSeries PC1832 also gives the user more control, thereby enhancing the functional experience. The user can "Arm Away", "Arm Stay" or "Disarm" all partitions with just one operation. The PC1832 features up to 71 user codes, up to 8 keypads, and 4 partitions. With global arming and disarming, and scheduling auto arming and disarming, the DSC PC1832 panel is a preferred choice of installer's and DIYer's.

The new PowerSeries PC1832 control panel from DSC makes installation easy, simple and fast with label programming using the pre-loaded library. The PC1832 panel features template programming for new users and a programming interface that experts will be familiar with. With a library of over 250 commonly used names in English, French and Spanish, label programming is now a snap with the PowerSeries PC1832 v4.6 panel. DIYer's can now assign a unique 3-digit code to display a full descriptive label (e.g., code 190 displays "Window"), avoiding time and mistakes with more conventional keypad entry. For additional customization, other pertinent details can also be added, such as the zone or floor to make it easy for the owner to identify faults (e.g., "Bedroom Window"). The PowerSeries PC1832 also features an independent end-of-line (EOL) configuration that makes installation faster than ever before. Each hardwired zone can be independently matched to the devices EOL configuration, reducing the time required to get a common EOL configuration across all security devices. Likewise, wireless device enrollment can be enrolled quick and easily. With the wireless device enrollment process, DIYer's are not required to manually program serial numbers or wireless attributes. Instead, enrollment is completed by confirming the confirm Electronic Serial Numbers (ESN), zone numbers and zone type through a series of user friendly screens.

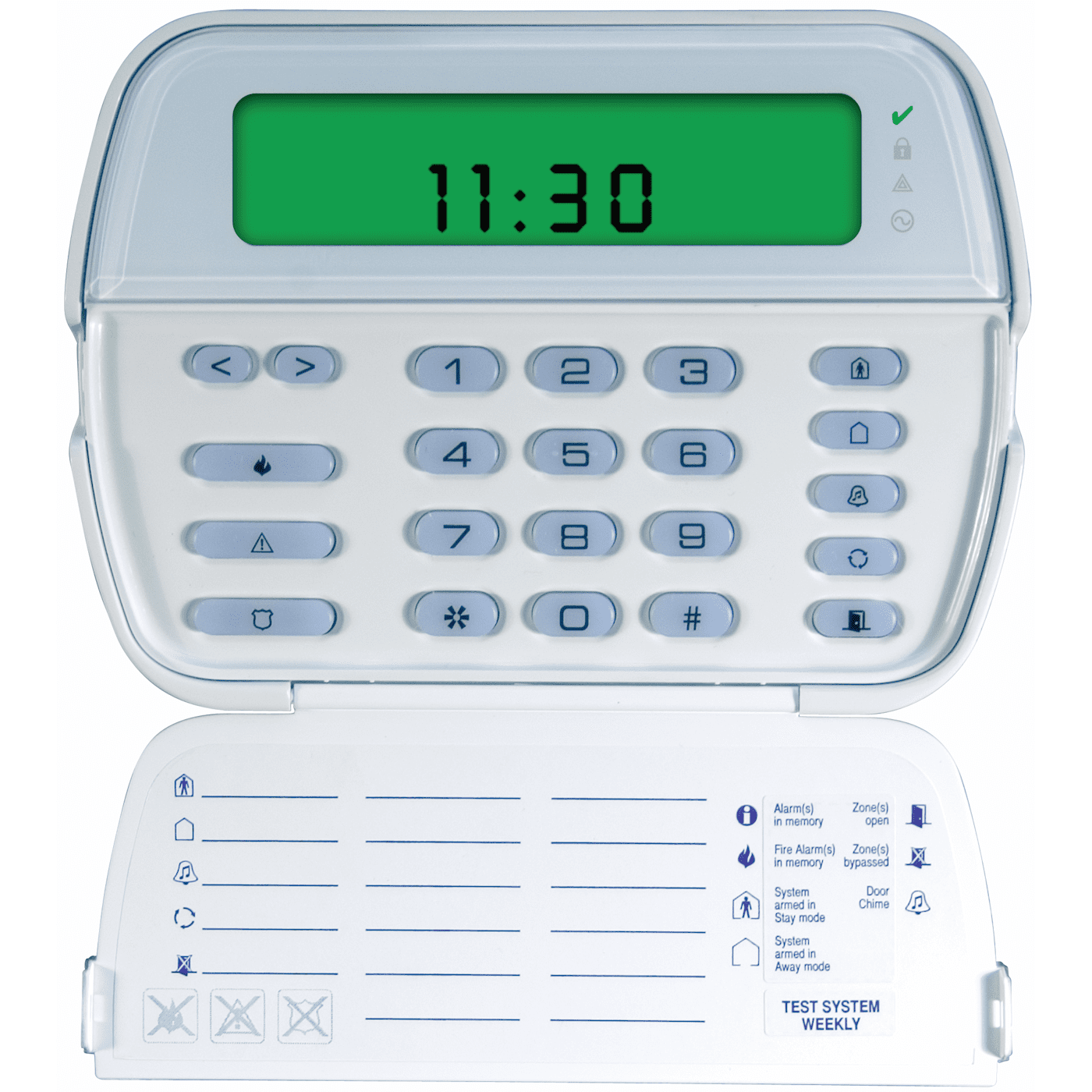

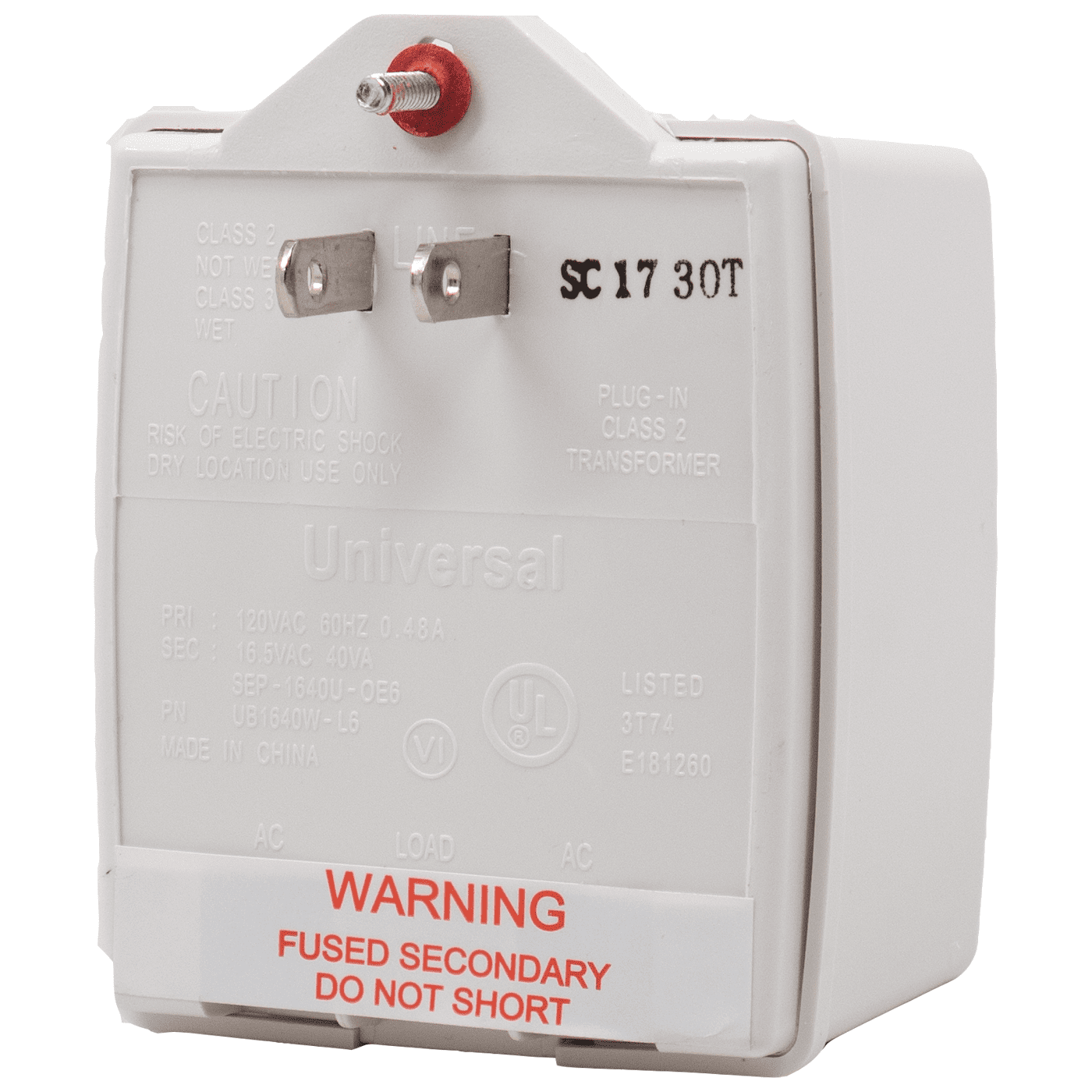

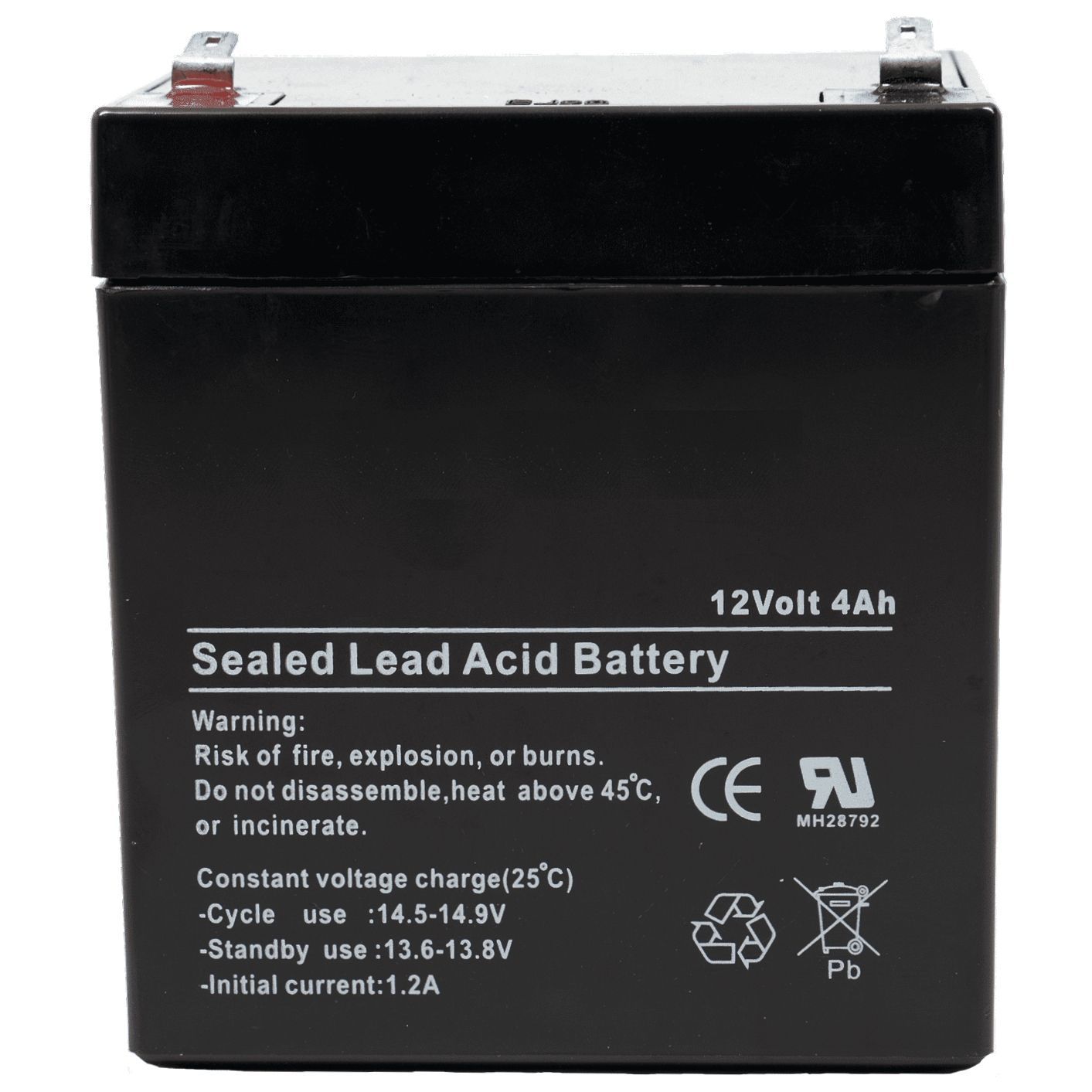

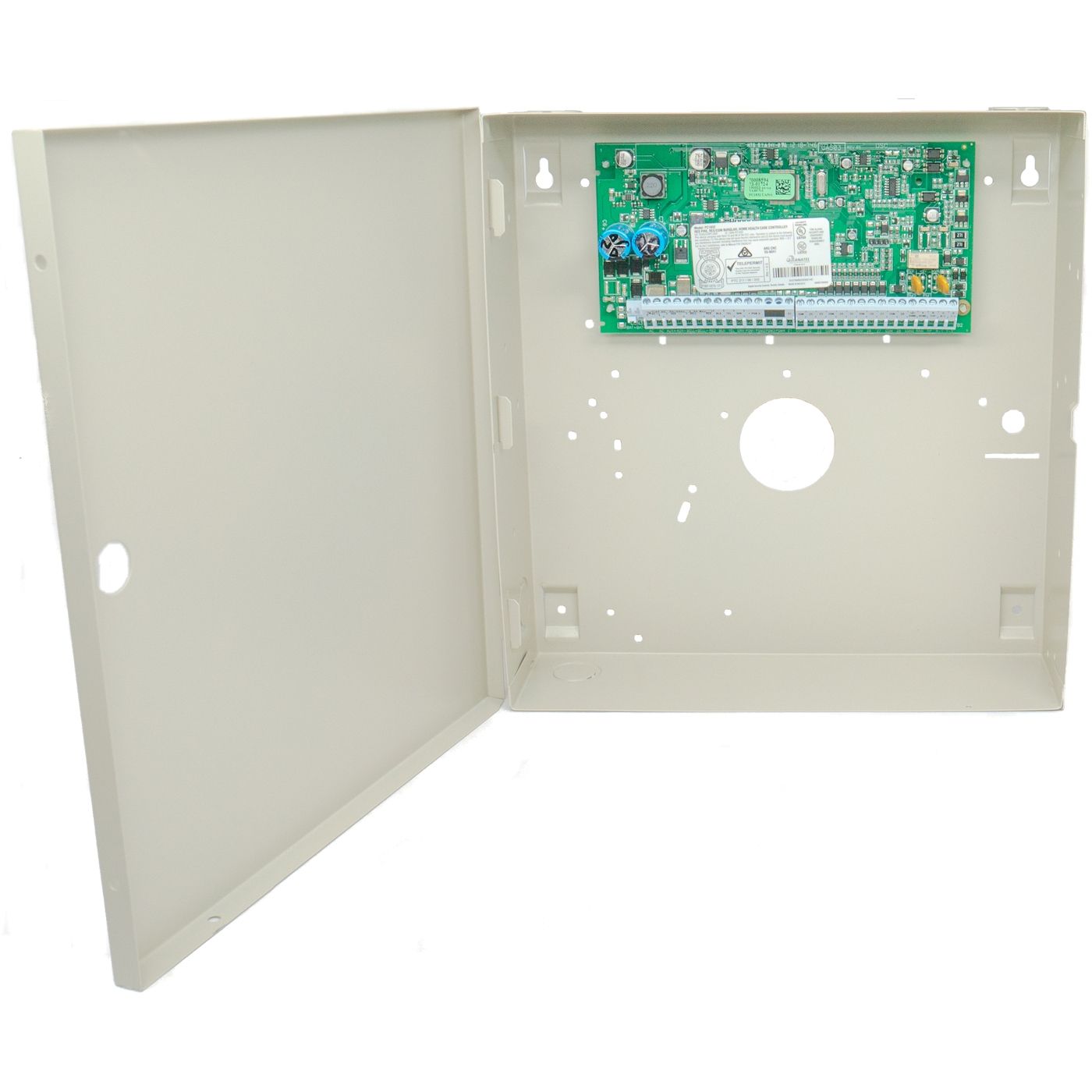

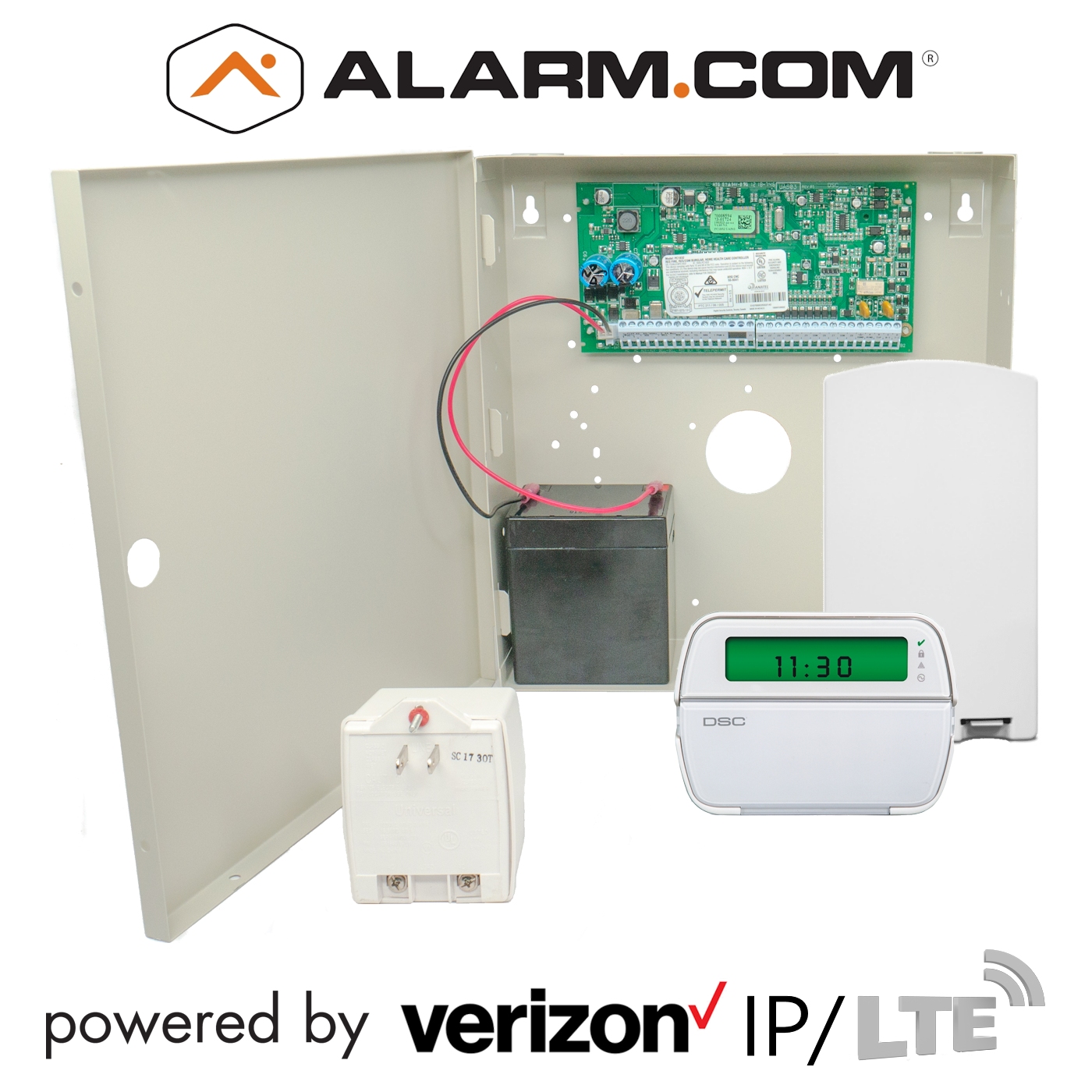

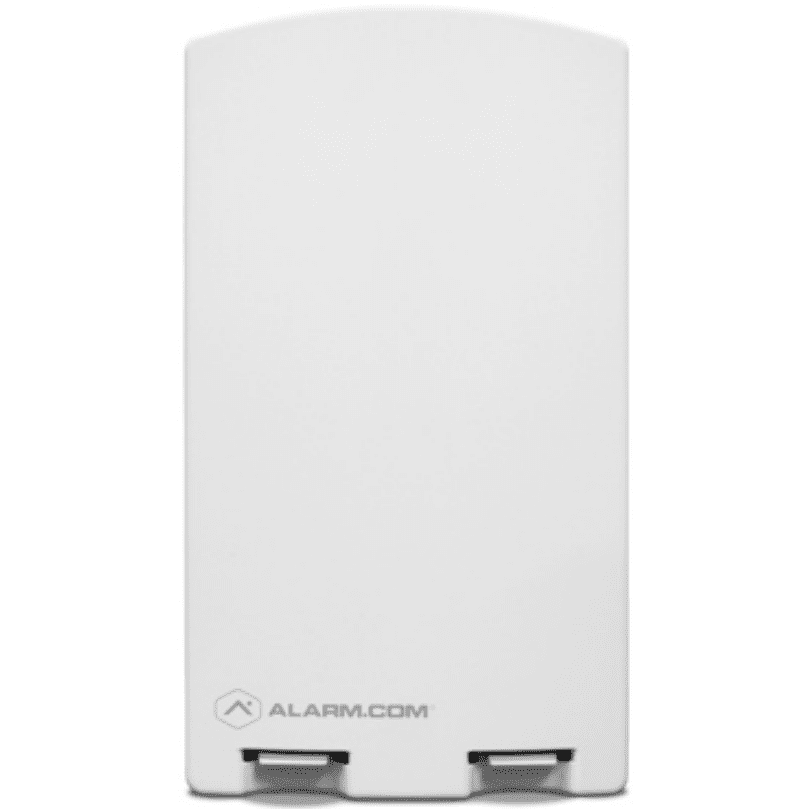

This PowerSeries PC1832 hardwired dual-path (Internet IP/Cellular Verizon LTE-M) security system kit includes; hardwired control panel (PC1832NK), control panel battery (BAT1245), power transformer (PTD1640U), hardwired LCD picture-icon keypad (PK5501ENG) and an Alarm.com dual-path Verizon LTE-M alarm communicator (ADC-SEM300-PS-VZ-M). This PC1832 kit is equipped to send the alarm signals over the primary internet IP communication path, and if down, over the secondary cellular Verizon LTE-M communication path to the GeoArm central monitoring station using the included Alarm.com ADC-SEM300-PS-VZ-M interactive dual-path communicator.

Do-it-yourself (DIY) installations are an emerging new trend in the security industry. Being one of the pioneers in this industry, we are the perfect partner for any DIYer considering an installation of a new DSC PowerSeries security system. You can be confident that your DIY security system installation will be backed by a team of real security professionals and DSC's 1-year limited manufacturer's warranty. With 30 years of professional security installation experience, GeoArm has the technical know-how to make your DIY home security installation as easy and seamless as possible.

Intended Security Applications:

Homes
Townhomes
Apartments/Condos
Offices
Retail Spaces
Small Businesses
Warehouses
Convenience Stores
Gas Stations
Churches

DSC PowerSeries PC1832 Kit Documents:

• Data Sheet for DSC PowerSeries PC1832 Hardwired Control Panel
• User Manual for DSC PowerSeries PC1832 Hardwired Control Panel
• Quick Installation Guide for DSC PowerSeries PC1832 Hardwired Control Panel
• Installation Guide for DSC PowerSeries PC1832 Hardwired Control Panel
• ULC Installation Guide for DSC PowerSeries PC1832 Hardwired Control Panel
• Programming Worksheet for DSC PowerSeries PC1832 Hardwired Control Panel

DSC PowerSeries PC1832 Kit Specifications:

• 8 on-board zones
• Expandable to 32 hardwired zones
• Expandable to 32 wireless zones
• 2 PGM outputs; expandable to 14 (PC5204, PC5208)
• Connect up to 8 supervised keypads
• Supports wire free keypads with TR5164-433 transceiver
• Template programming
• 4 partitions
• 500-event buffer
• 72 user codes
• CP-01 compliant
