LE2077-AT - DSC Connect24 Non-Interactive Cellular AT&T LTE/HSPA Alarm Communicator (for DSC Impassa Panel)
DSC LE2077-AT Product Description:

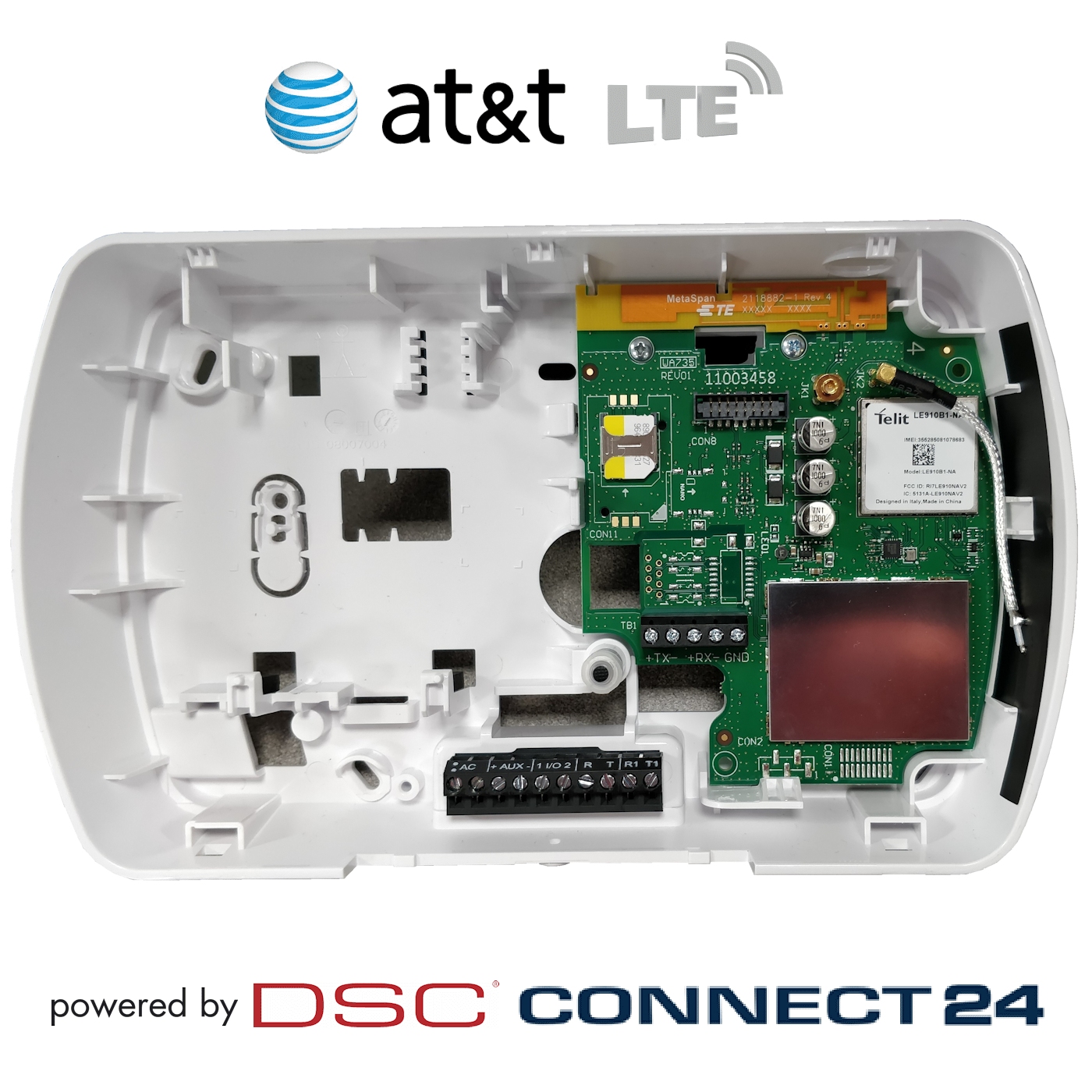

The DSC LE2077-AT is a wireless cellular AT&T LTE/HSPA alarm communicator that is compatible with the DSC Impassa security system. When the LE2077-AT is connected to a DSC IMPASSA control panel, the alarm reporting paths can be combined through the Public Switched Telephone Network (PSTN), and if so desired, plus the cellular network for increased redundancy. It conveniently utilizes the latest LTE cellular network to ensure high speed, reliable and secure alarm communications to alleviate any concerns about the possibility of phone line disruption.
The LE2077-AT alarm communicator can transmit alarm signals as the primary receiver or to both the primary and backup receivers at the GeoArm central monitoring station, providing a fully redundant solution. The communicator offers full data reporting and remote management for installers, saving time and reducing costs. With the use of DSC's DLS5 Downloading Software, you can remotely program and configure the control panel, change user information, retrieve historical records, generate the status reports and maintenance details from a PC via the Cellular connection.
With 128-bit AES encryption of the alarm signal, central stations, installers and customers can be assured that this is the most secure alarm communicator offered. And with programmable (by seconds) supervision heartbeats, the communicator's availability is fully monitored. With its dual internal antennas, the LTE/HSPA Wireless Alarm Communicator is an idea candidate for upgrades to existing Impassa systems. Whether you are adding a cellular communicator to a system that previously used phone line, or upgrading an IMPASSA 3G cellular communicator to LTE to take advantage of the latest in cellular network technology, LE2077 is the ideal candidate.
With no extra wires to run or antennas to mount external to the Impassa panel's plastic housing, the LE2077 communicator can be quickly installed in an existing Impassa panel. With the latest LTE cellular technology, you can plan ahead and stay ahead of any technology sunsets, minimizing truck rolls needed for upgrades. Activating and initializing the LE2077 is done using the mobile interface or via the C24 Communications website.
Product Features:
- Back up and primary LTE alarm communication (including 3G fallback)
- Panel remote uploading/downloadingsupport via Cellular
- Supervision heartbeats via Cellular LTE/3G
- 128-bit AES encryption via Cellular
- Full event reporting using SIA or ContactID protocol
- AT&T SIM Card (included)
- Remote activating and programming through C24 Communications
- Dual internal antennas provide best cellular performance
- 2-Way Voice over Cellular (with IMPASSA v1.1+ firmware
- Antenna Extension Kits available: LTE-8ANTP, LTE-15ANT, LTE-25ANT, LTE-50ANT
- Signal strength, cellular technology, and trouble condition display
DSC LE2077-AT Product Specifications:
- Dimensions: 5.875" W x 4.5" H (150mm x 115mm)
- Weight (with mounting bracket): 310 g (0.683 lb)
- Current Draw: 90 mA
- Operating Environment: 40° to 104°F (5° to 40°C)
- Available with: AT&T SIM Card
- Approvals: FCC/IC, PTCRB, UL, AT&T
DSC LE2077-AT Product Documents:
• Data Sheet for DSC LE4010-AT Universal Cellular AT&T LTE Alarm Communicator
• Installation Guide for DSC LE4010-AT Universal Cellular AT&T LTE Alarm Communicator
DSC LE2077-AT Product Compatibility:
- Impassa SCW9055
- Impassa SCW9057
- Sur-Gard System I-IP/II/III/IV/5 monitoring station receivers (SG-System 5 required for Visual Verification)
- LTE-8ANTP
- LTE-15ANT
- LTE-25ANT
- LTE-50ANT
