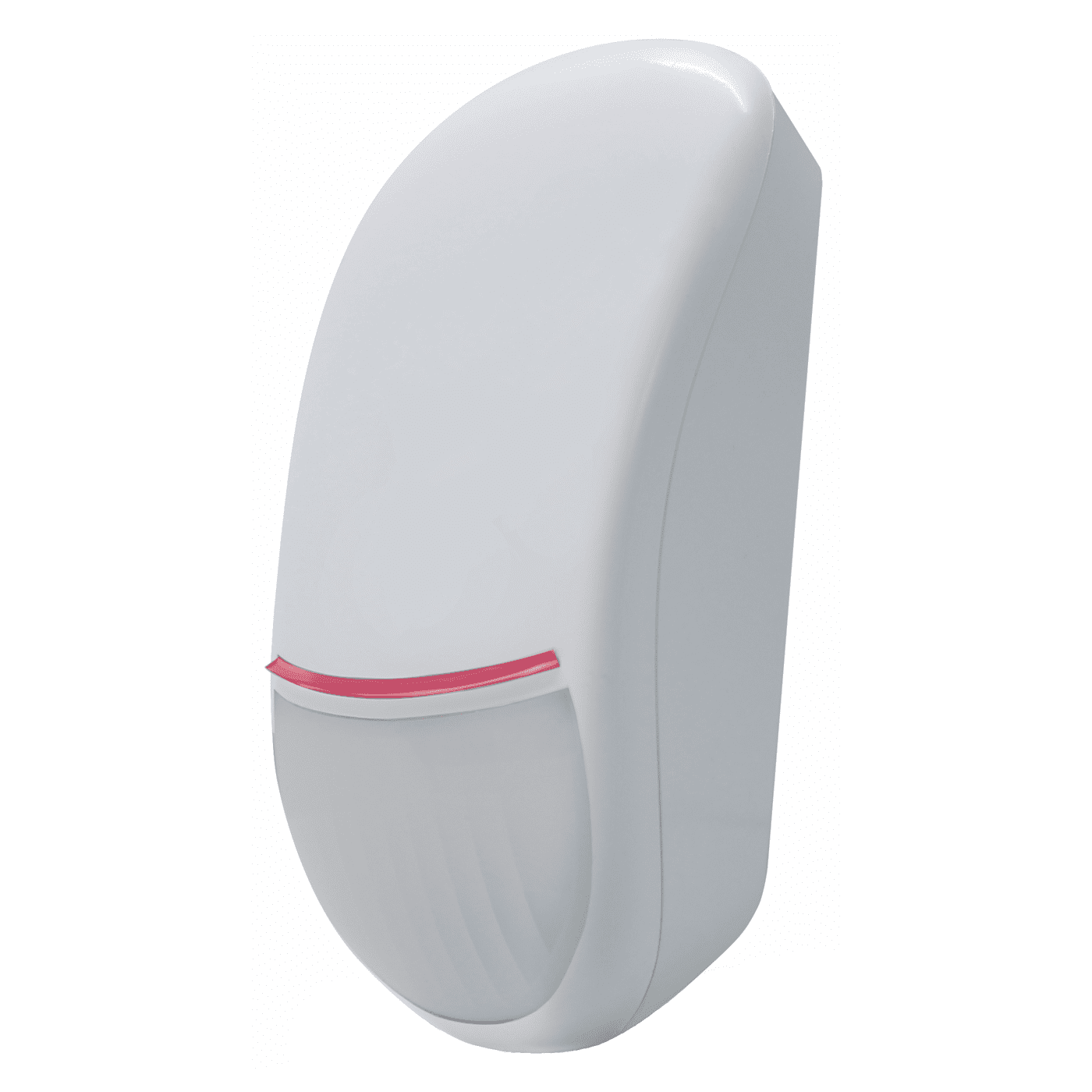

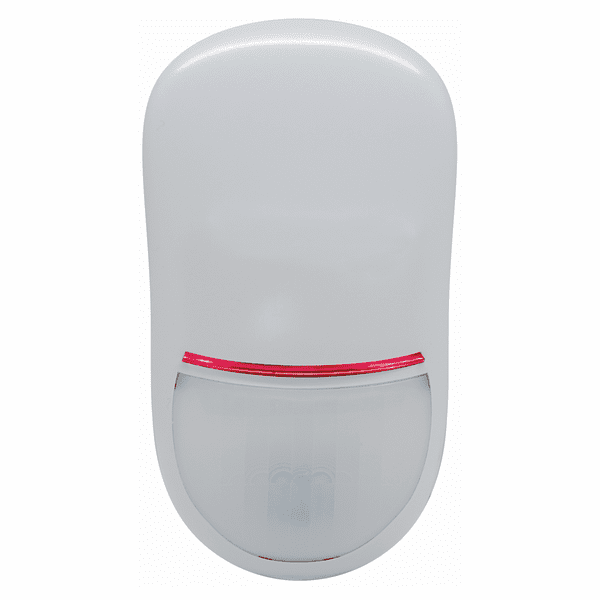

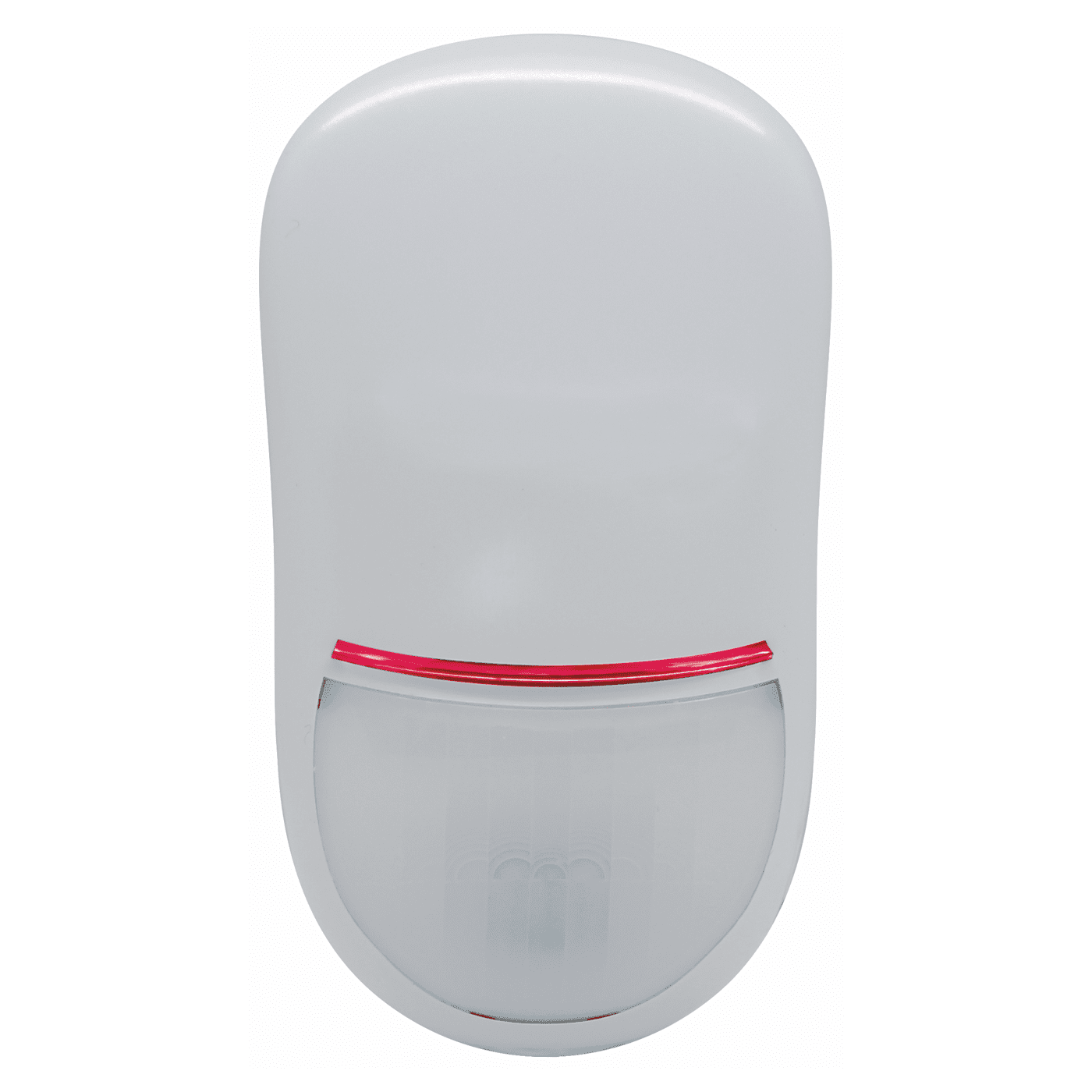

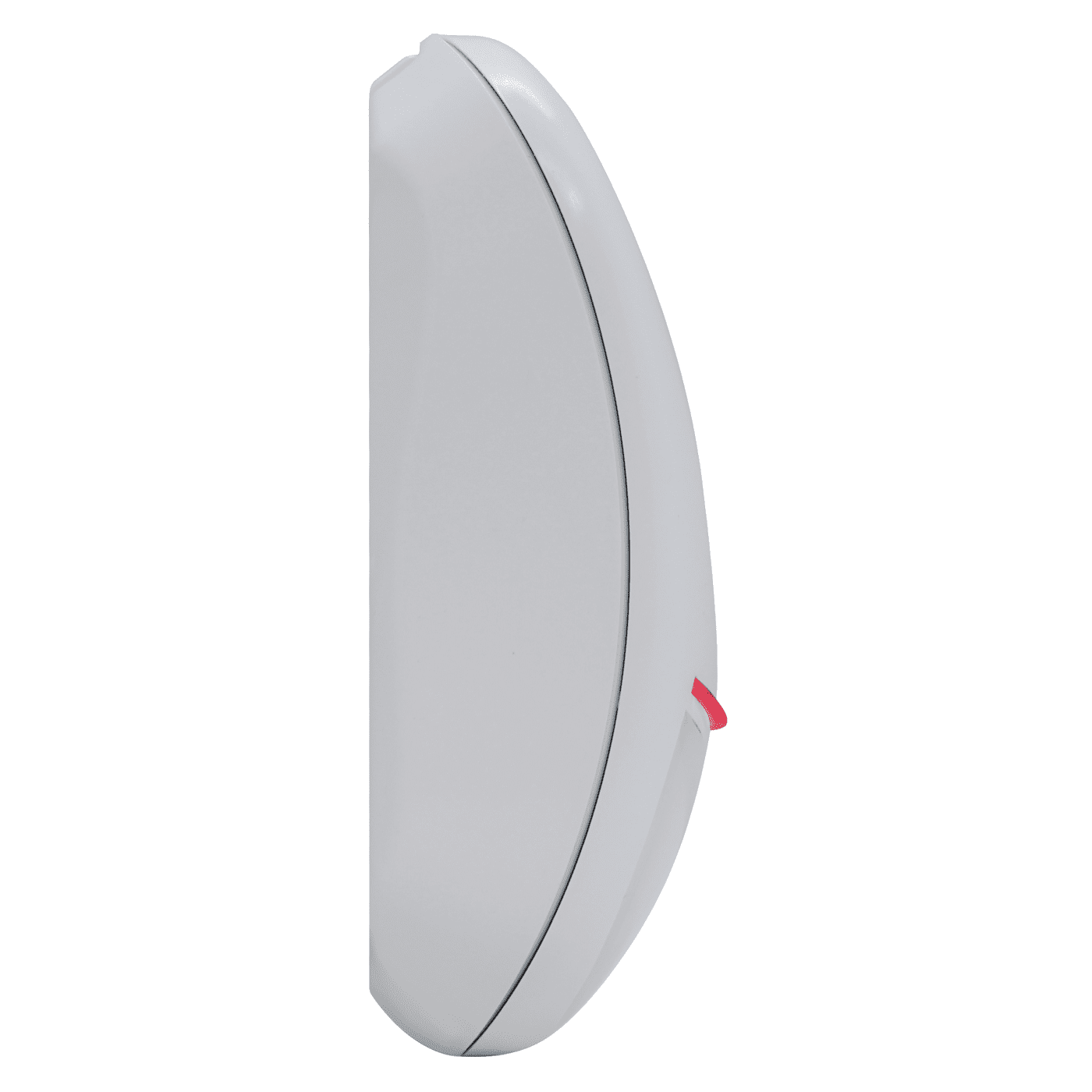

LC-200 - DSC Hardwired Motion Detector (w/Pet Immunity Up to 33 lbs.)

LC-200 - DSC Hardwired Motion Detector (w/Pet Immunity Up to 33 lbs.)
LC-200 - DSC Hardwired Motion Detector (w/Pet Immunity Up to 33 lbs.)
Item# LC-200
List Price: $32.38
Your Price: $21.59
Availability: In Stock
QTY:
Shipping3-5 Business Days
Free 3-5 day ground shipping within the continental United States on orders over $200.

In stock items are shipped ground 1-3 business days from which the date the order was placed. A tracking number will be sent to the email address provided on checkout.

Read the full shipping policy
Returns30-Day Return Window
This item can be returned in its original condition within 30 days of receipt, less a 25% restocking fee of the total invoice price.

Read the full return policy
PaymentSecure Transaction
We work hard to protect your security and privacy. Our payment security system encrypts your information during transmission. We don't share your credit card details. We don't sell your information to others, including affiliates!

Read the full order processing policy

DSC LC-200 Product Description:


The DSC LC-200 is a hardwired PIR motion detector that senses movement by an intruder while having pet immunity up to 33 lbs. The LC-200 is a fully digital PIR detector that was designed to deliver unprecedented detection accuracy compared to traditional detectors with analog PIR and digital processing.

Top drawer quality and detection efficiency of LC-200 is achieved thanks to lenses designed using LODIFF® technology and made from POLY IR® materials. In order to shorten the time of installation and simplify the process, the LC-200 features built-in EOL resistors with values required by PowerSeries Neo and PRO control panels. Installers may choose to use their own resistors for compatibility with any other hardwired control panel.

The overall security of the installed system is further enhanced with double tamper protection (case opening and tearing from the wall). The LC-200 hardwired motion detector represents the ultimate choice for residential and industrial security installations.

Product Features:

  • Fully digital PIR
  • Pet Immune up to 33 lbs (15 kg)
  • LODIFF optics technology and POLY IR materials create a perfect combination of highest quality and efficiency
  • Compatible with any hardwired control panel
  • Internal EOL resistors built-in
  • Double tamper (case / wall) protection
  • White light protection and high RFI immunity
  • Backed up DSC's 1-year limited manufacturer's warranty

DSC LC-200 Product Specifications:


  • Dimensions: 4.49" x 2.48" x 1.57" (114 mm x 63 mm x 40 mm)
  • Operating Temperature: 14°F to 104°F (-10°C to 40°C)
  • Relative Humidity: Up to 93% non condensing
  • Range: 15 meters
  • Field of View: 100 degrees
  • Lens: Fresnel lens with LODIFF technology and POLY IR 4 materials
  • LED Color: Red
  • Alarm Duration: 2 s
  • Walk Test: Yes
  • Built in EOL Resistors: Yes, 5.6 kOhm
  • Double Tamper (Wall/Case): Yes
  • Creep Zone: Yes
  • Pulse Counter: Yes
  • RFI Protection: 30 V/m
  • Heat/Temperature Compensation: Yes
  • Fully Digital: Yes
  • Swivel Option: Yes
  • Mounting: Direct on the wall or with bracket (LC-L2ST)
  • Cover Material: ABS
  • Power Supply: 13.8 Vdc (9-15 VDC / 25mA)
  • Current Draw: 9mA
  • Solid State Relay: Yes
  • Pet Immunity: Yes, up to 15 kg (approximately 33 lbs)

DSC LC-200 Product Compatibility:


  • Hardwired Control Panels (works universally across brands)
