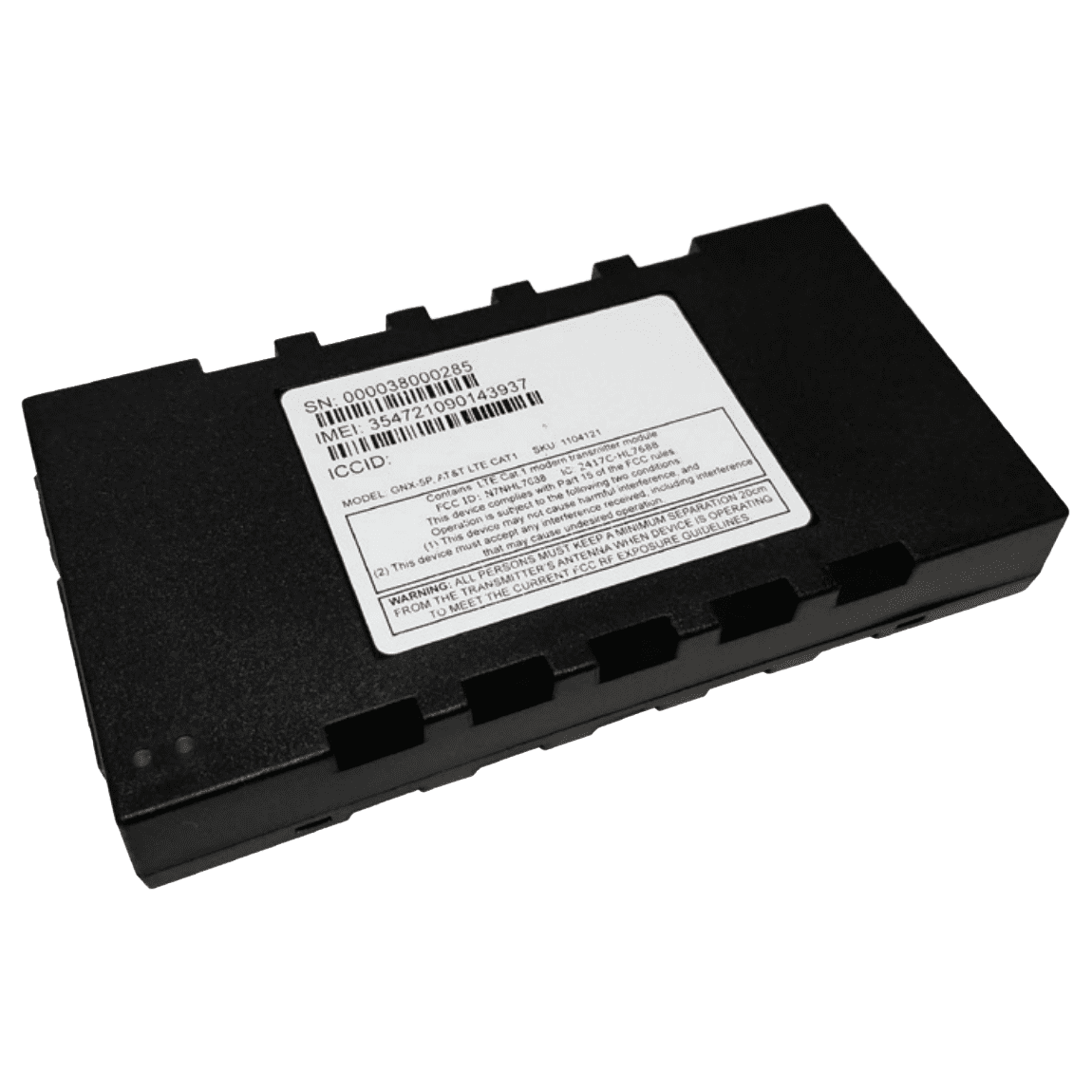

GPSLTE - Uplink GPS Cellular LTE Vehicle Tracking Device (for Personal Use or Fleet Management)
Please Note: The Uplink GPSLTE cellular LTE vehicle tracking device has been discontinued without replacement.
Uplink GPSLTE Product Description:
The Uplink GPSLTE is a turnkey GPS vehicle tracking product for commercial and residential customers. Uplink GPS LTE features a fully-hosted, and cloud-based vehicle tracking service that allows for monitoring times (travel, onsite, start and end, idle), ignition events, and more!
The GPSLTE provides asset recovery due to the ability to view vehicle locations recorded every two or five minutes, including 60 days of stored history. Uplink's GPS module uses an interactive mapping feature that allows the end user to view the information on any desktop, smartphone or tablet device. Finally, with the GPSLTE you can now track and monitor your fleet of vehicles by yourself over the cellular LTE network.
Product Features:
- Email alerts in the event of speeding, unauthorized use, theft, or vehicle alert zone violation
- Includes GPS receiver, LTE radio, built-in antenna, and internal backup battery
- Includes two harness options: 3-wire connection (to for power, 1 for ignition status) or OBD Connection plugs into on-board diagnostic port
- Internal 200 mAh backup battery
- Track teens, elderly drivers, commercial fleets
- Tracks up to every 2 minutes
- View all vehicle locations
- Click-to-locate
- Notifications for ignition events during designated time periods
Uplink GPSLTE Product Specifications:
- Product Dimensions: 5.5" x 3.0" x 0.4" (140 x 75 x 19mm)
- Product Weight: 4 oz (113 g)
- Power/Aux Connector: 20-pin 3mm Molex
- Data Connector: 10-pin 3mm Molex
- Operating Voltage: 8 and 30V DC
- Power Consumption (typical, @ 12.8 vdc): Operating: 95mA (avg), 680mA (peak Tx) | Standby 2 35mA (SMS/UDP wake-up) | Standby 1 13mA (local wake-up) | Sleep <2mA (local wake-up)
- Operating Temperature: -20° - 65°C (-4°F - 149°F (without battery)
- Storage Temperature: -40° - 85°C (-40°F - 185°F (without battery)
- Humidity: 5% - 95% @ 50° relative humidity (non- condensing)
- Shock and Vibration: SAE J1455
- EMC/EMI: SAE J1113
- GPS Receiver: 56 Channel L1 C/A Code, WAAS/SBAS
- Tracking Sensitivity: 161dBm Tracking, Nav, Reacquisition | 160dBm Reacquisition | 148dBm Cold start (un-aided)
- Horizontal Accuracy: 2.5m, 2.0m SBAS (CEP 50%)
- Time-to-first fix: 29s (@ -130dBm, Cold start)
- Cellular Options: LTE Cat 1 (B2, B4, B5, B17)
- Digital Inputs: 5 (3 hi, 2 low)
- Relay Drive Outputs: 2 (150mA max. each)
- Switched output: 1 (1.2A max.)
- LED drive Output: 1
- RS-232 port: 1 (5-wire)
- Status LED's: 2
- 1-Wire: Dallas iButton, Temp Sensors
- Regulatory Approvals: FCC, IC, PTCRB
