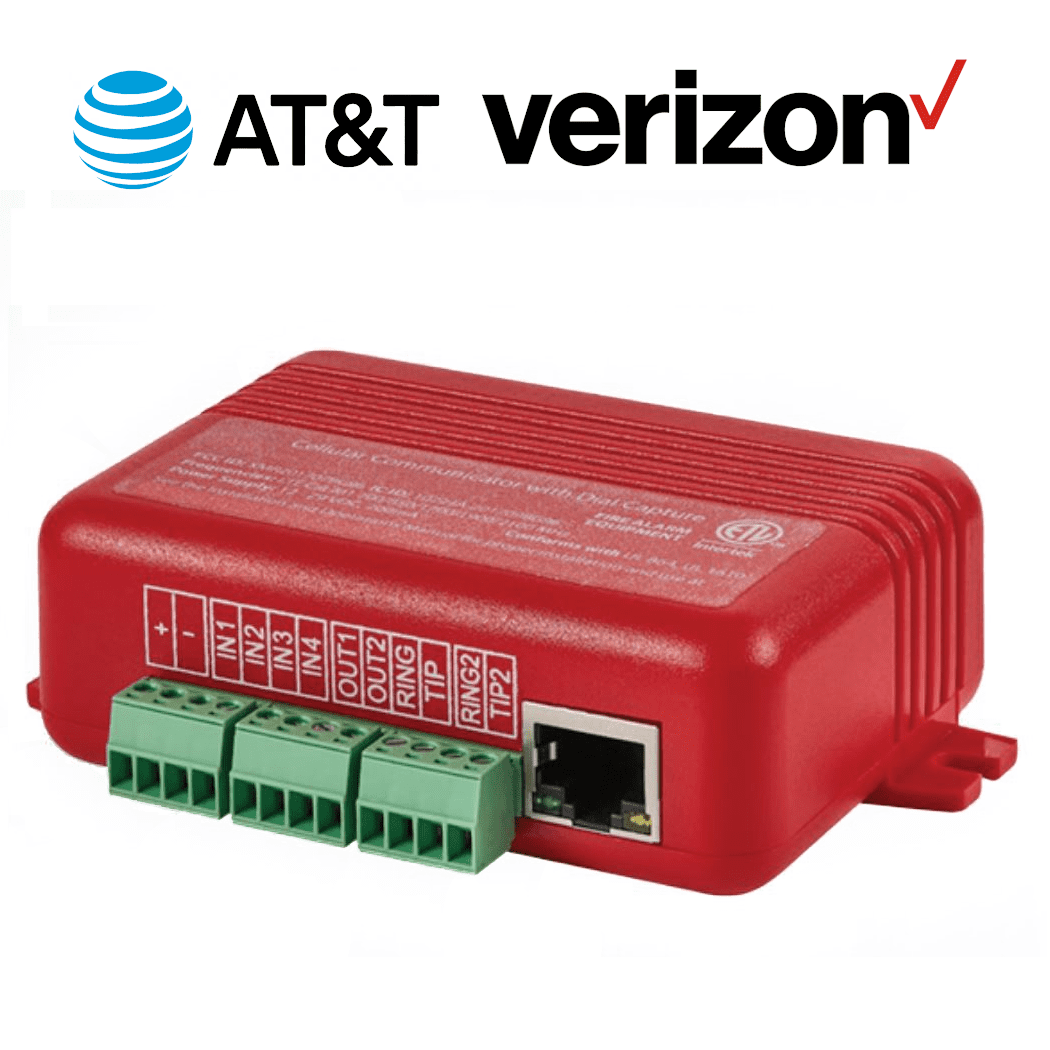

5535CF - Uplink Universal Dual-Path AT&T/Verizon LTE Commercial Fire Alarm Communicator (Compatible with Most FACP's)
Please Note: The Uplink 5535CF dual-path AT&T cellular LTE commercial fire alarm communicator is a back-ordered item.
Uplink 5535CF Product Description:
The Uplink 5535CF is a universal sole-path cellular AT&T/Verizon LTE commercial fire alarm communicator that delivers full event reporting and complete end to-end signal verification as a primary connection or backup to landline connections. UL listed and designed to meet all applicable compliance and performance standards, the Uplink 5535CF is compatible with all major fire panels and supports all common event reporting formats. Instant on-site activation is available through the Uplink dealer website.
Product Features:
- Reporting Formats - Dial Capture Interface supporting Contact ID, SIA and Pulse 4+2
- Exceptional Redundancy - Dual-SIM for AT&T/Verizon. Optional reporting through LAN
- Supervised Connectivity - 5 minute polling
- Admin Portal - Online 24/7 device management & real-time status monitoring of user accounts
- Full Event Reporting - Reliable reporting to GeoArm Central Station
- Installer Mobile App - Real-time on-site communication diagnostics and device configuration
- Universal Panel Compatibility - Works on 12 to 29 VDC, supporting a wide range of fire panels
- Four Programmable Inputs - Used for relay output connection of the FACP
Uplink 5535CF Product Documents:
• Data Sheet - Uplink 5535CF Commercial Fire Dual-Path Alarm Communicator (for AT&T/Verizon Cellular LTE)
Uplink 5535CF Product Specifications:
- Alarm Dial Capture: 2 Telco interfaces (Dial Capture): CID, SIA, Pulse 4+2
- Input: 4 inputs (programmable)
- Central Station Reporting Outputs: 2 Telco interfaces (Dial Capture): CID, SIA, Pulse 4+2
- Output: 2 outputs (programmable)
- Other Reporting Formats: Contact ID, SIA and Pulse 4+2
- Automated Testing: 5 minute automated testing
- Voltage: Supply voltage: +12 to +29 VDC (consumption: standby 50mA, Peak 200mA)
- Standby Current: 50mA
- Peak Current: 200mA
- Radio Technology: Multi-band CAT-M1 LTE (700/850/1700/1900/2100 MHz)
- Certifications: UL 864 - for control units and accessories for fire alarm systems, listed as a sole path cellular | UL 1610 - for Central-Station Burglar-Alarm Units | CSFM - 7300 - Fire Alarm Control Unit Accessories
- Temperature range: 0°C to +49°C (+32°F to +120°F)
- Humidity: 0 to 85% relative humidity, non-condensing
- Dimensions (Height x Width x Depth): 2.48" x 3.54" x 1.26"
- Weight: 2.56 oz without antenna
