CONNECT-PLUS-TS-TKIT - Alula Connect+ Tri-Path Ethernet/WiFi/Cellular Verizon LTE Wireless Security System with Touchscreen Keypad (Powered by Alula)
Alula Connect+ System Description:
The Alula Connect+ tri-path wireless security system that is designed to deliver home security and automation services over the local ethernet/wifi or Verizon LTE cellular network for the do-it-yourself client. The Alula Connect+ tri-path security system kit comes standard with; Connect+ Panel with built-in Bluetooth Radio, Connect+ Receiver and Ethernet Port, Verizon cellular LTE expansion card (RE929RPV), WiFi expansion card (RE926RS), 1 wireless touchscreen alarm keypad (RE667X-PRO), 3 wireless Nanomax door/window contacts (RE622), and 1 wireless PIR motion detector (RE611P). This Connect+ dual-path security system kit sends primary signals over Ethernet/WiFi, and if down, uses the backup Verizon LTE cellular network. It's long-range encrypted wireless receiver easily provides whole home coverage. Wireless arming stations and mobile devices uncouple the Connect+ panel from the entry wall and allow it to be installed at a location convenient for Internet and power connections.
The Alula Connect+ touchscreen security system is a cutting-edge home security solution that offers advanced features and unparalleled convenience. With its sleek and modern design, this system seamlessly integrates into any home decor. The Alula Connect+ touchscreen security system boasts a user-friendly interface that allows you to easily control and monitor your home security from anywhere, at any time. Whether you're at home or on the go, you can arm or disarm your system, receive real-time alerts, and even view live video footage right from your smartphone or tablet. One of the standout features of the Alula Connect+ is its robust connectivity options. It supports WiFi, ethernet and cellular Verizon communications, ensuring that you stay tri-path connected to your home security system even in the event of an internet outage or power failure. This means that you can have peace of mind knowing that your home is protected at all times.
In addition to its connectivity options, the Alula Connect+ offers a wide range of sensors and detectors to provide comprehensive security coverage. From door and window sensors to motion detectors and glass break sensors, this system has you covered. It also supports smart home integration, allowing you to seamlessly connect and control other compatible devices such as smart locks, lights, and thermostats. Installation of the Alula Connect+ is a breeze, thanks to its wireless design. You won't have to worry about drilling holes or running wires throughout your home. Simply mount the touchscreen panel in a central location, place the sensors where needed, and you're good to go.
Overall, the Alula Connect+ touchscreen security system kit is a reliable and feature-packed solution that offers peace of mind and convenience. With its advanced connectivity options, comprehensive security coverage, and easy installation, it's the perfect choice for anyone looking to enhance their small business or home security.
Product Features:
- Included Ethernet/WiFi communication channels
- Included Cellular LTE communication channel
- Control from a user's mobile device
- Wireless touchscreen arming keypad
- Industry-leading wireless range
- Up to 50 users
- Up to 96 zones
- 5 year warranty
* Items listed above with an asterisk symbol require a subscription to Alula powered by GeoArm.
Alula Connect+ System Specifications:
- Housing Body Dimensions: 8.9 x 8.9 x 1.5 inches (22.6 x 22.6 x 3.8 cm)
- Housing Base Dimensions: 8.2 x 1.3 x 2.7 inches (20.8 x 3.3 x 6.7 cm)
- Weight with Battery: 26.8 ounces (760 grams, 1.87 pounds)
- Mounting Fastener: #6 or #8 screws (not provided)
- Operating Temperature: 32 to 120°F (0 to 49°C)
- Storage Temperature: -4 to 86°F (-20 to 30°C)
- Maximum Humidity: 85% non-condensing relative humidity
- Radio Frequency: 433.92MHz, 2.4GHz
- Power Supply Part Number: RE012-6
- Power Input: 100-240VAC, 50/60 Hz, 0.5A
- Power Output: 12VDC, 1A
- Battery Part Number: RE029
- Backup Battery: 24 hours minimum (fully charged)
- Backup Battery Specifications: 6VDC, 2.5Ah, NiMH
- Battery Charger: 25mA (Trickle), 95mA (Fast)
- Current Draw: 150mA (Normal), 300mA (Alarm)
- Tamper Indications: Cover opening and Wall removal
- Ethernet Communication (included): 10/100 Mbps Ethernet RJ-45
- WiFi Communication (included): 802.11 b/g/n with WPS
- LTE Communication (included): 3G (Primary or Secondary Configuration)
- Sensors: Up to 96 Connect+ Encrypted Wireless Security Zones
- Siren: 90dBa
- Wireless Siren Support Built-in: Transmitter for Resolution Wireless Siren
- Control Bus Radio Type: Bluetooth® Low-Energy (BLE)
- Control Bus Radio Range: 300 feet open air range on Control Bus Radio
- Sensor Radio Type: Crystal with Encryption
- Sensor Radio RF Specifications: 433 MHz 433 MHz; 115dBm Receiver Sensitivity
- Sensor Radio Wireless Range: 1500' Open Air Range
- Interface Devices: Up to 8 PINPads (RE652), Up to 8 HeliPads (RE656) and/or mobile devices
- Maximum Number of Users: 50
- Certification FCC: Part 15, Part 22
- Certification UL: 985, 1023, C-UL, CSFM
Alula Connect+ System Documents:
• Product Manual for Alula RE6100P-XX-X Connect+ Panel
• Quick Start Guide for Alula RE6100P-XX-X Connect+ Panel
• Quick Start Guide for Alula RE6100-Series Configuration Guide

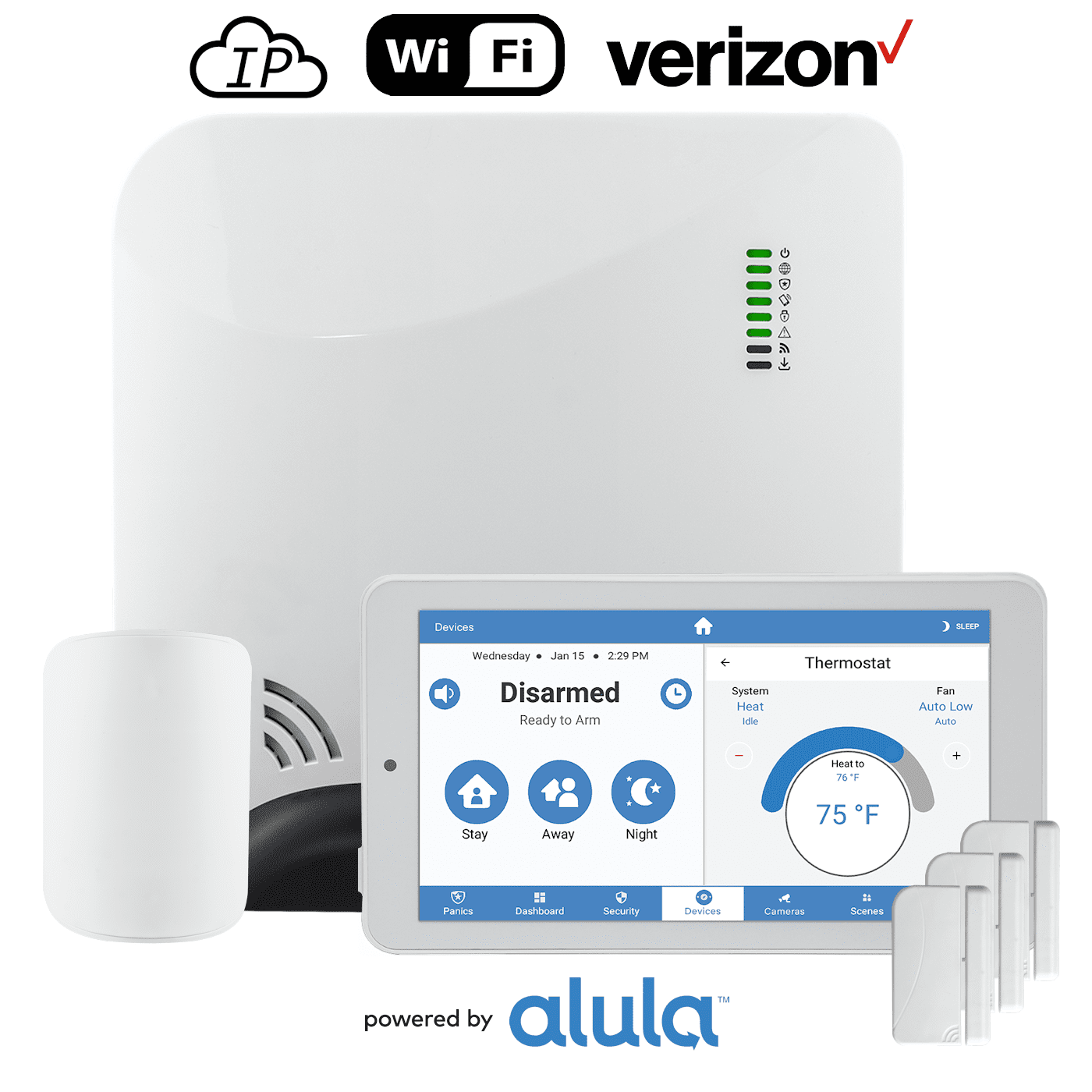

Alula Connect+ System Includes:
(1) Alula Connect+ Wireless Panel w/Built-In Bluetooth Radio, Connect+ Receiver Ethernet Port and Indoor Siren (RE6100P-XX-X)
(1) Alula Connect+ WiFi Expansion Card (RE926RS)
(1) Alula Connect+ Verizon LTE Cellular Card (RE929RPV)
(1) Alula Connect Plus Touchscreen Alarm Keypad (RE667X-PRO)
(3) Alula Connect+ Wireless Nanomax Door/Window Contacts (RE622)
(1) Alula Connect+ Wireless PIR Motion Detector (RE611P)
(1) Alula Connect+ Rechargeable Backup Battery (RE029)
(1) Alula Connect+ Power Supply (RE012-6)
(1) 6-foot Ethernet cable
(1) Table-top mounting base
(1) A screw to secure the cover (required for UL installations)
(1) Installation guide
(1) Configuration guide
