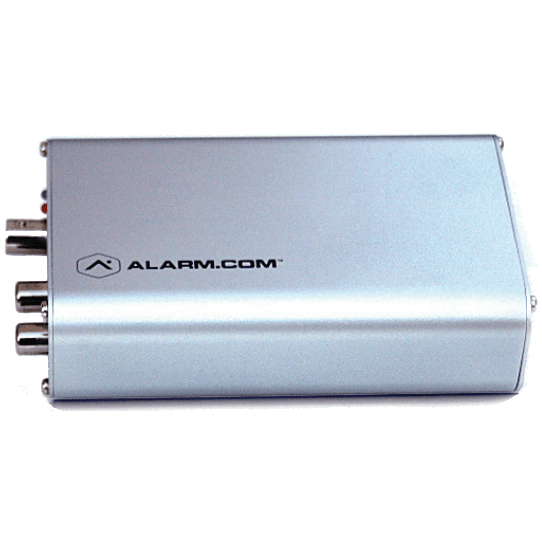

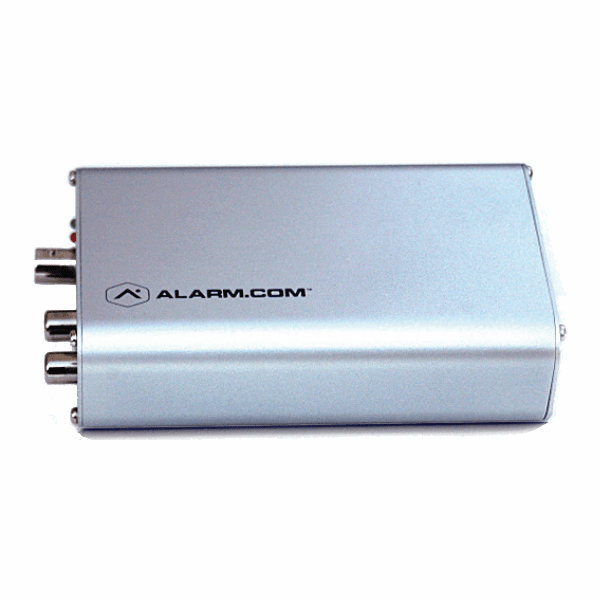

ADC-VS1 - Alarm.com 1-Channel Analog-to-IP Video Server
Please Note: The Alarm.com ADC-VS1 Analog-to-IP 1-channel video server has been discontinued without replacement.
Alarm.com ADC-VS1 Product Description:
The Alarm.com ADC-VS1 is an analog-to-IP video server designed specifically to work with the Alarm.com GeoArm video service, which provides a professional surveillance solution without the complexity of traditional CCTV systems. The ADC-VS1 video server allows new or existing analog CCTV cameras to be monitored on an Alarm.com GeoArm video account. High-quality Live and Recorded video are available to GeoArm DIYer through web-enabled computers, cell phone web browsers or via the free downloadable apps for iPhone, Blackberry and Android devices.
Product Includes:
- Quick Install Guide
- Power Adapter
- Input/Output (I/O) Connector
Alarm.com ADC-VS1 Product Documents:
• Data Sheet for 1-Channel Video Server (ADC-VS1)
• Installation Guide for 1-Channel Video Server (ADC-VS1)
• Troubleshooting Guide for 1-Channel Video Server (ADC-VS1)
Alarm.com ADC-VS1 Product Specifications:
- Dimensions (D x W x H): 4.8" x 3.0" x 1.4"
- Live resolution options: 704x480, 352x240, 176x120
- Live quality: High, medium and low compression options
- Recording quality: 704x480, 352x240
- Recording compression: MPEG-4
- Image sensor: Depends on analog camera
- Iris: Depends on analog camera
- Field of view: Depends on analog camera
- Low-light sensitivity: Depends on analog camera
- Image adjustments: Brightness, Contrast, Saturation, Sharpness
- Video motion detection: 3 windows, adjustable sensitivity and threshold
- Digital input trigger : Yes
- Ethernet connection: 10/100 Mbps RJ-45
- Password authentication: "Digest" authentication
- Simultaneous viewers: 5
- Operation temperature: 32° - 122°F ( 0° - 50°C)
- Operating humidity: 20% - 80% RH
- Max power consumption: 12V DC @ 330 mA
- Weight: 7.0 oz.
