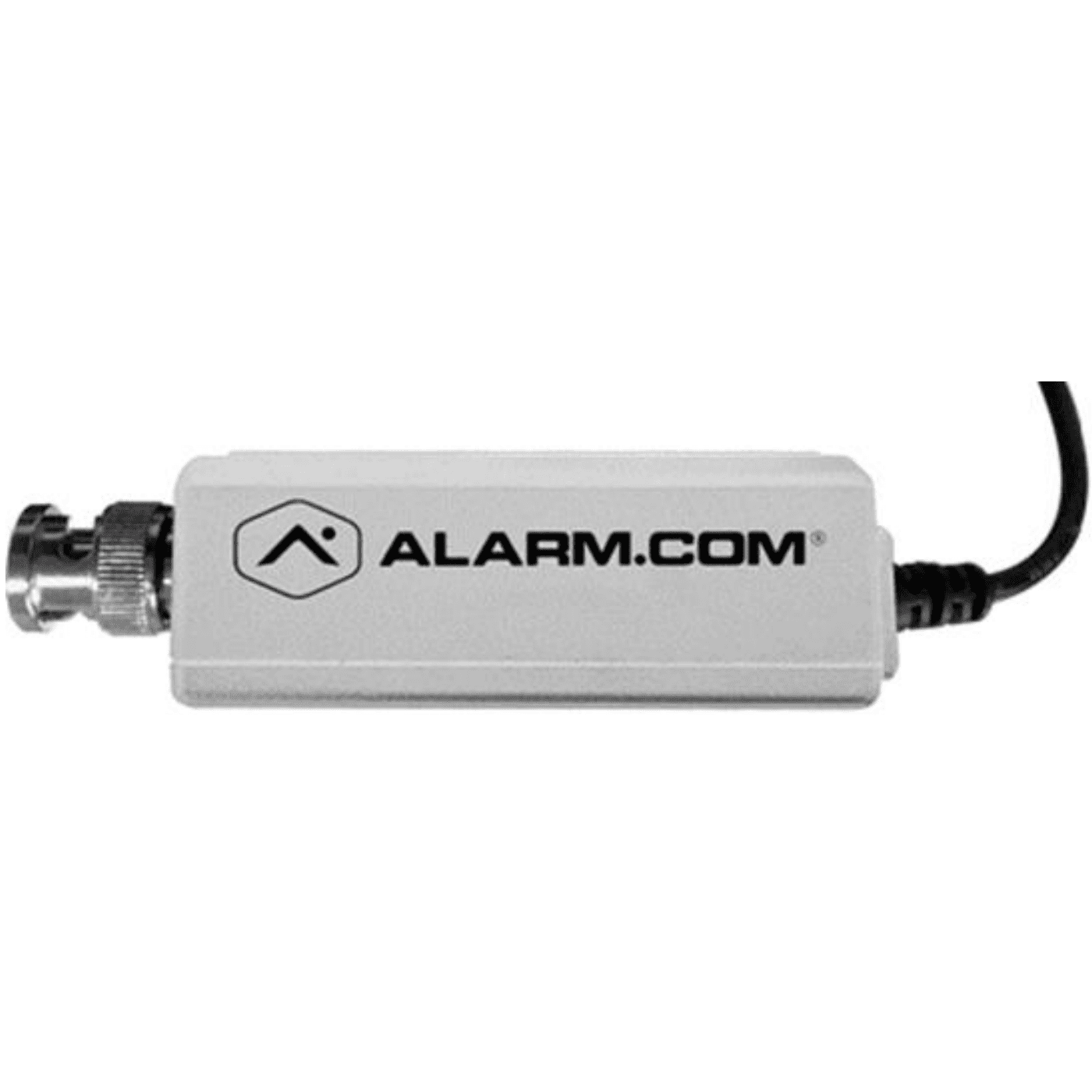

ADC-VS121 - Alarm.com 1-Channel Video Server
Please Note: The Alarm.com ADC-VS121 1-channel video server has been discontinued and replaced by the ADC-VS123 model number.
Alarm.com ADC-VS121 Product Description:
The Alarm.com ADC-VS121 is a 1-channel video server for analog-to-ip security cameras. Designed specifically to work with the Alarm.com GeoArm video service, it provides a professional surveillance solution. Connect any analog video camera to provide remote access to live and recorded video. GeoArm DIYers can use web-enabled computers, cell phone web browsers and via the free downloadable apps compatible with all Alarm.com enabled mobile devices.
Product Includes:
- Quick Install Guide
- Power Adapter
- Input/Output (I/O) Connector
Alarm.com ADC-VS121 Product Documents:
• Data Sheet for 1-Channel Video Server (ADC-VS121)
• Installation Guide for 1-Channel Video Server (ADC-VS121)
• Troubleshooting Guide for 1-Channel Video Server (ADC-VS121)
Alarm.com ADC-VS1 Product Specifications:
- Dimensions (L x W x H): 2.6" x 1.3" x 0.98"
- Live resolution options: 704x480, 352x240, 176x120
- Recording resolution options: 704x480, 352x240, 176x120
- Live quality: High, medium and low compression options
- Recording quality: 704x480, 352x240
- Recording compression: H.264, MPEG-4
- Image sensor: Depends on analog camera
- Iris: Depends on analog camera
- Field of view: Depends on analog camera
- Low-light sensitivity: Depends on analog camera
- Image adjustments: Brightness, Contrast, Saturation, Sharpness, Exposure
- Video motion detection: 3 windows, adjustable sensitivity and threshold
- Digital input trigger : Yes
- Ethernet connection: 10/100 Mbps RJ-45
- Password authentication: "Digest" authentication
- Simultaneous viewers: 10
- Operation temperature: 32° - 122°F ( 0° - 50°C)
- Operating humidity: 20% - 80% RH
- Max power consumption: 12V DC, 5W
- Weight: 2.3 oz.
