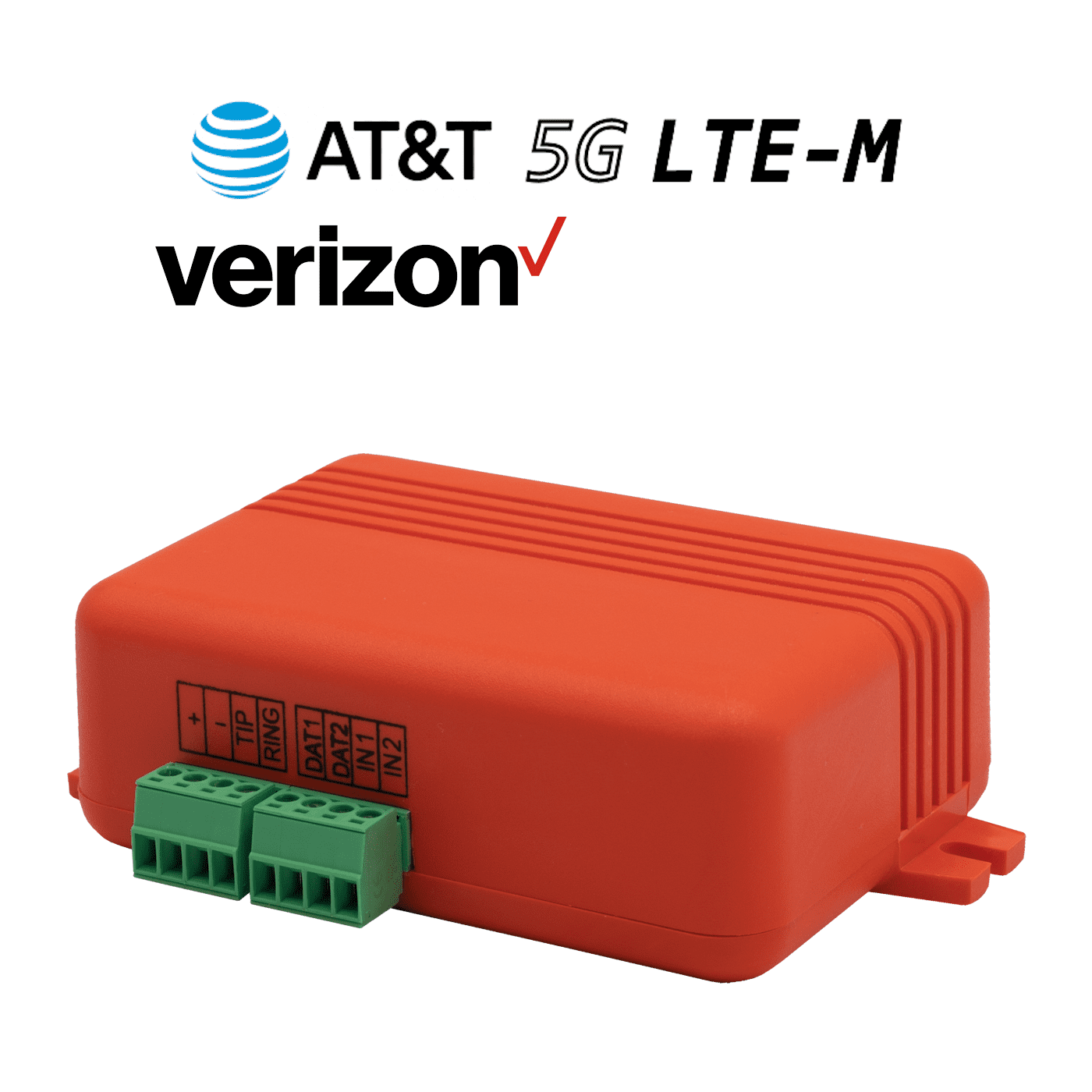

5530M - Uplink Univeral Primary Dual SIM Cellular 5G AT&T/Verizon LTE-M Alarm Communicator (Compatible with Security Panels)

5530M - Uplink Univeral Primary Dual SIM Cellular 5G AT&T/Verizon LTE-M Alarm Communicator (Compatible with Security Panels)
5530M - Uplink Univeral Primary Dual SIM Cellular 5G AT&T/Verizon LTE-M Alarm Communicator (Compatible with Security Panels)
Item# 5530M
List Price: $176.23
Your Price: $117.49
Availability: Yes
QTY:
ShippingFast shipping
In stock items are shipped ground within approximately 3-5 business days from which the date the order was placed.

Read the full shipping policy
Returns30-day return window
This item can be returned in its original condition within 30 days of receipt, less a 25% restocking fee of the total invoice price.

Read the full return policy
PaymentSecure Transaction
We work hard to protect your security and privacy. Our payment security system encrypts your information during transmission. We don't share your credit card details, and we don't sell your information to others.

Read the full order processing policy

Uplink 5530 Product Description:


The Uplink 5530M is a universal primary cellular LTE-M technology alarm communicator designed for most existing hardwired burglary/fire control panels. The 5530M includes a dual-SIM, for either AT&T or Verizon LTE-M network, to transmit secure data to the GeoArm central monitoring station. The device features full events reporting for use as a primary communicator, perfect for any location.

The dial-capture technology provides universal compatibility with virtually any alarm panel. The device also enables keybus integration and remote Upload/Download with selected alarm panels. On-board input and output terminals allow remote arming and disarming, using a smartphone. The 5530M communicates to GeoArm central station in the most popular alarm formats (Contact ID, SIA, and Pulse 4+2).

The 5530M includes the latest LTE CAT M1 technology for the best performance and longest life cycle. Compatible with 3G and LTE cellular networks. It was designed by Uplink as a summary event alarm communicator. Installation and activation of the 5530M is quick and easy with the assistance of a GeoArm technician.

Product Features:

  • Works on both Verizon and AT&T networks in the same radio
  • Compatible with any alarm panel supporting CID, SIA and 4+2
  • Supports keybus and remote UDL for selected panels
  • End-user smartphone app for remote arming and disarming
  • Installer app for on-site testing of status and signal strength
  • Powers from the panel and comes pre-activated for quick and easy installation

Uplink 5530M Product Specifications:


Inputs and Outputs


  • Two Inputs: 2 Digital Inputs


Status LED's


  • Slow flashing - trying to establish connection
  • Constantly on - connection established at good signal level
  • Constantly on - blinging every 5 sec. - connection established at low signal level
  • Fast flashing - transferring


Reporting


  • Interface to Alarm Panel: Dial-Capture Interface: ContactID, SIA or Pulse
  • Central Station Reporting: ContactID, SIA, Pulse 4/2 full event reporting
  • Other Reporting Methods: Push notifications, Email


Power Requirements


  • Voltage: Network, Service, Communications
  • Consumption: Standby 15mA, Peak 200mA


Radio


  • Technology: LTE CAT M1
  • Networks: Dual-SIM with Verizon and AT&T
  • Frequency bands: 700/850/1700/1900/2100 MHz


Environmental


  • Operating Temperature Range: 32°F to 120°F (0°C to +49°C)
  • Humidity: 0 to 85% non-condensing


Dimensions


  • Height, Width, Depth: 2.50 x 3.55 x 1.26 inches (device only)
  • Weight: 2.65 oz without an antenna
  • Antenna: 3 feet cable

Uplink 5530M Product Applications:


  • Home Security
  • Business Security
  • Convenience Stores
  • Drug Stores
  • Jewelry Stores
  • Restaurants
  • Retail Shops
  • Specialty Stores
  • Supermarkets
