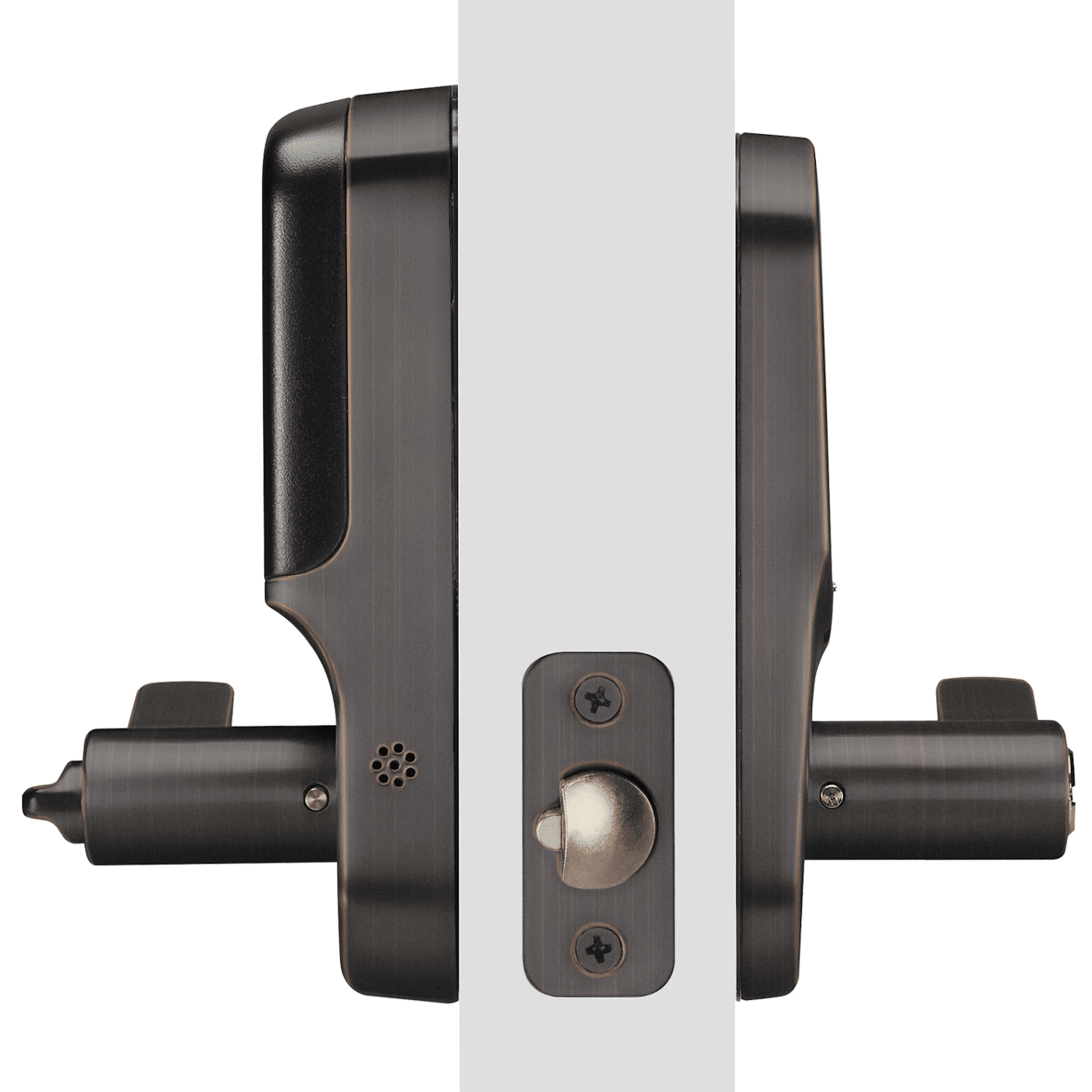

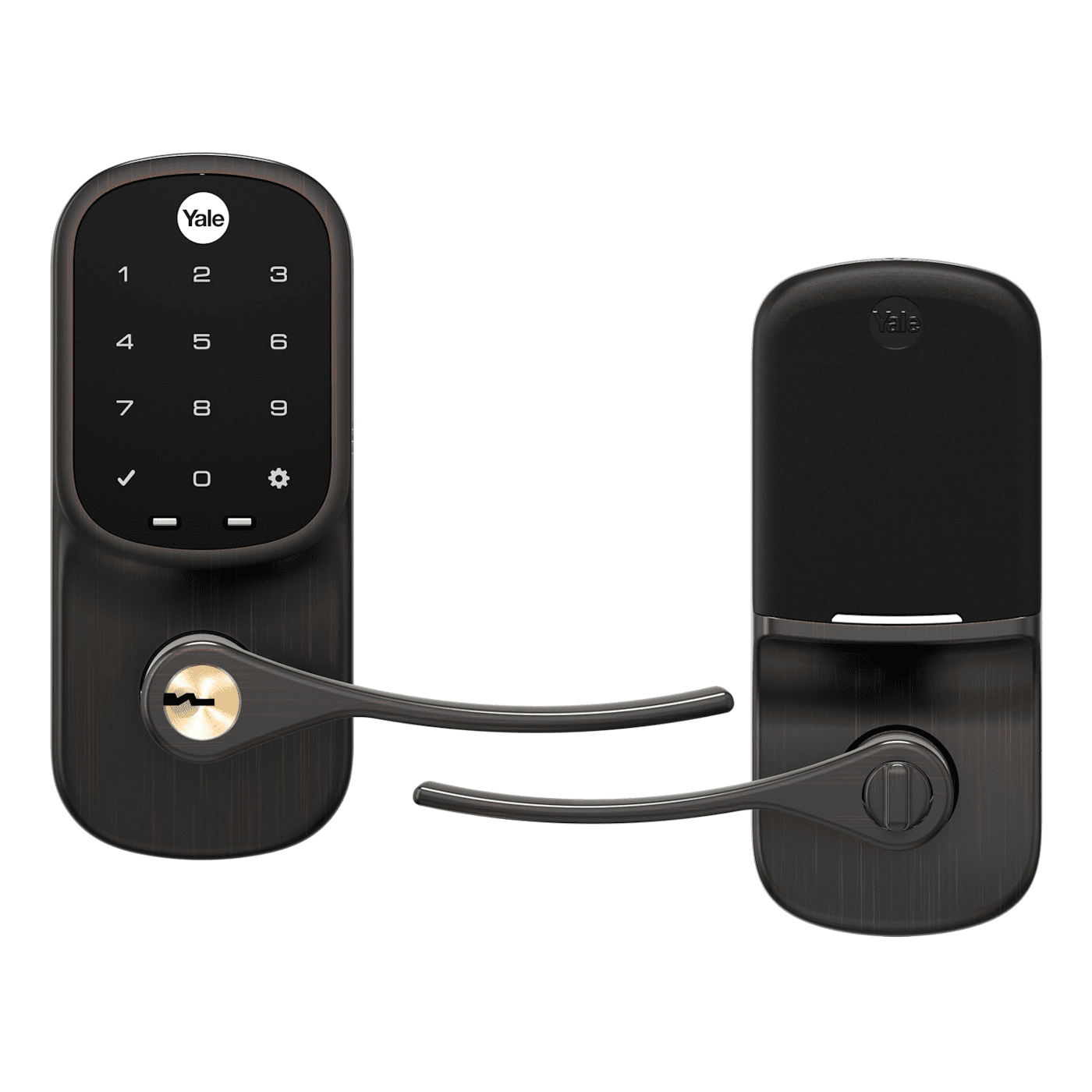

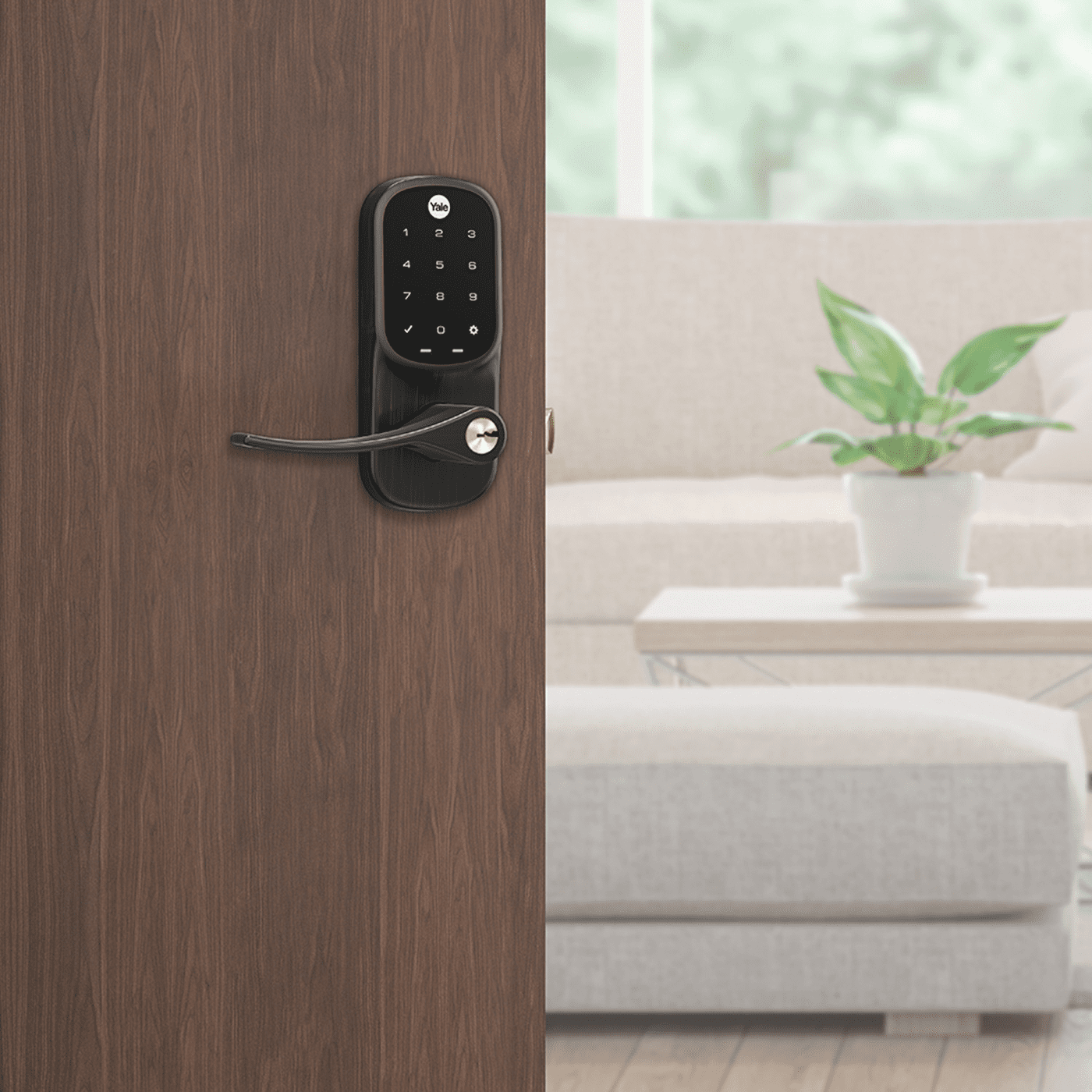

YRL226-ZW2-0BP - Yale Assure Lever Touchscreen Keypad Lock and Keyhole with Z-Wave Plus (in Oil Rubbed Bronze Finish)
Yale YRL226-ZW2-0BP Product Description:
The Yale Assure Lever™ (YRL226-ZW2-0BP) is a touchscreen keypad lever lock and keyhole, in oil rubbed bronze finish, for single hole doors. The Assure Lever is a keyed lever lock specifically crafted for doors with a single hole, such as those found on side entrances, garages, basements, interior rooms, and beyond.
You can secure and access your door by inputting your unique code into the touch screen keypad. These Assure Levers have the versatility to function as independent keypad locks, or they can be transformed into smart locks. This is achievable through the integration into a smart home or alarm system, made possible with the addition of a Yale Access Upgrade Kit, Z-Wave Plus, or a Yale Smart Module.
Product Features:
- Manufactured in aesthetically pleasing oil rubbed bronze finish.
- Lock/unlock 3 different ways (code, key or Z-Wave)
- Comes with 2 keys
- Illuminated touchscreen for night time code entry
- Enable/disable auto-relocking for custom security
- Simple Z-Wave enrollment with the push of a button
- Certified ANSI/BHMA Grade 2 and fully gasketed
- Easy to install, battery-powered, no wiring required
- Voice assistance guides you through programming
Yale YRL226-ZW2-0BP Product Specifications:
- Lock Finish - Oil Rubbed Bronze
- Batteries - 4 AA Alkaline Batteries (Included)
- Handing - Reversible
- Grade - Tested to: ANSI/BHMA Grade 2
- Face Bore - 2-1/8"
- Edge Bore 1"
- Backset - 2-3/8" or 2-3/4" (adjustable latch)
- Door Thickness- 1-3/8" to 1-3/4"
- Strike - 1-1/8" x 2-3/4"
- Keyway - KW-1 5 Pin (keyed models come with 2 keys)
- Outside Temperature Range - -22°F to 140°F (-30°C to 60°C)
- Inside Temperature Range - 5°F to 158°F (-15°C to 70°C)
- Battery Temperature Range - 14°F to 131°F (-10°C to 55°C)
- Storage Temperature Range - -40°F to 185°F (-40°C to 85°C)
- Warranty - for the original owner, one year warranty for electronics and lifetime limited warranty for finish and mechanical operation
Yale YRL226-ZW2-0BP Product Documents:
• Installation Instructions - Yale YRL226-ZW2-0BP Assure Lever Touchscreen Keypad Lock and Keyhole
Yale YRL226-ZW2-0BP Product Includes:
- Yale Assure Lever with Z-Wave Plus
- Two Academy Levers
- Mounting Screws
- Door Template
- 4 AA Alkaline Batteries
- Installation Manual
- 2 Keys
Product Reviews
Great value, super performance, November 5, 2021
Posted By: Nibcola
15 people found this review helpful
I've now installed four of these at locations on my property and am very happy with how they work, at the security they provide, the value for expense, at the build-durability, the ease of replacing batteries, and with how they look. Highly recommended.
15 people found this review helpful
I've now installed four of these at locations on my property and am very happy with how they work, at the security they provide, the value for expense, at the build-durability, the ease of replacing batteries, and with how they look. Highly recommended.
Perfect on my garage door, September 5, 2021
