DSC Iotega Cellular Verizon LTE Wireless Security System (Powered by Alarm.com)

DSC Iotega Cellular Verizon LTE Wireless Security System (Powered by Alarm.com)
Please Note: The DSC Iotega Cellular Verizon LTE wireless security system kit for Alarm.com has been discontinued without replacement.

DSC Iotega Kit Description:



Product Description:

The DSC Iotega WS9009LVZA is the next generation, all-in-one smart security and home automation platform for residential and small commercial properties. It provides DIYer's with the DSC security they already know and trust, along with the freedom to add smart home devices, that are compatible with Alarm.com and Apple HomeKit. With Iotega, our do-it-yourselfer's can start with a security-only package, and then scale up at anytime to a full security and home automation solution.

DIYer's get the peace of mind of easily monitoring their home or business remotely, regardless of how tech-savvy they are. Plus, the Iotega will also save you time and money, with installations made simple using the latest innovations in wireless networking technology. Having built-in PowerG technology, the DSC Iotega is a fully encrypted panel that takes smart homes and businesses to a new level of security, while reducing operational costs. It provides superior reliability with end-to-end 128-bit AES encryption and includes multiple advanced security features, such as a proximity sensor, built-in siren, 2-way voice, and 99 user codes. Choose each member's level of engagement and control, from local notifications and keypad activation, to full remote control.

Everyday we hear about security breaches in the news, so rest assured knowing the DSC Iotega has PowerG technology designed to completely address the key requirements for safe and secure wireless security system transmissions. DSC PowerG has set its focus on reliability, performance, privacy, vulnerability, usability and maintenance. With multi-channel Frequency Hopping Spread Spectrum technology, which overcomes frequency blocking and interference, TDMA synchronized communication for preventing messaging collisions, and high transmission ranges, PowerG enables reliable communication up to 1.24 mi/2 km line-of sight. By using adaptive transmission power, this preserves battery life which extends the life of the battery operated wireless sensors. The PowerG sensors are simple to maintain, as the wireless sensors batteries easy to replace, reducing onsite expensive service calls.

The DSC Iotega is compatible with Alarm.com for best-in-class home control and monitoring services, and it supports DIYers' favorite connected home devices, including Z-Wave Plus standard lights, thermostats, power sockets, door locks, and more. Users can choose the level of engagement and control what they desire, ranging from local notifications and keypad activation, to full remote control via cloud-based intelligence and mobile apps. All intelligent actions can be implemented according to user defined triggers and customized schedules or simply on-demand. Expansion of your DSC Iotega panel can be done at anytime, with over 200 security and smart home automation devices that can be added.

To meet DIYers' needs for flexible communication methods, the Iotega offers multiple back-up communication paths that ensure high-speed, reliable and secure alarm communications. The Iotega comes equipped with a built-in WiFi and cellular alarm communicator that utilizes the Verizon LTE network to transmit alarm signals to the GeoArm central monitoring station. These redundant dual-path communications, allow for advanced services, such as visual alarm verification, that boost security and convenience for home and business owners.

Product Features:

  • Wireless panel with table top installation
  • Compact and sleek design
  • Multiple security and home automation devices supported
  • Smooth-touch keypad for main security functions (Arm/disarm the system, View system status, Activate Fire, Medical, Panic keys)
  • Built-in siren activates upon event trigger
  • Adjustable buzzer
  • Capacitive touch keypad illuminates when it detects nearby user
  • PowerG two-way encrypted wireless security sensors with up to a two-kilometer sensor range (with 128-Bit AES Encryption)
  • Z-Wave Plus Certified for faster, more reliable performance (500 series)
  • Touch keypad illuminates when it detects nearby user (screen goes dark after 60 seconds of inactivity)
  • Compatible with Alarm.com (Remote control and management of panel, devices and peripherals, Remote diagnostic and firmware upgrades)
  • Compatible with Apple HomeKit
  • Local firmware update App
  • WiFi 802.11b/g/n, 2.4Ghz (Client mode, Access point private network)
  • Dual-path (Cellular and Ethernet/WiFi)
  • LTE (Verizon Only)
  • Two-Way Voice alarm verification via Cellular
  • End-user accessible SIM card slot
  • End-user replaceable battery
  • Up to 99 user codes, 1 master code and 1 duress code per partition (2 total partitions possible)
  • Optional WiFi touchscreen keypad with home automation control

DSC Iotega Kit Specifications:


  • Dimensions: 5.70" H x 5.10" W x 1.49" D (144.8 mm x 129.5 mm x 37.8mm)
  • Internal Sounder: 85dB at 3 ft.
  • Sounder Cadences: Steady, Pulsed, Temporal, Flood, CO (Carbon Monoxide)
  • Memory Type: Embedded flash memory for programming and data retention
  • AC Adapter: Wall plug-in with barrel jack connector, Primary: 90 VAC – 264 VAC, 0.35A, Secondary: Regulated 12V DC, 1.16A, 47 – 63 Hz
  • Backup Battery: 7.4V (24 hours) Lithium, 4.5 Ah (4 hours) and 1 Ah options available
  • PowerG Frequency: 433 MHz / 868 MHz / 915 MHz
  • Current Draw: Average 200 mA at 12V DC (while not charging backup battery)
  • Temperature Range: 0°C to 49°C (32°F to 120°F)
  • Relative Humidity: 85%
  • Approvals: FCC/IC, UL/ULC, SIA CP-01, CE, CSFM

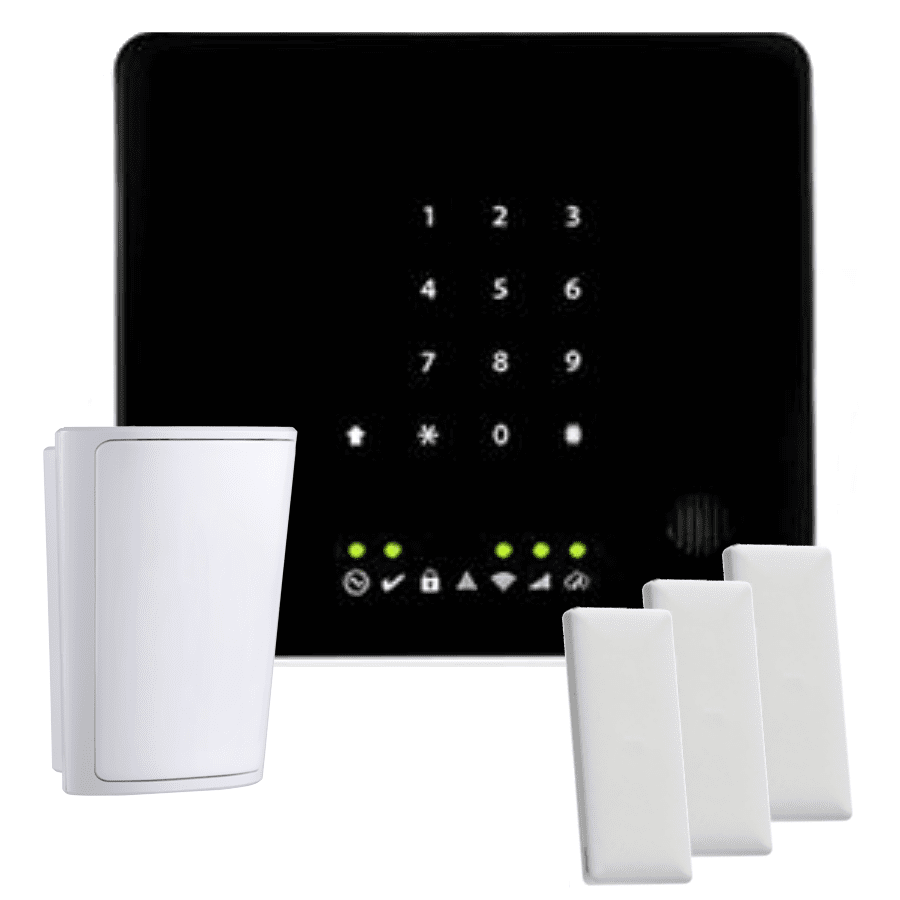

DSC Iotega Kit Includes:


(1) DSC Iotega Control Panel (WS9009LVZA)
(1) Verizon Cellular LTE Alarm.com Communicator (Built-into DSC Iotega Control Panel)
(3) DSC PowerG Wireless Door/Window Alarm Contacts (PG9303)
(1) DSC PowerG Wireless Motion Detector (PG9914)

Miscellaneous: Transformer w/Power Cord, Back Up Battery, User Manual
