WP-433 - DSC Wireless Device Programmer

Please Note: The DSC WP-433 wireless device programmer has been discontinued without replacement.

Description
PDF Documents
Compatible

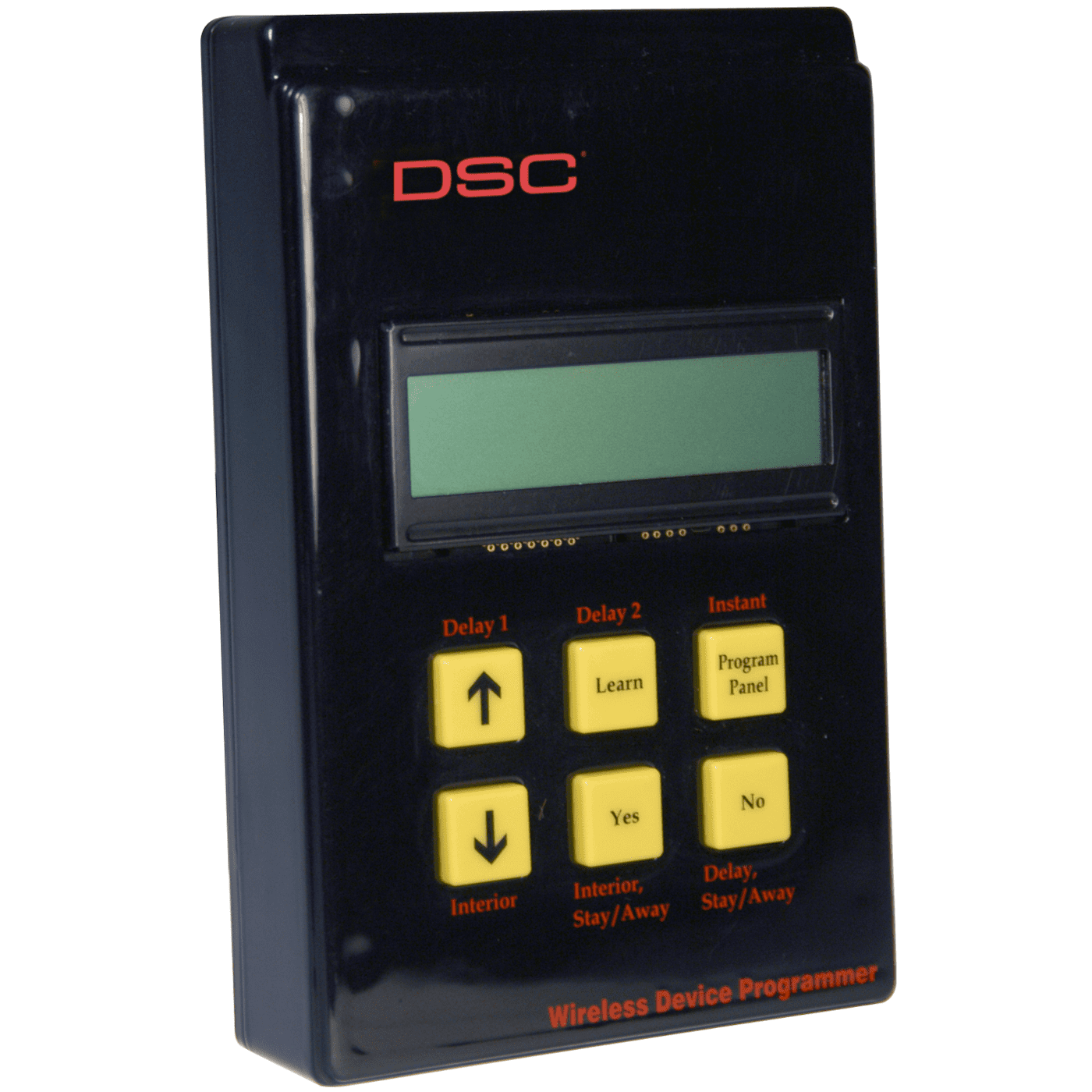

DSC WP-433 Product Description:

The DSC WP-433 is a wireless device programmer that was designed to make enrolling most DSC wireless devices easy. You cannot use the WP-433 to enroll a WS4916 Smoke Detector, WS4938 Panic Button or any product which serial number begins with a '4' or '5'. The WP-433 uses an internal 9V alkaline battery which needs to be replaced from time to time.

Simply choose which zone you want to learn, fault or tamper and restore that sensor or press the button on a wireless key and define the zone type. Once all devices have been learned into the hand held programmer simply wire and download to any Power Series Panel through its 4 wire connection.

The WP-433 can batch delete all of its memory or any specific zones. At anytime you can over write any zone information that you request. When learning in any wireless device, the WP-433 will verify that no other sensor or remote having the same serial number has been previously enrolled and is in the WP-433 memory. If you attempt to learn the same serial number into a different zone already in the WP-433, it will alert you that a duplicate serial number is already present in the memory of the WP-433.

The WP-433 can learn any DSC 433MHz wireless keys and will automatically enroll them as well as defining the keys in section 804, #59 or #61 depending on version number. The #59, #61 default setting are 03 (Stay), 04 (Away), 27 ( Disarm) and 30 (Panic) and follows the icons on a WS4939. Before a wireless key can be used for disarming, it may be necessary to assign a user code to each wireless key.

Please note, the WP-433 will automatically program any zone (01-32) or wireless key (section 41-56) into partition 1. If you wish any zone or wireless key to be programmed in to partition #2 you must re-enter programming after the WP-433 downloading is completed and manually change desired zones or keys to Partition #2.

Product Features:

Can be wired up to 1000 feet (230 meters) from the main panel with 22 AWG wire
Connects to Corbus
Supports 2-way PowerG devices
Multichannel, Frequency Hopping
Spread Spectrum technology - to overcome frequency blocking and interference
Adaptive Transmission Power - for battery life preservation
High transmission ranges - for reliable communication within up to 2km/2187 yards line-of-sight
TDMA synchronized communication technology - to prevent message collisions
128 bit AES encryption - high level protection against analysis tools and digital attacks
Built-in wall and case tampers
Status LEDs
Compatible with all PowerSeries Neo control panels
RF Jamming supervision
Backed by DSC's 1-year limited manufacturer's warranty
