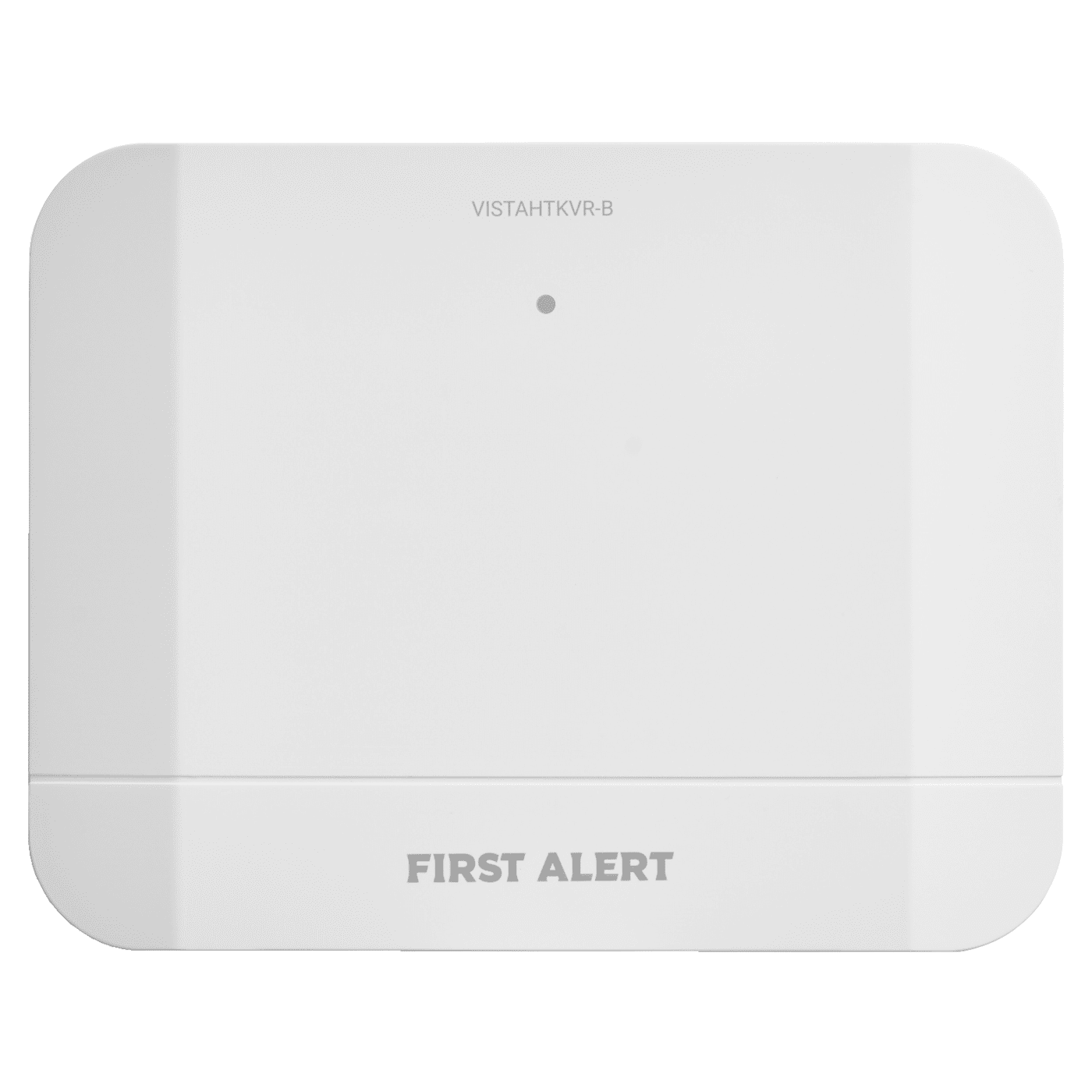

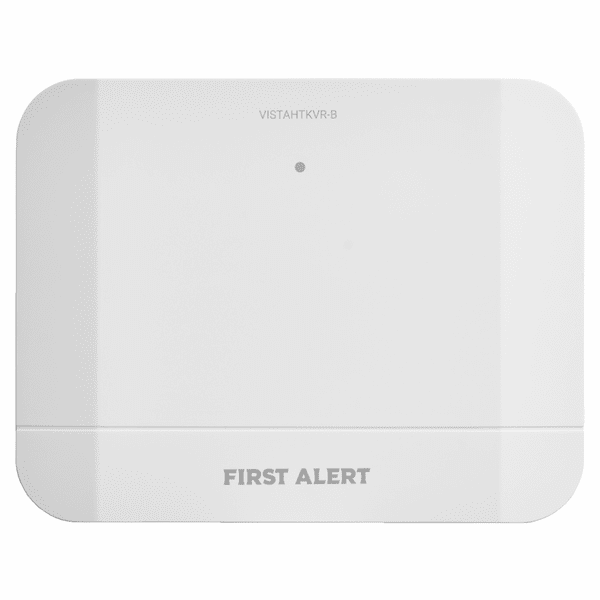

The First Alert VISTAHKVR-B takeover module allows for certain legacy VISTA (ECP) enhanced control protocol devices to be compatible with the VISTAH3 control panel which saves money on installation costs when taking over an existing VISTA installation. With millions of legacy VISTA installations currently active this is a huge opportunity to take over or increase value to those systems.
For 5800 wireless applications the VISTATKVR-B module allows you to use or re-use the existing 5881 line of 5800 RF receivers, for hardwired zone installations you can use or re-use the 4219 hardwired zone expanders and for hardwired relay applications you can use or re-use the 4204 relay module and/or the 4229 combined hardwired zone expander plus relay module. Please reference the chart below for all compatible devices.

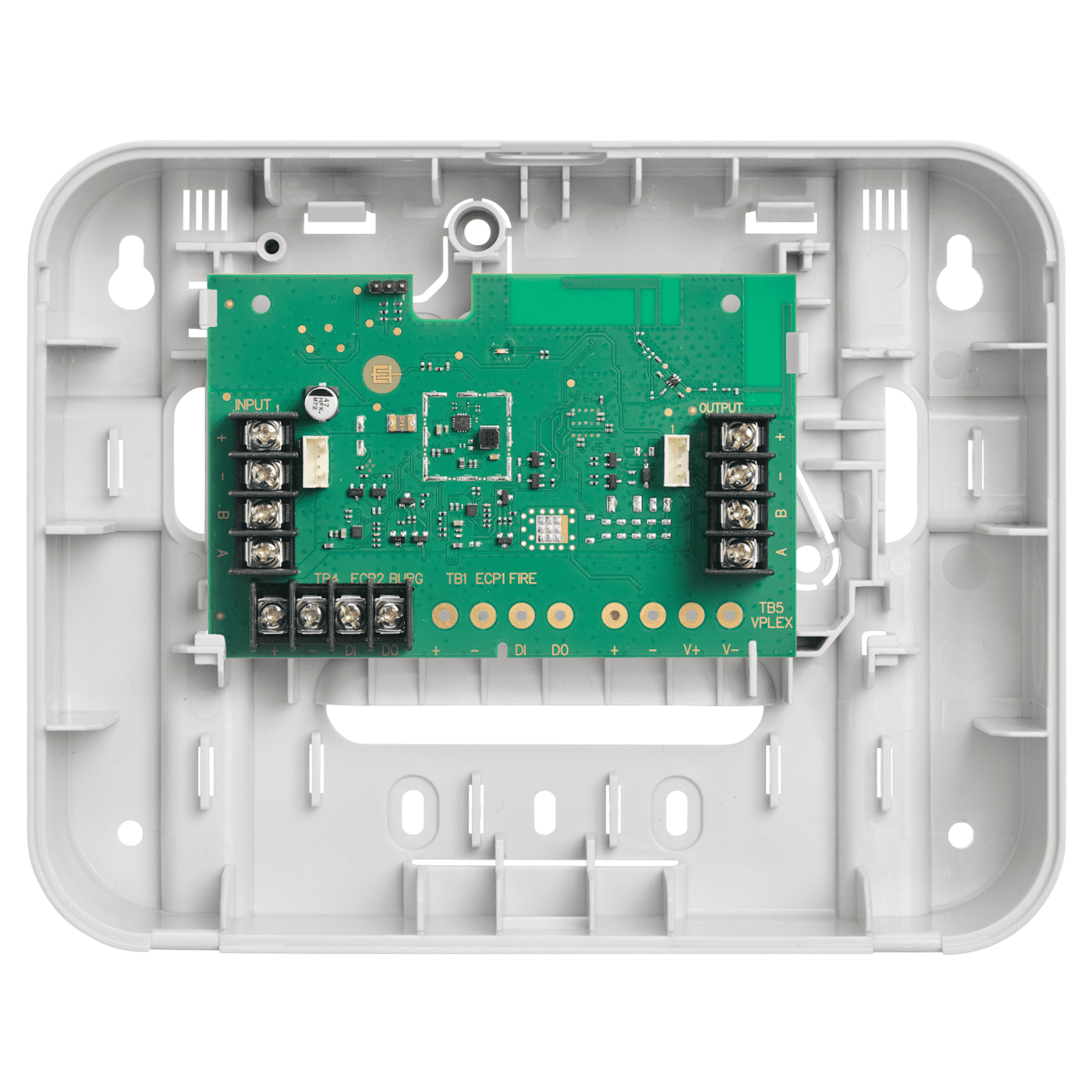

The module has a built-in tamper allowing detection and reporting if the front cover is removed and is supervised so if the wiring is cut a supervision alarm will result indicating the module may not be operational. The flexibility to mount the module on a surface wall or to a gang box depending on the installation environment and the terminal strips are removeable to give installers easier access to help making wiring easier.
Product Features:
Supports 17 total ECP devices, 64 zone inputs, 32 relays and (2) 5800 RF Receivers (Per Device)
Two built-in tampers (front and rear) for removal of cover or from the wall
Module is supervised for wires being cut and alarm signal will result
Can only be mounted remotely in the included plastic on a wall or gang box
