Honeywell Home VISTA 15P Cellular Verizon LTE Hybrid Security System (Powered by AlarmNet)
Honeywell VISTA 15P Kit Description:
The Honeywell VISTA15P-CELL-LTEM-XV-HBDSWAP is a VISTA 15P cellular hybrid (w/6160RF hardwired keypad and wireless receiver) security system kit designed for Verizon LTE alarm communications to the GeoArm central monitoring station. The VISTA 15P is a high capacity, feature-rich, 32-zones control panel that delivers more value to the DiYer.
The VISTA 15P comes with 6 on-board hardwired zones, up to 16 hardwired zones with expansion (6 on-board + 16 expansion = 22 total hardwired zones) and up to 26 wireless expansion zones (using the 6160RF keypad's wireless receiver). Also, the VISTA 15P supports up to 8 wireless keyfobs, up to 32 user codes and up to 8 schedules. With the VISTA 15P you can have remote programming capability and graphic keypad support. The VISTA 15P's installation advantages, innovative end-user benefits and robust system capacity make the value-priced hybrid security system an ideal choice for higher-end DiY installations.
The VISTA 15P cellular hybrid security system is backed by Honeywell's 2-year limited manufacturer's warranty and is compatible with the full-line of Honeywell 5800-Series wireless security products using the 6160RF keypad's wireless receiver. GeoArm and Honeywell give you the options you need to fully customize your DiY security system.
Honeywell VISTA 15P Cellular Hybrid Security System Applications:
- Homes
- Townhomes
- Apartments/Condos
- Offices
- Retail Spaces
- Small Businesses
- Warehouses
- Convenience Stores
- Gas Stations
- Churches
Security System Installation Notes:
To complete your hybrid security system installation, first wall-mount the VISTA 15P control panel. Next, wall-mount the 6160RF keypad close to the VISTA 20P control panel. Finally, connect the LTE-XV cellular Verizon LTE alarm communicator to the VISTA 15P control panel. You will need an AlarmNet cellular alarm monitoring account activated to work with GeoArm's central station.
When designing your system, keep in mind that the Honeywell VISTA 15P security system supports up to thirty-two (32) total zones with expansion modules but only supports twenty-two (22) hardwired zones with expansion. You should add the Honeywell 4219 hardwired 8-zone expansion modules if you want to add more than six (6) hardwired zones to your VISTA 15P security system. Also, remember you can use the 6160RF keypad's RF receiver that comes included to easily expand your VISTA 15P by up to 26 wireless zones.
With an AlarmNet alternative communicator in place (such as the LTEM-XV), you would no longer need traditional phone service at the property to monitor your VISTA 15P hybrid security system. The alternative communicator would also allow you to upgrade to GeoArm's Total Connect interactive alarm monitoring services, which enables you to receive important alerts, keep a close eye on your home and control your security system remotely via the internet and/or mobile devices you use each and every day. Isn't it time you got connected? Save money and take control of your business or home security with GeoArm.
*Please Note: Parts listed above require a subscription to Total Connect 2.0 powered by GeoArm.
Honeywell VISTA 15P Kit Documents:
• User Guide for Honeywell VISTA 15P Control Panel
• Quick Installation Guide for Honeywell VISTA 15P Control Panel
• Installation/Setup Guide for Honeywell VISTA 15P Control Panel
• Programming Guide for Honeywell VISTA 15P Control Panel
Honeywell VISTA 15P Kit Specifications:
•VISTA 15P has the installation flexibility & expandability to be used in simple configurations, complex installs and everything in between.
-Six hardwired zones
-Expands to 32 total zones (up to 26 wireless and/or 22 hardwired zones)
-16 user codes
-48 event log with date/time stamp
-Two-wire or four-wire smoke detectors
-Fast and easy E2 programming mode
•Security & False Alarm Reducing Enhancements
•VISTA 15P has incorporated SIA false alarm reducing requirements with the latest technology.
-Exit delay reset
-Alarm cancel verification
-Unvacated "Auto-Stay"
-Cross zoning/alarm verification
-Short vs. open detection & reporting
-Arming level increase
-Telephone-line monitor
•Valuable End User System Features
•VISTA 15P offers your customers a choice of system features that add value to any install.
-Easy-to-use single button operation
-Arm Away, Arm Stay, Arm Night, Page
-Quick exit, Quick Arm
-X-10 control & 4 relays supported for home management
-Enhanced paging capabilities
-24-hour monitoring zone
-Compatible keypad family
•Wide Selection of Easy to Use End User Interface Devices
•With superior wireless remote control, phone operation and choice of keypads, VISTA 15P can be easily operated to fit your customers needs.
-Wireless remote control
-5804 - Four button, fully programmable key
-5804BD - Four button, fully programmable key with status feedback for added security
-5827BD - Wireless keypad with status feedback
-Phone Control 4285 - Turns any touch-tone phone into a voice response keypad

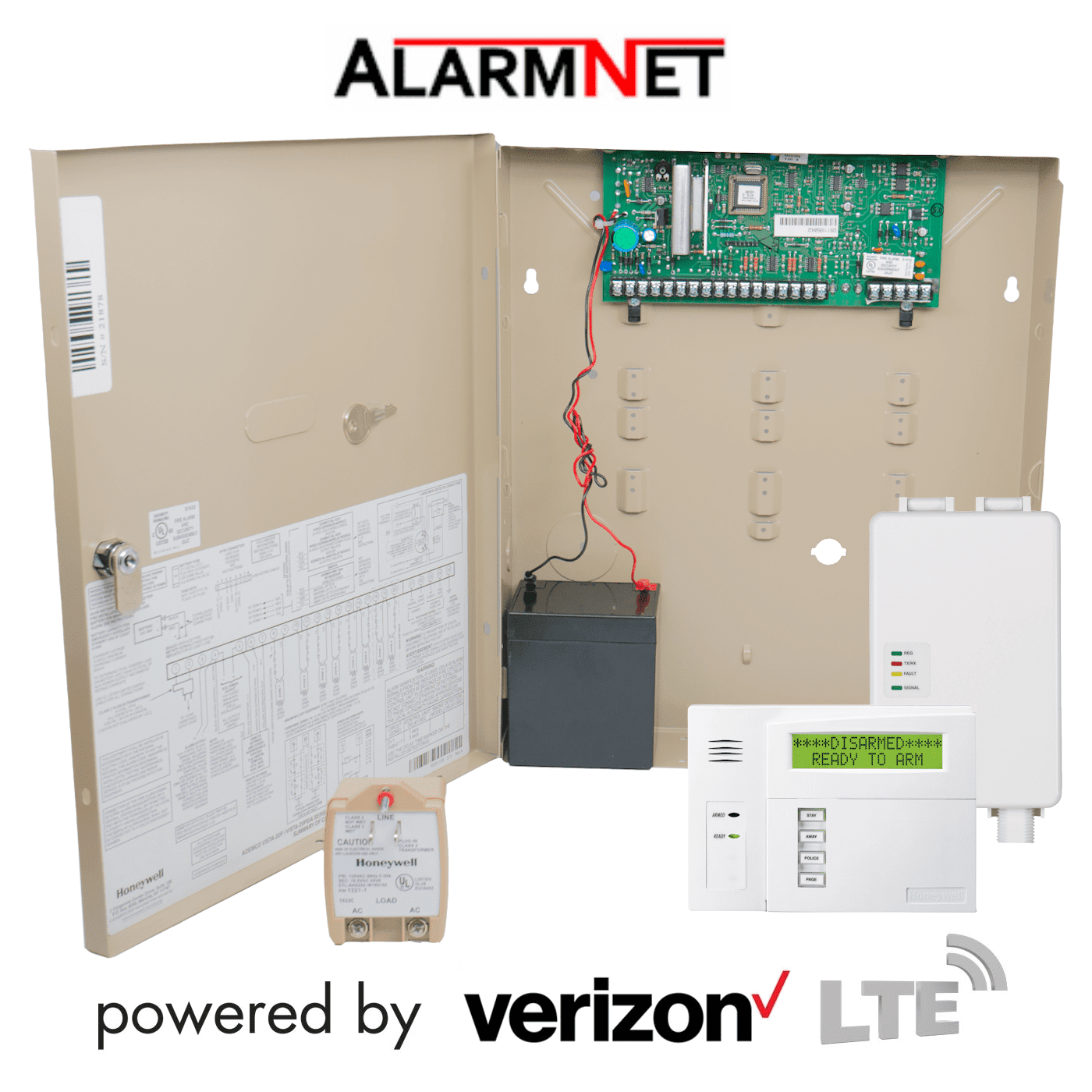

Honeywell VISTA 15P Kit Includes:

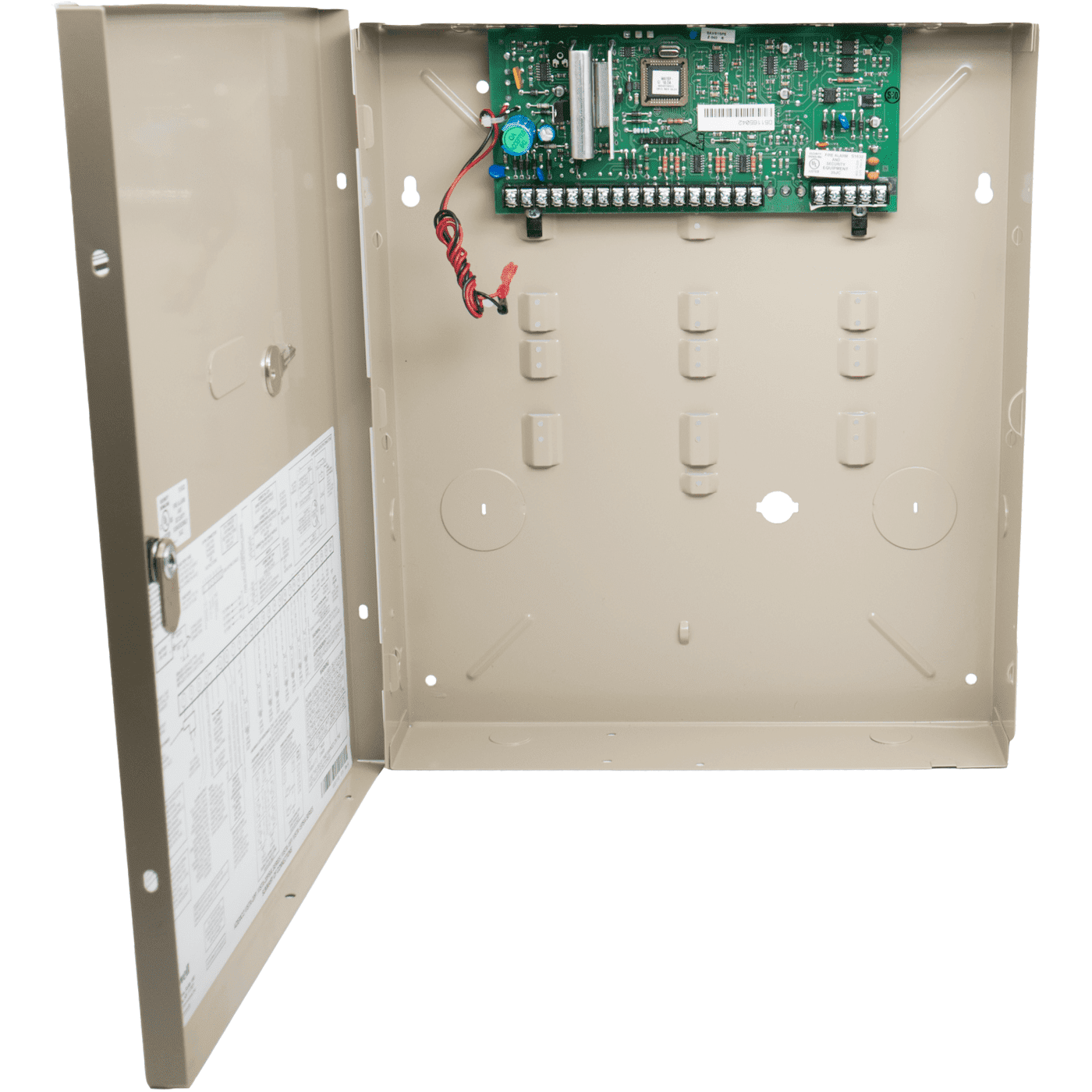

(1) Honeywell VISTA 15P Alarm Control Panel

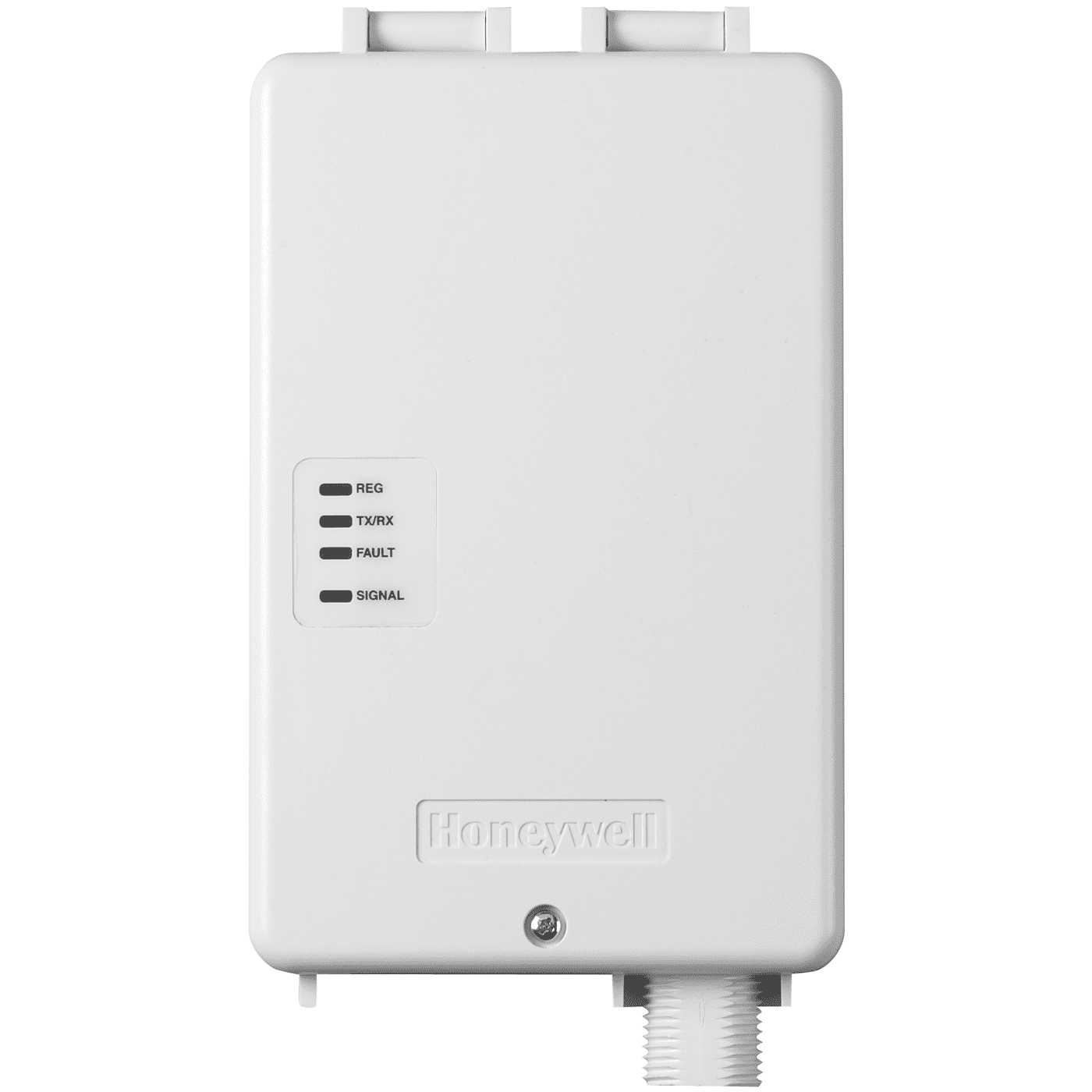

(1) Honeywell LTEM-XV Cellular Alarm Communicator (for Verizon LTE Network)

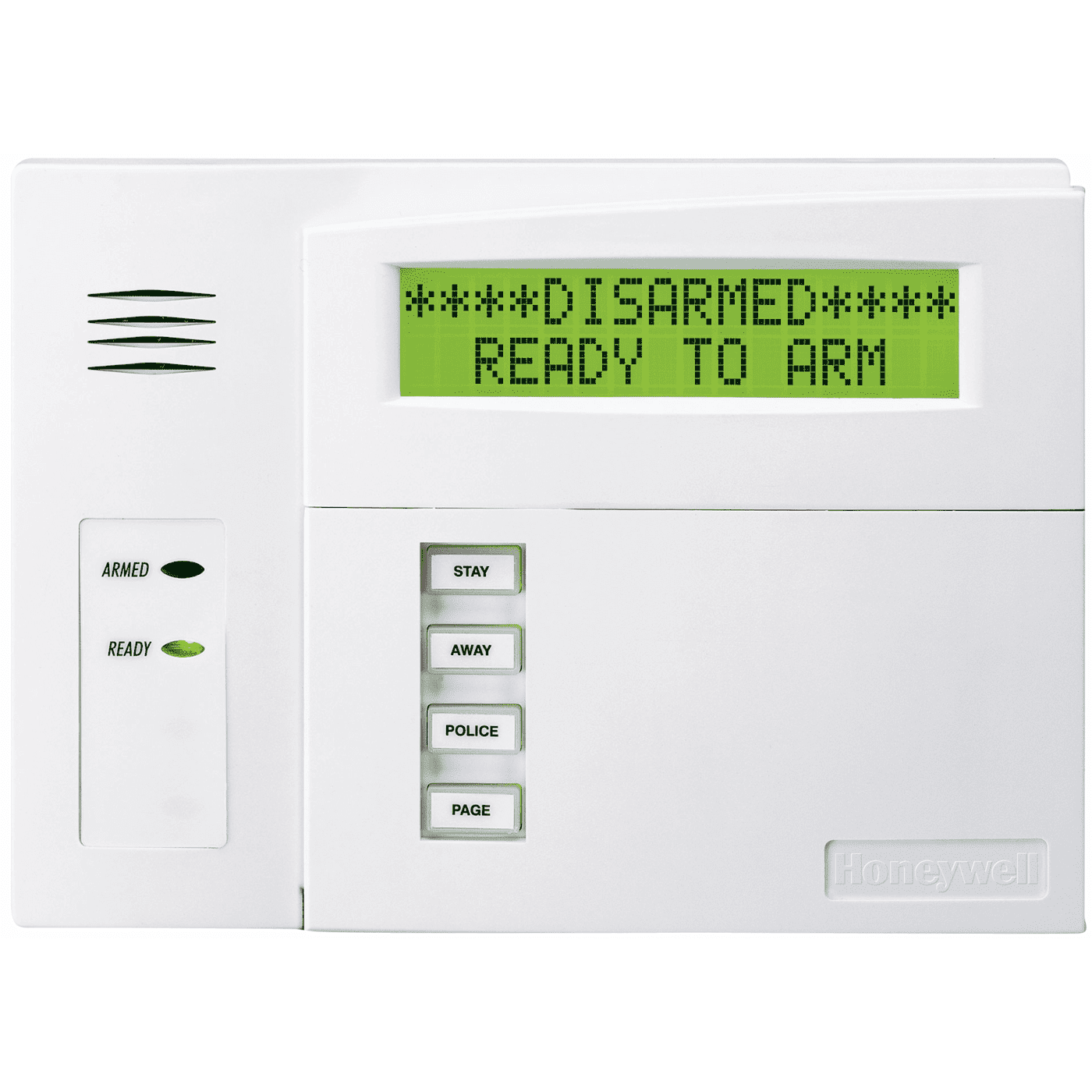

(1) Honeywell 6160RF Programming Alarm Keypad w/Wireless Receiver

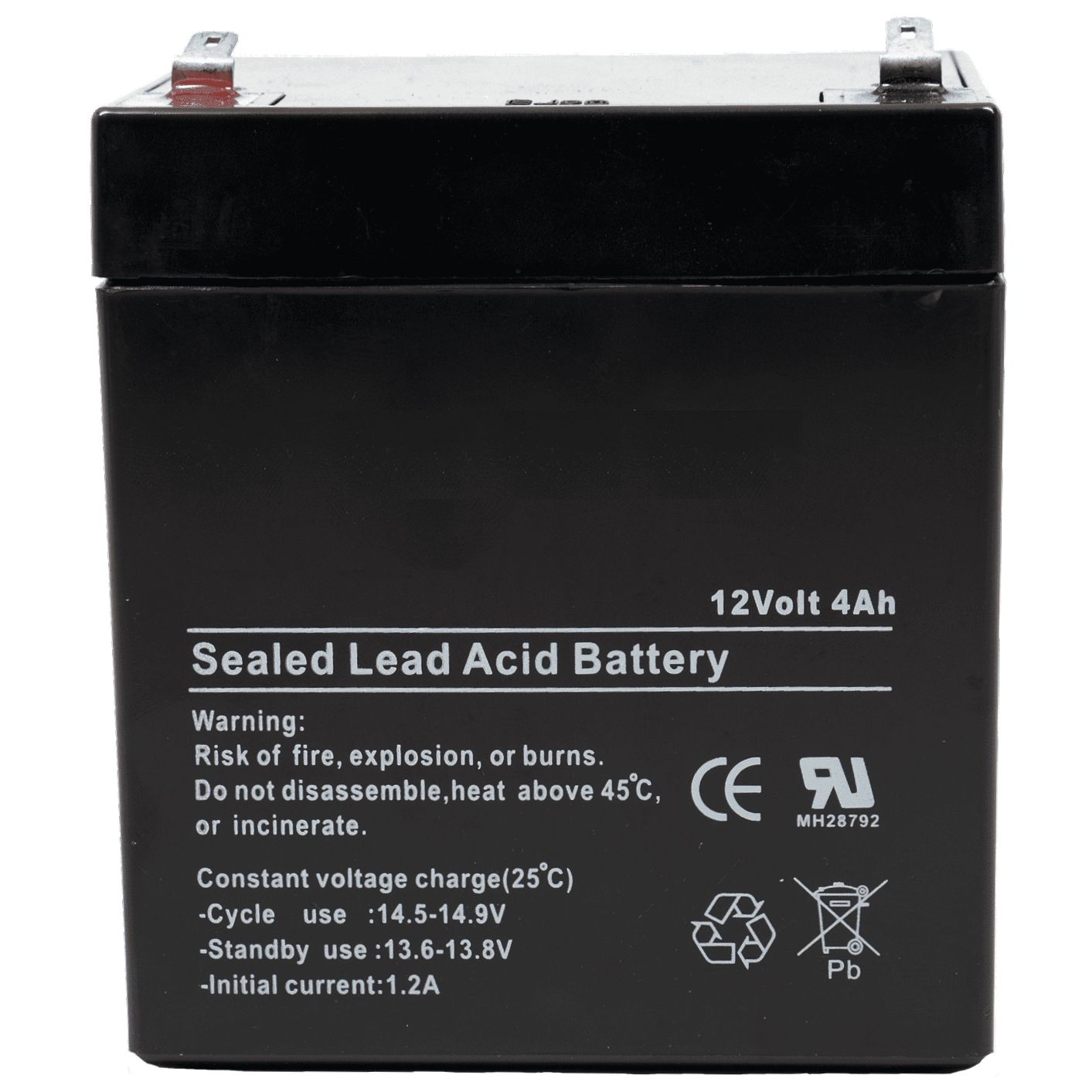

(1) UltraTech IM-1250F1 Backup Alarm Battery (12V @ 5.0 Ah)

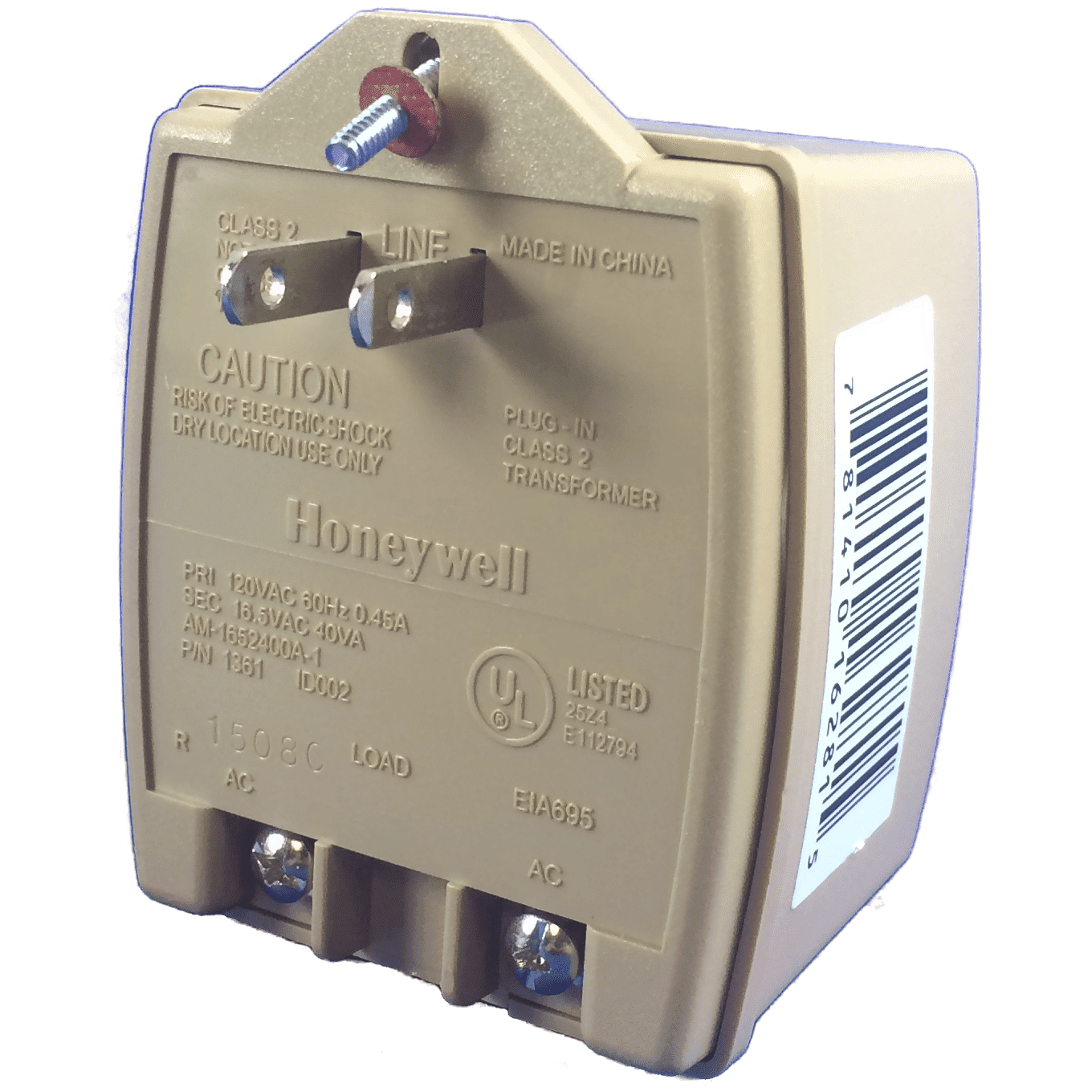

(1) AC Power Transformer (16.5VAC @ 40VA)
Miscellaneous: User Manual
